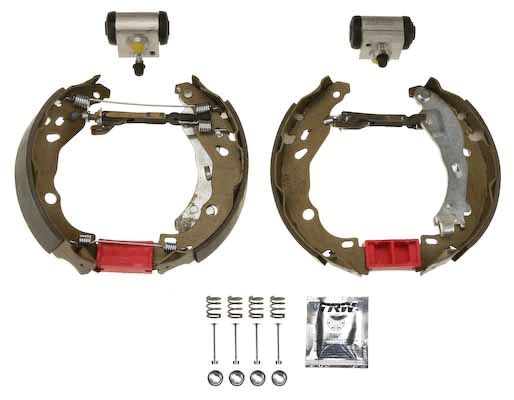

TRW GSK1228 Brake Shoe Set - 1
TRW GSK1228 Brake Shoe Set - 1
TRW

TRW GSK1228 Brake Shoe Set

SKU: GSK1228
Your selected vehicle
Out of stock
Out of Stock
£87.64 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C2 (JM_)
Description Cylinder Capacity Horse Power Year
1.1 1124 CCM 60 HP 09/2003 - 09/2012
1.4 1360 CCM 73 HP 09/2003 - 12/2009
1.4 HDi 1398 CCM 68 HP 07/2003 - 12/2009
1.4 16V 1360 CCM 90 HP 04/2005 - 12/2009
1.4 1360 CCM 75 HP 10/2006 - 12/2009
C2 ENTERPRISE (JG_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 1398 CCM 68 HP 09/2006 - 12/2009
C3 I (FC_, FN_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 1398 CCM 70 HP 04/2002 - 02/2011
1.1 i 1124 CCM 60 HP 08/2002 - 12/2010
1.4 HDi 1398 CCM 68 HP 02/2002 - 12/2009
1.4 i Bivalent 1360 CCM 73 HP 02/2002 - 12/2009
1.6 16V 1587 CCM 109 HP 02/2002 - 08/2010
1.4 16V HDi 1398 CCM 90 HP 02/2002 - 06/2008
1.4 16V 1360 CCM 88 HP 12/2003 - 08/2010
1.6 16V HDi 1560 CCM 90 HP 10/2005 - 12/2009
1.4 i 1360 CCM 73 HP 04/2002 - 12/2006
1.4 HDi 1398 CCM 75 HP 05/2005 - 12/2009
C3 Pluriel (HB_)
Description Cylinder Capacity Horse Power Year
1.4 1360 CCM 73 HP From 05/2003
1.4 HDi 1398 CCM 68 HP From 04/2004
1.4 1360 CCM 75 HP From 07/2003

The TRW GSK1228 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records 20.6 mm piston diameter, 200 mm inner brake drum diameter, 39 mm width, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Piston Diameter [mm] : 20.6
Inner brake drum diameter [mm] : 200
Width [mm] : 39
Manufacturer Restriction : BOSCH
SVHC : No information available, please contact the manufacturer!
Fitting Position : Rear Axle
Braking/Driving Dynamics : for vehicles with ABS
  • Vendor TRW
  • SKU GSK1228
  • Barcode 3322937947621
  • CITROËN : 4242 10 4242 11 4242 27 E 170 210
  • PEUGEOT : 4242 10 4242 27 E 170 210
  • BORG & BECK : BBS1113K
  • BOSCH : 0 204 114 181
  • BREMBO : K 61 084
  • DELPHI : KP1088
  • FEBI BILSTEIN : 37548
  • FTE : 9110018
  • HELLA : 8DB 355 002-751
  • HELLA : 8DB 355 004-911
  • MEYLE : 214 533 0027
  • MINTEX : MFR520
  • MINTEX : MSP245
  • TEXTAR : 84061600
  • TEXTAR : 91061600
