UFI 24.520.00 Fuel Filter
Your selected vehicle
Regular price
£12.50
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

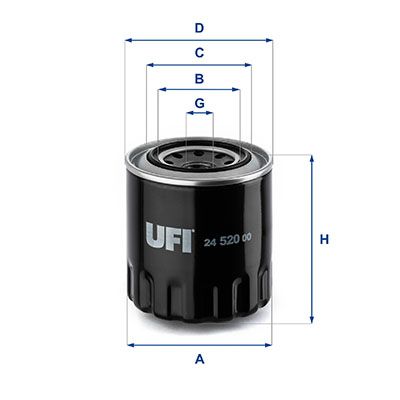

The UFI 24.520.00 Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 56 mm inner diameter, 90 mm outer diameter, and 92 mm outer diameter 1. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Fuel Filter
Filter type :
Spin-on Filter
Height [mm] :
96
Inner Diameter [mm] :
56
Outer Diameter [mm] :
90
Outer Diameter 1 [mm] :
92
Inner Diameter 1 [mm] :
63
Exit Thread Size :
M20X1.5
- Vendor UFI
- SKU 24.520.00
- ATLAS COPCO : FD8130
- CASE IH : FC405
- CATERPILLAR : 1347572 1838187 3I1112 ME016823
- DAIHATSU : 2330387304 2330387304000
- FORD : E3TZ9155B E3TZ9365A
- HYUNDAI : 3194545001 521323570
- JOHN DEERE : CH20196
- KOBELCO : 2451R1242A MEO16823
- KOMATSU : 37Z02FF461 ME016823 TK055913850A
- KUBOTA : 1J80043170 7000034500
- MASSEY FERGUSON : 55923570
- MAZDA : 055923570 055923570A 55923570 FC1705 RF0313850B S21313850 S21313850A S21313850B S21323570 S21323603 S21323850B S23423570 SE0113850 SE0113850A SL0113850A TF0113ZA5
- MERCEDES-BENZ : ME016872 ME016872049
- MITSUBISHI : ME016823 ME016872 ME229272 ME229355
- TOYOTA : 2330387304
- WESTERBEKE : 24363
- YANMAR : 12947055700 12974055700
- BLUE PRINT : ADC42339
- BLUE PRINT : ADM52334
- MANN-FILTER : WK 920/3
- WIX FILTERS : 33396
- WIX FILTERS : WF8110
