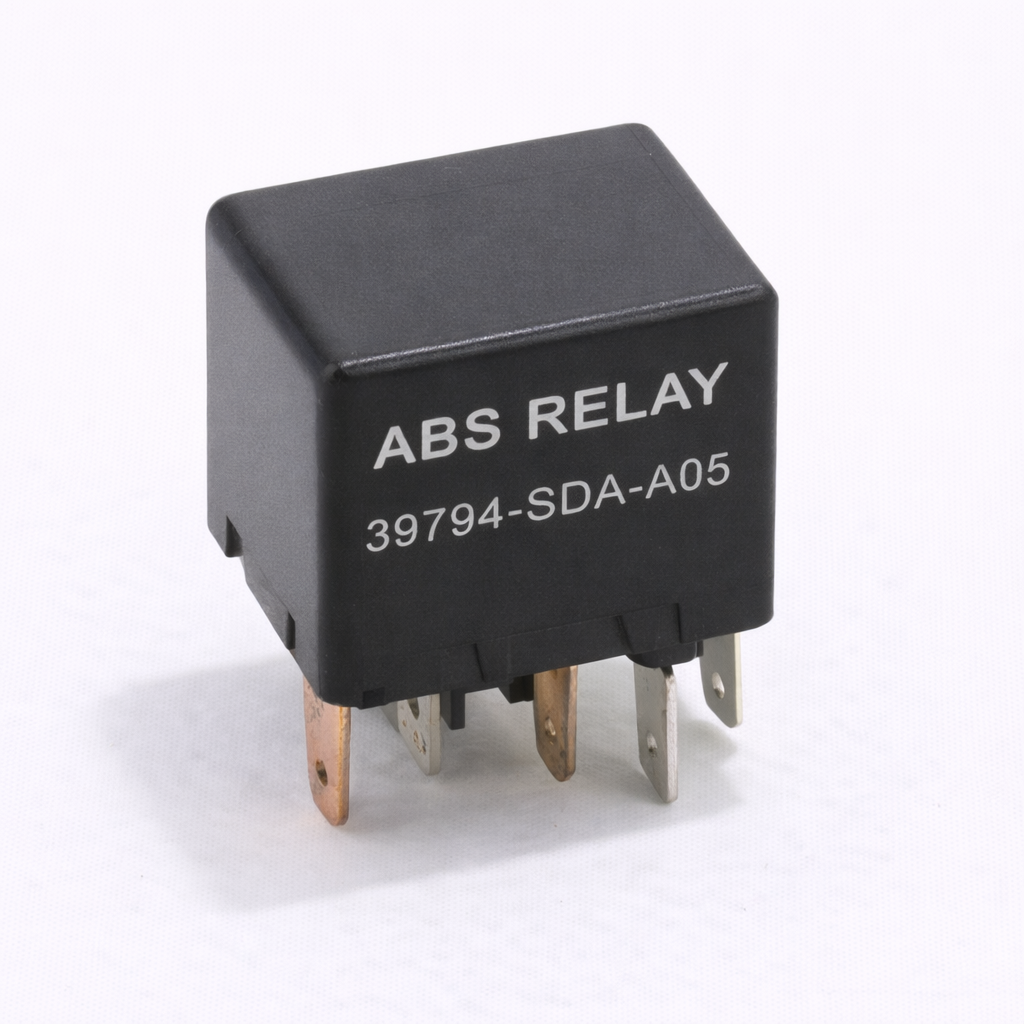

ABS Relay

ABS relay can mean electrical switching or pneumatic modulation

In an electrically driven hydraulic ABS system, a relay may supply high current to the return pump or controller. In commercial air braking, a relay modulator uses nearby reservoir air to apply brakes quickly while solenoids increase, hold or reduce pressure during ABS intervention.

The shared name does not make these components interchangeable or testable by one generic method.

The two architectures handle different energy

ABS preserves steerability by controlling slip

Wheel-speed sensors let the controller estimate when one wheel is decelerating too quickly. It commands pressure reduction, hold and reapplication so the tyre can regain rotational grip. The process repeats rapidly while the driver maintains pedal demand.

ABS cannot create tyre grip or shorten every stop; tyres, load, surface and foundation brakes still set physical limits.

A pneumatic relay valve reduces response delay

Sending air from the foot valve all the way to distant brake chambers would take time. A relay valve uses the control signal to open a short high-flow path from a nearby reservoir. Delivery pressure broadly follows control pressure while exhaust capacity releases the chambers.

An ABS modulator adds electrically operated stages without replacing the normal fail-safe pneumatic service path.

Fitment follows the exact brake schematic

Electrical relay diagnosis must include motor load

A relay can click while burnt contacts fail to carry pump current. Test supply, earth and voltage drop under the commanded load with rated fused equipment. Excess motor current from a seized or worn pump can damage a new relay.

Do not bridge terminals until the circuit diagram, fuse protection and maximum current are known.

Suppression changes coil polarity

Some relays contain a diode or resistor to control the voltage spike when the coil switches off. A diode makes coil polarity important; inserting a superficially similar relay can short the control output. Terminal numbering alone may not disclose every internal electronic feature.

Match the exact relay reference and internal diagram.

Pneumatic port numbers describe flow roles

Supply, control, delivery and exhaust ports have defined markings. Crossing them can delay, trap or unintentionally apply brakes. Keep protective caps in place until each clean pipe is identified and ready.

Never infer a port from its physical height; use the valve diagram and vehicle schematic.

Symptoms must be read by system type

Diagnostic codes identify circuits, not automatic replacements

Codes for pump relay, modulator valve, open circuit or response time need freeze-frame and wiring context. An ECU may disable ABS after low voltage or an intermittent connector fault. Record codes before clearing and reproduce conditions only in a controlled safe test.

A cleared warning without a completed self-test is not proof of repair.

Air quality affects pneumatic valve life

Water, oil and corrosion debris from reservoirs can attack seals and small solenoid passages. Drain and maintain air treatment as the vehicle schedule requires. Replacing a contaminated modulator without correcting the compressor, dryer or reservoir issue invites repeat failure.

Do not introduce general lubricant into brake-air ports unless explicitly specified.

Pressure must be proven zero before disconnection

Chock and mechanically secure the vehicle, drain all linked reservoirs through approved valves and verify gauges and the prescribed zero-pressure check. Isolate automatic suspension and parking-brake energy. A disconnected pipe can whip or discharge debris.

Spring brake chambers retain mechanical energy even when air pressure is gone and must not be dismantled casually.

Hydraulic systems retain their own pressure hazards

Some ABS accumulators or pump units can remain pressurised after ignition off. Follow the exact depressurisation and brake-fluid handling method. Fluid damages paint and contamination can compromise seals and valves.

Use only the specified brake fluid and keep all hydraulic openings surgically clean.

Removal preserves pipe and connector identity

Record the system

Photograph port numbers, pipe labels, connector locks, mounting direction and exhaust path.

Release without side load

Use correct line tools and support pipes so cast ports and plastic fittings are not cracked.

Cap every opening

Keep water, grit and thread fragments out while the component is removed.

Thread sealing must stay outside the valve

Use new approved sealing rings or the specified thread treatment in the correct location. Excess tape or liquid sealant can detach and block a modulator passage. Start fittings by hand and torque the valve body without twisting pipes.

Do not reuse a deformed push-in collet or damaged pneumatic tube end.

Mounting orientation controls drainage and exhaust

A relay modulator's exhaust must remain open and face as specified so water cannot pool. Brackets isolate vibration and protect air lines from movement. Restore shields and maintain clearance from exhaust heat, driveshafts and road debris.

An electrical relay box likewise needs intact seals and drain paths.

Functional testing covers normal braking first

Restore air or hydraulic pressure under observation, check every joint with the approved leak method and confirm normal apply, hold and release. Then use diagnostic actuator tests for pump or solenoids and verify wheel-speed inputs.

Do not begin a road ABS stop until foundation braking, pressure and warning status are proven.

Controlled dynamic testing needs a safe environment

Where required, perform an instrumented test on a suitable closed site with trained personnel. Public-road attempts to trigger ABS create collision risk. Compare axle response, warning status and post-test stored faults.

Stop for pulling, delayed release, low pressure, overheating or an unexpected warning.

Foundation-brake balance remains essential

ABS can only modulate the braking hardware connected to it. Unequal lining condition, seized calipers, incorrect chamber stroke, tyre mismatch or poor adjustment can make one wheel reach slip much earlier than another. The controller response may be correct while the underlying brake balance is not.

Inspect and measure foundation-brake condition and performance rather than using a modulator replacement to mask mechanical imbalance.

UK roadworthiness treats braking defects seriously

The MOT assesses ABS warning operation where applicable and the condition, security, leaks and performance of the braking system. A pneumatic leak or inoperative anti-lock function is not made acceptable by normal pedal feel in one workshop check.

Commercial vehicles also require maintenance within their operator inspection and braking-performance regime.

Practical ABS-relay FAQs

Q: Is an ABS relay always electrical?
A: No. Commercial systems use pneumatic ABS relay modulators.

Q: Does a clicking relay prove pump power?
A: No. Test contact voltage drop under the actual load.

Q: Can a standard relay replace an ABS relay?
A: Only the exact rating, pinout, suppression and application are acceptable.

Q: What does a pneumatic relay modulator do?
A: It relays service pressure locally and modulates it during ABS control.

Q: Can port positions be copied visually?
A: No. Identify supply, control, delivery and exhaust markings.

Q: Is zero on one gauge enough before removal?
A: No. Drain and verify every connected reservoir/circuit by procedure.

Q: May thread tape be used?
A: Only where specified and never where fragments can enter valve passages.

Q: Why does a new relay overheat?
A: Check pump current, socket resistance and the correct coil voltage.

Q: What causes air at the exhaust port?
A: Valve contamination, damaged seats or pressure feeding back from another circuit.

Q: Can ABS be road-tested by hard braking?
A: Use the prescribed controlled environment and trained method.

Q: What requires immediate withdrawal?
A: Active leaks, dragging brakes, low pressure or unreliable normal braking.

Q: What proves completion?
A: Correct part/porting, dry or leak-free circuits, normal braking and passed self-test.
