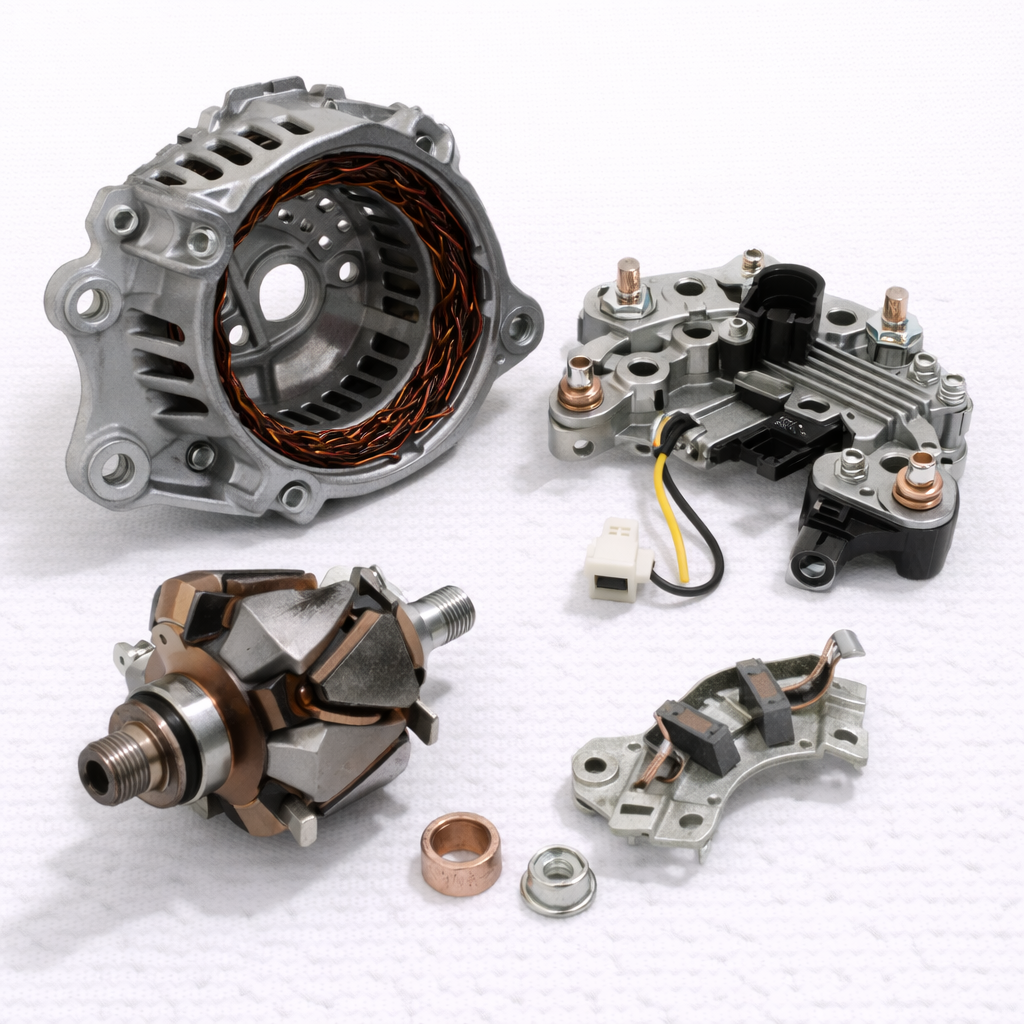

Alternator parts work as one electromechanical system
A conventional automotive alternator turns mechanical energy from the auxiliary belt into three-phase alternating current. A rectifier converts that current to direct current, while a regulator controls rotor field strength so output suits the battery and electrical load. Bearings, cooling fans, terminals and the pulley keep that conversion aligned, cool and connected.
Each component has a distinct job
| Component | Function | Typical failure evidence |
|---|---|---|
| Rotor and field winding | Creates the rotating magnetic field. | Open/short winding, damaged shaft or field-current fault. |
| Stator | Produces multi-phase AC output. | Burnt winding, phase imbalance or insulation breakdown. |
| Rectifier/diodes | Converts AC into one-directional DC. | High ripple, low output, heat or parasitic drain. |
| Regulator | Controls field current using voltage and command inputs. | Control fault, over/undercharge or communication code. |
| Brushes and slip rings | Carry current into the rotating field. | Intermittent output, wear, arcing or contamination. |
| Bearings | Support the rotor at controlled clearance. | Rumble, roughness, play or heat. |
| Pulley/decoupler | Transfers belt drive and may isolate torsional pulses. | Rattle, belt flap, seizure or freewheel failure. |
| Housing and fan | Aligns parts and rejects heat. | Cracks, contact, corrosion or overheating. |
Unit identification is more reliable than appearance
Find the alternator maker, exact unit or OE reference and suffix on the fitted machine. Vehicle applications can change during a production run according to battery, stop-start equipment, heated options, engine packaging and supplier. A regulator that bolts into the case may use a different field strategy or network language.
| Selection detail | What to match | Mismatch risk |
|---|---|---|
| Manufacturer/unit number | Original internal architecture and revision. | Physically similar but electrically incompatible part. |
| System and output | Nominal voltage, current rating and thermal design. | Overload, poor control or inadequate output. |
| Regulator protocol | Warning-lamp, phase, LIN, BSS or other control. | Communication faults and default charging. |
| Rectifier arrangement | Phase count, diode polarity, mounts and terminals. | Short circuit or incorrect current path. |
| Rotor/stator dimensions | Winding, diameter, stack and lead positions. | Contact, wrong output or assembly failure. |
| Bearings and shaft | Bore, outside diameter, width and sealing. | Loose fit, preload error or rotor misalignment. |
| Pulley | Grooves, offset, thread, rotation and decoupling type. | Belt misalignment or torsional vibration. |
Modern charging voltage is deliberately variable
An older regulator may largely respond to sensed voltage and temperature. Modern energy-management systems can request alternator output over a communication line according to battery state, braking, acceleration, temperature and electrical load. Voltage may fall during some operating states and rise during others without indicating failure.
Compare requested and actual generator data using vehicle-specific information. Check battery type and registration or adaptation after replacement where required. A wrong battery specification or unconfigured battery monitor can make a healthy alternator behave unexpectedly.
The battery and cables are part of the test circuit
A deeply discharged, sulphated or internally shorted battery can demand abnormal current and overheat the alternator. High resistance at the output stud, fuse link, starter junction, battery terminal or engine earth can reduce battery voltage while the alternator itself produces correctly.
Perform loaded voltage-drop tests across both positive and return paths. Visual cleanliness is not enough: corrosion can hide inside a crimp or braided earth. Protect control modules by connecting and disconnecting test equipment with the correct ignition state.
Symptoms need several measurements
| Observation | Possible alternator-parts cause | Other likely checks |
|---|---|---|
| Low or no output | Brush, rotor, rectifier, stator or regulator fault. | Belt, cables, fuse link, battery and command. |
| High AC ripple | Open/short diode or stator phase fault. | Meter setup and electrical load variation. |
| Overcharge indication | Regulator or sense-circuit failure. | Battery sensor, earth reference and network command. |
| Rumble with engine speed | Bearing damage. | Idlers, tensioner, compressor and crank pulley. |
| Belt flapping | Seized decoupler or rotor drag. | Tensioner damping and crank damper. |
| Key-off battery drain | Leaking rectifier diode. | Vehicle modules, accessories and test sleep period. |
| Charging warning intermittent | Brush/slip-ring wear or regulator connection. | Harness, ignition supply and belt slip. |
| Burnt output terminal | Loose or resistive stud connection. | Cable lug, torque and downstream current demand. |
AC ripple reveals rectification quality
Healthy rectification produces a relatively smooth DC supply with a small repeating ripple. A failed diode or phase can create a larger uneven waveform, reducing available output and introducing electrical noise. This can disturb modules, lights, audio and sensor signals.
Use an oscilloscope or suitable true measurement method at a defined load and engine speed. A simple AC range reading can be useful only when its limitations and vehicle specification are understood. Do not apply a universal ripple threshold to every architecture.
Rectifier faults can drain the battery while parked
A diode should conduct in one direction and block the other. A damaged junction can leak current from the battery into the stator after shutdown. It may also generate local heat and radio interference. Confirm the alternator branch is responsible without breaking a high-current circuit unsafely.
Diode testing requires isolation
In-circuit readings can be influenced by regulator electronics and parallel windings. Follow the unit procedure for disconnecting stator leads and use the correct polarity tests. Soldered or welded joints need controlled heat so new diodes and insulation are not damaged during repair.
Brushes and slip rings wear together
Carbon brushes ride on copper slip rings to supply rotor current. Springs maintain contact as the brushes shorten. Oil contamination, ring grooving, eccentricity or a weak spring can cause arcing and intermittent excitation. Replacing only brushes against deeply worn rings may provide short-lived contact.
Measure brush projection, spring condition, slip-ring diameter and run-out against unit data. A slip-ring replacement requires correct shaft preparation, electrical connection and machining; debris must not enter bearings or windings.
Bearings need correct support and fits
Front and rear bearings see belt load, rotor speed and heat. Removal force must be applied through the supported race so it is not transmitted through the rolling elements. Installation against the wrong race can brinell a new bearing before the alternator runs.
Inspect shaft and housing fits, retaining plates, spacers and preload arrangement. A spun bearing may have enlarged the housing, while a bent rotor can make a new bearing noisy. General-purpose bearings with the same dimensions may lack the required speed, clearance, sealing or temperature capability.
Overrunning pulleys protect the belt drive
Diesel and stop-start engines can create strong torsional speed changes. An overrunning alternator pulley or decoupler lets rotor inertia separate from some belt events, reducing tensioner movement and noise. A solid pulley substituted for a specified decoupler can transmit harmful vibration.
Test direction and damping by the exact design
Some pulleys freewheel in one direction; decouplers may also provide spring action. Rotation direction and test method depend on the unit. Use the dedicated spline or internal holding tool and preserve pulley offset. Do not clamp the pulley or fan destructively.
Regulator replacement does not cure every control fault
The regulator may incorporate brushes, temperature compensation, field switching and network electronics. Before replacement, check its supply, earth reference, communication wire and rotor winding. A shorted field can overload a new regulator, while a broken network wire can make several regulators report the same fault.
Confirm coding or adaptation requirements and the warning-lamp strategy. Avoid unverified “self-exciting” conversions that bypass energy management or charging warnings on a road vehicle.
Heat evidence determines whether rebuilding is sensible
| Inspection finding | Repair implication | Decision point |
|---|---|---|
| Clean case, local bearing wear | Targeted bearing repair may be practical. | Check shaft and housing dimensions. |
| Grooved slip rings | Brush-only repair may not last. | Measure ring and rotor condition. |
| Blackened stator varnish | Winding insulation may be overheated. | Test insulation and find overload cause. |
| Melted rectifier connection | High resistance or excess current occurred. | Inspect stator, terminal and cooling. |
| Cracked or enlarged housing | Alignment and bearing retention are compromised. | Replacement unit may be safer. |
| Water or oil contamination | Electronics, brushes and insulation may be affected. | Repair source and assess complete unit. |
| Multiple burnt assemblies | Systemic thermal or electrical overload. | Full rebuild or replacement after root-cause diagnosis. |
Safe removal controls high current and stored energy
The alternator output cable is connected to battery positive through a high-current path. A tool bridging its terminal to earth can cause fire, burns or battery damage. Follow the vehicle battery shutdown sequence, allow modules to power down and isolate the correct terminal before removing the protective cap or output nut.
Release belt tension with the proper tool and keep fingers away from the tensioner path. Support the alternator as its bolts are removed. Hybrid and electric vehicles may combine low-voltage charging with high-voltage power electronics; identify the architecture before work.
Belt starter-generators are a different category
A belt starter-generator can deliver starting torque as well as generate power, sometimes at 48 volts. Integrated starter-generators and traction motors may connect to high-voltage systems. Their inverters, phase cables and isolation requirements are not equivalent to a conventional alternator regulator and rectifier.
Do not open or test orange-cabled equipment using ordinary alternator procedures. Qualified high-voltage work, isolation verification and model-specific tooling are required.
Reassembly must restore insulation and cooling
Keep windings and rectifier surfaces clean. Route stator leads away from the rotor, reinstall every insulating bush and ensure the output stud cannot rotate into contact with the case. Align case halves using their original marks or specified features so bearing bores and mounts remain true.
Use correct press tooling, soldering temperature and fastener torque. Refit fans in the right direction and preserve cooling-air paths. Tighten the pulley with its dedicated counter-hold rather than passing torque through fragile internal parts.
Roadworthiness and MOT are not charging-system certification
A charging warning, insecure cable, damaged belt drive or electrical overheating can make the vehicle unsafe or lead to loss of lighting, engine operation or assistance systems. Repair smoke, burning smell, arcing or severe bearing noise immediately and do not continue running a failing unit.
The MOT can expose related warning, lighting or security problems but does not load-test alternator output or inspect its internal repair. A pass is not evidence of correct smart-charging communication or battery state.
Practical alternator-parts FAQs
Q: Can parts be chosen by vehicle model alone?
A: No. Match the alternator maker, unit number and revision.
Q: Does low voltage prove the regulator has failed?
A: No. Battery, cables, belt, commands and windings also matter.
Q: Is one charging voltage correct for every vehicle?
A: No. Smart charging varies voltage with demand and strategy.
Q: What can high AC ripple indicate?
A: A rectifier diode or stator phase fault may be present.
Q: Can a diode drain the battery overnight?
A: Yes. A leaking diode can create a key-off current path.
Q: Should brushes be replaced without checking slip rings?
A: No. Grooved or worn rings can quickly damage new brushes.
Q: Can any same-size bearing be installed?
A: No. Speed, clearance, sealing and fit specification must match.
Q: Can a decoupler be replaced by a solid pulley?
A: Not unless the drive system is specifically designed for it.
Q: Is alternator noise always a bearing?
A: No. Check pulley, belt, tensioner and nearby accessories.
Q: Can I disconnect the battery while the engine runs?
A: No. Voltage transients can damage vehicle electronics.
Q: Does a new regulator require coding?
A: Some systems need configuration or adaptation; check the procedure.
Q: Is a belt starter-generator a normal alternator?
A: No. It may use higher voltage and bidirectional power electronics.
Q: Does an MOT pass confirm charging output?
A: No. Dedicated load, ripple and control testing is required.
Q: What confirms a successful repair?
A: Correct output, low specified ripple, normal commands and stable belt operation.
