A sound body repair restores more than appearance
A vehicle body carries loads, controls crash energy, excludes water and protects metal from corrosion. Paint supplies colour and environmental resistance, but the strength and durability come from the complete panel, joint, coating and cavity-protection system.
Successful work begins by defining the damage boundary. A glossy surface can hide stretched metal, broken bonding, displaced sensors or corrosion left beneath filler. Assessment determines whether a repair is cosmetic, panel-level or structural.
Repair levels and appropriate scope
| Damage level | Examples | Appropriate response |
|---|---|---|
| Surface finish | Clearcoat mark, chip or shallow scratch. | Clean, assess depth and refinish locally if suitable. |
| Cosmetic panel | Small accessible dent without sharp stretching. | Paintless or conventional panel repair after inspection. |
| Bolt-on part | Damaged wing, bonnet, door skin or bumper cover. | Repair or replace with alignment and corrosion restoration. |
| Welded outer panel | Quarter panel or bonded roof skin. | Manufacturer joining method and dimensional control. |
| Structural area | Pillar, rail, sill reinforcement or suspension mounting. | Qualified structural measurement and approved procedure. |
| Safety-system zone | Airbag sensor, seat-belt mount, radar bracket or battery case. | Specialist assessment, scanning and required calibration. |
Substrate identification
Steel and coated steel
Conventional and high-strength steels can look alike. Their grade determines whether heat, straightening or sectioning is permitted. Grinding away galvanised or electro-coated protection creates a corrosion vulnerability that must be restored.
Aluminium
Aluminium work needs dedicated clean tools and controlled joining. Embedded steel particles create galvanic corrosion, while excessive heat changes material properties. Aluminium dust also presents a combustion hazard when poorly managed.
Plastics and composites

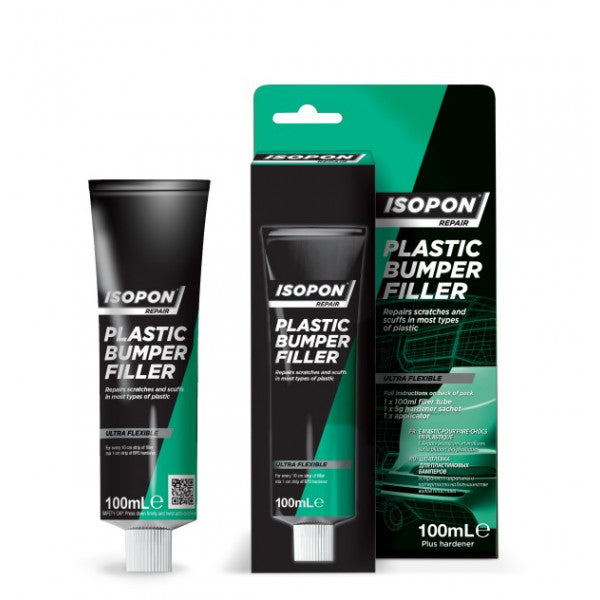

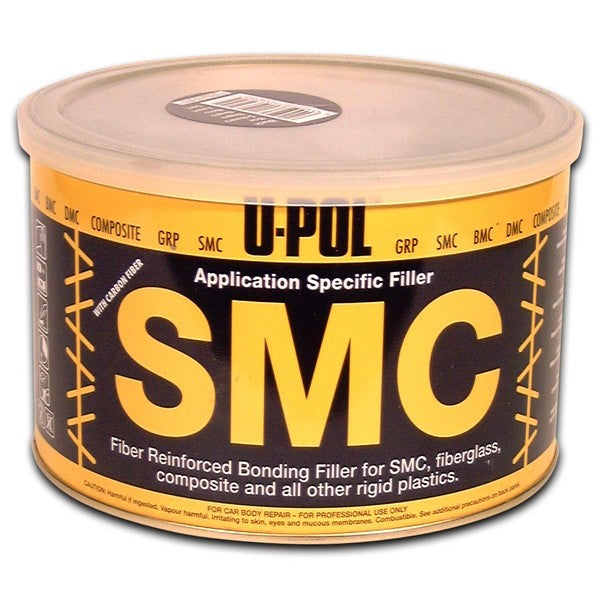

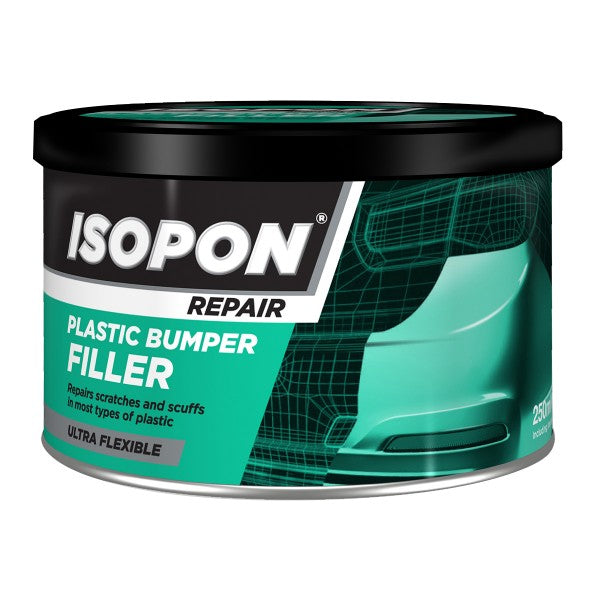

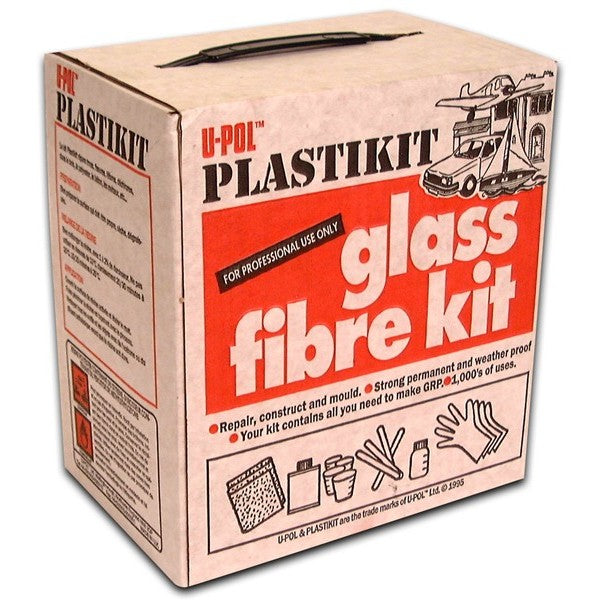

Bumper covers may be polypropylene blends, while panels can use glass-fibre or sheet-moulded composite. Identify the marking or repair information because adhesive, welding rod, cleaner and filler must be compatible. Flexible parts need a coating system that tolerates movement.
Body repair material families
| Material or tool | Purpose | Critical control |
|---|---|---|
| Dent-removal tool | Moves metal towards its original contour. | Access, leverage, panel stretch and hidden equipment. |

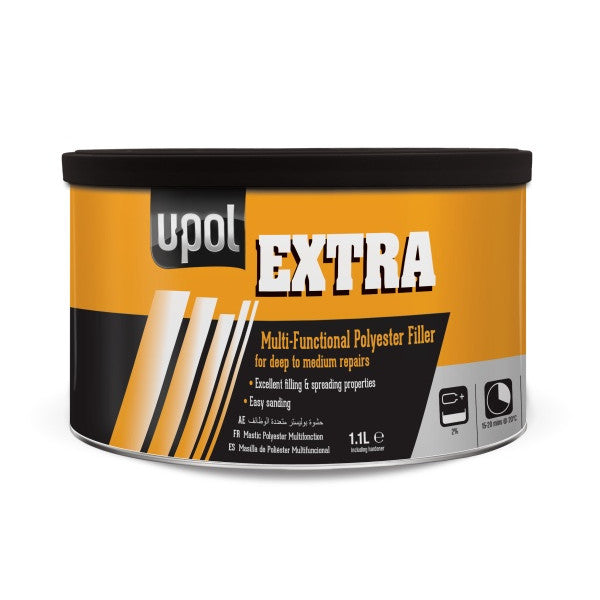

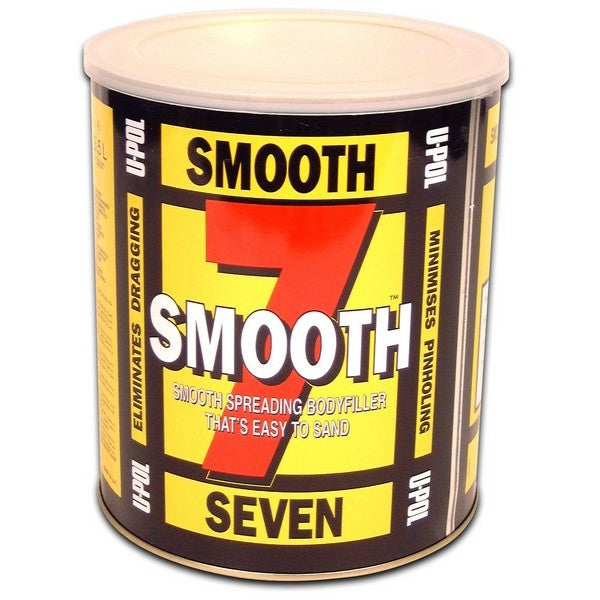

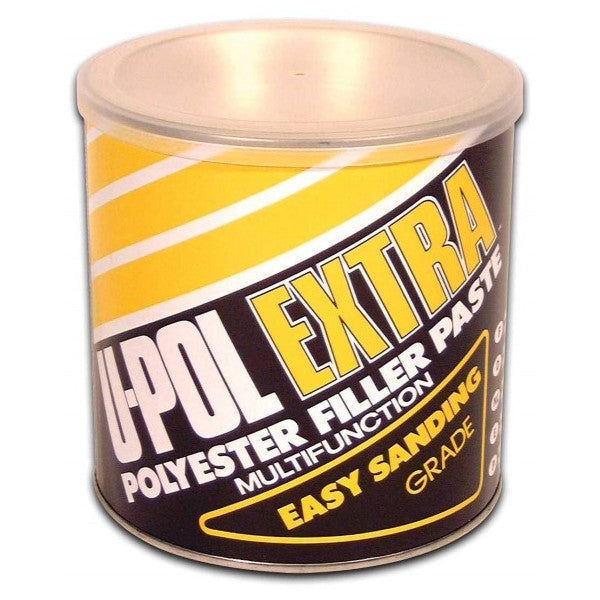

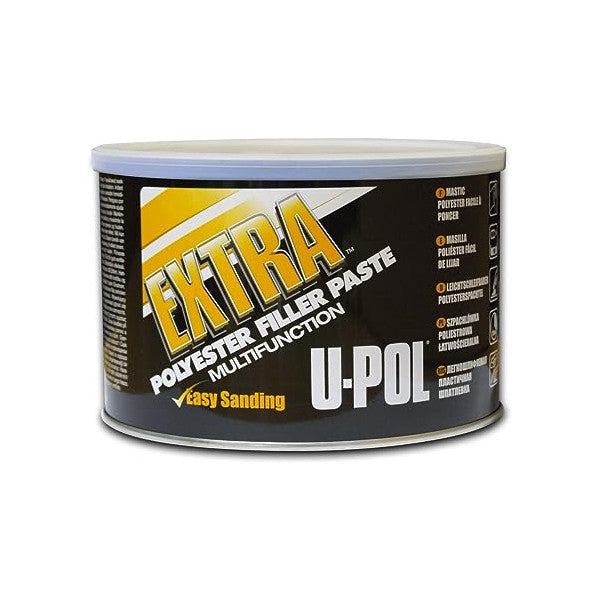

| Polyester body filler | Levels shallow imperfections after shaping. | Substrate approval, mix ratio and maximum thickness. |
| Glazing putty | Fills pinholes and fine sanding marks. | Compatible cured substrate and thin application. |
| Abrasive | Removes coatings and refines surface profile. | Grade progression, dust extraction and edge control. |

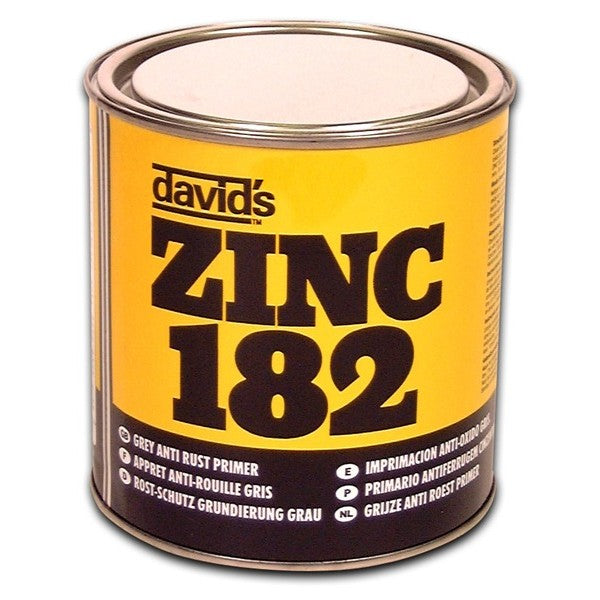

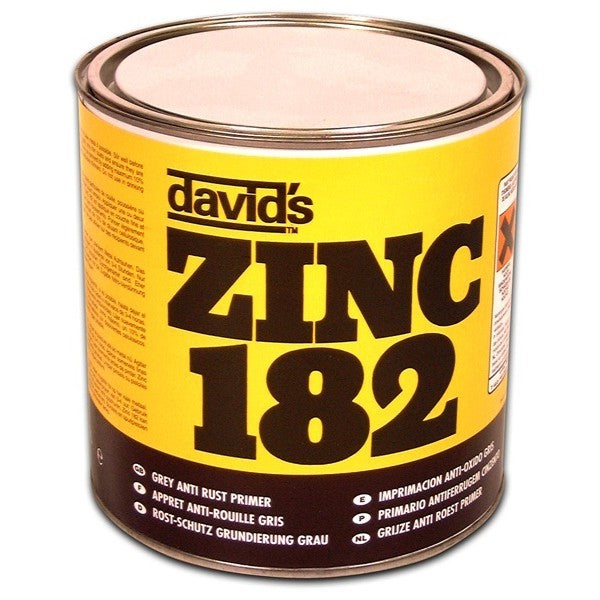

| Etch or epoxy primer | Promotes adhesion and protects bare material. | Metal type and compatibility with later coats. |

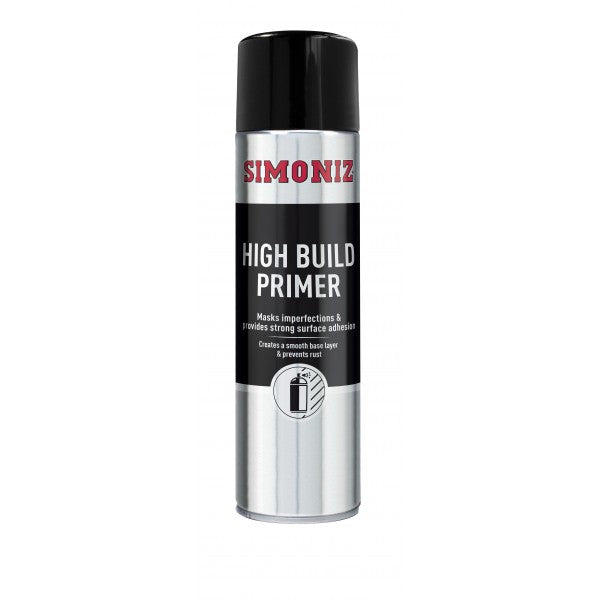

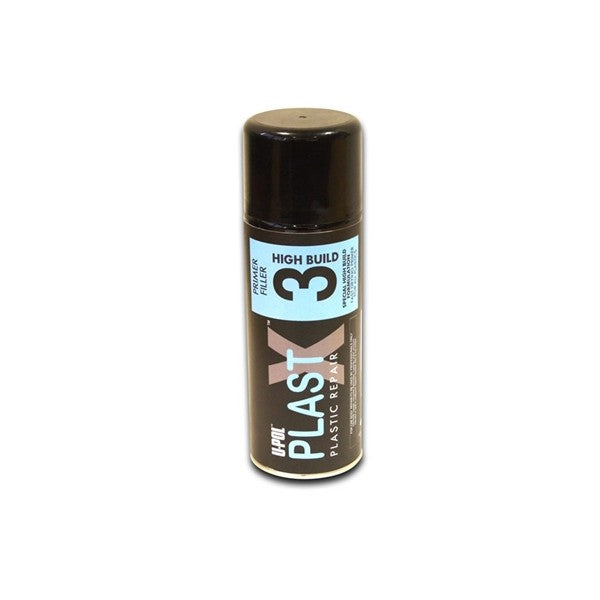

| High-build primer | Fills controlled sanding texture. | Film build, drying and guide-coat blocking. |
| Seam sealer | Closes joints against water and reproduces factory finish. | Application stage, joint movement and paintability. |

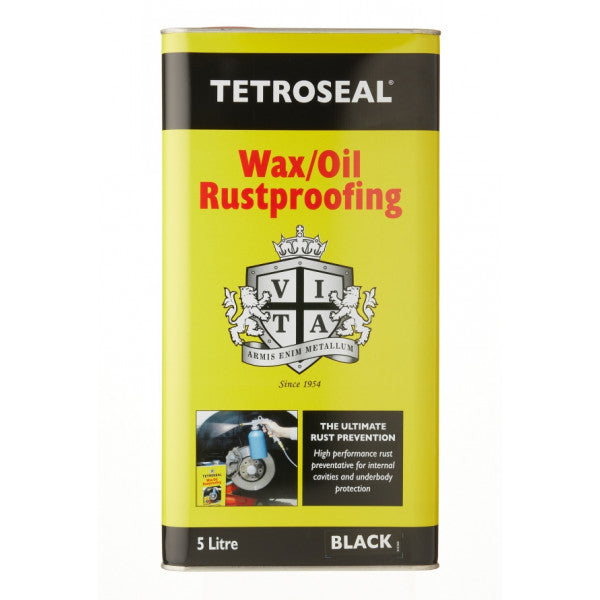

| Cavity wax | Protects hidden internal faces. | Coverage, drainage and access after assembly. |
Damage assessment before sanding
Wash and degrease the area so dirt does not disguise cracks. View reflections along the panel and feel it with a clean hand. Check gaps to neighbouring panels, door operation, lamp alignment and water sealing. A dent near a swage line or panel edge is harder to reshape than a broad shallow centre dent.
Inspect the back where accessible. Torn adhesive, cracked paint in a reinforcement, displaced anti-intrusion bar or kinked inner panel changes the repair category. Diagnostic scanning before work preserves evidence of restraint, lighting and driver-assistance faults.

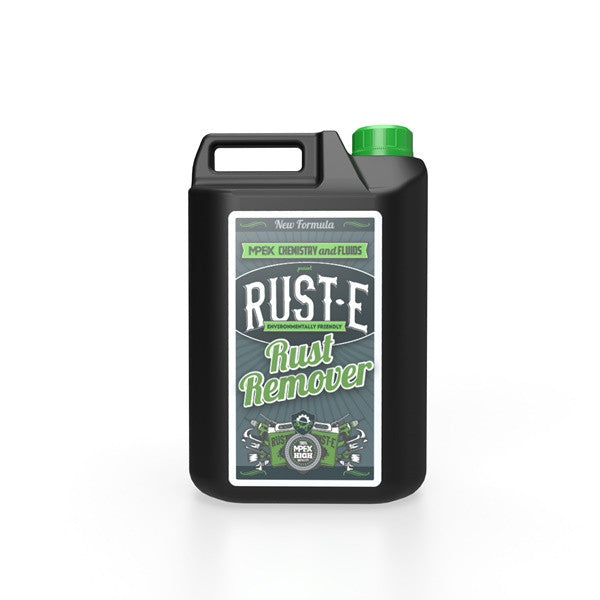

Corrosion assessment and removal
Surface oxidation can sometimes be removed to bright stable metal, followed promptly by an approved protective coating. Pitting extends below the visible surface, and corrosion often grows between seams or from the rear. Bubbling paint means the coating has already lost adhesion.
Do not bridge perforation with filler. Rusted structural metal must be assessed and replaced or repaired using the permitted sectioning and joining method. Drain holes and moisture paths must remain open, and the rear of a repair needs renewed primer, seam sealer and cavity protection.
Panel shaping before filler
Filler is for surface refinement, not for recreating a deeply displaced panel. Work the metal gradually using access from behind, controlled pulls or an appropriate dent system. Hammering without understanding crown and stretch can enlarge the damaged area.
Heat shrinking is not suitable for every steel and can damage coatings, adhesives and nearby modules. Follow repair data for high-strength material. On aluminium, separate tooling and alloy-specific techniques are essential.
Surface preparation and filler application
- Confirm the substrate, repairability, product system and safe working controls.
- Remove trim, lamps and sensors as required instead of masking over vulnerable edges.
- Degrease before sanding so silicone and oil are not driven into the surface.
- Remove failed paint and corrosion to a stable boundary with the specified abrasive.
- Shape the panel close to its final contour and clean dust thoroughly.
- Mix filler on a clean non-absorbent board at the stated ratio without whipping in air.
- Apply thin firm passes within the product's substrate and thickness limits.
- Shape after full cure using a block and progressive grades, preserving body lines.
- Use guide coat to reveal highs, lows, pinholes and remaining scratches.
- Apply the compatible primer system within temperature and overcoat instructions.
Abrasive selection and surface profile
| Stage | Abrasive objective | Common error |
|---|---|---|
| Coating removal | Reach a stable edge without excessive metal loss. | Using a coarse disc that thins or heats the panel. |
| Filler shaping | Establish contour with a rigid or shaped block. | Finger sanding creates grooves and waves. |
| Filler refinement | Remove deep scratches in planned grade steps. | Jumping too quickly to fine paper. |
| Primer blocking | Flatten texture while retaining adequate film. | Sanding through edges and body lines. |
| Blend preparation | Create uniform adhesion without visible scratches. | Leaving glossy islands or contaminated scuffing. |
| Finish correction | Level approved defects after full paint cure. | Removing too much clearcoat. |
Primers, sealers and coating compatibility
Etch primer uses an acidic mechanism on approved bare metals, while epoxy provides a chemically resistant barrier and adhesion layer. They are not freely interchangeable or always stackable. Follow one manufacturer's technical system where possible and respect recoat windows.
High-build primer corrects fine surface texture but cannot safely bury uncured filler, rust or coarse scratches. Water trapped by wet sanding must evaporate completely. A final sealer can standardise colour and absorption before basecoat when the paint system specifies it.
Temperature, humidity and curing
Repair materials cure through solvent evaporation, chemical reaction or both. Low temperature slows reaction; excessive heat can skin the surface while trapping solvent. High humidity affects some products and promotes flash rust on bare steel.
Technical data states pot life, flash time, sanding time and full cure under defined conditions. Adding extra hardener does not safely compensate for cold weather. It changes chemistry, can discolour filler and increases cracking or shrinkage.
Paint and respiratory safety
Sanding dust, solvent vapour and paint aerosol require different controls. Use extraction at source, appropriate protective clothing and correctly selected respiratory equipment. Filters have service limits and facial hair can prevent a tight-fitting mask from sealing.
Isocyanate-containing two-pack products need a properly engineered spray enclosure and air-fed respiratory system with health surveillance and safe cleaning procedures. Spraying outdoors or wearing a simple disposable mask does not provide adequate protection. Consult safety data sheets for every product.
Modern vehicle systems around body panels
| System | Body-repair interaction | Required consideration |
|---|---|---|
| Radar | Mounted behind bumper, grille or badge. | Material thickness, paint and bracket geometry affect operation. |
| Camera | Mounted in windscreen, mirror, grille or tailgate. | Alignment or replacement can require calibration. |
| Ultrasonic sensor | Clipped into painted bumper apertures. | Excess film thickness and wrong orientation impair sensing. |
| Airbag sensor | Attached to structural panel or nearby zone. | Use specified isolation, fasteners and torque. |
| High-voltage battery | Located under floor, sill or rear structure. | Damage, heat and drilling demand EV-qualified assessment. |
| Hands-free aerial | Hidden in bumper or interior trim. | Document connectors and routing before removal. |
Joining, corrosion protection and hidden restoration
Vehicle makers specify weld type, location, adhesive, rivets and sectioning points based on load paths. Substituting a convenient joining method can weaken the structure or change crash deformation. Welding also demands protection from fire, electronics damage and fumes from coatings.
After joining, restore every layer removed: weld-through treatment where approved, primer, seam sealer, stone-chip coating and cavity wax. Match factory drains and avoid blocking vent paths. Hidden rear faces often determine whether corrosion returns.
Common repair failures
- Applying filler over rust, glossy paint or contamination.
- Using filler as structural material or in excessive thickness.
- Mixing incompatible primers, sealers and topcoats.
- Trapping solvent by ignoring flash and cure times.
- Grinding high-strength steel or aluminium without repair data.
- Failing to restore cavity wax and seam sealing behind the visible panel.
- Painting radar zones without checking film and material restrictions.
- Skipping post-repair scanning, calibration or roadworthiness checks.
Final inspection, legality and MOT relevance
Inspect contour under long reflections and several lighting angles. Check paint coverage, pinholes, edge mapping, dust inclusions and panel gaps. Operate lamps, locks, windows, sensors and any removed electrical equipment. Water-test repaired seams without overwhelming drainage systems.
Structural corrosion, insecure panels, dangerous projections, sharp edges, faulty obligatory lamps and compromised prescribed areas can affect an MOT. A cosmetic finish does not demonstrate structural integrity. Repairs around seat-belt anchorages, suspension mounts and major load paths must retain the required strength.
Maintain records of materials, repair data, welds, scans and calibrations. They support future diagnosis and show that safety systems were considered rather than merely clearing warning lamps.
Body repair FAQs
Q: Can body filler be applied over rust?
A: No. Corrosion and failed coatings must be removed to a stable, properly protected substrate.
Q: How thick can filler be?
A: Follow the product limit, but shape the panel close to final form so filler remains a thin refinement layer.
Q: Is every dent suitable for DIY repair?
A: No. Structural, sharp, stretched or safety-system-zone damage needs qualified assessment.
Q: Can I use the same tools on steel and aluminium?
A: Dedicated aluminium tools prevent embedded steel contamination and galvanic corrosion.
Q: Why use a guide coat?
A: It exposes low spots, pinholes and sanding scratches before paint hides the evidence.

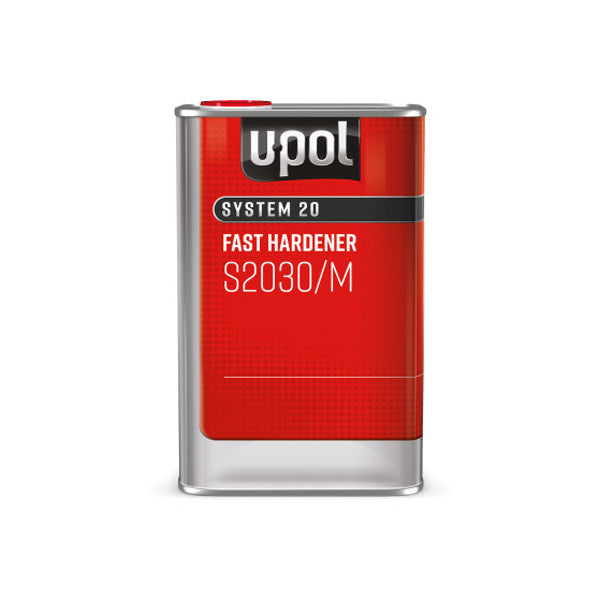

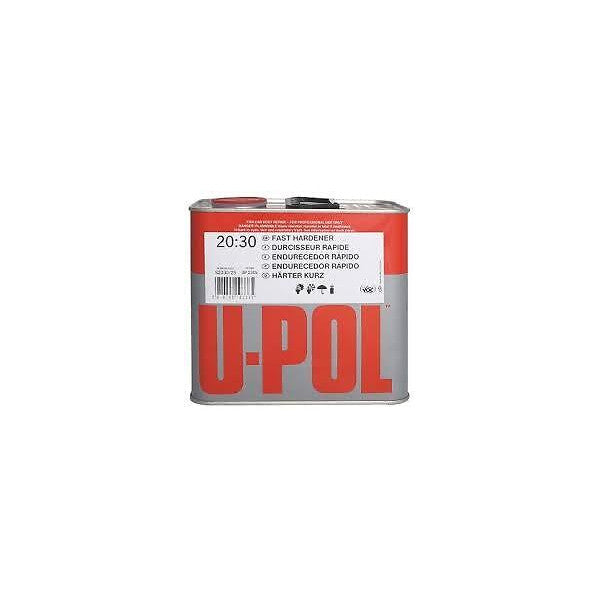

Q: Does extra hardener make filler cure faster?
A: It disrupts the specified chemistry and can cause staining, brittleness and shrinkage.
Q: Can high-build primer replace filler?
A: No. It corrects fine texture within stated film limits, not dents or deep defects.
Q: Is an ordinary dust mask suitable for two-pack paint?
A: No. Isocyanate spraying requires professional controls including supplied-air respiratory protection.
Q: Must hidden panel faces be protected?
A: Yes. Restore primer, seam sealer, drainage and cavity protection as applicable.
Q: Can bumper paint affect parking sensors?
A: Excessive or incompatible coating can impair ultrasonic and radar performance.
Q: Does a camera need calibration after body repair?
A: It may if its mount, viewing angle, suspension geometry or related panel has changed.
Q: Can I weld near an EV battery?
A: Only under model-specific high-voltage and body-repair procedures by appropriately trained people.
Q: Can poor body repair fail the MOT?
A: Yes where it causes structural weakness, dangerous edges, insecure parts or faults in testable systems.
