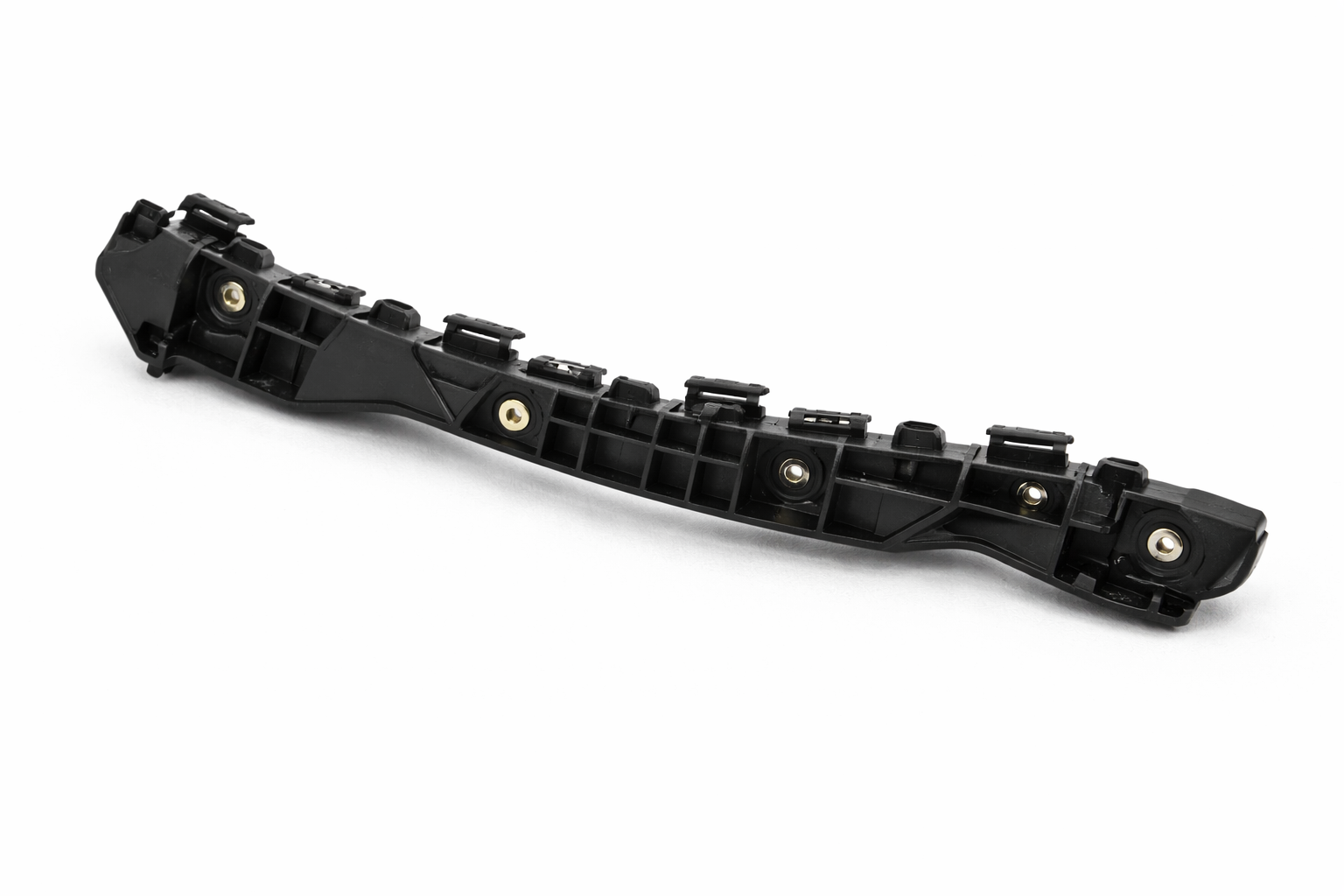

A bumper bracket locates and supports the bumper assembly where it meets the body, wing, lamp, undertray or reinforcement. Depending on the vehicle, it may be a small side guide with sliding channels, a metal carrier, an energy-absorber support or one part of a multi-piece mounting rail. It is not automatically the crash beam: each bracket has a defined alignment and load-management role, and an apparently minor distortion can leave the bumper cover proud, loose or preloaded.

Match the bracket by VIN, production date, front or rear position, left or right side, bumper style and fitted equipment. Sport trim, parking sensors, radar, headlamp washers, tow equipment, air ducts and wheel-arch extensions can change the bracket or its mounting points. Compare moulded numbers, hole spacing, captive nuts, guide channels and cover-tab engagement. Confirm whether clips and fasteners are supplied; reused stretched clips can make a correct bracket seem inaccurate.

A widened panel gap does not prove the bracket alone has failed. Inspect bumper-cover tabs, reinforcement, absorber, wing flange, lamp mount, wheel liner and body studs. After a low-speed impact, check for hidden cracks, elongated holes and polished witness marks. A bracket forced onto bent bodywork will usually fail again. Adhesive, cable ties or oversized self-tapping screws do not restore controlled retention and may create sharp projections or damage wiring behind the bumper.

Support the bumper before releasing its final fixings. Isolate or disconnect parking sensors, lighting, washer hoses, hands-free aerials and driver-assistance equipment by the vehicle procedure. Keep clear of undeployed restraint components and never drill an unidentified sensor or crash-management zone. If radar, cameras or ultrasonic sensors are disturbed, preserve their holders and complete any specified aiming or calibration after assembly.

Trial-fit the bracket without twisting it, restore body mounting points, then engage cover tabs in their intended sequence. Tighten fasteners to the specified values and verify consistent gaps, lamp and tailgate clearance, wheel/tyre clearance and secure undertray overlaps. Check every electrical and washer function and inspect the outer edge for looseness or a dangerous projection. Bumper brackets listed below should restore the original locating geometry and attachment system, not conceal unresolved impact damage.

Your Current Vehicle

Or

Select Your Vehicle
Sorry, this collection is empty.
Continue shopping

Bumper brackets control position as well as retention

A modern bumper is an assembly of cover, absorber, reinforcement, grilles, lamps, ducts, sensors and trims. Brackets hold those layers in a repeatable relationship to the body.

Some guides permit the cover to slide during assembly; others transfer a modest service load into a body flange. Their material, rib pattern and release behaviour are deliberate.

Bracket types around a bumper assembly

Bracket typeUsual locationMain taskImportant distinction
Side guide/retainerBumper-to-wing joint.Locates cover tabs and panel gap.Not a structural crash beam.
Centre supportBehind grille or lower cover.Prevents sag and controls depth.May also carry ducts or wiring.
Lamp-area carrierBelow or beside lamp.Aligns cover, lamp and trim.Lamp aim must not be set by bending it.
Reinforcement mounting bracketBody rail/crash box area.Connects specified impact components.Needs structural repair information.
Lower/undertray bracketBumper lower edge.Supports air guides and shields.Overlap direction affects airflow.
Sensor carrierBehind painted cover or grille.Maintains sensing angle and position.Geometry can affect calibration.

Side guides and cover tabs

Retention depends on a complete channel

Moulded bumper tabs enter ramps or parallel slots in the side guide. Correct engagement pulls the cover flush without visible external fasteners.

A cracked guide tooth or thinned cover tab can release only at speed or when the panel changes temperature. Inspect both halves under good lighting.

Reinforcement and crash-management parts

The reinforcement, crash boxes and rail attachments manage impact energy. A nearby cosmetic guide must not be confused with these structural parts.

When the replacement touches the crash path, use manufacturer body dimensions, approved joining methods and specified one-time hardware. Visual straightness alone is insufficient.

Materials and their failure patterns

ConstructionUseful propertyTypical failureService response
Unfilled thermoplasticFlexible clips and guide ramps.Torn slot, creep or heat distortion.Replace when retention is uncertain.
Glass-filled polymerRigid, compact carrier.Brittle boss or rib fracture.Do not over-tighten or hot-bend.
Pressed steelThin, strong mounting flange.Corrosion, crease or elongated hole.Restore coating and exact shape.
Cast aluminiumLight, stable mounting geometry.Crack after impact or thread damage.Do not weld unless an approved repair exists.
Mixed carrier with insertsAccurate captive threads.Spinning insert or polymer separation.Replace the carrier rather than overtighten.

Why correct geometry matters

A few millimetres of bracket error can change bonnet, lamp, tailgate or wheel-arch clearance. It can also preload the cover until paint crazes around a fastener.

Air gaps around grilles and heat exchangers influence cooling. Sensor carriers require still tighter control because angle and distance affect the field of view.

Identifying the correct replacement

Start with VIN, build date and original part number. Then confirm end of vehicle, handedness, bumper/trim code and every equipment option near the bracket.

Compare the full interface: body holes, studs, spacers, guide slots, captive clips and the direction in which the cover enters. A mirrored image can hide a left/right error.

Equipment that changes bracket design

Parking sensors, side radar, adaptive-cruise radar, cameras, headlamp washers and powered tailgates can add carriers or clearance pockets. Towing and sport packages can alter ducts and lower supports.

Do not cut a standard bracket to clear optional equipment. Obtain the specified variant so stiffness, sealing and sensor geometry remain controlled.

Impact assessment before ordering

EvidencePossible causeAssociated checkDecision
Cover corner repeatedly releasesBroken guide or cover tab.Wing flange and impact displacement.Repair every damaged interface.
One panel gap is narrowBent bracket or body mounting plane.Lamp, wing and reinforcement dimensions.Measure before replacing parts.
Lower edge sagsMissing centre/lower support.Undertray, air dam and fastener set.Restore the whole support chain.
Parking-sensor false alertsCover or carrier misalignment.Sensor orientation, paint and wiring.Diagnose and calibrate as specified.
Paint cracks near jointCover held under stress.Wrong guide, trapped harness or distorted cover.Remove preload before refinishing.
Rattle over bumpsLoose slide, clip or captive insert.Lamps, grilles, number plate and shields.Find matching witness marks.

Hidden damage behind a flexible cover

The cover can spring back after contact while brackets, absorber or reinforcement remain displaced. Remove enough trim to inspect rather than judging from the painted surface.

Look for fresh metal, crushed foam, cracked paint on hidden flanges, stretched wiring and displaced washer hoses. Record their routing before dismantling.

Fasteners, clips and captive hardware

Push rivets, slide clips, flange screws and captive nuts provide different clamp loads. Use the specified type, length, washer and corrosion protection.

An oversized screw can split a plastic boss or enter a harness. A bolt that is too long can contact a lamp, cooler or sensor behind the bracket.

Safe bumper removal

Protect painted edges and support broad covers before the last fixing is released. A second person or padded stand prevents twisting and floor damage.

Disconnect electrical plugs, washer pipes and aerials at their designed joints. Do not let the bumper hang from a loom, and catch washer fluid in a suitable container.

Driver-assistance precautions

Radar brackets and camera apertures must not be filed, shimmed or painted casually. Preserve the original locating surfaces and transfer only approved hardware.

Follow diagnostic shutdown and calibration instructions after any disturbance specified by the vehicle maker. A warning-free dashboard does not prove sensor aim.

Preparing body mounting points

Remove broken clip fragments and inspect threads, studs and flanges. Correct underlying body dimensions before asking the new bracket to bridge a misalignment.

Treat exposed metal with the approved corrosion system without building excessive coating on a datum. Clear drains and retain seam sealer where specified.

Trial fitting and alignment

The bracket should meet every datum without force

Offer the bracket to the body and start all fasteners by hand. If holes will not align, stop and identify the wrong variant or displaced structure.

Fit the adjacent lamp or support loosely where the procedure uses shared datums. Do not elongate holes unless a documented repair method explicitly requires it.

Installation sequence

StageControlProblem prevented
Part comparisonMatch every hole, channel and insert.Late discovery of wrong variant.
Mount restorationCorrect flanges, studs and corrosion protection.Preloaded replacement.
Bracket fitStart fixings, then tighten in sequence.Twist and stripped threads.
Harness/duct routingUse original clips and clearances.Chafe, blockage and trapped connectors.
Cover engagementAlign tabs and slide in intended direction.Broken tabs and proud joint.
Function checkTest lamps, sensors, washers and calibration.Hidden post-repair fault.

Gap assessment

Compare gaps at several points rather than chasing one attractive joint. Door, wing, lamp, bonnet and tailgate alignment reveal whether the bumper is following sound body geometry.

A flexible cover may change with workshop temperature. Allow it to settle and ensure the gap remains free through opening panels and normal vibration.

Repairs and their limits

Some bumper plastics can be repaired using identified material, reinforcement and a validated process. A critical guide tooth or sensor datum may still require replacement.

General adhesive over dirt, cable ties through visible holes and improvised metal straps do not reproduce controlled release or alignment. They can also create sharp hidden edges.

Corrosion control on metal brackets

Remove loose corrosion and assess remaining thickness, especially around bolt holes. A heavily thinned bracket cannot be restored by coating alone.

Use compatible primers, sealers and cavity protection while keeping earth points, threads and sensor datums functional. Replace galvanically incompatible hardware.

Common installation mistakes

Frequent errors include choosing by appearance, swapping sides, trapping a harness, reusing stretched clips, tightening before all tabs engage and forcing the cover over a bent reinforcement.

Other mistakes are drilling near radar, omitting foam seals, reversing undertray overlap and treating a reinforcement mount like a cosmetic bracket.

Post-installation verification

Pull gently at each supported edge, inspect fastener seating and turn steering from lock to lock where the bumper meets the wheel liner. Check bonnet, doors or tailgate through full movement.

Operate lamps, parking assistance, cameras and washers. Complete diagnostic scans and calibrations required by the repair, then recheck gaps after a controlled road evaluation.

UK MOT and roadworthiness context

A loose bumper component or dangerous sharp projection can make a vehicle unsafe and may be assessed during an MOT. Secure external parts before road use.

A bracket repair must not compromise mandatory lamps, number plate visibility, sensor safety systems or tyre clearance. Structural impact damage needs competent assessment beyond cosmetic alignment.

Practical bumper-bracket FAQs

Q: Is a bumper bracket the same as the crash beam?
A: Usually not; identify whether the part is a guide, carrier or structural mounting component.

Q: Can I match one only by its outline?
A: No; verify VIN, side, option equipment and every locating interface.

Q: Why does a new guide still leave a poor gap?
A: The cover tab, body flange, lamp or reinforcement may also be displaced.

Q: May I use a larger self-tapping screw?
A: Use the specified fastener and repair the damaged mounting point correctly.

Q: Can a cracked bracket be glued?
A: Only an approved material repair that restores its required strength and geometry is suitable.

Q: Must parking sensors be removed first?
A: Follow the vehicle procedure and protect their holders, wiring and orientation.

Q: Does radar always need recalibration?
A: Apply the manufacturer requirement for the exact disturbance and system.

Q: Why replace clips with the bracket?
A: Stretched or wrong clips can prevent a sound bracket from retaining the cover.

Q: Can I bend a plastic guide with heat?
A: Uncontrolled heating can weaken it and move critical datums.

Q: Should the bracket be forced onto the studs?
A: No; investigate wrong parts or underlying impact displacement.

Q: Why inspect the absorber behind the cover?
A: Flexible paintwork can rebound while hidden energy-management parts remain crushed.

Q: Is a loose bumper corner safe temporarily?
A: It can detach, expose an edge or contact a tyre, so repair it before driving.

Q: What confirms a correct installation?
A: Sound mounts, even unforced gaps, secure edges and fully verified nearby systems.
