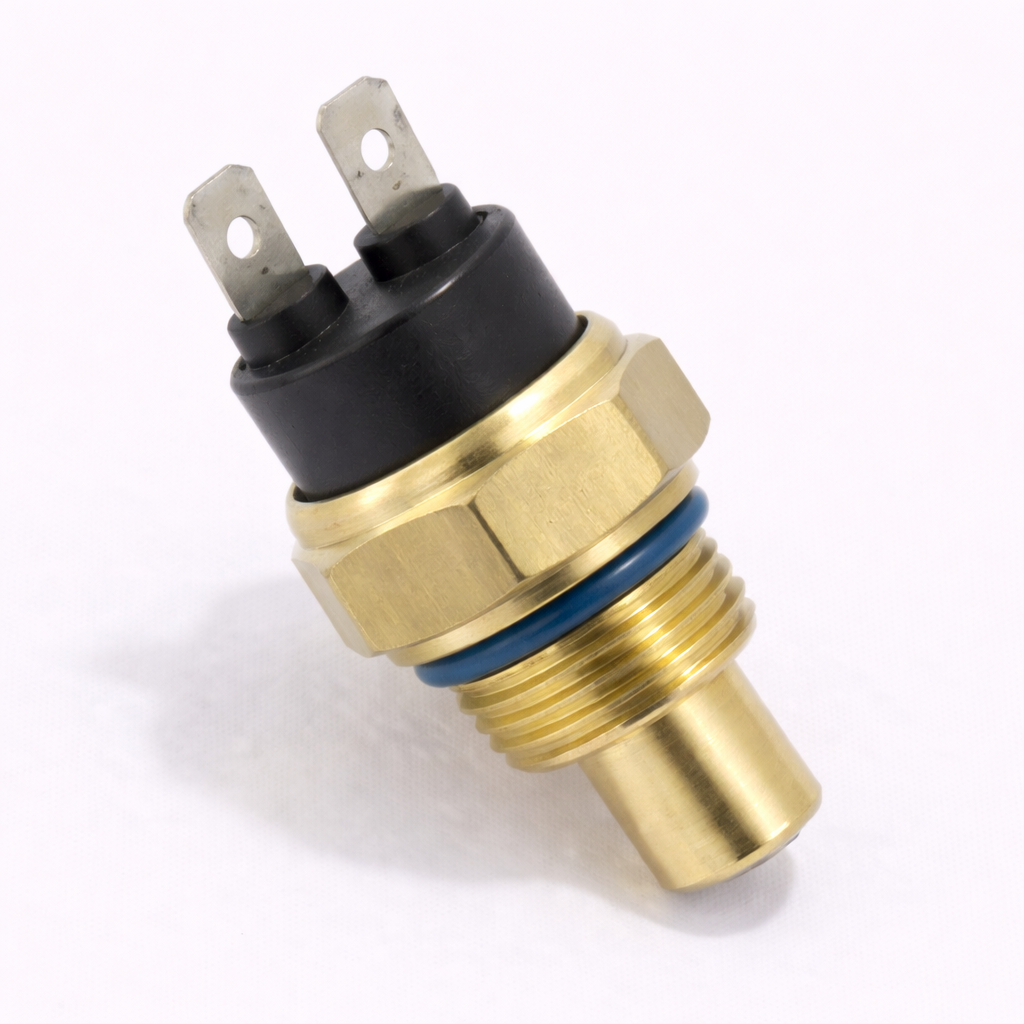

A cold-start temperature switch changes electrical state according to engine or coolant temperature so a compatible older fuel-injection system can enrich, time-limit or inhibit extra starting fuel. It may work with a cold-start injector, thermo-time circuit or control relay. Modern engines generally calculate enrichment electronically from a temperature sensor, so a threaded temperature switch is not automatically interchangeable with a variable sensor.

Match by VIN, engine and injection-system codes, production date, original part number, thread, sealing method, connector, switching temperature and time characteristic. Some thermo-time switches contain an electrically heated element that shortens cold-start injection as cranking continues. A similar thread and two terminals do not prove the same contact logic, heater resistance or temperature calibration.

Hard cold starting, flooding or a start that improves when warm can also result from low cranking speed, incorrect fuel pressure, leaking injectors, ignition weakness, intake leaks, poor compression, air-temperature faults or wiring resistance. Test actual coolant temperature, switch state and cold-start injector command with the correct diagram. Do not bypass the circuit with a permanent jumper.

Allow the engine to cool and depressurise the cooling and fuel systems by their procedures. Hot coolant can scald, and fuel spray or vapour can ignite. Prepare separate clean containment for both fluids. Disconnect power where specified, ventilate, keep ignition sources away and prevent test leads contacting belts or the starter. Never loosen a fuel connection while the engine is cranking or running to check delivery.

Drain only enough approved coolant to prevent uncontrolled loss, clean around the port and fit the correct new seal. Apply thread sealant only when specified because the switch may earth through its body. Tighten to the stated torque, restore coolant concentration and bleed air. Allow a genuine cold soak for final testing. Verify cold and warm circuit behaviour, leak-free operation, normal starting and no over-fuelling before returning the vehicle to use.

Your Current Vehicle

Or

Select Your Vehicle

Filter products

The highest price is £207.86
£
£

3 Products

The switch limits extra fuel to genuinely cold starting

Fuel condenses more readily on cold intake surfaces and a cold engine needs a richer mixture to start. Early electronic and mechanical injection systems can use a dedicated cold-start injector for a brief cranking spray. A temperature switch enables that enrichment below a calibrated threshold and prevents it once warm.

The circuit protects starting without allowing continuous extra fuel that would flood the engine.

Temperature switch and temperature sensor are different devices

DeviceOutputController useTest principle
Simple thermal switchOpen or closed contact.Direct relay/injector enable.Continuity versus temperature.
Thermo-time switchTemperature- and time-limited contact.Cold-start injector duration.Contact/heater sequence.
NTC coolant sensorChanging resistance/voltage.ECU calculates temperature.Resistance curve/live data.
PTC sensorResistance rises with temperature.Architecture-specific measurement.Specified curve only.
Instrument senderGauge-calibrated variable output.Dashboard indication.Gauge circuit data.
Fan switchDiscrete contacts at hot threshold.Cooling-fan control.Higher-temperature switch points.

A thermo-time heater makes duration self-limiting

Inside some switches, a bimetal contact responds to coolant temperature and an electric heater warms it during cranking. At very low temperature the contact stays closed briefly; at warmer conditions it opens sooner or never closes. This limits cold-start injector operation even if cranking continues.

Terminal polarity and heater resistance matter, so random jumpering can overheat the unit or hold enrichment active.

Injection architecture determines the logic

A cold-start injector may spray into a shared intake plenum, while main injectors supply the running engine. The starter terminal, fuel-pump relay and thermo-time switch can form a dedicated circuit. Later ECUs perform the same task through pulse width without a separate injector.

Confirm that the vehicle actually uses the standalone switch shown in the parts application.

Fitment requires calibration as well as thread

Match detailEvidenceWhy it mattersMismatch effect
Engine/injection codeVIN, data plate and system manual.Defines cold-start strategy.Wrong circuit function.
Switch temperatureTechnical specification.Sets enable threshold.Flooding or no enrichment.
Time curveThermo-time data.Limits spray duration.Too much or too little fuel.
Thread/probe lengthDimensions and original reference.Seats safely in coolant passage.Leak, bottoming or poor response.
Seal methodWasher, taper or O-ring instruction.Retains coolant and possible earth.Leak or electrical isolation.
Connector/pinoutKeying and wiring diagram.Routes contact and heater.Burnt heater or wrong logic.

Cold-start symptoms need a truly cold baseline

Record ambient and engine temperature after an adequate soak. A lukewarm engine can sit above the switch threshold and correctly disable the extra injector. Compare coolant temperature physically and through any available sensor data.

Repeated starting attempts warm the thermo-time element and change the next result, so observe the specified reset interval.

Cranking voltage affects the whole diagnosis

A weak battery or high starter current can reduce voltage at ignition, injector and switch heater circuits. The engine may crank too slowly to create compression heat while the cold-start spray also weakens. Check battery condition, cranking speed and loaded voltage drops first.

Do not assume extra fuel will compensate for poor electrical or mechanical cranking performance.

Symptoms can be separated by temperature and fuel state

ObservationSwitch possibilityOther causeUseful evidence
Hard start only fully coldContact never closes or duration short.Fuel pressure, ignition or compression.Cold command and injector spray test.
Flooding during cold crankContact stuck or heater failed.Leaking injector or excess pressure.Timed voltage and leak-down.
Warm start richSwitch closed above threshold.Main coolant sensor or injector leak.Warm continuity and exhaust evidence.
No voltage at injectorSwitch/circuit open.Starter feed, relay or fuse.Trace both sides under crank.
Injector sprays continuouslyJumper or stuck circuit.Harness short or relay fault.Stop cranking and isolate.
Coolant around switchSeal or cracked housing.Leak from above.Clean dry pressure trace.

The cold-start injector is a separate test item

A correct switch command cannot overcome a blocked injector, leaking seat or missing fuel pressure. Test spray pattern and leakage only with approved containment and fire precautions. Do not direct fuel into an open jar near starter sparks.

Replace seals and secure the injector before restoring fuel pressure.

Contact tests must include circuit load

Continuity at room temperature can identify a gross fault, but oxidised contacts may fail under injector or relay current. Measure voltage drop during the permitted cold cranking period with high-impedance rated equipment. Use a fused breakout lead rather than piercing weather seals.

Disconnect control units as specified before applying external resistance or voltage.

Bench heating needs controlled temperature

If the procedure permits off-vehicle testing, immerse only the sensing portion in a controlled bath and monitor with an accurate thermometer. Keep terminals dry and increase temperature gradually. For a thermo-time switch, follow heater energising and cooling intervals exactly.

Never use a naked flame or heat gun on a fuel-contaminated electrical switch.

Body-earthing can be disrupted by sealant

Some one-terminal or multi-terminal devices complete part of the circuit through their threaded shell and engine. Excess PTFE tape or insulating compound can create an open circuit even while sealing coolant. Other designs require a washer or factory-applied compound.

Use only the specified sealing treatment and verify earth voltage drop where applicable.

Cooling-system work begins with zero pressure

Let the engine cool fully, then follow the cap-opening and drain procedure. Hot coolant can erupt and cause severe scalds. Drain into a clean controlled container and keep glycol away from children, animals and drains.

On pressurised expansion systems, a cool hose does not by itself prove the system is safe to open.

Fuel-system safety remains relevant

Even though the switch sits in coolant, diagnosis may involve a cold-start injector and pressurised fuel. Depressurise as specified, ventilate and remove ignition sources. Keep electrical test sparks away from open fuel fittings.

Never check injector operation by touch or loosen high-pressure connections while cranking.

Removal protects the engine casting

Clean and identify

Record terminal positions, switch marking and seal before disconnecting.

Use a well-fitting deep socket

Support the tool squarely so a brass body or aluminium port is not distorted.

Control the opening

Catch remaining coolant and prevent scale entering the passage.

Installation preserves sensing contact

Compare probe length and thread, fit the specified new washer or O-ring and start the switch by hand. Tighten to the exact torque; overtightening can crack a thermostat housing, while under-tightening leaks and may impair earth.

Orient the connector without applying torque through the plastic terminal body.

Coolant refill uses the approved chemistry

Restore the correct antifreeze specification, concentration and water quality. Mixing incompatible coolant technologies can form deposits that insulate sensors or block passages. Bleed air at the designated points and operate heaters/valves as instructed.

Check level only at the stated cold or warm condition and dispose of old coolant responsibly.

Functional verification spans cold and warm states

After a true cold soak, monitor switch/contact behaviour, cold-start injector duration and engine start quality. As coolant warms, confirm the contact changes at the expected range and does not enable extra fuel on a warm restart. Inspect for coolant and fuel leaks.

Stop for flooding, fuel odour, smoke or overheating rather than repeating start attempts.

Emissions and catalyst protection depend on correct enrichment

Excess cold-start fuel raises hydrocarbons, can wash oil from cylinder walls and can overheat a catalyst. Insufficient enrichment increases cranking and misfire. Restore the original timed strategy instead of fitting a manual permanent enrichment switch.

UK MOT emissions are assessed with the engine warm, but a fault that contaminates oil or catalyst affects roadworthiness and reliability.

Practical cold-start-temperature-switch FAQs

Q: Is this the dashboard temperature sender?
A: Usually no. It controls a cold-start circuit, not the gauge.

Q: What is a thermo-time switch?
A: A temperature contact with a heater that limits cold-start injection duration.

Q: Can a sensor replace a switch?
A: No. Variable and discrete outputs need different controller circuits.

Q: Why test after a cold soak?
A: A warm engine may correctly keep the contact open.

Q: Can I permanently jump the cold-start injector?
A: Never; excessive fuel can cause flooding and damage.

Q: Does hard cold starting prove switch failure?
A: No. Check cranking, fuel pressure, ignition and compression.

Q: Is thread sealant always required?
A: No. Use only the specified seal, especially where the body provides earth.

Q: Can hot coolant be drained quickly?
A: Never. Cool and depressurise the system first.

Q: Why does repeated cranking change the test?
A: The internal heater can shorten subsequent enrichment time.

Q: Can fuel spray be checked openly?
A: Only with the approved contained method and full fire precautions.

Q: What requires immediate shutdown?
A: Fuel leakage, continuous injection, flooding, smoke or coolant loss.

Q: What proves completion?
A: Correct cold timed operation, warm inhibition, normal starts and dry systems.
