Cycle parts are selected as systems, not isolated shapes
A brake block works with a particular arm, rim and lever pull. A cable must fit its lever, housing and route. A chain tool must match the chain's width and joining design. Grips and mudguards also depend on dimensions and surrounding components. Visual similarity is useful only after the technical standard has been established.
Record the cycle model, existing part markings and measured interfaces before dismantling. Modifications made since manufacture may mean the original specification no longer describes what is fitted.
The main replacement groups need different checks
| Part/tool | Interfaces to identify | Main safety outcome | Common mismatch |
|---|---|---|---|
| V-brake block | Post/thread, rim material, pad length and direction. | Controlled rim friction without tyre contact. | Wrong mounting hardware or compound. |
| Rear brake cable | Lever end, inner diameter, housing, ferrules and route. | Low-friction force transmission. | Brake inner used with incompatible casing or end. |
| Chain rivet extractor | Chain speeds/width, rivet type and tool pin. | Accurate separation without side-plate damage. | Reusing a rivet that is not designed for reuse. |
| Handlebar grip | Bar diameter, length, control layout and end closure. | Secure hand contact and covered bar end. | Loose grip or interference with shifter. |
| Mudguard | Wheel/tyre size, frame mounts, stays and travel. | Debris control without wheel interference. | Insufficient clearance or unsafe stay fixing. |
Brake blocks wear together with the rim
Rim brakes squeeze blocks against dedicated tracks on both sides of the wheel. Friction converts motion to heat, and both block and rim are consumable. Water, grit and poor alignment can reduce braking and accelerate wear. A concave or very thin rim sidewall can fail under tyre pressure.
Clean the braking track with a rim-compatible method and inspect any wear groove, dot or thickness limit in the rim instructions.
V-brake block mountings are not all interchangeable
Some blocks use a threaded stud with dished washers; others use a smooth post clamped by the brake arm. Cartridge holders accept replaceable inserts of a particular shape and retaining method. Preserve the specified washer order because it controls angular alignment and available arm clearance.
A longer block can strike the tyre, fork or frame even when its fastener fits. Check the complete movement as the brake closes.
Pad compound must suit the braking surface
| Brake surface | Block requirement | Inspection concern | Do not |
|---|---|---|---|
| Machined aluminium rim | Compound approved for aluminium tracks. | Embedded metal, glazing and rim wear. | Use a pad carrying abrasive fragments. |
| Carbon braking track | Exact rim-maker-approved block. | Heat, resin damage and prior aluminium debris. | Transfer a used aluminium-rim block. |
| Coated rim | Compound authorised for that coating. | Uneven coating wear and noise. | Assume any black pad is compatible. |
| Wet/dirty rim | Correct compound in serviceable condition. | Delayed response and grit. | Apply oil to silence the brake. |
Block alignment protects the tyre and preserves control
Set the entire friction face on the rim's braking track with no part touching the tyre and no lower edge hanging beneath the rim. Respect directional arrows. A slight leading-edge toe-in may reduce squeal on systems that specify it, but excessive angle shrinks contact area and creates tapered wear.
Hold the brake on while tightening so the block cannot rotate. Use the stated torque and confirm that dished washers seat correctly.
V-brake arms need centring and suitable cable pull
The noodle, boot, anchor bolt, return springs and pivots form part of the mechanism. Both arms should return freely and give similar rim clearance. A lever designed for a different cable-pull ratio can feel wrong and may run out of travel or produce poor modulation.
Do not compensate for a seized pivot or buckled wheel by setting one block dangerously far away. Correct the cause and ensure the noodle is fully engaged before riding.
Brake cables fail through fatigue, corrosion and contamination
Inner strands bend repeatedly near the lever and anchor. Water and dirt enter housing ends, while tight bends increase friction. Inspect for fraying, rust, kinks, polished broken strands, split liner and crushed casing. Any broken strand is a replacement signal.
Never place fingers along a loaded frayed cable. Release tension carefully and protect sharp cut ends with the proper end cap.
Cable parts need a matched route
| Cable element | Compatibility point | Installation check | Fault symptom |
|---|---|---|---|
| Inner cable | Correct lever nipple and brake use. | No kink, corrosion or fray. | Rough pull or broken strands. |
| Outer housing | Brake-rated construction and diameter. | Ends cut square without crushed liner. | Spongy feel or high friction. |
| Ferrule | Fits housing and frame stop. | Fully seated and not split. | Housing movement or poor adjustment. |
| Noodle/guide | V-brake size and angle. | Secure engagement and smooth liner. | Drag, noise or release risk. |
| Anchor | Correct plate, groove and torque. | Cable clamped without strand cutting. | Slip under hard lever force. |
| Barrel adjuster | Thread and usable range. | Enough engagement plus locknut. | Adjuster nearly unscrewed. |
Cutting cable housing is a preparation task
Use a cutter designed for the housing construction, recreate smooth bends and open the liner without leaving a sharp burr. Match original length unless the routing or handlebar position has changed by an approved modification. Too short can pull during steering; too long adds friction and snag risk.
Turn the handlebar fully both ways and compress suspension through its travel to confirm that no cable tightens, folds or contacts the tyre.
Barrel adjustment has a limited purpose
Wind the adjuster into a sensible starting position before clamping the new cable, then use it for small wear compensation. If large adjustment is needed, reset the cable anchor and inspect pad/rim wear. The adjuster must retain sufficient thread engagement and its lockring should be secure.
A firm lever that touches the handlebar or changes under sustained force indicates a fault, not a need for a decorative lever setting.
Chain rivet tools must align precisely
A chain extractor supports the side plates while its fine drive pin presses the chain rivet. If the cradle does not match chain width or the pin starts off-centre, the plate can bend and the tool pin can snap. Back the driver out, seat the chain fully and look from two angles before applying force.
Wear eye protection and keep fingers out of the ejection path. Replace a bent or mushroomed tool pin rather than grinding it by guesswork.
The chain's joining method overrides habit
Modern chains may use a single-use joining pin, reusable or single-use quick link, or a rivet process requiring a dedicated peening tool. Many do not permit a normal rivet that has been pressed out to be driven back in. Use the chain maker's component and direction exactly.
Count links and compare routing before cutting. A chain that is too short can damage the derailleur and frame when the largest sprockets are selected.
Drivetrain inspection should accompany chain work
| Check | Healthy evidence | Warning evidence | Action |
|---|---|---|---|
| Chain wear | Within maker's measurement limit. | Elongation beyond limit. | Replace before sprocket wear accelerates. |
| Joined link | Fully seated and articulates freely. | Stiff, gapped or wrongly oriented link. | Do not ride; reconnect correctly. |
| Derailleur route | Correct through cages and tabs. | Chain outside a guide tab. | Reroute before turning cranks under load. |
| Chainring/cassette | Teeth wear evenly for service state. | Hooked teeth or skipping under load. | Assess complete drivetrain replacement. |
| Lubrication | Correct product inside rollers, excess wiped. | Dry noise or oil on rim/brake. | Clean brake contamination and relubricate safely. |
Handlebar grips are part of steering control
Measure the control area diameter and usable length. Grip-shift systems often require different left/right lengths. Lock-on designs need compatible clamps and torque; push-on designs rely on an approved installation method and clean bar. Oil or grease can leave a grip permanently mobile.
Never ride with a rotating grip. Fit sound end plugs because an open metal bar can cause severe puncture injury in a fall.
Carbon and lightweight bars need extra care
Do not score a handlebar with a screwdriver while removing a grip. Compressed-air removal can carry injection and noise hazards and should be used only under a competent controlled method. Inspect carbon for crushing, deep scratches, soft spots or delamination before fitting a clamp.
Use the grip manufacturer's torque and any carbon-specific installation instruction. More clamp force is not a cure for a wrong diameter.

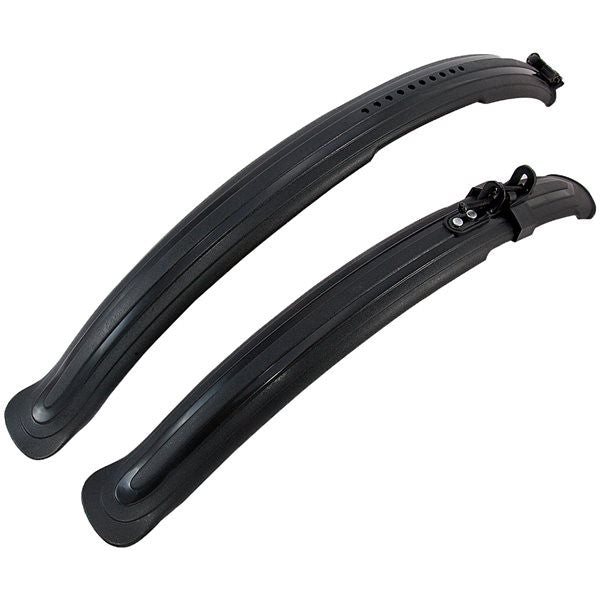

Mudguards must clear the rotating wheel throughout use
Match wheel designation, actual inflated tyre width, fork/frame mounts, brake arrangement and toe clearance. Verify space at the crown, bridges, chainstays and front derailleur. Suspension and flexible frames change clearance under load.
Stays should not protrude dangerously and front guards may require a safety release so trapped debris does not stop the wheel. Do not defeat that feature with an ordinary rigid fixing.
Electric cycles add drive and wiring considerations
Isolate the battery by the cycle procedure before working near motor wiring or brake cut-off sensors. Higher system mass and torque can increase brake and chain demand, but only parts approved for the specific e-bike, drivetrain and speed system should be fitted. A brake lever replacement may need an electrical switch interface.
Keep tools away from battery terminals and do not route a mudguard stay or cable across motor wiring.
A stationary check comes before a road test
Load the controls
Squeeze each brake firmly several times and confirm anchors, blocks and arms do not shift.
Rotate the complete system
Spin wheels and turn the bars fully, checking tyre, cable and mudguard clearance.
Test at walking pace
In a traffic-free area, check each brake independently, steering, gear selection and chain security before normal riding.
UK road use requires efficient brakes and visibility equipment
The current Highway Code says cyclists must ensure their brakes are efficient. It also requires a white front light and red rear light to be lit when cycling at night, while lights and reflectors should be clean and in good working order. A repair that leaves a cable dragging over a lamp, or a mudguard obscuring a reflector, is incomplete.
Check current rules for the cycle type and location, including any electrically assisted cycle requirements. Safety inspection extends beyond the part just changed.
Practical cycle-parts FAQs
Q: Will any V-brake block fit any V-brake?
A: No. Match mounting, dimensions, rim material and complete clearance.
Q: Can a brake block touch the tyre slightly?
A: Never. It can damage the sidewall and cause sudden tyre failure.
Q: Should brake blocks be replaced as a pair?
A: Replace both on the same wheel unless the brake maker states otherwise.
Q: Can oil stop a squealing rim brake?
A: No. Oil destroys friction; correct contamination, alignment, wear and rim condition.
Q: Is a frayed cable safe after trimming one strand?
A: No. Replace the cable and inspect the cause.
Q: Can gear housing be used for a brake cable?
A: Do not assume so; use housing explicitly rated for the brake system.
Q: May a normal chain rivet be pushed back in?
A: Only if that chain's instructions permit it; many require a special pin or link.
Q: Why is the joined link stiff?
A: It may be misaligned or incorrectly set and must be corrected before riding.
Q: Can one chain tool fit every chain width?
A: No. Confirm its supported chain types and rivet system.
Q: Is grease suitable for fitting push-on grips?
A: No. Use only the approved fitting method so the grip cannot rotate.
Q: Why are handlebar end plugs important?
A: They cover a hard open tube that can cause puncture injury in a fall.
Q: How much gap should a mudguard have?
A: Use the maker's minimum and check actual tyre, flex, debris and suspension travel.
Q: Can I road-test immediately after cable tightening?
A: First complete stationary load, wheel-clearance and low-speed traffic-free tests.
Q: What does UK road guidance require of the brakes?
A: The Highway Code states that cyclists must ensure their brakes are efficient.
