Cab suspension separates occupant comfort from chassis movement
The chassis follows axle inputs and carries drivetrain vibration. Resilient cab mounts allow controlled relative motion, while dampers dissipate energy so the cab does not continue oscillating.
Mount geometry must also preserve steering column, gearshift, wiring, hoses, locks and tilt alignment throughout travel.
System arrangements
| Arrangement | Spring element | Damping/control | Service focus |
|---|---|---|---|
| Rubber-mounted cab | Bonded elastomer blocks. | Material hysteresis, sometimes dampers. | Cracks, separation and bolt preload. |
| Mechanical suspended rear | Coil or leaf springs. | Separate shock absorbers and links. | Spring fracture, bushes and ride height. |
| Rear air suspension | Two rear air springs. | Levelling valve and dampers. | Air leaks and left/right height. |
| Four-point air suspension | Air springs at front and rear. | Valves/sensors, dampers and anti-roll. | Balanced calibration and cab stability. |
| Electronically controlled cab | Air or active elements. | ECU, height sensors and solenoids. | Diagnostics, calibration and pressure safety. |
Cab mass and centre of gravity
Seats, occupants, sleeper equipment and stored items add mass above the chassis. Springs support this load and anti-roll geometry limits lateral movement. A roof accessory or uneven internal load can affect height and lean.
Assess the cab in its defined loading condition before changing levelling settings.
Air-spring behaviour
Pressure supports load while bellows geometry guides travel
Reinforced rubber rolls over a piston as the cab moves. Twisting, incorrect mounting height or contact with a bracket abrades the fold. Air pressure varies with cab load; generic inflation values are not a setup method.
Levelling hardware adds or exhausts air to maintain measured height within a dead band.
Mechanical springs and rubber mounts
Coil/leaf systems use fixed spring rates and stops. Rubber mounts isolate high-frequency vibration and restrain movement. Oil contamination, heat and age can soften or crack elastomer.
A mount may appear intact unloaded but separate when the cab rolls. Inspect under safe controlled load change.
Dampers
Cab shock absorbers control bounce and pitch. Oil leakage, worn bushes or internal fade lets the cab oscillate after road inputs. A stiffer replacement than specified can transmit shock and stress mounts.
Compare axle/cab position and extended/compressed length. Dampers must not become the travel stop.
Levelling valves and links
A mechanical valve senses cab-to-chassis position through a link and meters supply/exhaust air. Electronic systems use sensors and solenoid blocks. Link length and lever orientation determine target height.
Never adjust a link to hide a weak mount, bent bracket or uneven load. Verify the reference datums first.

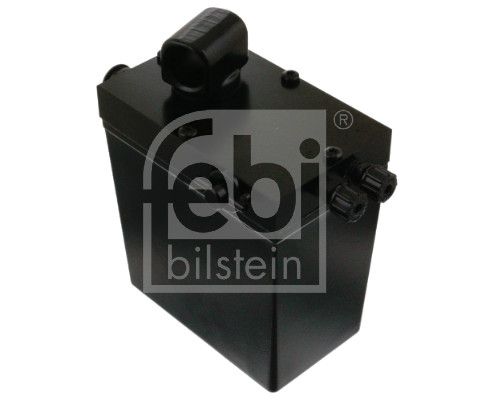

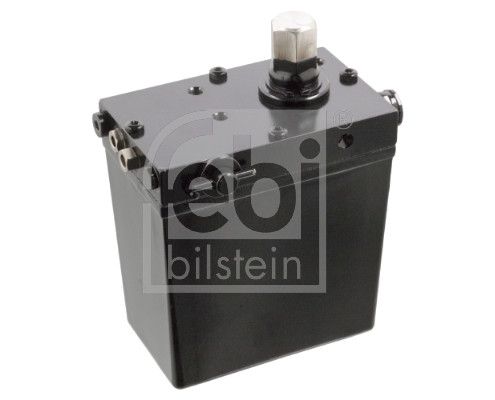

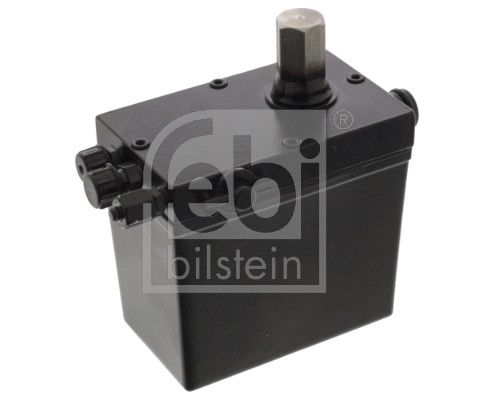

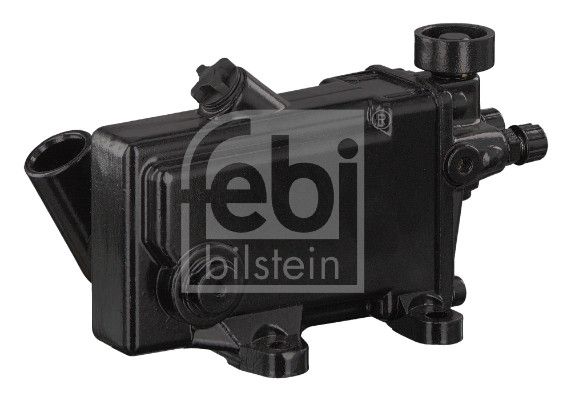

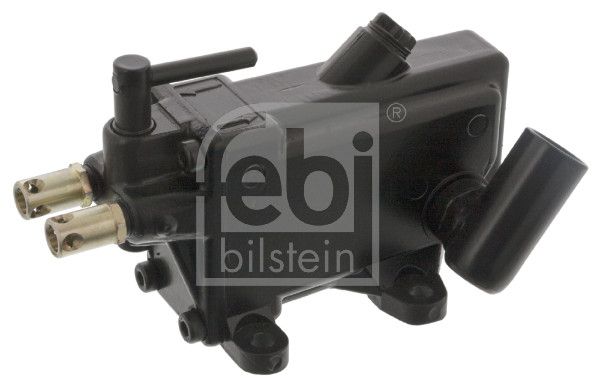

Cab tilt and locking
Forward-tilting cabs pivot on front mounts and latch at the rear. Suspension components must allow tilt without stretching lines. Lock sensors and safety catches confirm the cab is secured for driving.
A cab-lock warning or incomplete latch is urgent regardless of ride comfort. Clean and inspect both sides of the locking system.
Part identification
Use VIN, cab code, chassis series, suspension option and side. Check mount centres, air fitting, bellows/piston diameter, damper eyes, bush sleeves and levelling bracket. Note cab tilt direction and steering configuration.
Confirm whether replacement is a bare spring, spring-and-damper unit or complete mount. Do not mix revised heights across an axle/cab pair.
Symptoms and source separation
| Symptom | Cab-suspension cause | Alternative source | Useful evidence |
|---|---|---|---|
| Cab bounces repeatedly | Weak/leaking damper or low pressure. | Seat suspension or chassis/tyre issue. | Cab motion relative to chassis after input. |
| One rear corner low | Air leak, mount collapse or link error. | Uneven cab load or bent bracket. | Datum heights and pressure/leak test. |
| Knock over bumps | Worn damper eye, pivot or bump stop. | Cab lock, exhaust, step or chassis part. | Witness marks and controlled movement. |
| Harsh high-frequency vibration | Solidified/preloaded rubber mount. | Engine mount, driveline or tyre imbalance. | Frequency and mount isolation comparison. |
| Air system cycles parked | Cab bellows, fitting or valve leakage. | Seat, chassis suspension or accessory leak. | Isolate branches and observe pressure decay. |
| Cab-lock warning | Misaligned height or lock sensor. | Latch contamination or wiring. | Physical latch engagement and live status. |
Measure cab height
Park on level ground, chock and set the specified air pressure and load. Measure between defined cab and chassis datums on both sides. Do not use wheel-arch appearance.
Cycle the cab or air system as instructed, then let it settle before final readings.
Leak diagnosis
Apply approved leak-detection solution to bellows folds, crimp rings, fittings, valve ports and line joins at working pressure. Watch for slow bubbles and record system pressure/time.
Do not use flame, and keep body parts outside the suspension gap. A small leak can appear only at a particular height.
Damper checks
Inspect body, rod, bushes and fasteners. A light film differs from active leakage, but service criteria govern. Disconnecting a damper for hand assessment requires the cab to be independently supported.
Check both sides; asymmetric damping can produce roll even at correct height.
Pivot and bush inspection
Look for rubber extrusion, fretting dust, elongated holes and polished contact. Lever tests must use safe points and limited force. Cab weight must not rest on the component being removed.
Replace worn pins and sleeves as a matched interface rather than fitting a new bush over a grooved pin.
Air-system isolation
Commercial vehicles can retain reservoir pressure. Close/isolate circuits only through approved valves and exhaust the cab branch while monitoring gauges. Mechanical support remains essential after pressure reads zero.
Never disconnect a fitting to “bleed” an unsupported cab.
Cab support and tilt safety
Use rated stands or service props at designated points and engage the tilt safety device. Chock chassis and prevent unauthorised starting. Remove loose cab contents before tilting.
Do not trust a hydraulic tilt cylinder, air spring or raised cab lock alone.
Air-line service
Use specified polyamide line and fittings. Cut square, renew sealing parts and push to full depth. Route with enough articulation but away from exhaust, sharp edges and cab pivots.
Ordinary hose, tape and plumbing fittings are unsuitable for vehicle air pressure.
Installation controls
| Stage | Required control | Failure prevented |
|---|---|---|
| Identity | Cab code, position, height and spring/damper rate match. | Lean and poor control. |
| Support | Cab/chassis independently secured and air exhausted. | Crushing and sudden movement. |
| Mounting | Surfaces, pins, sleeves and brackets sound. | New part on worn structure. |
| Bellows/line | Untwisted spring and clean fully seated fitting. | Abrasion and leakage. |
| Bush torque | Fasteners tightened at specified cab position. | Permanent rubber preload. |
| Height | Link calibrated from defined level datums. | Bottoming and lock misalignment. |
| Close-out | Locks, lines, clearances and road behaviour proven. | Unsafe cab release or contact. |
Initial pressurisation
Keep the cab supported at the assembly position and restore air gradually. Observe bellows folds and every mount. Stop if one corner rises alone, a bellows catches or a line pulls.
Remove supports only after stable pressure, correct seating and secure fasteners are confirmed.
Height adjustment
Set link length or electronic calibration exactly as specified. Small link changes can create large valve commands. Tighten locknuts without rotating the calibrated lever.
Recheck after cycling through full levelling and after the cab locks have engaged.
Post-repair checks
Inspect air tightness, left/right height, damper bushes, tilt hoses and wiring. Tilt and lower through the approved sequence where required, confirming locks and warning indicators.
Road-test progressively for bounce, pitch, roll and knocking. Recheck height and fasteners after settling.
Operating urgency
Cab movement affects driver control, mirrors, steering linkages and gear selection. A failed lock, displaced mount, severe lean or contact between cab and chassis makes the vehicle unsafe.
Do not drive with a cab-lock warning, ruptured air spring, detached damper or uncontrolled cab oscillation. Recover or repair in place using commercial-vehicle procedures.
Common mistakes
- Working between cab and chassis without rated mechanical support.
- Disconnecting an air line before the branch is depressurised.
- Replacing a bellows while ignoring a failed damper.
- Adjusting ride height to hide a collapsed mount or bent bracket.
- Tightening bonded bushes with the cab hanging.
- Twisting an air spring during installation.
- Failing to check tilt lines and cab locks after suspension work.
- Assuming day-cab and sleeper components share rates.
Practical driver-cab-suspension FAQs
Q: What does cab suspension isolate?
A: It reduces chassis vibration and road shock reaching occupants.
Q: Does a low corner prove an air spring leak?
A: No; check valve, fitting, link, mount and cab load.
Q: Why does the cab keep bouncing?
A: Inspect damper control as well as spring pressure.
Q: Can air pressure safely support repair work?
A: No; exhaust the circuit and use rated mechanical supports.
Q: Why tighten bushes at defined height?
A: It prevents permanent torsional preload in bonded rubber.
Q: Can ordinary airline repair a cab system?
A: Use only the specified vehicle air pipe and fittings.
Q: How is cab height set?
A: Measure prescribed cab-to-chassis datums on level ground.
Q: Should both dampers be checked?
A: Yes; unequal damping can cause cab roll.
Q: Why can a cab lock warning follow height work?
A: Incorrect position can misalign latch or sensor.
Q: May a leaking bellows be patched?
A: No; replace the application-correct pressure component.
Q: What supports a tilted cab?
A: The specified mechanical safety device and rated supports.
Q: Is a sleeper cab the same application?
A: Its mass and suspension calibration may differ.
Q: What confirms a successful repair?
A: Stable height, airtight system, controlled motion and secure locks.
