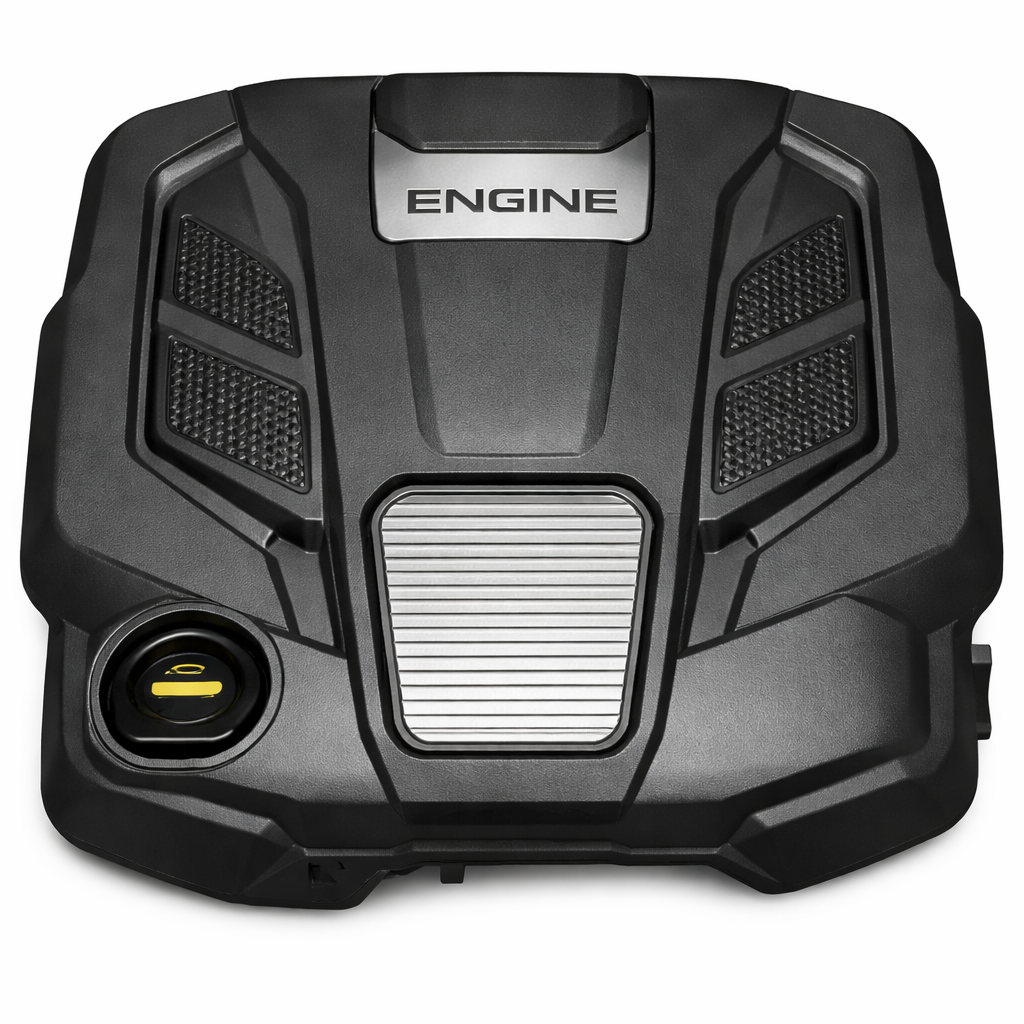

Engine covers manage more than appearance
An upper panel absorbs combustion and injector noise, guides cooling air and keeps light debris away from components. An undertray shapes airflow, protects belts and limits road spray.
Removing or modifying a cover can increase temperature locally, change pedestrian-impact behaviour or expose rotating parts.
Cover categories
| Type | Position | Primary roles | Service concern |
|---|---|---|---|
| Upper acoustic cover | Top of engine. | Noise, appearance and light protection. | Grommets, foam and fuel-component clearance. |
| Decorative intake-integrated cover | Top/front. | Air duct plus trim. | Sealed air joints and sensor routing. |
| Lower engine undertray | Beneath powertrain. | Aerodynamics, splash and debris control. | Vehicle support and fastener map. |
| Side/belt guard | Wheel arch/engine side. | Protect rotating drive. | Critical clearance and liner integration. |
| High-voltage equipment cover | Hybrid/EV power electronics. | Touch protection and airflow. | Qualified HV isolation; not cosmetic. |
| Pedestrian-impact cover | Upper crush space. | Energy management. | Exact material and mounting required. |
Selection details
Mounting and airflow revisions matter
| Check | Variation | Mismatch result |
|---|---|---|
| Engine/build | Injector, intake and filler layout. | Contact or no access. |
| Mounts | Stud, ball socket, screw or quarter-turn. | Loose panel or broken boss. |
| Insulation | Foam density/heat barrier. | Noise or heat damage. |
| Ducts/vents | Cooling intake and exit paths. | Overheating or water entry. |
| Drivetrain/body | Undertray cut-outs and wheelbase. | Exhaust/suspension interference. |
| Safety role | HV touch/pedestrian design. | Loss of certified protection. |
Development of acoustic covers
Older engines often exposed the intake, ignition and cam cover. Direct injection and diesel combustion increased high-frequency mechanical noise, encouraging tuned upper covers with mass layers and decoupling foam.
Mount stiffness and air gap are tuned to avoid amplifying particular engine orders. A heavy decorative replacement or solid-mounted panel can create more cabin vibration than no cover.
Underbody aerodynamics
A lower cover smooths airflow beneath the front of the vehicle, reducing drag and controlling air pressure through the radiator. Its trailing edge and seals can also keep hot exhaust air away from intake zones.
Missing panels may cause high-speed temperature or fuel-consumption changes that do not appear in a stationary workshop test. Restore the full underbody set, not one isolated sheet.
Pedestrian-impact considerations
Bonnet clearance and deformable engine-bay components contribute to impact energy management. An upper cover may be designed to collapse at defined points or prevent contact with hard components.
Do not add rigid brackets, metal badges or spacers above the engine. Use the exact road-approved construction and grommets.
High-voltage and orange-cable covers
Hybrid and EV covers can be touch barriers carrying warning labels and interlock features. They may expose live busbars or capacitors when removed, even with the ignition off.
Only qualified personnel using the manufacturer’s isolation, prove-dead and discharge procedure should disturb them. A cosmetic engine cover must never be substituted for an HV barrier.
Rodent and nesting damage
Warm covered spaces attract nesting material that blocks airflow and damages wiring. Inspect for droppings, chewed foam and stored food before starting the engine.
Use biological-hazard controls for cleanup and repair the wiring by approved methods. Poison or repellent placed near hot components creates separate risks.
Service access and filler openings
Some covers incorporate a removable oil-filler access cap; others require full removal before topping up. Never pour oil through an approximate opening or leave a temporary funnel beneath the cover.
After service, account for tools, rags and caps. A trapped rag near the exhaust or belt can cause fire or mechanical damage.
Fastener and insert repairs
| Failure | Approved direction | Unsafe shortcut |
|---|---|---|
| Missing quarter-turn fastener | Fit correct head, shank and receptacle. | Long self-tapping screw. |
| Stripped plastic insert | Renew insert/bracket. | Oversize screw into nearby wiring. |
| Broken ball stud | Replace stud to specified torque. | Glue cover to engine. |
| Cracked cover boss | Replace or approved polymer repair. | Metal strap across hot parts. |
| Lost foam pad | Install exact fire-rated insulation. | Household foam. |
Aftermarket appearance covers
Carbon-look, metal or painted accessories add mass and may alter heat radiation. Confirm fire performance, retention and clearance through engine movement.
Do not cover service labels, high-voltage warnings, oil specifications or emergency isolation points. Insurer disclosure may be needed for modifications.
Symptoms and diagnosis
| Symptom | Cover cause | Other check | Urgency |
|---|---|---|---|
| Rattle at idle | Missing grommet/contact. | Heat shield, mount, pulley and timing. | Prompt. |
| Oil-soaked foam | Cover absorbing leak. | Filler cap, cam cover, breather. | High near heat. |
| Undertray hanging | Broken fastener/impact. | Bumper, subframe and leak damage. | Immediate. |
| Melting/discolouration | Wrong cover or missing shield. | Exhaust temperature and routing. | High/fire risk. |
| Noise after service | Cover not seated or harness trapped. | Tools/parts left behind. | Prompt. |
| High temperature | Vent/undertray missing or blocked. | Cooling system, fan and airflow. | High. |
Mounting grommets
Rubber sockets isolate vibration and grip ball studs. Heat and oil harden or swell them. A missing grommet lets plastic hammer the stud.
Replace with the specified material, lubricated only as directed. Adhesive and general grease can prevent retention.
Acoustic insulation
Foam may be open-cell, closed-cell or layered with a heat reflector. Oil-soaked, crumbling or rodent-damaged insulation should be replaced, not washed with solvent.
Use flame- and temperature-rated original-equivalent material. Household foam can ignite or shed into belts.
Removal preparation
| Stage | Control | Prevents |
|---|---|---|
| Cool | Wait for engine/exhaust temperature. | Burns and softened plastic. |
| Isolate | Disable start-stop/hybrid operation. | Unexpected engine start. |
| Inspect | Locate all mounts and filler connection. | Broken tabs. |
| Clear | Remove tools/debris from top. | Objects falling into engine bay. |
| Support vehicle | Use rated lift for lower covers. | Crush injury. |
| Record fasteners | Map lengths/types and positions. | Wrong refit. |
Upper-cover removal
Remove the filler cap temporarily only if specified and protect the open neck immediately. Lift near each grommet in sequence with even force.
Never pull using a decorative edge or lever against injector leak-off pipes, coils, sensors or fuel rail.
Undertray removal
Support the panel before the last fastener; trapped water, oil or gravel adds weight. Wear eye protection and inspect contamination.
Quarter-turn fasteners and screws can differ by location. Wrong length can puncture a radiator or wiring loom.
Inspection and cleaning
Check cracks around bosses, missing heat foil, abrasion marks and warped edges. Contact marks help identify an engine mount or routing fault.
Wash only with plastic/foam-compatible chemistry and dry fully. Do not pressure-wash acoustic foam or electrical cover vents.
Fluid leaks beneath covers
Covers hide and redistribute oil, coolant and fuel. Identify the source before cleaning and never refit over active fuel leakage.
A lower tray can hold litres of fluid and delay a driveway drip. Inspect it during service rather than assuming a dry floor proves no leak.
Heat and airflow
Air dams and seals force cooling air through radiators and around the powertrain. Omitting them allows air to recirculate and raises temperature at speed or idle.
Do not cut vents for styling. Water paths, under-bonnet pressure and pedestrian impact were engineered together.
Harness and hose routing
Before installation, confirm clips hold wiring, vacuum lines and fuel hoses below the cover’s designed channels. A trapped hose can wear through.
Maintain clearance from ignition coils, turbo surfaces, belts and fans. Replace missing loom protectors.
Installation
Position the cover squarely, align every grommet and press directly over each stud until seated. Never strike the centre to force remote mounts.
For undertrays, start all fasteners loosely, align with liners and bumper, then tighten to specification without stripping plastic inserts.
Verification
| Check | Pass condition | Failure prevented |
|---|---|---|
| Retention | Every mount/fastener fully engaged. | Panel loss/rattle. |
| Clearance | No contact with hot/moving parts. | Melt, wear and fire. |
| Filler cap | Correctly refitted and accessible. | Oil loss/contamination. |
| Airflow | Ducts, seals and vents complete. | Thermal fault. |
| Leaks | No fluid accumulating beneath. | Hidden hazard. |
| Noise | No rattle through start/load changes. | Contact and breakage. |
Common mistakes
Errors include pulling from one corner, reusing missing grommets with adhesive, trapping hoses, omitting undertray fasteners and pressure-washing foam.
Do not run indefinitely without a designed cover when it provides belt, airflow, HV or pedestrian protection.
UK roadworthiness context
A loose undertray or cover can detach, foul steering or expose dangerous components and may affect MOT. Fluid-soaked insulation is a fire concern.
Maintain all high-voltage warning labels and touch barriers; only qualified personnel should remove HV covers.
Practical engine-cover FAQs
Q: Is an engine cover only decorative?
A: No. It may manage noise, airflow and protection.
Q: Is it the same as a timing cover?
A: No. Timing/cam covers seal mechanical engine systems.
Q: Can similar-looking covers be swapped?
A: No. Mounting, heat and airflow geometry must match.
Q: May a cover be levered off?
A: Use its specified lift points without levering on components.
Q: Should hard grommets be reused?
A: Replace them with the correct specified parts.
Q: Can oil-soaked foam be washed?
A: Replace contaminated insulation by the approved method.
Q: Is driving without an undertray harmless?
A: It can affect airflow, protection and water management.
Q: Can a cracked mount be glued?
A: Not unless an approved repair restores its structural retention.
Q: Why did a new cover melt?
A: Wrong part, missing shield or abnormal exhaust heat is possible.
Q: Must filler caps be removed?
A: Only where the exact removal procedure requires it.
Q: Can extra vents be cut?
A: No. They can upset cooling and water paths.
Q: Why inspect beneath an undertray?
A: It can hide fluid leaks and damage.
Q: What proves correct fitting?
A: Secure quiet mounting, proper airflow and no contact or trapped leaks.
