An extension assembly carries the same mains energy through more connections
Every metre of conductor and every plug contact adds resistance. Within rating this is controlled, but excessive current, damaged strands, a loose terminal or a coiled reel can convert that resistance into dangerous heat. Protective devices must disconnect faults without being bypassed or overspecified.
The safe choice is therefore electrical and mechanical: sufficient conductor capacity, correct protection and connectors, plus durability for water, impact, vehicles, chemicals and repeated flexing.
Different products solve different supply problems
| Product | Intended role | Important check | Common misuse |
|---|---|---|---|
| Extension socket strip | Several low/medium-load outlets indoors. | Total current and surge-protection status. | Daisy-chaining or running heaters together. |
| Cassette cable reel | Portable longer lead with storage. | Coiled and fully unwound ratings. | High load while most cable remains wound. |
| Open-frame reel | Longer workshop/site distribution. | Cable type, thermal cut-out and environment. | Driving over or exposing domestic sockets to rain. |

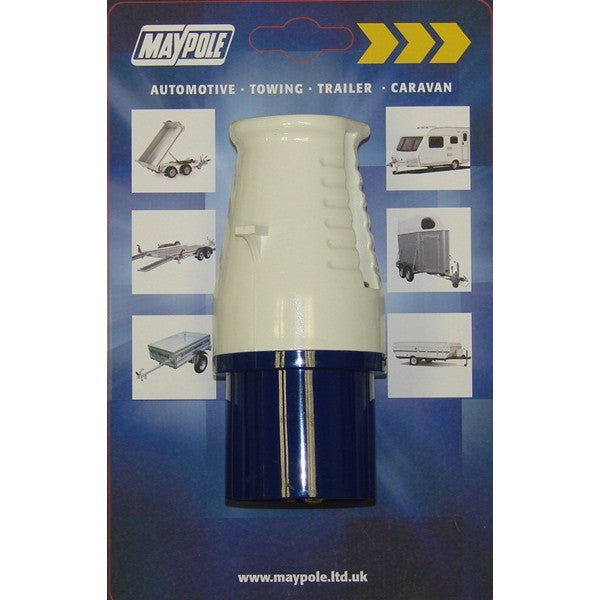

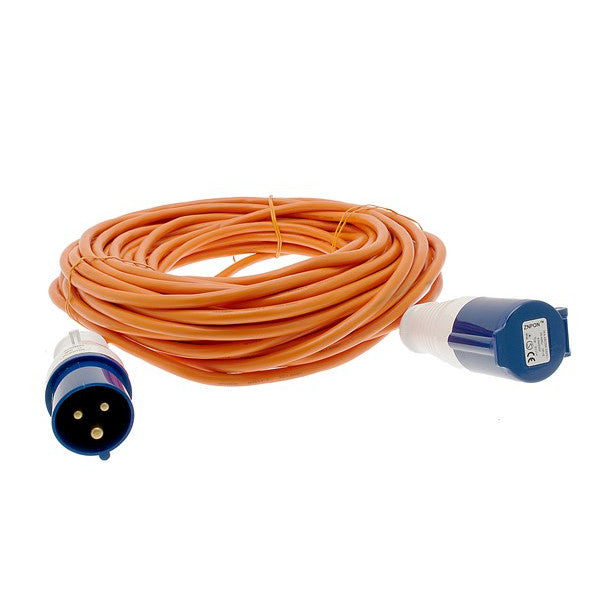

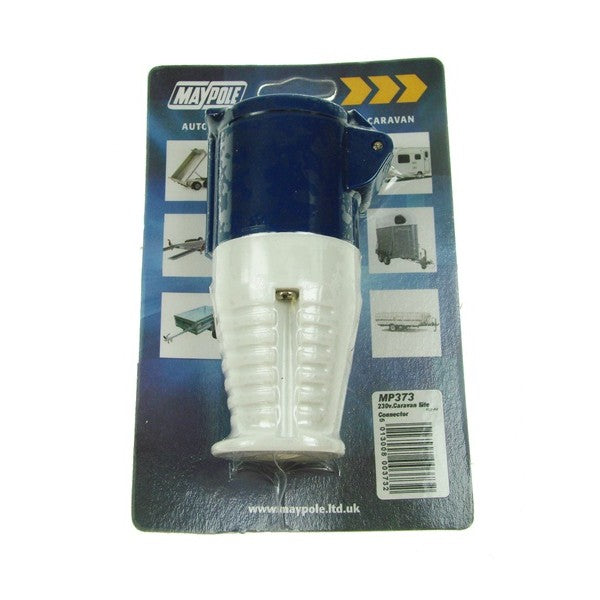

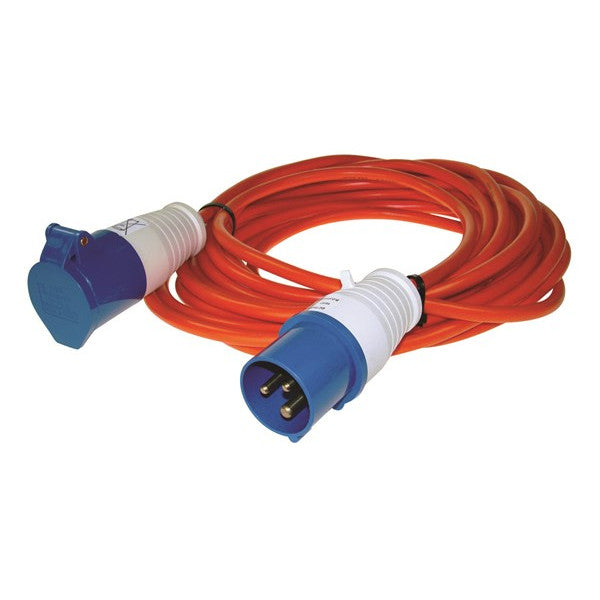

| Site/hook-up lead | Specified caravan or site connector system. | Connector standard, polarity, IP protection and cable. | Improvised domestic-pin conversion. |
| Travel adaptor | Adapts plug pin format for supported equipment. | Voltage, frequency, earth and current compatibility. | Assuming it transforms supply voltage. |
| Plug-in RCD | Additional disconnection for some earth faults. | Test function and rated trip characteristics. | Treating it as permission to use damaged equipment. |
Calculate connected load before plugging in
Use the appliance rating plates and instructions. When power is stated, current can be estimated for a resistive load by dividing watts by supply volts, but motors and electronic loads may have start-up current and power-factor effects. Use their declared current rather than a simplistic estimate where available.
The extension's total rating applies to all outlets combined. Four sockets do not each provide the full rating simultaneously.
The lowest rating governs the complete chain
| Element | Limiting factor | Evidence to check |
|---|---|---|
| Fixed outlet/circuit | Circuit protection and existing loads. | Known suitable supply and competent inspection. |
| Plug and fuse | Pin/contact temperature and flexible-cable protection. | Correct fuse, sound pins and tight cord grip. |
| Flexible cable | Conductor area, length, insulation and installation. | Lead markings and manufacturer rating. |
| Reel | Heat trapped between wound layers. | Separate wound/unwound maximum loads. |
| Socket block | Combined current and contact condition. | Total rating, shutters and no heat damage. |
| Adaptor/timer | Often lower current or load-type limits. | Resistive/inductive rating and instructions. |
Why a coiled reel has a lower operating limit
Current heats the copper according to its resistance. When the cable is wound, adjacent layers restrict airflow and share heat, raising conductor and insulation temperature. The reel's label may show a much lower maximum power while coiled.
Unwind the cable neatly to the extent required by its instructions, even when the tool is nearby. Do not leave loose loops across a walkway; route the surplus safely without tightly bundling it.
Cable length and voltage drop
Longer and smaller conductors lose more voltage. A motor supplied at low voltage can draw excessive current, fail to start or overheat. Joining several leads adds length and contacts while making protection and environmental sealing harder to control.
Choose one adequately rated lead of suitable length. For high-load or long-run work, have the supply arrangement assessed rather than fitting a larger plug fuse.
Indoor, outdoor, site and workshop environments
| Environment | Main hazards | Control considerations | Reject |
|---|---|---|---|
| Dry office/home | Overload, furniture damage, trips. | Correct total load and visible routing. | Lead under rugs or crushed by doors. |
| Vehicle workshop | Vehicles, oil, swarf, wet cleaning. | Tough cable, protected routing and suitable sockets. | Domestic block on floor near liquids. |
| Outdoors | Rain, mud, UV and mechanical damage. | Outdoor-rated system and additional protection from assessment. | Open indoor connectors wrapped in a bag. |
| Construction/site | Severe wear and supply-system requirements. | Site-specified voltage/connectors and formal checks. | Unverified domestic conversion. |
| Caravan/hook-up | Polarity, earth continuity, weather and long use. | Correct hook-up lead, enclosure and site supply. | Back-feeding through a plug-to-plug lead. |
Plugs, fuses and cord grips
A UK fused plug protects the flexible cable and appliance lead when the correct fuse is selected. A larger fuse does not provide more usable power; it can allow a damaged or undersized cable to overheat. Pins must be straight and free from burning.
The cord grip clamps the outer sheath, not individual insulated cores. Exposed inner cores at the plug entry show incorrect stripping or movement and require repair by a competent person.
Rewireable plug connections
Isolate and verify dead before opening. Wire colours, terminal design, conductor preparation, screw torque and fuse selection must follow current instructions. Loose strands can bridge terminals; solder-tinning a conductor under a screw may creep and loosen unless specifically designed for it.
After assembly, no bare copper should be visible, the sheath must be gripped and a competent electrical test should confirm earth continuity and insulation where applicable.
RCDs reduce some risks but have limits
An RCD compares current in live and neutral and disconnects when an imbalance indicates leakage. Current HSE guidance notes the value of additional RCD protection, particularly in higher-risk conditions, while also stressing suitability and equipment condition.
An RCD does not protect against every live-neutral shock, overload or heat from a loose contact. Test it by its stated procedure and investigate repeated tripping instead of holding or bypassing the device.
Surge protectors and timer adaptors
A surge-protected strip can limit certain transient overvoltages, but its protective component ages and cannot make an unsafe supply safe. Check status indicators and replacement instructions. It is not lightning-proof.
Timers and smart adaptors must be rated for the connected load type. A motor or heater may exceed a contact rating even when average wattage looks acceptable.
User inspection before every shift or use
Check the complete energy path
Look along the whole cable and flex it gently to expose cuts or flattened regions. Check the plug, pins, fuse cover, socket shutters, reel drum, connectors and any thermal reset. Smell and discolouration often reveal overheating before complete failure.
Control a defective lead
Remove defective equipment from use, label it and prevent someone else plugging it back in. Tape is not a suitable repair for cut insulation or a crushed conductor.
Risk-based inspection and testing
Formal maintenance frequency depends on equipment type, environment, user behaviour and previous findings. HSE guidance uses user checks, visual inspection and combined inspection/testing according to risk rather than treating one interval as universal.
Record workplace checks where the maintenance system requires it. Testing must use suitable instruments and competent interpretation; a sticker alone does not prove an item remains safe after damage.
Routing prevents electrical and trip injuries
Keep leads off sharp edges, hot exhausts, wet floors and traffic lanes. Use designed cable ramps where crossings cannot be avoided. Do not suspend a lead by its connectors or close a fire door on it.
Allow enough slack for tool movement without loops near rotating machinery. Disconnect by gripping the plug, never by pulling the cable.

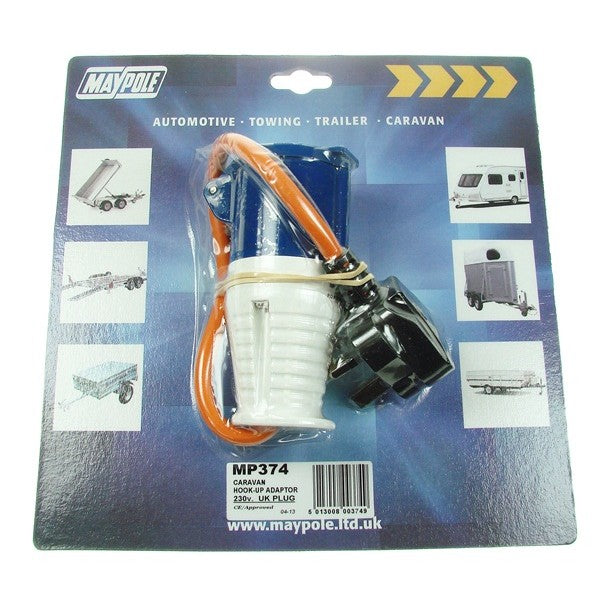

Travel and hook-up adaptors
A pin adaptor usually does not change voltage or frequency. Confirm the connected device supports the supply and that protective earth remains continuous where required. Avoid multi-stage stacks whose combined weight loosens the wall contact.
Caravan/site systems use defined connectors and protective arrangements. Never make a lead with exposed live pins or a plug at both ends; it presents an immediate electrocution risk.
Stop-use indicators
Unplug safely if a lead, plug or socket becomes hot, buzzes, arcs, smells of insulation, shows brown marks, loses power intermittently or trips protection. Isolate the circuit first if touching the plug could be unsafe. Fire damage or water ingress requires competent inspection of the supply as well as the lead.
Do not reconnect repeatedly to “see if it clears”. A protective trip is evidence to investigate.
Practical extension-lead-and-plug FAQs
Q: Do four sockets provide four times the rated current?
A: No. The strip or reel total applies to all outlets combined.
Q: Must a cable reel be fully unwound?
A: Follow its label; high loads commonly require full unwinding because wound cable traps heat.
Q: Can extension blocks be daisy-chained?
A: Avoid it. Use one suitably rated lead and enough fixed outlets.
Q: Does a travel adaptor convert voltage?
A: Usually not; it normally changes only the pin format.
Q: Can a larger plug fuse stop nuisance blowing?
A: No. Use the specified fuse and diagnose overload or faults.
Q: Is an RCD enough for outdoor work?
A: It is only one control; equipment, supply, connectors and environment must all be suitable.
Q: Can a cut cable be wrapped with tape?
A: No. Remove it from service for a proper repair or replacement.
Q: Why is a long lead bad for a compressor?
A: Voltage drop and start current can cause poor starting and overheating.
Q: Is a domestic extension block suitable in a workshop?
A: Not where impact, vehicles, liquid or swarf exposure exceeds its intended environment.
Q: What does a hot plug indicate?
A: Overload, resistance or a poor contact; disconnect and investigate.
Q: Should the cord grip clamp individual wires?
A: No. It should retain the cable's outer sheath.
Q: Does a recent test label guarantee safety?
A: No. Inspect before use and remove equipment damaged since testing.
Q: What should happen when an RCD repeatedly trips?
A: Stop, isolate and have the equipment/supply fault investigated; never bypass it.
