MAYPOLE
Maypole is a Birmingham-based towing and touring specialist whose official history begins in 1969 with trailer lighting boards. The selection shown here reflects that practical focus. It includes towing electrics, plugs and sockets, conversion and extension leads, trailer boards and lamps, reflectors, coupling hardware, jockey wheels, breakaway cables and load restraints. Battery chargers, jump leads, vehicle covers, mirrors and caravan or camping equipment broaden the range, but towing and trailer work remain its centre of gravity.
Choose by the complete application, not a familiar-looking connector. For electrics, establish the vehicle and trailer voltage, 7-pin or 13-pin system, plug and socket genders, required lighting and auxiliary functions, cable length, core arrangement and whether the vehicle needs a dedicated module or compatible bypass relay. A physical connection does not prove correct pin allocation. Compare the Maypole part number and technical details, then test every road-lighting function after installation.
Mechanical items demand the same discipline. Match couplings, towballs, jockey assemblies, bearings, wheels, winches and straps by dimensions, mounting pattern, load rating and intended duty. A strap's lashing capacity, break force and maximum load are different quantities; use the value specified for the restraint method. Never exceed the vehicle, towbar, trailer or component limit, and remember that the lowest applicable rating controls the combination.
Before each journey, inspect the coupling, breakaway cable or secondary connection, plug, cable, lamps, reflectors, tyres, wheel fixings and load security. The DVSA also advises checking correct coupling, cable condition, lighting, tyre condition and pressure, load distribution and weight limits every time you tow. For a lighting board, also confirm its width, cable reach, number-plate position and secure mounting suit the trailer or carrier. Keep connectors clean and dry, replace chafed leads or distorted hardware, and investigate flicker or heat rather than relying on an adaptor to mask a fault. Select the relevant Maypole product from the listings below using its stated specification and instructions.
Your Current Vehicle
Or
Select Your Vehicle
Popular Part Types
Only part types stocked for this brand are shown.
Car Parts Categories
Browse the main catalogue areas in which this brand has matching products.
Other popular manufacturers of aftermarket automotive parts
Explore established alternatives with related products in the current catalogue.
Maypole equipment for towing, trailers and touring
Maypole is a UK towing and touring company based in Birmingham. Its official account traces the business to 1969 and identifies a trailer lighting board among its earliest products. That background fits the range represented here: 430 products led by towing electrics and accessories, with trailer lighting, load restraint, battery care, vehicle protection and caravan or camping equipment also present.
This is not a vehicle-service-parts collection where registration alone settles every choice. Many products are defined by an interface, electrical system, dimension or working limit. The useful starting point is therefore the job: connecting trailer road lights, adapting between connector standards, supporting a drawbar, restraining a load, charging a battery or protecting touring equipment. Product-level specifications then decide which item is appropriate.
What the represented Maypole range contains
| Product group | Examples in this collection | Information to establish | Critical check |
|---|---|---|---|
| Towing electrics | 7-pin and 13-pin plugs, sockets, extension leads, adaptors, wiring blocks and relays | Voltage, connector standard, functions, pin allocation, cable length and vehicle electronics | Test each circuit at both vehicle socket and trailer |
| Trailer lighting | Lighting boards, combination lamps, marker lamps, reflectors and replacement components | Voltage range, lamp functions, side, mounting, connector and approval details for the exact part | Confirm visibility, security and correct operation before travel |
| Towing hardware | Coupling locks, jaws, hitch pins, breakaway cables, jockey wheels and bearings | Dimensions, interface, fixing pattern, rated capacity and intended trailer | Never infer load capability from size or appearance |
| Load restraint and recovery | Cam straps, ratchet straps, wheel lashings, tow ropes and tow poles | Permitted duty, lashing capacity, length, end fittings and condition | Distinguish restraint ratings from breaking-force figures |

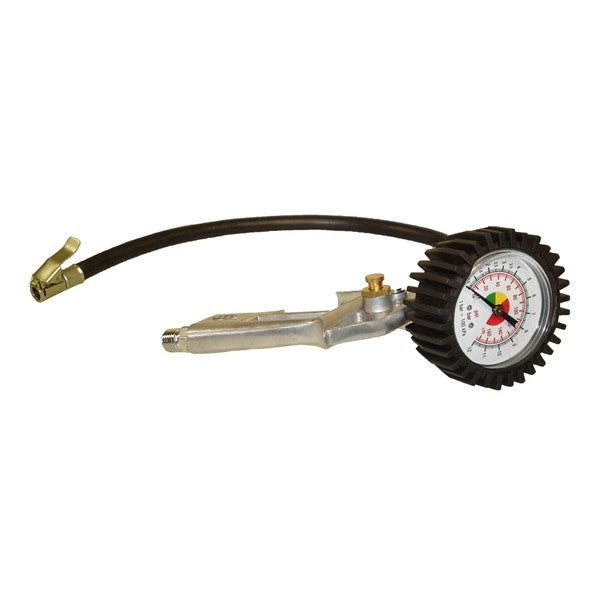

| Battery and maintenance | Chargers, jump leads, clamps, tyre equipment and maintenance accessories | Battery chemistry and voltage, current or cable rating, polarity and instructions | Keep sparks and reverse polarity away from batteries |

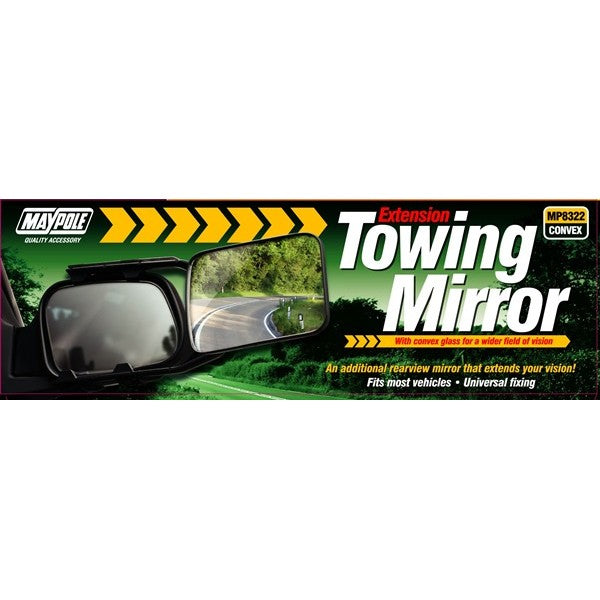

| Touring and protection | Caravan accessories, covers, mirrors, warning equipment and travel items | Object dimensions, fixing method, environment and storage requirements | Ensure nothing obscures lights, registration marks or the driver's view |
Selecting 7-pin, 13-pin and adaptor equipment
Begin by identifying both ends of the connection. A UK 12N 7-pin circuit is commonly associated with basic trailer road-light functions, while a 13-pin arrangement can carry additional circuits as well as road lighting. That general distinction is not permission to connect wires by colour from memory. Check the standard named in the instructions, terminal numbers and the required function at each pin.
The catalogue includes straight and curly extension leads, plug-to-plug and plug-to-socket arrangements, conversion leads, pre-wired sockets and mounting plates. Record the connector on the towing vehicle and the one on the trailer, including male or female interface, before comparing products. Measure the route with articulation allowed: a lead must reach throughout turns without pulling tight, yet must not hang where it can drag or catch.
| Question | Why it matters | Verification method |
|---|---|---|
| Is the system 12V, 24V or a stated multi-voltage design? | Incorrect voltage can damage lamps or control equipment | Check vehicle, trailer and exact product markings |
| Which functions must pass through? | Some adaptors provide road lighting but not every auxiliary caravan circuit | Compare the pin/function schedule on both systems |
| Does the vehicle monitor its lamps? | Modern control units may require a dedicated interface or specified relay | Use vehicle and towbar-wiring instructions; consult a competent fitter when uncertain |
| Is the cable long enough at full articulation? | A taut cable damages terminals; excess cable can contact the road | Check through the coupling's movement before driving |
| Are connector seals and mounting sound? | Water, dirt and movement cause resistance and intermittent faults | Inspect pins, lid, seal, strain relief and bracket |
Maypole's official instructions for a pre-wired 12N socket list individual terminal functions and advise testing vehicle and trailer lights before towing. They also warn that sophisticated lamp-monitoring electronics may call for a multi-function bypass relay or the vehicle manufacturer's towing module. Electrical work should be isolated, fused as specified and routed away from sharp edges, heat and moving parts.

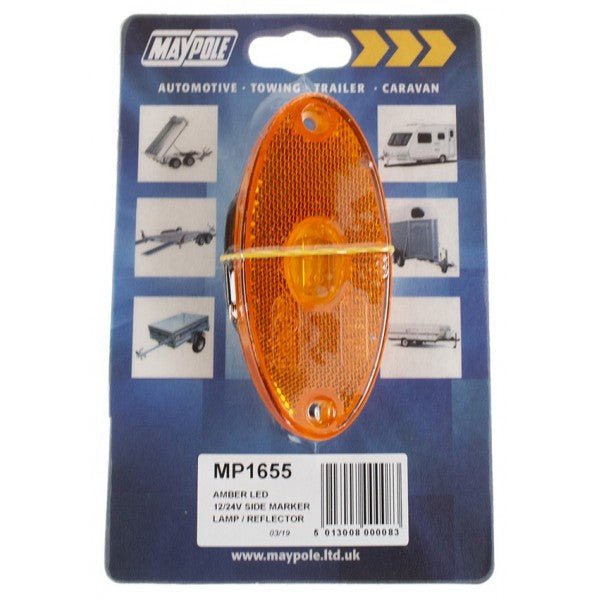

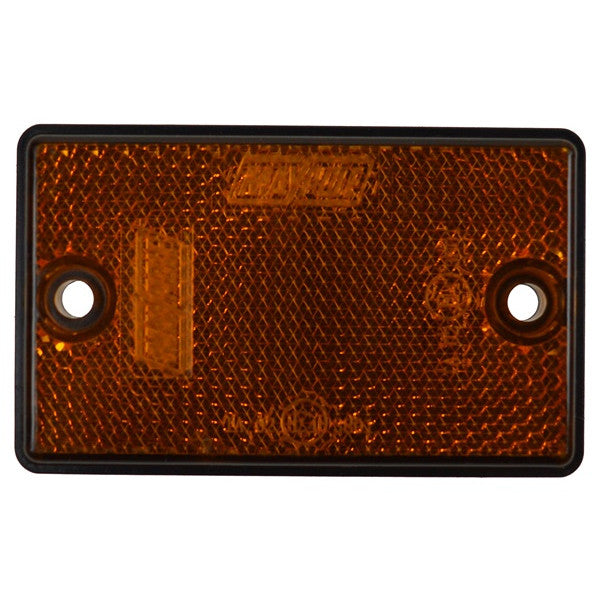

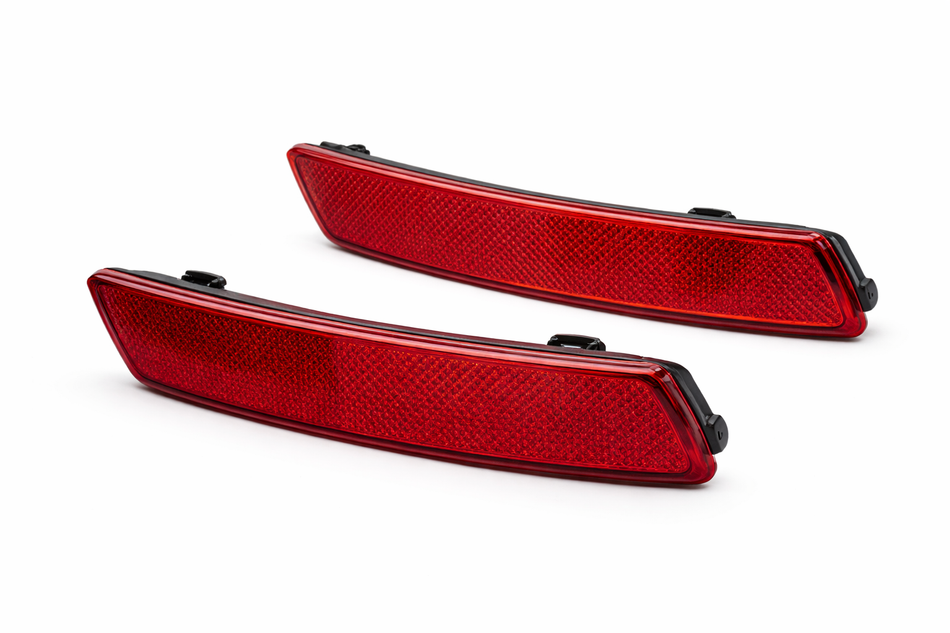

Lighting boards, lamps and reflectors
A lighting board is chosen by more than width. Consider cable length, plug type, lamp technology, number-plate position, mounting points and the functions supplied. A cycle-carrier board, conventional trailer board and bespoke trailer installation can present different physical needs. The listing must support the exact use; do not cover existing obligatory lamps or assume an unlit reflector substitutes for a required lamp.
For an individual lamp, identify left or right orientation, stop/tail/indicator/fog/reverse/number-plate functions, operating voltage, connector or flying lead, mounting centres and environmental rating. Product-specific evidence matters: for example, one official Maypole rear combination-lamp pair is stated as 12/24V, IP67 and E-approved, but those details cannot be transferred to every lamp in the range.
Test with the engine and relevant systems in the state described by the vehicle or tester instructions. A simple circuit tester can help separate a vehicle-socket fault from a trailer fault, provided it matches the connector and lamp technology. Maypole notes that one 12N tester is not suitable for LED trailer lights, illustrating why tester limitations should be read before interpreting the result.
Couplings, jockey wheels, bearings and winches
Mechanical compatibility should be established from measured interfaces and documentation. For a jockey wheel or clamp, verify tube diameter, clamp type, mounting position, static nose load and available retracted and extended heights. Check that the wheel can be raised fully for travel and cannot foul the coupling, brake mechanism or ground. Bent tubes, slipping clamps and damaged wheels call for correction before departure.
Bearings require exact dimensions or a confirmed part reference, along with the correct seal and installation method. Cleanliness is essential during assembly. Do not drive force through rolling elements, reuse damaged retaining components or set adjustment by guesswork. After installation, verify smooth rotation and end float by the trailer manufacturer's procedure, then recheck for heat or play at the prescribed interval.
A hand winch is not automatically a load-supporting or lifting device. Confirm pulling capacity, drum and strap or cable specification, mounting and brake arrangement. Keep hands away from the drum and fairlead, stand clear of a tensioned line, and never exceed the weakest element in the system. Any kinked wire rope, torn webbing, distorted hook or unreliable ratchet deserves removal from service.
Load straps, lashings and towing aids
| Marking or feature | How to use the information | Do not assume |
|---|---|---|
| Lashing capacity | Use within the restraint calculation and the labelled configuration | That it equals the strap's breaking force |
| Maximum load or tow capacity | Compare with the actual laden mass and instructions | That the vehicle's approved towing point shares that rating |
| Length and width | Allow the correct route, engagement and protection at edges | That extra knots or twists are acceptable ways to shorten it |
| Hook or claw style | Match a secure, suitably rated attachment point | That any slot, wheel spoke or suspension arm is an anchor |
| Wear sleeve or soft link | Position as intended to reduce local abrasion | That protection restores strength already lost through damage |
Distribute trailer loads with regard to axle loading and the permitted nose weight, then restrain them against forward, rearward and lateral movement. Protect webbing from sharp edges and avoid twists. Re-tension after the load has settled when the instructions call for it. Recovery ropes and tow poles are separate tools with separate hazards; use only approved towing eyes and follow both vehicle handbooks.

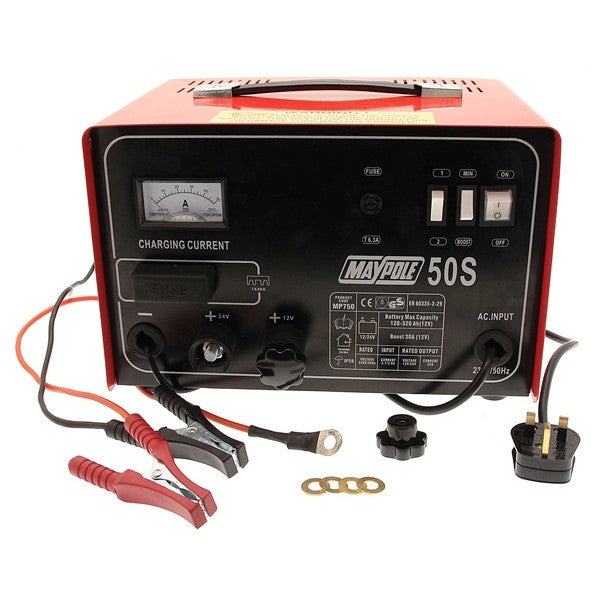

Battery chargers, jump leads and electrical accessories
Before choosing a charger, identify nominal battery voltage, chemistry, capacity and any vehicle-manufacturer restrictions on charging in situ. A maintenance mode, conventional charging output and engine-start function are not interchangeable. Make connections with the charger isolated, observe the stated polarity sequence, ventilate the area and keep ignition sources away. Frozen, leaking, cracked or swollen batteries should not be charged.

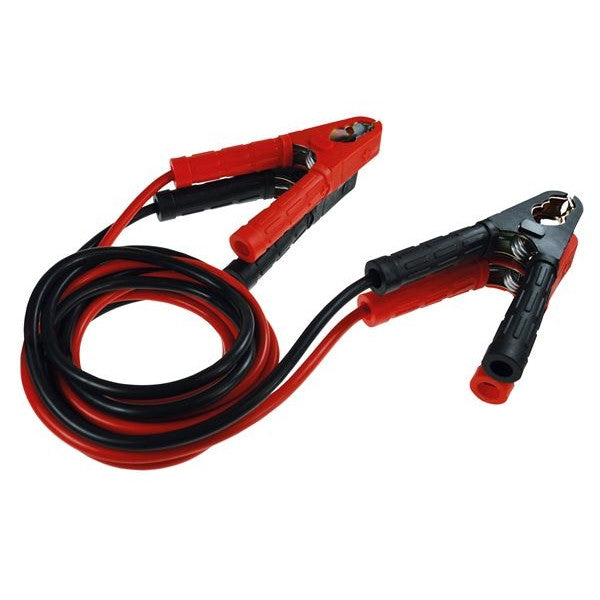

Jump leads need suitable conductor capacity, insulation and clamps for the vehicles involved. Follow the vehicle manufacturers' connection sequence because designated earth points and hybrid systems can alter the method. Keep leads clear of fans and belts, and do not allow clamps to touch. Battery equipment should never be used to bypass diagnosis of repeated discharge or a charging-system fault.
Pre-tow inspection and UK road use
DVSA guidance says to check the coupling and height, cable and plug, breakaway cable or secondary connection, tyres, wheel fixings, lights, indicators, load security and applicable weight limits whenever towing. The breakaway cable needs enough slack for articulation without applying the brakes, but it must not drag. The loaded combination must remain within the vehicle and trailer limits shown by their plates and instructions.
Roadworthiness is wider than an MOT result. Clean lenses and reflectors, confirm the registration plate is visible, and operate every lighting function with an observer. Look for overheated socket pins, green corrosion, brittle insulation, crushed cables and insecure mounting plates. Repair the cause rather than repeatedly cleaning a contact that has lost tension or sealing.
Frequent Maypole selection mistakes
- Ordering an adaptor from pin count alone without checking which functions it carries.
- Using cable colour as the only wiring reference instead of terminal numbers and instructions.
- Allowing an extension lead to become taut on turns or loose enough to touch the road.
- Confusing breaking force with the permitted lashing or working capacity.
- Fitting a lamp by shape while overlooking side, voltage, functions or mounting dimensions.
- Buying a jockey assembly without measuring tube size, lift range and available clearance.
- Connecting towing electrics directly to monitored vehicle lighting when an interface is required.
- Assuming a new component removes the need for a complete pre-journey trailer check.
Maypole questions and answers
Q: What products are represented in this Maypole collection?
A: Towing electrics and hardware lead the selection, alongside trailer lamps and boards, reflectors, load restraints, battery products, covers and touring accessories.
Q: Is every Maypole item vehicle-specific?
A: No. Many are selected by connector, voltage, measurement or rating, while any application-specific item still requires confirmation against its listing.
Q: Can a 13-pin to 7-pin adaptor carry every caravan function?
A: Not necessarily. Establish which circuits the adaptor passes; basic road lighting and supplementary caravan supplies are different requirements.
Q: How much slack should a trailer electrical lead have?
A: It needs free movement through full articulation without pulling, dragging or contacting hot and moving parts.
Q: Why might a modern car need a bypass relay or dedicated wiring kit?
A: Lamp monitoring and vehicle electronics may require an approved interface rather than a direct additional load on lighting circuits.
Q: May I replace an LED trailer lamp with any unit of the same shape?
A: Shape is insufficient; match voltage, functions, side, mounting, connection and exact regulatory markings required for the application.
Q: Is the break force the safe working load of a strap?
A: No. Use the labelled lashing capacity or working limit in the specified arrangement, never the failure figure as a routine limit.
Q: What should be checked on a breakaway cable?
A: Inspect condition, correct attachment, freedom from dragging and enough slack to turn without unintentionally operating the trailer brakes.
Q: Can a hand winch be used for lifting?
A: Only if its documentation explicitly permits that duty; a pulling winch must not be treated as lifting or load-support equipment.
Q: How should trailer-light faults be approached?
A: Test functions methodically at the towing socket and trailer, then inspect earths, pins, wiring, lamps and compatibility with the tester.
Q: Does a coupling lock make a trailer ready for travel?
A: It is a security accessory, not a substitute for verifying coupling engagement, safety connection, electrics, wheels, tyres and load.
Q: What controls the maximum towing combination load?
A: The lowest applicable limit among the vehicle, towbar, coupling, trailer, licence and individual load-handling components remains decisive.
