Lighting electronics convert vehicle commands into controlled optical output
A body controller may request a function over a data network while a lamp-mounted module drives the source and monitors current, temperature and faults. HID ballasts generate a high-voltage ignition pulse then regulate arc power. LED modules supply controlled current to one or more strings and protect them thermally.
Adaptive systems add steering, speed, ride-height and motor commands. The first visible symptom can occur far from the failed input.

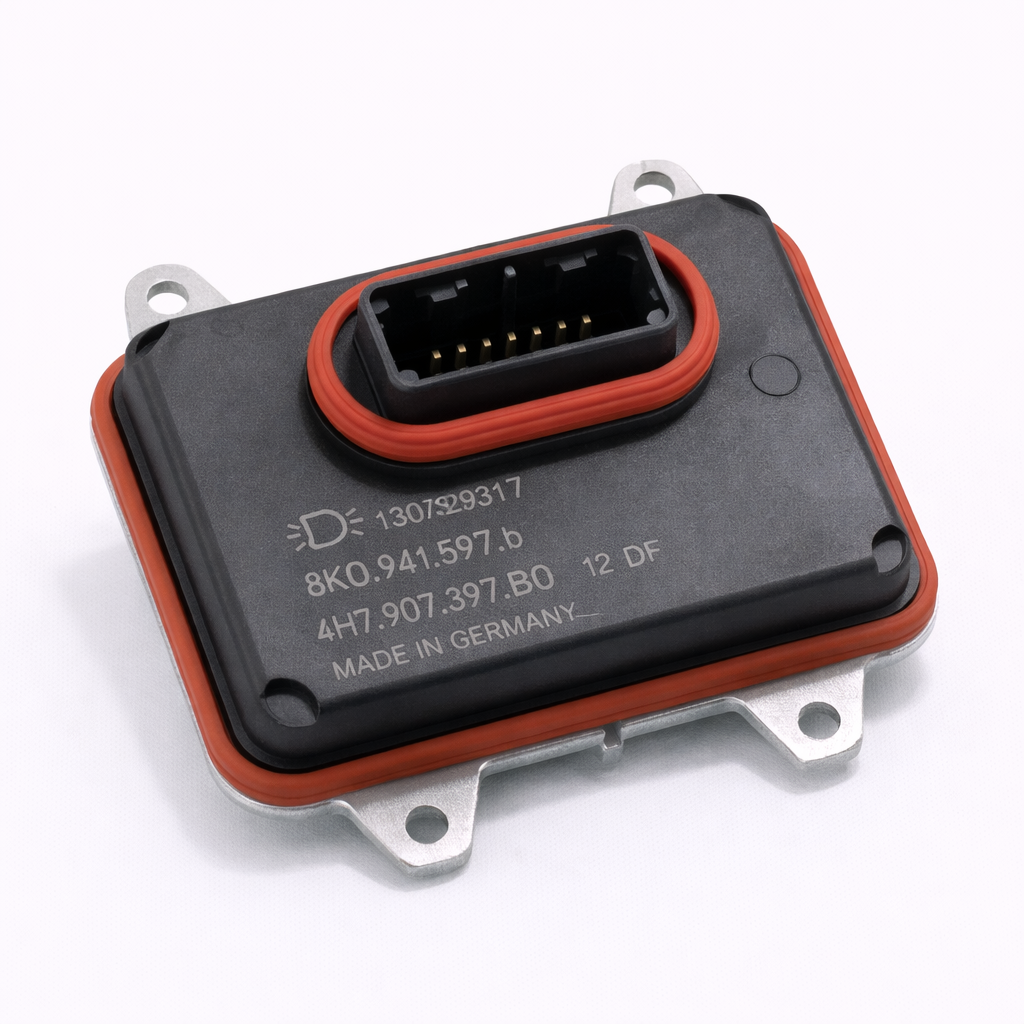

Module names describe different stages
| Module type | Function | Electrical characteristic | Service caution |
|---|---|---|---|
| HID ballast | Ignites and regulates gas-discharge lamp. | High-voltage pulse and controlled arc current. | Do not probe output or run open. |
| Igniter/inverter | Creates lamp starting voltage, sometimes separate. | Very high voltage near bulb. | Observe discharge/isolation procedure. |
| LED power module | Drives LED strings at regulated current. | Current control and thermal derating. | Requires correct heat transfer. |
| AFS/adaptive controller | Commands swivel, shutter or beam distribution. | Network plus motor outputs. | Coding and calibration often required. |
| Levelling controller | Uses height sensors to control beam height. | Sensor references and actuator drive. | Mechanical ride-height faults affect it. |
| Central light controller | Coordinates several exterior-light functions. | Vehicle-specific software/diagnostics. | Variant coding and security may apply. |
Fitment follows the complete lamp and vehicle variant
| Compatibility item | Why it matters | Evidence |
|---|---|---|
| Complete reference/suffix | Defines output, software and pinout. | Old module, lamp label and current catalogue. |
| Light-source technology | HID, LED and halogen loads differ. | Lamp markings and vehicle build. |
| Left/right or position | Addressing and thermal shape may be handed. | Installation note and physical location. |
| Adaptive/levelling option | Extra motors and sensor logic are expected. | Vehicle equipment/VIN data. |
| Software generation | Network messages and calibration change. | Supersession and diagnostic information. |
| Thermal interface/seal | Controls temperature and water ingress. | Required gasket, pad and torque. |
HID and xenon operation
A gas-discharge capsule needs a high ignition voltage to establish an arc, then a ballast regulates power as pressure and temperature stabilise. Ageing capsules can demand repeated strikes, flicker or shift colour, stressing a healthy ballast.
Replace capsules in matched pairs when the vehicle and lamp maker recommend it for colour/output balance, but diagnose the supply and housing before condemning both sides.
LED current and thermal management
LED brightness depends on controlled current rather than simply applying 12 volts. Driver electronics may power separate dipped, main, DRL or matrix segments and reduce output when a temperature sensor reports heat.
A missing thermal pad, corroded heatsink or overtightened warped module can cause recurrent shutdown. Clean only the specified mating area and never add general grease.
Adaptive and matrix lighting
Adaptive systems can swivel a projector, move shutters or switch LED segments based on steering angle, speed, yaw and camera data. A fault in ride-height or steering calibration may cause the controller to choose a safe fixed beam.
Do not test moving mechanisms with fingers inside the lamp. Matrix functions need controlled diagnostic and road verification without dazzling others.
Symptoms need a branched diagnosis
| Symptom | Module possibility | Other likely causes | Evidence |
|---|---|---|---|
| One HID does not strike | Ballast/igniter output failure. | Capsule, fuse, supply, connector. | Codes, loaded input and approved component test. |
| Flicker then shutdown | Protection or unstable ballast. | Ageing capsule, voltage drop, moisture. | Input trace, fault counter and lamp condition. |
| One LED segment dark | Driver channel fault. | LED board/open circuit/thermal issue. | Module output and lamp internal diagnosis. |
| Levelling warning | Controller or motor driver. | Height sensor/link, wiring, calibration. | Live sensor values and actuator test. |
| Adaptive function disabled | AFS software/output. | Camera, steering angle, ride height, network. | Full vehicle scan and prerequisite status. |
| Repeat module failure | Wrong coding or thermal mounting. | Water ingress, shorted lamp, supply surge. | Root-cause inspection before replacement. |
Start with supply and earth under real load
Measure voltage drop while the lamp is commanded on. An unloaded 12-volt reading can remain through a corroded connection that cannot supply current. Inspect fuse terminals, grounds and connector pin tension.
Controller outputs may be pulse-width modulated and monitored. Use wiring data and an appropriate scope or diagnostic command rather than a high-current test lamp on an unknown circuit.
Network and diagnostic evidence
Run a full scan before disconnecting modules and save codes, freeze-frame and configuration. Communication faults can result from lost power or a shorted network, while “control module faulty” text may be a symptom of incompatible software or missing coding.
Compare commanded state, temperature, lamp current and levelling position. Clear codes only after the cause is repaired and baseline evidence is preserved.
Water ingress is a cause, not just a side effect
Modules at the bottom of a headlamp can sit in collected water. Inspect lens seams, rear covers, vents, grommets and crash damage. Condensation from normal pressure cycling differs from pooled water and corroded pins.
Drying and fitting a new controller without restoring the housing seal invites another failure. Replace a badly corroded connector and inspect migrated moisture in the loom.
High-voltage isolation and retained energy
Switch off, isolate the battery or high-voltage supply as the vehicle procedure states, and wait the specified discharge time. Some systems can wake during unlocking or network activity. Treat ballast and igniter output as hazardous even if the lamp is dark.
Never bench-run an HID unit with exposed terminals or look directly into an operating source at close range.
Removal and thermal interface
Protect the lamp housing
Clean around the module before opening it so grit cannot enter. Release connectors by their locks rather than pulling wires.
Renew required seals and pads
A compressible gasket may be single-use. A thermal pad must have the specified thickness and coverage; stacking pads insulates rather than cools.
Tighten evenly
Use the sequence and torque so the housing remains flat and sealed. Do not drive an oversized screw into stripped plastic.
Coding, parameterisation and component protection
A replacement may need vehicle-order coding, left/right assignment, lamp variant selection or online component protection. Maintain stable battery support and use authorised diagnostic procedures. Interruption can leave the lamp inoperative.
Used modules may retain donor coding and may not be legally or technically reusable on every vehicle. Confirm support before purchase.
Battery condition can imitate or interrupt module faults
Low cranking voltage and unstable charging supply can reset lighting controllers or make HID ignition fail intermittently. Test the battery and charging system under relevant load before replacing electronics. During coding, use regulated support equipment approved for programming rather than an uncontrolled fast charger.
Overvoltage is equally damaging. Resolve alternator, earth and jump-start faults before installing a replacement module.
Levelling and ride-height inputs
Inspect front/rear suspension sensor arms, brackets and wiring at normal ride height. A reversed or bent link can report plausible but wrong values. Repair suspension faults and set tyre pressures/load condition before calibration.
Initialise the system on the specified level surface, then set mechanical aim with approved beam equipment. Electronic calibration does not replace aim adjustment.
Verification of every shared lamp function
Test dipped and main beam, flash, position lamp, DRL, indicators, cornering, levelling and adaptive movement as equipped. Check tell-tales and repeat after a road vibration/heat cycle.
Confirm output colour and intensity are reasonably matched and no wiring or cover contacts hot or moving parts.
UK MOT and roadworthiness
Current DVSA guidance assesses headlamp presence, operation, security, condition, aim and applicable levelling. Fitted self-levelling systems on relevant HID or LED dipped beams must work. HID hardware can include high-voltage modules, so inspection and repair require care.
Do not use coding to suppress a warning or fix the beam in a position that dazzles. Restore designed function and check aim.
Practical headlight-control-module FAQs
Q: Is a ballast the same as an igniter?
A: Not always; some systems combine them while others use separate high-voltage stages.
Q: Can I select a module by appearance?
A: No. Match complete reference, lamp technology, side, equipment and software generation.
Q: Does a dark HID prove ballast failure?
A: No. The capsule, supply, earth, connector and moisture can cause the same symptom.
Q: Why does a new LED module shut down?
A: Check thermal pad/heatsink, wrong coding, lamp-board fault and water ingress.
Q: Can HID output be tested with a multimeter?
A: Do not probe the high-voltage output; use approved diagnostics and isolation.
Q: Is condensation always a leaking lamp?
A: Light mist can arise from pressure cycling, but pooling and corrosion need seal/vent diagnosis.
Q: Does a replacement need coding?
A: Many adaptive, LED and vehicle-specific modules need coding or parameterisation.
Q: Can a used module be fitted?
A: Only if hardware, software and vehicle security/coding support reuse.
Q: Does levelling calibration set headlamp aim?
A: It establishes the control baseline; mechanical aim still needs correct equipment.
Q: Can thermal paste replace a pad?
A: Only when the module instructions specify that exact interface material.
Q: Why does adaptive lighting stop after suspension work?
A: A height-sensor link, ride height or calibration may be wrong.
Q: Is it safe to operate an open HID lamp?
A: No. High voltage and intense optical output require the approved enclosed test method.
Q: What proves the repair?
A: No faults, correct coding, dry/sealed module, all lamp functions and verified beam aim/levelling.
