Automatic levelling starts with body-position measurement
A load in the rear of a vehicle can raise the headlamp beam even though the lamps have not moved relative to the body. A level sensor measures the suspension-to-body relationship, allowing the lighting controller to infer pitch and command small motors in the headlamps.
The system controls glare while preserving useful forward illumination; it is not a substitute for correct mechanical beam aim.

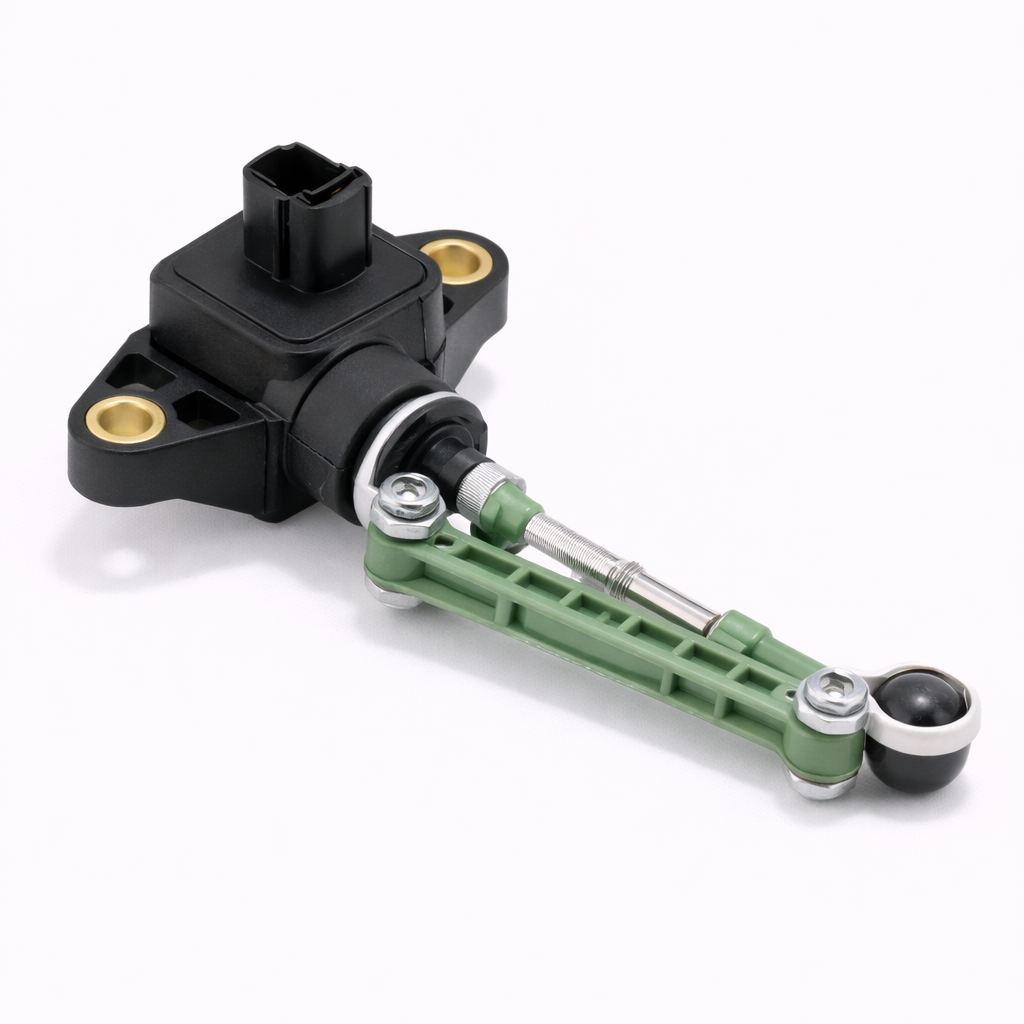

Mechanical movement becomes an electrical signal
| Element | Role | Typical fault | Observed effect |
|---|---|---|---|
| Body bracket | Provides fixed reference. | Corrosion or bending. | Biased signal. |
| Sensor body | Converts angle to voltage/data. | Water or internal wear. | Implausible or missing value. |
| Lever arm | Defines angular direction and range. | Incorrect clocking. | Reversed or limited response. |
| Drop link | Connects sensor to suspension. | Seized joints or breakage. | Frozen or erratic reading. |
| Suspension bracket | Tracks axle/wheel movement. | Detached weld or wrong hole. | Incorrect calibration. |
| Wiring/connector | Supplies power, earth and signal. | Chafing or corrosion. | Intermittent warning. |
One- and two-sensor systems calculate pitch differently
Some vehicles monitor one axle and use a calibrated relationship to vehicle load. Others compare front and rear sensors to calculate body pitch more directly. Air-suspension vehicles may share height information across control units instead of using a lamp-only sensor.
A plausible single sensor value can still be wrong relative to its partner or to the physical ride height.
Signal technology varies by generation
Traditional sensors output an analogue voltage that changes with lever position. Later units may use pulse-width modulation, SENT-style signalling or a network connection. A resistance check that is useful on one design can damage or misdiagnose another.
Use the wiring diagram and specified test method; never inject voltage into an unidentified signal terminal.
Fitment must preserve direction and calibration
| Match detail | Evidence | Why it matters | Mismatch result |
|---|---|---|---|
| Axle and side | Vehicle data and installed location. | Defines lever motion. | Signal moves in wrong direction. |
| Suspension option | Build codes and ride-height system. | Changes bracket geometry and range. | Sensor reaches its stop. |
| Part/software reference | Original label and catalogue. | Separates electrical variants. | No communication or false value. |
| Lever clocking | Technical image at reference height. | Positions usable angular window. | Non-linear or saturated reading. |
| Link length | Measured centres and specification. | Sets mechanical ratio. | Wrong beam correction. |
| Connector/pinout | Keying and wiring diagram. | Routes supply and signal safely. | Module or sensor damage. |
The lever must remain inside its working arc
Suspension travel should move the sensor smoothly without the lever crossing over centre, hitting the housing or pulling on its wiring. An incorrectly installed link can appear correct at normal height but invert or snap when the vehicle is lifted.
Check the specified full-travel relationship without placing anyone beneath unsupported suspension.
Live data should agree with physical movement
Record fault codes and sensor values at rest, then move the suspension only by a safe approved method. The value should change smoothly and in the documented direction. Sudden jumps suggest a worn track, loose linkage or wiring interruption; a fixed extreme can indicate an open circuit or lever at its stop.
Compare left/right or front/rear data only when the system design makes that comparison meaningful.
Beam symptoms are not direct part diagnoses
| Symptom | Possible sensor/link cause | Other system cause | Next check |
|---|---|---|---|
| Both beams too high | Biased reference or wrong link. | Mechanical aim or calibration. | Ride height, data and beam setter. |
| Both beams very low | Sensor at fallback extreme. | Controller fail-safe or wrong coding. | Codes and basic setting. |
| Beam hunts | Intermittent link/signal. | Lamp motor or supply fault. | Graph data and command actuators. |
| One lamp differs | Usually not a shared axle sensor alone. | Motor, adjuster or lamp damage. | Individual actuator response. |
| Warning after suspension work | Link omitted or out of range. | Calibration not performed. | Visual position and calibration. |
| Link repeatedly breaks | Wrong geometry or seized joints. | Bent suspension bracket. | Full safe travel inspection. |
Corrosion often attacks exposed linkage first
Road salt and water reach small ball joints, fasteners and connector seals. A stiff joint transmits side load into the sensor shaft until the arm or bracket fails. Penetrating fluid may free a diagnostic joint briefly but does not restore a worn seal or reliable articulation.
Replace damaged linkage and repair the cause of water entry using compatible sealed components.
Wiring faults can mimic a worn sensor track
Harnesses flex near suspension and can chafe against springs, arms or underbody shields. Inspect while considering normal wheel travel, steering and vehicle lift positions. Loaded voltage and earth tests are more informative than an unloaded continuity beep where corrosion is present.
Use approved sealed terminal repairs and retain the original strain relief and routing clips.
Ride height must be correct before calibration
Broken springs, uneven tyres, incorrect air-suspension level, heavy luggage or a vehicle resting on an incline will corrupt the reference. Prepare fuel load, tyre pressures and ballast as the procedure states. Repair suspension defects before asking software to accept the current position.
Calibration cannot make a bent bracket or sagging spring geometrically correct.
Headlamp motors complete the control loop
The controller may command a sweep at start-up, but visible movement alone does not prove full range or accurate feedback. A stripped adjuster, seized projector carrier or failed motor can leave one beam wrong while sensor data remains sound.
Use actuator tests and a beam setter rather than listening for motor noise through the housing.
HID circuitry adds a high-voltage hazard
Gas-discharge lamps use ballasts and igniters that generate dangerous starting voltage. Switch lighting and ignition off, disable automatic commands, keep the key away and observe discharge time before accessing lamp connectors. Do not back-probe high-voltage leads or operate an open lamp.
Sensor diagnosis normally belongs on the low-voltage side, but the complete lighting system still requires safe isolation.
Safe support accounts for suspension movement
Use approved lift points and rated stands or a lift, and identify whether the procedure requires wheels loaded or hanging. Air-suspension systems may need service mode before lifting. Never place limbs between an axle and body where pressure loss or automatic levelling could reduce clearance.
Support individual suspension parts only at manufacturer-approved points.
Removal should preserve reference evidence
Capture the original orientation
Photograph lever angle, link direction, bracket holes and connector routing at prepared ride height.
Release the link without twisting the shaft
Counter-hold flats where provided and do not use the sensor body as a lever.
Protect open connectors
Keep water and dirt out while inspecting terminals and seals.
Installation avoids hidden inversion
Mount the sensor on the correct side with its lever clocked as documented. Fit the link to the designated holes and ensure both ball joints articulate freely. Tighten fasteners at the stated suspension condition where bush or bracket stress is relevant.
Move the system through its permitted range and confirm no over-centre action, contact or wiring tension.
Basic setting teaches the controller its reference
With the vehicle prepared on level ground, use the specified diagnostic function to initialise sensor references and lamp motors. Clear faults only after recording them and complete any required suspension calibration first. A failed basic setting is diagnostic evidence, not a reason to enter arbitrary values.
Maintain stable electrical supply where the procedure requires prolonged actuator operation.
Mechanical beam aim remains a separate final step
Automatic levelling corrects changes around a stored baseline; it does not establish that baseline. Use approved optical equipment, vehicle preparation and adjustment points to set aim after calibration. Confirm both lamps respond consistently to load or commanded movement.
Do not set the beam low by eye merely to extinguish complaints about glare.
UK roadworthiness considers levelling and dazzle
Current MOT guidance treats inoperative self-levelling equipment fitted to HID or LED headlamps as a major defect. Headlamp aim, security, condition and compatibility also matter. A warning-free dashboard does not override a physically detached sensor or dangerously high beam.
Correct obvious levelling faults before night driving or carrying a heavy load.
Practical headlight-level-sensor FAQs
Q: Is a headlight level sensor the lamp motor?
A: No. The sensor measures body position; motors adjust the lamps.
Q: Are front and rear sensors interchangeable?
A: Not unless the exact references, direction and calibration match.
Q: Can a broken link be replaced alone?
A: Yes when the sensor, brackets and joints are sound and the correct link is available.
Q: Why did the warning appear after suspension work?
A: Check link orientation, wiring, ride height and required recalibration.
Q: Does a start-up lamp sweep prove the sensor works?
A: No. Diagnose live sensor data and calibrated response.
Q: Can the lever be moved by hand?
A: Only gently within its documented range while safely disconnected or supported.
Q: Can calibration compensate for a bent bracket?
A: No. Restore the mechanical geometry first.
Q: Why does one lamp point differently?
A: Inspect that lamp's motor, adjuster and mounting as well as shared control data.
Q: Is resistance testing always valid?
A: No. Identify analogue, digital or network sensor type before testing.
Q: Must beam aim be checked after replacement?
A: Yes, after any required calibration and vehicle preparation.
Q: What requires urgent repair?
A: A detached link, beam causing dazzle, exposed wiring or suspension interference.
Q: What proves completion?
A: Smooth plausible data, successful basic setting, working motors and correctly measured aim.
