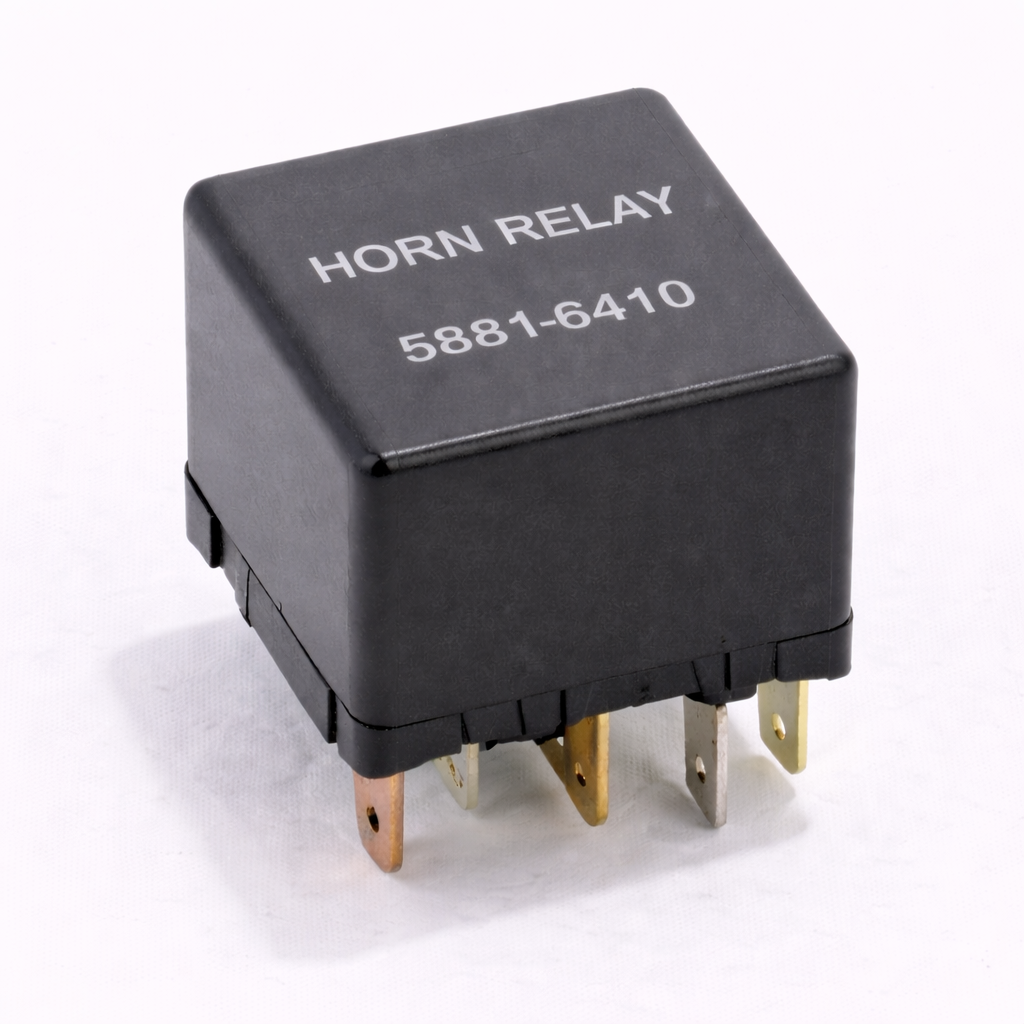

Horn Relay

The relay protects the command circuit from horn current

An electromagnetic horn can draw several amps, and a compressor horn can demand more during start-up. The steering-wheel contact or controller energises a small relay coil; separate contacts carry the load through a fused supply.

This arrangement shortens the high-current path and allows electronic control, but it adds terminals and contacts that require diagnosis.

Horn circuits use several relay arrangements

Terminal numbers describe functions, not universal pin positions

Traditional numbering may identify coil, common and normally open contacts, but physical layouts and extra suppression vary. Read the diagram printed on the relay and the vehicle wiring information. A five-pin relay inserted where a four-pin design is expected can energise an unintended circuit.

Never select only by colour or fuse-box footprint.

Coil suppression protects electronic drivers

When coil current stops, its magnetic field collapses and produces a voltage spike. A resistor or diode can suppress that spike. A diode makes polarity critical; reversing the coil can effectively short the supply.

Match the suppression type specified for the body controller or switch, not merely coil resistance.

Fitment combines current capacity and logic

A click does not prove useful output

The coil may pull the armature while pitted contacts add enough resistance to starve the horn. Measure voltage drop across closed contacts with the horn commanded. A sound contact should lose very little voltage under load.

Bench continuity at a few milliamps cannot prove performance at compressor inrush current.

Socket resistance can mimic relay failure

Loose female terminals, corrosion or heat damage reduces contact pressure and creates more heat. The relay case may discolour even when its internal parts are sound. Inspect for pushed-back terminals and compare grip using the approved gauge.

Replace damaged terminals and carriers rather than wedging the relay or bending blades.

Symptoms map to command and load sides

The steering-wheel switch may command through a clock spring

Modern wheels contain airbags and rotating electrical connections. A broken clock-spring conductor can silence the horn and steering controls while illuminating a restraint warning. Diagnosis requires the restraint procedure and correct test equipment.

Never remove an airbag or probe its connectors merely to access a horn contact without trained instructions.

Body modules add network logic

The steering switch may send a low-current or network request to a body controller, which then drives the relay. Alarm, locking and crash functions may also command the horn. Scan data can show request and output separately.

A relay cannot repair a missing network message or a module that has shut an output down after overcurrent.

Pneumatic horns add compressor and air components

An electric compressor or solenoid valve may be the relay load. Check hose, trumpet, pressure device and compressor duty. A seized compressor can weld relay contacts or blow fuses.

Depressurise any reservoir before disconnection and do not sound a high-output horn close to unprotected hearing.

Loaded electrical tests need fused control

Use a wiring diagram, current clamp, high-impedance meter and fused test leads suited to the circuit. If a bypass is specified, protect it at the source and connect only for the shortest test. Keep the horn clear of people before energising.

Never bridge uncertain terminals with a screwdriver.

Current draw exposes mechanical horn faults

An electromagnetic horn can corrode or mechanically stick, raising current. Compare each horn in a dual set and inspect its earth and mount. Adjusting a horn screw can destroy its tuned mechanism and is not a general repair.

Replace a water-filled or internally burnt horn and correct its exposure.

Water commonly enters front-mounted horns

Road splash reaches connectors, mounting points and trumpet openings. Orientation helps drainage. A water leak into a fuse box can cause relay faults elsewhere too.

Restore connector seals, horn brackets, splash shields and fuse-box covers instead of coating terminals with unsuitable grease.

Safe relay removal starts with system identification

Confirm the relay location

Use the diagram and exact case number; adjacent relays can be identical externally.

Control unexpected sound

Keep people clear and use hearing protection where the task assessment requires it.

Pull squarely and inspect

Avoid loosening the socket and check every blade and terminal for heat or corrosion.

Airbag isolation governs steering-wheel access

Switch off, keep the key away, disconnect the battery by procedure and observe the specified restraint waiting time. Store a removed airbag correctly with its trim side facing the safe direction. Do not use an ordinary meter on inflator circuits.

Steering-wheel removal also requires correct torque and clock-spring centring.

Installation corrects the cause of failure

Fit the exact relay into a clean dry socket and confirm full seating. Repair overheated terminals and measure horn current before closing the fuse box. Refit every seal, clip and cover.

If water or overload caused the original fault, replacement without that correction is incomplete.

Functional testing should be brief and considerate

Test the horn in a suitable location, warning nearby people and avoiding prolonged operation. Verify clear immediate sound and release, then check alarm or remote functions only where permitted. Confirm no heat or voltage drop develops.

A horn that sounds continuously must be isolated and diagnosed before road use.

Two-tone systems need both branches healthy

High- and low-tone horns combine to create the intended warning sound. One failed unit can leave a weak or harsh note while the shared relay still operates. Measure voltage and current at each branch, inspect its individual earth and confirm mounts do not damp the diaphragm.

Replace only with the approved tone and electrical load so total relay current remains within design.

UK MOT requirements cover the audible warning

The obligatory horn must work and produce a continuous, uniform note that is not harsh or grating for typical vehicles. Musical or alternating tones are generally unsuitable for the main road warning device. Security alarms are treated separately.

Repair an intermittent horn before the test because it is an important immediate warning system.

Practical horn-relay FAQs

Q: Can relay colour identify compatibility?
A: No. Match voltage, rating, pinout, contact form and suppression.

Q: Does a relay click mean it works?
A: No. Contacts must carry load with minimal voltage drop.

Q: Can a four-pin relay replace a five-pin relay?
A: Only if the exact circuit specification explicitly allows it.

Q: Why is coil polarity important?
A: An internal suppression diode can short if connected backwards.

Q: What causes a constantly sounding horn?
A: Welded contacts, a stuck switch, wiring short or module command.

Q: Can I fit a larger fuse?
A: Never. Find the short or excessive load.

Q: Why does the relay get hot?
A: Check current, contact drop, socket grip and correct rating.

Q: Can the horn switch be tested through airbag wires?
A: No. Follow the restraint-system procedure and circuit diagram.

Q: Does an air horn need a different relay?
A: Its compressor current and control architecture determine the required relay.

Q: Can terminals be bent for tighter contact?
A: Use approved terminal repair rather than distorting plated parts.

Q: What requires immediate isolation?
A: Smoke, melting, constant operation or repeat fuse failure.

Q: What proves completion?
A: Correct brief sound, immediate release, normal current and dry secure connections.
