Exhaust Clamps

An exhaust clamp must seal without preventing controlled movement

Exhaust systems grow in length as they heat and move with the powertrain and body. Hangers allow this movement while clamps keep individual sections joined. A clamp that is mispositioned or overtightened can create stress that cracks a pipe or silencer later.

The correct clamp distributes force over the intended area and joint shape. Its job is not simply to squeeze until noise stops.

Main clamp types

Joint geometry

Slip or lap joint

One pipe expands to accept the other. Sufficient overlap supports alignment and creates a sealing length. The clamp belongs over the expanded slotted area, not at the extreme edge.

Butt joint

Equal pipe ends meet inside a broad band. Ends must be square with a small controlled gap or contact as specified. A butt band cannot bridge severe corrosion or misalignment.

Flanged joint

Machined or formed faces seal through a gasket, ring, cone or metal contact. The clamp draws flanges together; it should not be used to pull a badly positioned system into line.

Exact selection checks

Measuring correctly

Clean loose rust and measure the outside diameter on sound round pipe with a calliper at several angles. Crushed or oval tube gives inconsistent readings. Measure both sides of a lap joint because the female end is larger.

Catalogue sizes may be stated in millimetres or inches and can refer to nominal tubing rather than exact clamp bore. Use the clamp manufacturer's range and vehicle application, not a rounded conversion alone.

Clamp materials and corrosion

Aluminised steel offers economical corrosion resistance, while stainless steel can last longer but varies by grade. Mixing stainless clamps with mild steel pipe does not make the pipe immune to corrosion; crevices can trap salt and moisture.

High-temperature cycles relax bolts and oxidise threads. Use supplied or specified nuts and washers, which may be prevailing-torque or copper-coated. General stainless hardware can gall and may not have the required temperature strength.

Diagnosing a leaking joint

System alignment and hangers

Support the exhaust in its natural position before tightening clamps. Rubber mounts should sit near neutral, not stretched hard to one side. Tailpipes need clearance from bumper openings through engine movement and thermal growth.

A broken engine mount lets the front pipe move excessively, while a failed exhaust hanger transfers mass to joints. Renew these causes before clamping. Do not use a clamp as a structural hanger unless specifically designed for that combined role.

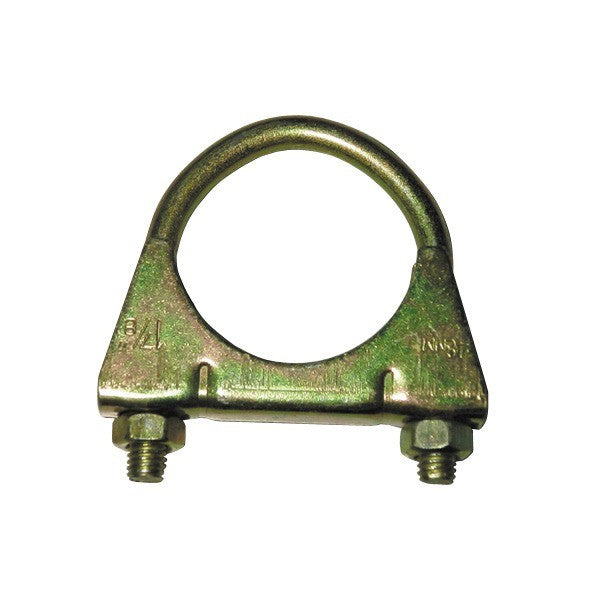

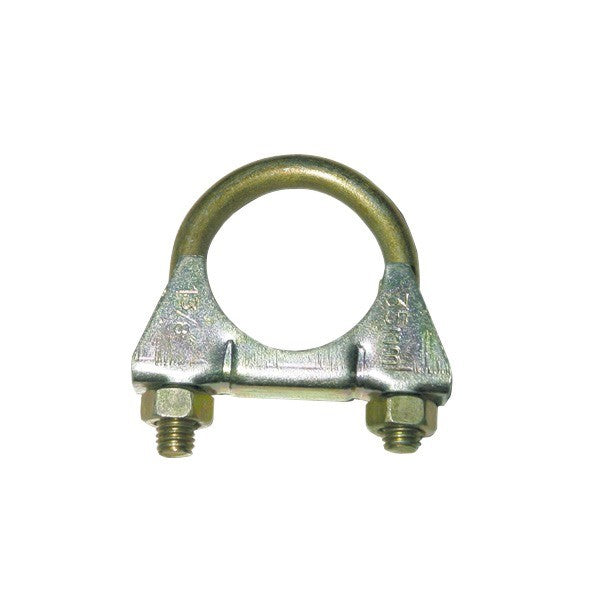

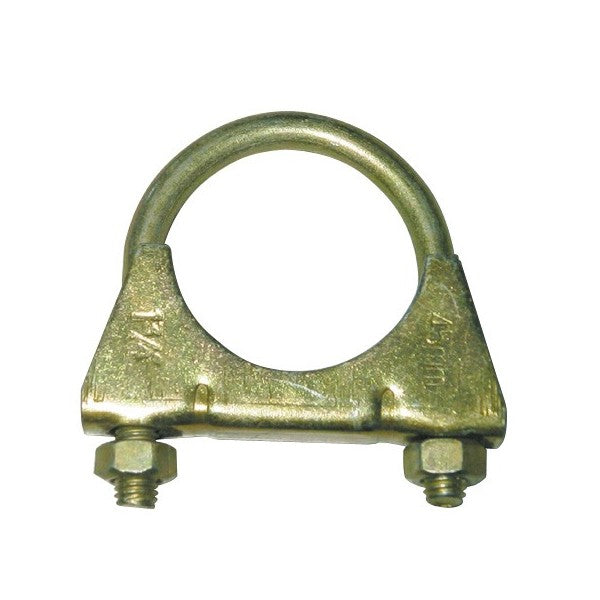

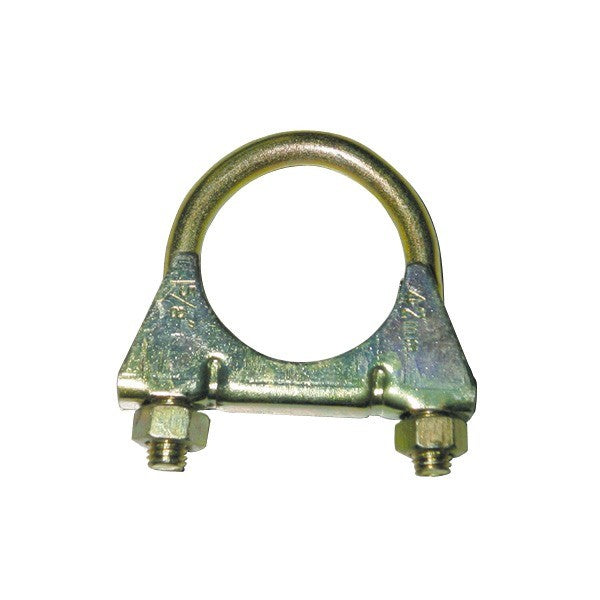

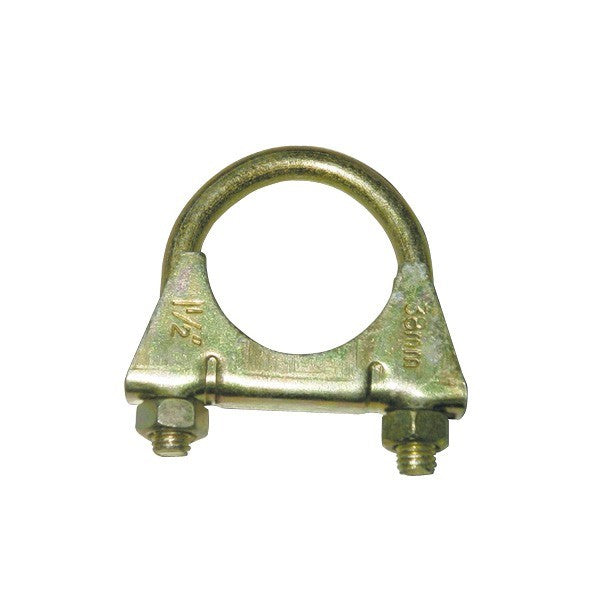

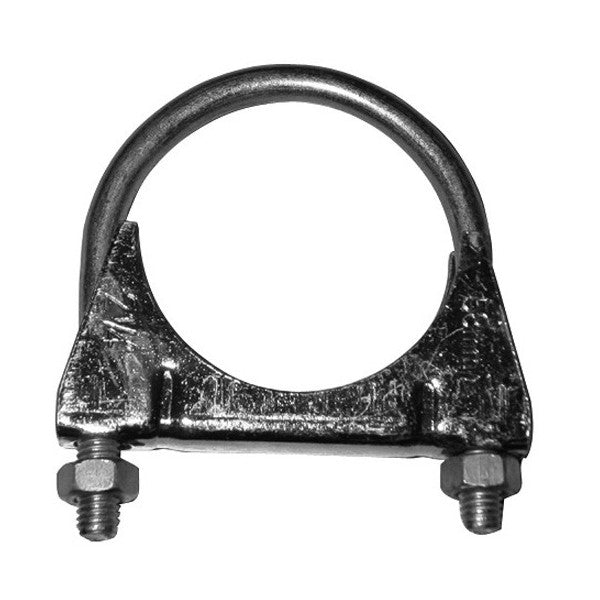

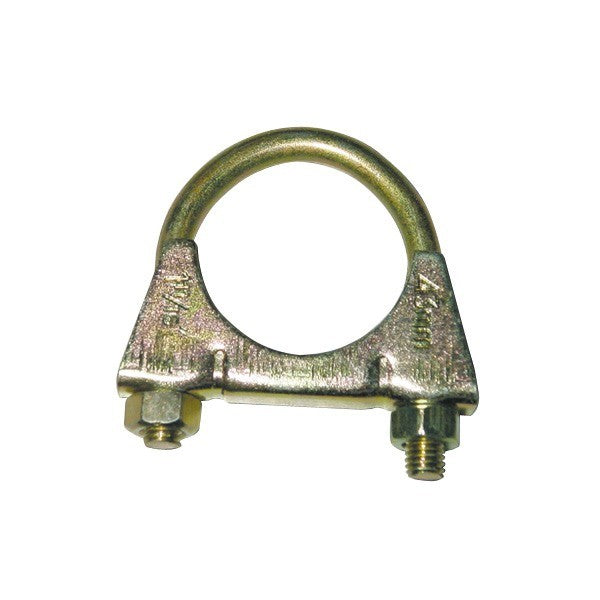

U-bolt clamp limits

The saddle concentrates force beneath two legs. This makes a secure inexpensive joint but indents pipe. Overtightening creates an oval restriction, splits slotted ends and makes later disassembly difficult.

Tighten nuts alternately so the saddle stays square. Equal exposed threads are a visual check, not the torque specification. If the U-bolt reaches its thread end while the joint remains loose, the size or pipe condition is wrong.

Band and sleeve clamps

A broad band spreads load and can preserve pipe roundness. Lap-joint versions include formed transitions for unequal diameters; installing them backwards reduces contact. Butt bands often have an internal reaction block that must align with the pipe ends.

Clean sealing faces and centre the band precisely. A band is not intended to cover a rust hole or replace missing pipe length. Use an approved repair section with adequate sound overlap.

V-band clamps

V-shaped segments engage matching flange tapers. Tightening converts radial clamp force into axial flange load. Dirt, flange damage or poor concentricity prevents sealing and can crack the clamp.

Seat flanges by hand and tap the clamp lightly only if the manufacturer permits while tightening in stages. Do not use the bolt to pull several millimetres of pipe misalignment together. Inspect the T-bolt, trunnion and band for distortion.

Gaskets and assembly compounds

Flange rings, woven seals and metal gaskets are generally single-use after compression. Match their diameter, profile and temperature rating. A clamp kit does not always include the gasket.

Exhaust assembly paste can fill small surface irregularities in specified slip joints and hardens with heat. It must not be used upstream where fragments could damage a turbo or emissions substrate unless explicitly approved. It cannot bridge structural holes or replace welding.

Safe removal

1. Confirm clamp type, dimensions, gasket, torque and complete exhaust condition.
2. Allow all exhaust parts to cool and support the vehicle on correctly rated equipment.
3. Support both exhaust sections independently before releasing the joint.
4. Protect sensors, fuel/brake lines, wiring and underbody materials from tools and sparks.
5. Apply penetrating product only where safe and allow time; do not heat near combustible parts.
6. Release nuts evenly or cut seized hardware with controlled shielding.
7. Separate the joint without levering against a catalyst, DPF or thin silencer shell.
8. Inspect pipe thickness, roundness, insertion depth, hanger condition and flange faces.
9. Replace corroded sections rather than clamping over weak metal.
10. Clean sound surfaces and prepare the exact replacement joint.

Installation sequence

Fit any gasket and slide clamps onto the correct pipe before joining. Insert the male tube to its mark or required depth, align the entire exhaust and support its mass. Position clamp bolts for service access and road clearance.

Tighten evenly in stages, rechecking tailpipe and shield clearance. Apply final torque with suitable tools. Start the engine in a ventilated environment, check for leakage without touching hot parts and inspect after a full thermal cycle.

Common mistakes

• Buying by nominal pipe size without measuring both joint diameters.
• Using a butt band on an expanded lap joint.
• Overtightening a U-bolt until it crushes the pipe.
• Pulling misaligned flanges together with a V-band bolt.
• Clamping over rust perforation or a cracked weld.
• Reusing a compressed flange gasket.
• Tightening before the hangers and tailpipe are aligned.
• Positioning long bolts towards the road, tyre or body.

Safety, emissions and MOT relevance

Exhaust security, leakage and noise are relevant to UK MOT inspection. A clamp must retain the system and support a gas-tight legal exhaust; paste wrapped around a failed pipe is not a durable repair.

Exhaust clamp FAQs

Q: How is exhaust clamp size measured?
A: Measure the outside diameter of sound round pipe and account for any expanded joint end.

Q: What is the difference between lap and butt bands?
A: Lap bands join unequal overlapped diameters; butt bands join equal end-to-end pipes.

Q: Can a U-bolt clamp be overtightened?
A: Yes. It can crush, ovalise or split exhaust tubing.

Q: Can a clamp repair a rust hole?
A: No. Replace the weak pipe or use an approved sound repair section.

Q: Should exhaust paste be used?
A: Only on joint types and locations where the manufacturer approves it.

Q: Can a flange gasket be reused?
A: Usually not after compression; fit the specified new seal.

Q: Why does the joint crack repeatedly?
A: Poor alignment, failed hangers or engine movement may be stressing it.

Q: Can any stainless clamp fit stainless exhaust?
A: No. Size, joint design, grade and bolt capacity still need to match.

Q: Why is soot visible near the clamp?
A: Exhaust gas is escaping through a misaligned, damaged or unevenly loaded joint.

Q: Can the clamp bolts point downwards?
A: They should be positioned for safe road, body, tyre and service clearance.

Q: Should clamps be rechecked after heating?
A: Follow the product or vehicle procedure and inspect after a full thermal cycle.

Q: Can an exhaust leak affect sensors?
A: Yes. Leaks change oxygen content and pressure around emissions sensors.

Q: When must the vehicle not be driven?
A: Do not drive with cabin fumes, a loose section, dangerous heat exposure or a clamp that can detach.
