Identify the paste before opening it
“Assembly paste” names a stage of work, not a chemistry. Exhaust jointing compound fills small leak paths and cures in a hot gas-system joint. Carbon bicycle paste deliberately raises friction between selected surfaces. Anti-seize changes thread and disassembly behaviour; gasket sealant forms a defined flange seal. Using one for another can change clamp load, contaminate components or fail dangerously.
| Compound | Intended effect | Not intended to do |
|---|---|---|
| Exhaust assembly paste | Assist sealing at an approved exhaust slip/sleeve joint. | Repair missing metal, support weight or lubricate threads. |
| Carbon assembly paste | Increase friction at approved clamped cycle interfaces. | Seal exhaust, grease bearings or contaminate brakes. |
| Anti-seize compound | Alter thread friction/corrosion behaviour where specified. | Act as generic exhaust-hole filler or carbon grip compound. |
| Gasket/flange sealant | Seal a compatible machined flange under defined cure. | Replace a formed exhaust gasket unless approved. |
| Structural adhesive | Bond designed substrates under engineered preparation. | Substitute for clamps, welds or fasteners. |
| Unidentified workshop paste | Unknown. | Be applied until label, SDS and intended system are confirmed. |

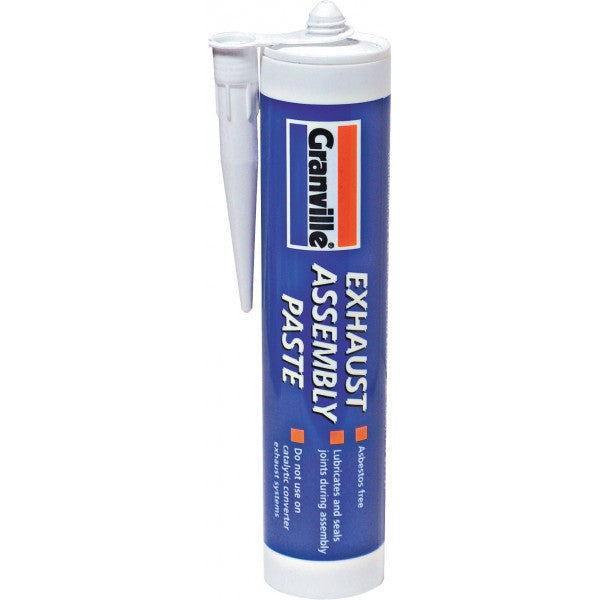

How exhaust assembly paste works
Slip joints and sleeves have microscopic clearance, corrosion pits and manufacturing variation. A suitable compound can occupy those minor paths while the clamp establishes mechanical retention. Many products use a water-based inorganic binder and mineral fillers, but formula and cure differ; rely on the exact label rather than assuming every grey paste behaves alike.
Initial drying may occur in air, while engine heat drives off carrier and hardens the material. Too thick a layer can crack during thermal expansion. A paste cured outside its stated temperature/time can wash out, remain soft or shed fragments.
Exhaust joint types and suitability
| Joint | Mechanical principle | Paste decision |
|---|---|---|
| Slip/socket joint | One tube overlaps another and a clamp compresses it. | May use specified compound on clean overlap surfaces. |
| Wide band/sleeve | Band bridges or compresses aligned tube ends. | Follow sleeve maker; some designs are dry or use a gasket. |
| Flared/ball joint | Shaped faces articulate and seal under spring/clamp load. | Often relies on geometry; paste only if explicitly instructed. |
| V-band | Clamp draws matched flanges together. | Precision faces generally require their documented condition. |
| Gasketed flange | Fasteners compress a formed gasket. | Do not add paste unless the gasket procedure specifies it. |
| Cracked/corroded pipe | Structural wall has failed. | Assembly paste is not the repair. |
Temperature, movement and emissions compatibility
Exhaust temperature varies with engine load, catalyst operation and DPF regeneration. A product must cover the exact location, not simply a generic maximum; the manifold area is different from a rear silencer joint. Thermal expansion moves connected parts, so hangers and joint alignment remain essential.
Oxygen sensors, catalysts, particulate filters and dosing equipment can be harmed by contamination or debris. Keep compound from sensor threads/tips and internal surfaces unless the product and service method specifically allow it. Never use paste to conceal an emissions-control component that is missing or modified.
Exhaust inspection before application
- Allow the system to cool and support the vehicle and exhaust safely.
- Identify soot paths, noise source and any fumes entering the cabin.
- Check tube wall, flanges, hangers, shields and nearby heat-sensitive parts.
- Confirm overlap, diameter and alignment without using the clamp to force position.
- Remove loose corrosion and old compound without thinning sound metal.
- Dry and degrease only by the paste maker's compatible method.
- Decide whether the joint is approved for paste, a gasket or dry assembly.
Applying and curing exhaust paste
Film thickness and working time
Use a clean applicator and a thin even film over the defined sealing land. Avoid large internal ridges. Assemble while the compound remains within its working time, set overlap and orientation, then tighten the specified clamp progressively to its torque or closure method. The clamp retains the joint; the paste cannot compensate for the wrong diameter.
Drying and first heat
Remove external squeeze-out and follow air-dry or heat-cure instructions. If the engine must run, provide tailpipe extraction and keep people clear of hot surfaces. Some moisture or odour may occur during first cure, but persistent fumes, soot or smoke needs investigation.
Cure verification
Dry appearance on the outside does not prove the whole overlap has cured. Ambient temperature, film thickness, moisture and exhaust location change the process. Do not pressure-wash or road-load the joint before the product's stated cure stage. After the first complete heat cycle, allow the system to cool and inspect for a continuous joint, correct clamp position and new soot tracks. Do not simply coat a failed outer edge; dismantle and find misalignment or corrosion.
Containers that have frozen, separated irreversibly or developed hard lumps may no longer spread or cure predictably. Mixing in water or solvent to restore consistency changes formulation and is inappropriate unless the maker provides an exact reconditioning instruction.
Carbon friction paste: a different mechanism
A carbon-fibre tube can be damaged by excessive radial clamping, yet smooth painted or composite surfaces may slip. Carbon assembly compound contains small particles that increase interfacial friction, allowing the specified fastener torque to hold reliably. It is not a glue, and it does not repair crushed fibres, delamination or an undersized component.
The carrier and particles must be compatible with carbon resin, clear coat, paint and adjoining metal. Some component makers require grease, some carbon paste and some dry assembly. Their instruction controls.
Cycle interfaces and boundaries
| Interface | Potential approved use | Critical check |
|---|---|---|
| Carbon seatpost/frame | Increase grip where both makers permit. | Diameter, insertion, clamp type and torque. |
| Carbon handlebar/stem | Reduce slip at clean clamping zone if specified. | Bar/stem compatibility, faceplate gap and bolt sequence. |
| Metal post/carbon frame | Only with maker-approved compound. | Corrosion, frame insert and material instructions. |
| Threaded fastener | Only if the torque procedure explicitly includes it. | Paste changes friction and achieved clamp load. |
| Bearing or sliding seal | Generally unsuitable abrasive location. | Use the specified grease or assembly fluid. |
| Brake friction surface | Never an intended application. | Prevent contamination of pad, rotor or braking rim. |
Applying carbon assembly compound
Inspect both parts for cracks, white stress marks, raised fibres, dents and dimensional compatibility. Clean using the component maker's method and dedicated lint-free material. Apply a very thin uniform film only over the intended clamping zone. Keep it away from threads unless specified, because torque values depend on friction condition.
Insert to at least the marked minimum, align, then tighten bolts in the published sequence with a calibrated torque tool. Do not exceed torque because slipping continues; stop and identify wrong size, damaged surfaces or unsuitable components. Wipe surplus before it migrates.
Materials and storage
| Property | Exhaust paste | Carbon paste |
|---|---|---|
| Carrier | Often water/inorganic system; formula varies. | Gel or grease-like compatible carrier. |
| Functional solids | Heat-resistant fillers that harden/seal. | Friction-enhancing particles. |
| Heat behaviour | Designed to cure in a stated exhaust range. | Limited by bicycle component environment. |
| Moisture sensitivity | Container can dry; uncured material may wash away. | Contamination can change consistency and interface. |
| Storage | Observe temperature, lid and shelf-life label. | Keep clean, closed and away from brake service. |
| Dedicated tools | Applicator kept away from lubricated components. | Brush kept away from exhaust and braking chemicals. |
Fault signs and urgency
| Finding | Likely issue | Response |
|---|---|---|
| Exhaust soot after cure | Misalignment, structural corrosion, wrong clamp or failed compound. | Cool, dismantle and inspect rather than adding layers. |
| Fumes in cabin | Upstream leak or body sealing/ventilation issue. | Stop exposure and repair urgently. |
| Joint cracks apart | Movement, thick paste, hanger fault or incompatible cure. | Correct mechanical system and renew joint. |
| Seatpost slips | Wrong size, low/uneven clamp, contamination or damage. | Stop riding and inspect; do not exceed torque. |
| Carbon creaks | Movement can arise from several interfaces. | Locate systematically; paste is not a universal creak cure. |
| Brake contamination | Friction paste reached pad/rotor/rim. | Do not ride until components are restored by approved method. |
Common mistakes
- Using carbon paste on an exhaust or exhaust paste on a cycle.
- Calling assembly paste an anti-seize and applying it to every thread.
- Building thick exhaust paste over rust holes.
- Applying compound inside sensor or catalyst flow paths.
- Starting cure before the joint is aligned and supported.
- Using carbon paste to compensate for wrong component diameter.
- Exceeding cycle fastener torque when slipping persists.
- Sharing brushes between friction, grease and brake work.
- Ignoring shelf life, freezing or dried containers.
Upgrades, MOT and workshop safety
A higher-temperature exhaust paste helps only if it is approved for the joint and emissions system; it cannot upgrade thin metal or failed hangers. A coarser carbon paste may increase surface marking and is not automatically stronger. Use the component maker's compound and torque system.
Exhaust leaks, insecure components, fumes and obviously modified emissions equipment can affect UK roadworthiness and MOT results. Support vehicles correctly, wear eye/skin protection, consult the SDS and use extraction for running engines. Carbon dust and damaged fibres require controlled handling; never sand composites without the appropriate process and exposure controls.
Assembly paste FAQs
Q: Is every assembly paste the same?
A: No. Exhaust jointing and carbon friction pastes perform opposite, system-specific jobs.
Q: Can exhaust paste repair a rust hole?
A: No. Replace or professionally repair structurally failed exhaust material.
Q: Should every exhaust joint receive paste?
A: No. Some use gaskets or dry precision faces; follow the exact joint procedure.
Q: Is exhaust paste an anti-seize?
A: No. It cures to help seal and does not provide defined thread lubrication.
Q: Can excess paste harm sensors?
A: Yes. Keep it out of the gas path and away from oxygen sensors and catalysts.
Q: Does paste support the exhaust?
A: No. Hangers, brackets, clamps and aligned pipes carry mechanical loads.
Q: What does carbon assembly paste do?
A: It increases friction at approved clamped interfaces to resist slip at specified torque.
Q: Is carbon paste an adhesive?
A: No. It does not bond or repair cracked composite.
Q: Can paste compensate for a wrong-size seatpost?
A: No. Diameter, insertion and clamp compatibility must be correct.
Q: Should carbon paste go on bolt threads?
A: Only if the component torque instructions explicitly specify it.
Q: What if a seatpost still slips at maximum torque?
A: Stop and inspect size, damage, clamp and compatibility; do not tighten further.
Q: Can carbon paste touch brake rotors?
A: No. Prevent all friction-paste contamination of braking surfaces.
Q: Must I read the safety data sheet?
A: Yes. Ventilation, skin/eye protection, storage and disposal depend on the formulation.
