Starting current exposes every resistance in the leads
Starter current can reach hundreds of amps. Voltage drop equals current multiplied by resistance, so conductor length, cross-section, material, crimps and clamp contact all determine how much voltage reaches the vehicle.
A lead can look thick because of insulation while containing little conductor. Published conductor area and material are more useful than outside diameter.

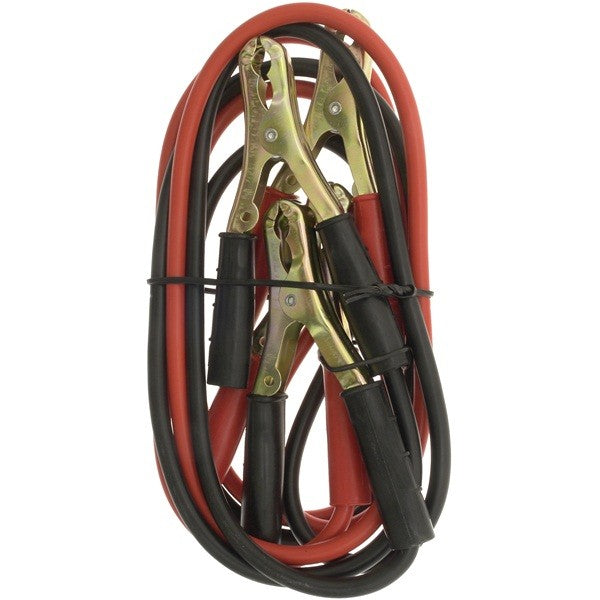

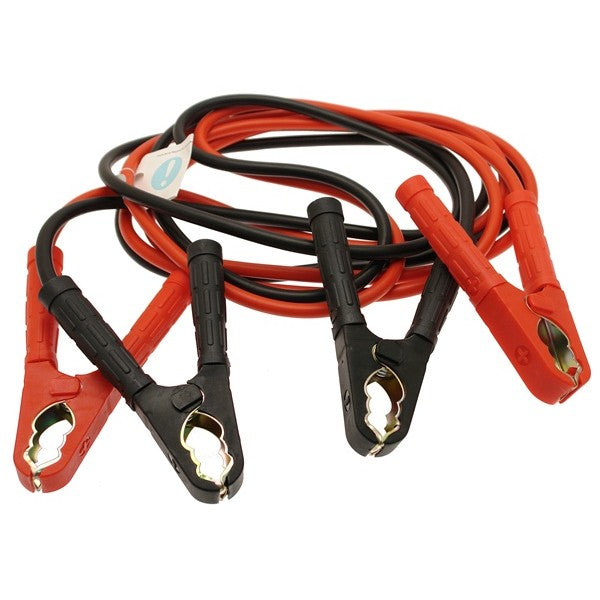

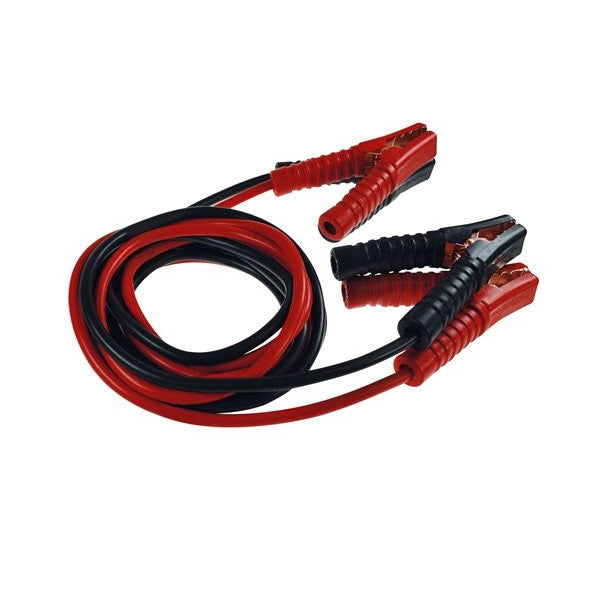

Lead construction
| Feature | Purpose | Variation | Selection concern |
|---|---|---|---|
| Conductor | Carries starter current. | Copper or copper-coated aluminium. | Area, resistance and flexibility. |
| Insulation | Prevents shorts and protects strands. | PVC, rubber and cold-flex compounds. | Temperature and abrasion rating. |
| Clamp | Connects to post or jump stud. | Jaw shape, spring and insulated handles. | Contact area and clearance. |
| Crimp/bond | Joins cable to clamp. | Single/double jaw connection. | Hidden heat and voltage drop. |
| Protection module | May warn/block reverse polarity or suppress surge. | Electronic design and current limit. | Correct voltage and instructions. |
Match the leads to the starting task
Engine size is only one part of demand
| Check | Why it matters |
|---|---|
| System voltage | 12 V and 24 V systems must not be mixed. |
| Engine/temperature | Large cold diesels draw high current. |
| Cable length | Longer conductors create more drop. |
| Jump-point access | Clamps must fit without touching bodywork. |
| Battery chemistry | Vehicle procedures differ for AGM, lithium and managed systems. |
| Donor capability | Donor battery and charging system must be suitable. |
Inspect before every use
| Finding | Risk | Action |
|---|---|---|
| Cracked insulation | Short circuit and burns. | Remove from service. |
| Green/black conductor | Corrosion and high resistance. | Replace lead. |
| Loose clamp crimp | Arcing and heat. | Replace/approved repair. |
| Weak/misaligned jaw | Small unstable contact. | Do not use. |
| Melted handle | Prior overload. | Discard and investigate rating. |
| Wet/chemical contamination | Tracking and material damage. | Clean/dry per instructions or replace. |
Assess the discharged battery first
Look for cracks, bulging, leakage, loose posts, ice and strong sulphur odour. A battery can freeze when discharged; charging or jump-starting it risks rupture. Move people away and arrange safe battery assessment.
Confirm polarity from moulded markings, not cable colour alone. Poor repairs may have misleading colours.
Why the final connection is remote
The final clamp can spark as circuits charge. Making it at the designated engine/body earth keeps that spark away from hydrogen near a conventional battery and includes the vehicle's intended current path.
Use only a substantial unpainted designated point, not a fuel pipe, thin bracket or unknown sensor housing.
Vehicle electronics and smart battery sensors
Remote jump posts can route current through protection and battery monitoring. Direct connection to the wrong side of a current sensor can corrupt state-of-charge information or bypass fusing.
Keep both ignitions off during connection. Switch surges and reverse polarity can damage controllers even if a fuse opens later.
Connection sequence
| Typical stage | Control | Reason |
|---|---|---|
| Prepare | Park safely, transmissions neutral/park, brakes applied. | No vehicle movement. |
| Positive flat | Connect approved positive point. | Establish intended supply. |
| Positive donor | Connect donor positive. | Completes positive path. |
| Negative donor | Connect donor negative point. | Begins return path. |
| Final earth | Connect flat vehicle's designated remote earth. | Spark away from battery. |
| Verify | Check polarity and routing before ignition. | Prevents reverse/entanglement. |
Vehicle guidance overrides generic sequences
Some vehicles specify a different order, battery support mode or prohibit using them as a donor. Read both manuals. Hybrid vehicles may use 12 V support to wake control systems but never connect to orange high-voltage parts.
Lithium auxiliary batteries can require a manufacturer-specific recovery process and may isolate internally.
Routing leads safely
Keep cables away from fans that can start automatically, belts, pulleys, exhaust and bonnet hinges. Arrange clamps so spring force cannot pull them into adjacent metal.
Do not close a bonnet onto leads or stretch them between vehicles that might roll.
Starting procedure
Let the donor support the discharged battery for the stated time. Keep donor engine state and speed exactly as manufacturer guidance allows. Attempt to start for only the permitted duration, then allow the starter to cool.
If the engine does not crank normally after a few controlled attempts, stop. A seized engine, failed starter or severe battery fault will only overheat the leads.
Heat is diagnostic evidence
Warm clamps or one hot cable section indicates resistance or undersizing. Switch off and disconnect safely. Do not squeeze a live clamp or move it while cranking; arcing can damage posts and ignite gas.
A flexible lead that becomes soft or smells of insulation has been overloaded and should be replaced.
Disconnection
| Stage | Control |
|---|---|
| Stabilise | Follow vehicle instructions for loads/idle before removal. |
| Remove final earth | Keep clamp away from positive/body contact. |
| Remove donor negative | Control loose cable end. |
| Remove donor positive | Keep insulated. |
| Remove flat positive | Restore protective cap. |
| Account/store | Inspect for heat and coil loosely when cool. |
After the engine starts
A short drive is not a guaranteed recharge. Test charging voltage/current, battery condition and the cause of discharge. Deeply discharged AGM or other batteries may need a compatible controlled charger.
Do not disconnect the battery while running to test the alternator; the voltage spike can damage electronics.
Jump leads versus portable booster packs
Leads need a compatible donor battery and transfer current through two vehicles. A booster pack stores its own energy and may include polarity, voltage and temperature protection. Neither is automatically safer: the equipment must be charged, rated and used with the vehicle's approved points.
Lithium booster packs can deliver high current from a small case and must not be crushed, swollen, overheated or stored discharged outside their limits. Never bypass a smart clamp to force output into a battery the pack has rejected.
Voltage spikes and connection arcing
Connecting a discharged battery charges vehicle capacitors and can create a small final spark. Large sustained arcing, a clamp welding to the post or immediate cable heating indicates reverse polarity, a short or a severely faulty battery; stop without continuing the sequence.
Surge-protected leads can reduce certain transients but cannot make reversed or loose connections harmless. Keep both vehicles' consumers and ignitions in the state specified by their manuals and make every clamp contact firm before cranking.
Recharging after emergency starting
The alternator is designed to support the vehicle and maintain a battery, not necessarily recover a deeply discharged one at idle. High recharge current heats the alternator and battery while a short trip replaces little capacity.
Once safely parked, test the battery and use a charger compatible with flooded, EFB, AGM or lithium chemistry and the vehicle's connected-charging instructions. Monitor for heat or failure to accept charge.
Donor-vehicle risks
A small donor battery may be discharged by a larger engine, and its alternator can be overloaded if expected to provide starting current directly. Voltage disturbance can also log faults in both vehicles.
Use donor-vehicle procedures exactly, or choose a suitable professional booster/recovery service. Never increase donor engine speed by guesswork.
Parasitic drain and repeated flats
If the battery goes flat again, measure sleep current after modules settle and inspect charging, battery age, lighting and accessories. Repeated jump starts stress the battery, starter and donor.
Replace or repair the cause rather than choosing progressively larger leads.
Storage and maintenance
Wipe clamps dry, remove corrosion by the approved method and store untangled in a ventilated case away from battery acid, oil and sharp tools. Do not wind tightly around a small object that breaks strands.
Keep instructions with the set. Labels must remain readable.
Common mistakes
Do not reverse polarity, let clamps touch, use damaged leads, connect to fuel lines, jump a frozen battery, close the bonnet on cables, crank continuously or use a running donor where prohibited.
Do not assume red insulation proves positive—verify markings at each vehicle.
UK roadside safety
Move vehicles to a safe place away from traffic before opening bonnets. Use hazard warning and high-visibility equipment appropriately; never stand in a live lane to connect leads.
If the location, battery or procedure is unsafe, call recovery assistance.
Practical jump-lead FAQs
Q: Are thicker-looking leads always better?
A: No. Check actual conductor area and material.
Q: Can 24 V jump a 12 V vehicle?
A: No. It can cause severe damage.
Q: Why make the final connection away from the battery?
A: It reduces spark risk near battery gas.
Q: Can a frozen battery be jump-started?
A: No. It can rupture or explode.
Q: Should the donor engine run?
A: Follow both vehicle manuals; some prohibit it.
Q: Can clamps connect to painted metal?
A: Use the designated clean earth point.
Q: Why do clamps become hot?
A: Poor contact, cable resistance or excessive current.
Q: Can jump leads connect to an EV high-voltage battery?
A: Never. Use only specified 12 V procedures.
Q: Does starting mean the battery is healthy?
A: No. Test and recharge it appropriately.
Q: Can the battery be disconnected while running?
A: No. Voltage spikes can damage modules.
Q: How long should the starter be operated?
A: Only for the vehicle's specified short attempt duration.
Q: Can damaged insulation be taped?
A: Replace safety-critical high-current leads.
Q: What if the vehicle repeatedly goes flat?
A: Diagnose battery, charging and parasitic drain.
