A propshaft coupling transmits torque while accommodating controlled movement
The driveline changes length and angle as mounts deflect and suspension moves. Flexible discs absorb small angular and torsional changes through reinforced rubber. Universal and constant-velocity joints articulate mechanically, while flanges provide accurately centred bolted interfaces. None is intended to correct a misaligned or bent shaft.
Rotational balance and concentric location are as important as static strength.
Coupling components perform different jobs
| Component | Function | Critical interface | Main failure concern |
|---|---|---|---|
| Flexible rubber disc | Transfers torque with torsional compliance. | Alternating bushes, bolts and centring pilot. | Cracks, delamination or wrong bolt routing. |
| Flexible sleeve kit | Connects compatible shafts with elastomeric element. | Sleeve profile, clamps/flanges and alignment. | Twist or heat beyond rating. |
| Transmission/drive flange | Provides centred bolted or splined output. | Spline, seal land, pilot and bolt circle. | Run-out, wear or oil leakage. |
| CV flange/joint | Transfers torque through articulated ball/track assembly. | Joint size, grease, boot and bolt pattern. | Contamination and track wear. |
| Protection ring | Shields or restrains the coupling area. | Diameter, orientation and clearance. | Contact with rotating shaft. |
| Centring bush/spigot | Locates shaft concentrically. | Fit, lubrication and depth where specified. | Vibration despite tight bolts. |

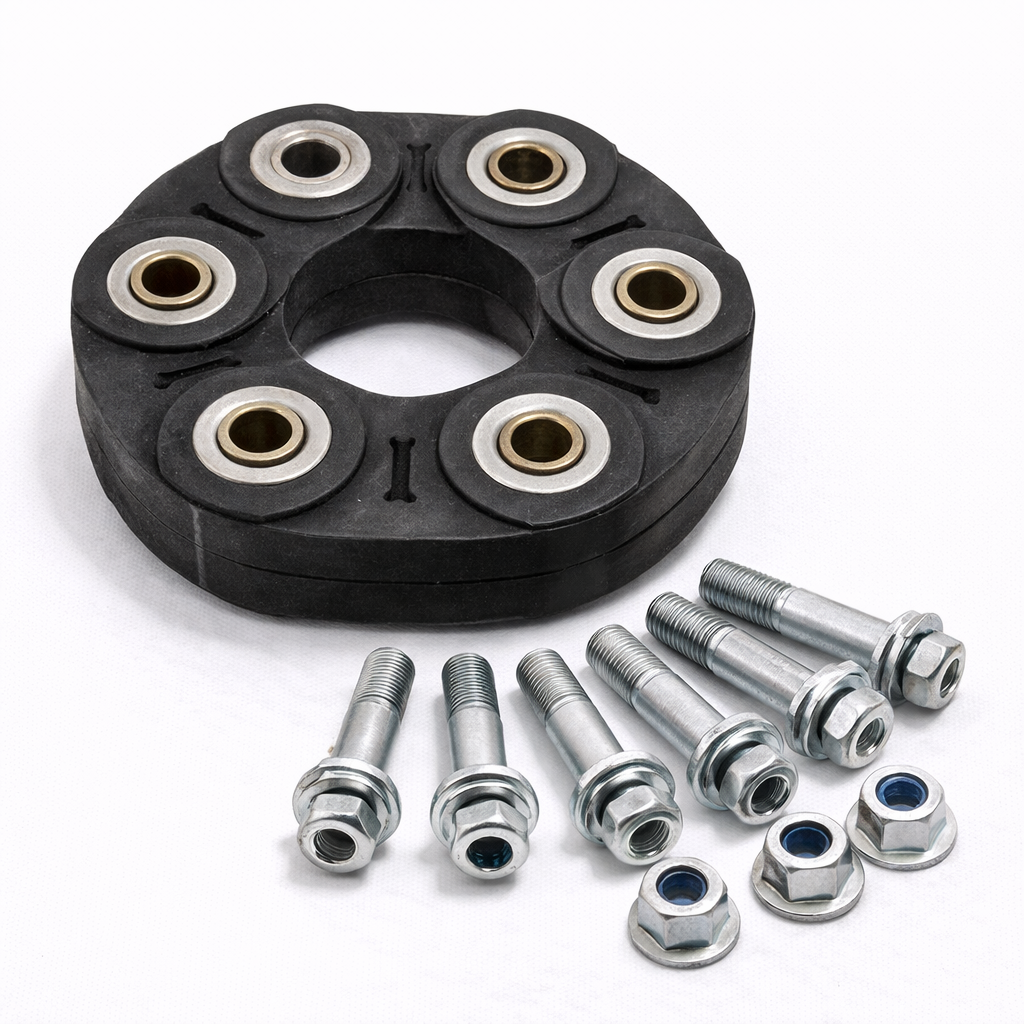

Flexible discs use reinforced load paths
Cord or fabric reinforcement links selected metal bushes through the rubber. Moulded arrows commonly point from a bush towards the flange arm it must connect. Installing bolts through the wrong alternating positions forces the rubber into an unintended tensile pattern and can cause rapid failure.
Follow the exact diagram and retain any transport band until the specified stage. Do not remove moulded material or drill a disc.
Fitment starts with the complete driveline build
| Identifier | Why it matters | Evidence | Mismatch outcome |
|---|---|---|---|
| VIN/chassis and wheelbase | Changes shaft length and section count. | Vehicle build data. | Wrong coupling position/application. |
| Engine/gearbox/axle | Defines torque, flange and joint family. | Unit codes and catalogue. | Insufficient rating or bolt mismatch. |
| Bolt-circle/pilot diameter | Controls concentric location. | Approved dimensions/reference. | Run-out or inability to seat. |
| Coupling thickness | Maintains driveline length and bolt grip. | Exact part data. | Preload, interference or low engagement. |
| Flange spline/seal land | Matches transmission output and seal. | Tooth count/profile and service drawing. | Leak, fretting or no drive. |
| Hardware specification | Carries cyclic torque at high speed. | Bolt grade, length and locking method. | Fatigue or loosening. |
Vibration frequency helps locate the source
A propshaft often rotates several times per wheel revolution depending on gearing. Vibration that changes strongly with road speed can come from balance, run-out or joint angles; a thump with torque reversal suggests backlash, flexible-disc or mount movement. Engine-speed vibration in neutral points elsewhere.
Use measured frequency and vehicle operating conditions. Do not diagnose a coupling solely by the driver's description of “shudder”.
Visible rubber condition has clear rejection signs
Inspect with the driveline unloaded as specified. Surface weathering can differ from deep cracks reaching reinforcement, separation around bushes, missing rubber, distortion or contact marks. Oil saturation and exhaust heat can soften the compound.
Replace a coupling with exposed cords, loose bushes or structural cracks. Adhesive and cable ties cannot restore reinforced load paths.
Related parts can overload a new coupling
| Related item | Fault | Effect on coupling | Check |
|---|---|---|---|
| Engine/gearbox mounts | Collapsed or torn rubber. | Excess angle and torque movement. | Loaded movement by approved test. |
| Centre support bearing | Split mount or rough bearing. | Shaft orbit and vibration. | Rubber support, play and rotation. |
| Universal/CV joint | Seizure, play or notchiness. | Uneven speed and cyclic load. | Articulation and backlash limits. |
| Sliding spline | Seized, worn or mis-phased. | Axial thrust into coupling. | Movement, marks and lubrication procedure. |
| Flange/pilot | Corrosion, wear or run-out. | Off-centre rotation. | Clean fit and indicator measurement. |
| Heat shield/exhaust | Missing clearance or failed shield. | Rubber overheating/contact. | Full suspension/powertrain envelope. |
Shaft phasing must be preserved
Multi-piece shafts are assembled so yokes and balance relationships occupy defined positions. Mark mating flanges before separation using a method that cannot become a loose balance mass. If original marks conflict or prior work is suspected, use the manufacturer phasing specification rather than copying an error.
Never weld, drill or grind the shaft tube to create a mark. Balance weights must remain untouched.
Safe support prevents a heavy shaft falling or sliding
Use a lift or stands rated for the vehicle, chock wheels and select the stated transmission condition. Support each shaft section with a transmission jack, cradle or secure straps before removing bolts. Keep hands out of flange pinch points.
Some shafts can slide from a gearbox and release oil; others contain plunging joints that can separate internally. Plug and retain them by the service method.
Do not let the parking mechanism absorb all reaction torque
High flange-bolt torque reacted through park pawls, gears or differential teeth can damage them. Use the specified holding tool or controlled brake arrangement. Mark which bolts are accessible, then rotate the shaft by the safe procedure with tools removed.
Never start the engine to rotate a partially disconnected propshaft.
Removal should preserve bolt orientation and spacers
Support and mark
Record flange orientation, bolt direction, washers, shields and centre-bearing shim position.
Release evenly
Remove accessible bolts without allowing the coupling to twist or shaft to hang. Replace one-use hardware.
Separate pilots without levering faces
Use the approved release points and penetrating method. Gouged flange faces create run-out.
Flange and centring inspection controls concentricity
Clean rust from pilots without reducing their diameter. Inspect splines, bolt holes, seal lands and mating faces for fretting, cracks and raised burrs. Measure flange run-out where vibration or impact damage is suspected.
A flexible disc cannot centre a worn pilot. Repair or replace the responsible flange.
Drive flanges with oil seals need added preparation
Check spline count, nut or bolt procedure, seal-running diameter and flange installation depth. Inspect the transmission output bearing and breather if oil has leaked. Use the specified seal protector and lubricant; sharp splines can cut a new lip.
Renew single-use flange fasteners and set preload or end float only by unit-specific data.
Installation must not use bolts to drag parts into alignment
Support the shaft so pilots and flange faces meet squarely. Align arrows and alternating bushes on a flexible disc. Start all bolts by hand with the specified head direction, washer and nut. If holes do not align, find the shaft position or wrong part instead of levering the rubber.
Remove transport bands only at the stated point. Do not lubricate rubber unless the coupling instructions name a compatible assembly product.
Tightening sequence keeps the coupling unstressed
Bring fasteners into contact evenly, react each against the correct flange and apply torque/angle with calibrated tools. Hold the bolt head or nut specified to prevent twisting the bonded bush. Some procedures require vehicle ride height or a defined centre-bearing preload before final tightening.
Do not reuse prevailing-torque nuts or add threadlocker unless specified.
Final clearance checks include every operating envelope
Rotate the driveline by hand through a full turn, checking shields, exhaust, cables and body. Verify centre-bearing position, joint articulation and shaft free movement. Refill lost transmission oil with the exact specification and install undertrays securely.
Road-test progressively, stopping for new vibration, knocking or heat. Recheck fasteners only at the interval and method stated for the coupling; casual retightening can alter preload.
Roadworthiness makes driveline security urgent
A failed coupling or flange can allow a rotating shaft to strike the vehicle, damage brake or fuel lines and destabilise it. Excessive play, missing fasteners and insecure transmission components require immediate repair and can affect UK MOT inspection.
Recover rather than drive a vehicle with loose coupling bolts, severe cracking or a shaft contacting the body.
Practical propshaft-coupling FAQs
Q: Are flexible propshaft discs universal?
A: No. Bolt circle, thickness, bushes, load rating and orientation must match.
Q: What do moulded arrows mean?
A: They commonly show which bush connects to each flange; follow the exact diagram.
Q: Can surface cracks be ignored?
A: Inspect depth and reinforcement; exposed cord, separation or loose bushes require replacement.
Q: Can rubber be lubricated for fitting?
A: Only with the compatible product explicitly specified.
Q: Why mark the shaft before removal?
A: To preserve flange orientation and driveline balance/phasing where required.
Q: Can the shaft hang from one joint?
A: No. Support every disconnected section.
Q: Should bolts all face the same direction?
A: Not necessarily; use the stated alternating orientation, washers and locking parts.
Q: Can a new coupling cure every vibration?
A: No. Balance, centre bearing, joints, mounts and angles also need inspection.
Q: Can bolts pull the coupling into place?
A: No. Parts should align and seat before tightening.
Q: Are coupling bolts reusable?
A: Renew them whenever the manufacturer specifies single-use hardware.
Q: Can the gearbox park lock hold tightening torque?
A: Use the prescribed reaction tool rather than overloading the transmission.
Q: What requires immediate recovery?
A: Loose hardware, exposed reinforcement, flange movement or shaft contact.
Q: What proves a sound repair?
A: Correct alignment, torque, free rotation, clearance and no vibration under controlled load.
