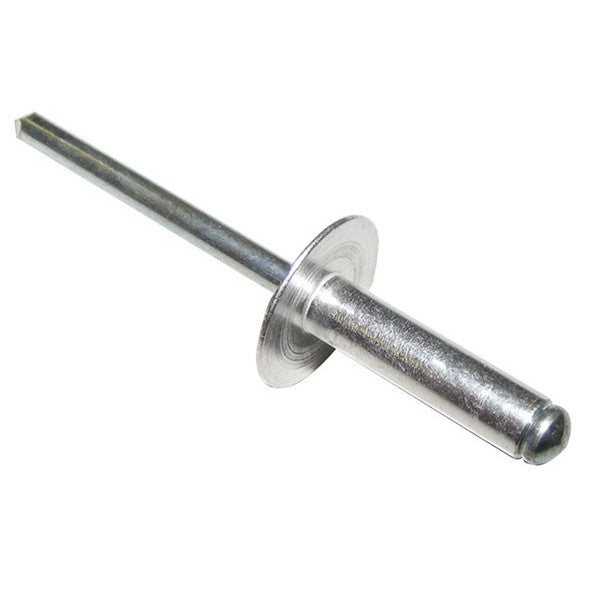

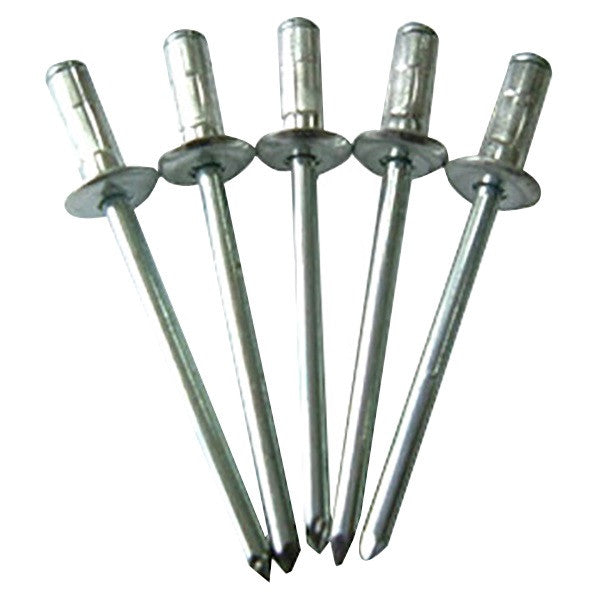

A blind rivet forms a second head on the inaccessible side
The riveter pulls a mandrel through the tubular body. The mandrel head expands or folds the body behind the work, drawing the layers together until the stem breaks at a designed point. The retained body then carries shear and tension while the flange distributes load on the accessible face.
Joint performance depends on the formed blind head and layer contact, not merely on seeing a flange at the front.
Rivet family must suit access and sealing needs
| Rivet type | Formation | Useful application | Important limit |
|---|---|---|---|
| Open-end blind rivet | Mandrel expands an open tubular body. | General sheet and bracket joints. | Not fluid- or vapour-tight. |
| Closed-end/sealed blind rivet | Body end remains closed. | Supported splash or containment duties. | Joint still needs approved sealing design. |
| Large-flange blind rivet | Broad accessible head spreads bearing load. | Soft, thin or slotted front material. | Blind-side bearing area may remain small. |
| Multi-grip rivet | Body forms over a wider thickness range. | Variable stack thickness where specified. | Not a universal substitute for exact grip. |
| Structural blind rivet | Locked stem/body designed for higher loads. | Engineered joints with approved data. | Needs dedicated tool and installation inspection. |
| Drive rivet | Central pin is driven to expand body. | Trim and panel fixing from one side. | Removal and reuse are normally not supported. |
| Solid rivet | Tail is upset with rear access and support. | Traditional structural joints. | Not installed by a pop-rivet tool. |
Diameter and grip range are independent choices
Nominal diameter controls the drilled hole and contributes to shear capacity. Grip range is the combined thickness the rivet can clamp, excluding the flange. Body length includes material needed to form the blind head and should be selected from the maker's chart rather than calculated by adding an arbitrary allowance.
Measure the actual stack after coatings and brackets are seated. Air gaps make the apparent thickness misleading and produce a loose joint.
Head form changes surface load and clearance
A standard dome head balances bearing area and projection. Large flanges reduce pull-through in soft sheet. Countersunk heads sit flush only in a correctly prepared countersink and leave less head material; they are not a cure for interference created by the wrong joint design.
Check underside clearance for the formed head and any retained mandrel. A rivet can foul a window regulator, tyre, harness or moving linkage behind a panel.
Materials set strength and corrosion behaviour
| Body/mandrel combination | General characteristic | Environment question | Selection warning |
|---|---|---|---|
| Aluminium/aluminium | Light and comparatively low installation force. | Will loading and temperature stay within rating? | May lack strength for structural steel joint. |
| Aluminium/steel | Common balance of forming force and economy. | Can retained steel corrode or stain? | Mandrel material affects durability. |
| Steel/steel | Higher strength for suitable steelwork. | Is coating adequate after installation? | Bare drilling edges can rust quickly. |
| Stainless/stainless | Corrosion resistance and high setting force. | Is substrate galvanically compatible? | Requires tool/nosepiece capacity. |
| Plastic drive rivet | Low clamp force for trim or liners. | Will heat, UV and chemicals embrittle it? | Not equivalent to a metal fastener. |
Galvanic corrosion starts at mixed-metal wet joints
When dissimilar metals are electrically connected through water or salt, the less noble material can corrode rapidly. An aluminium rivet in steel or a stainless fastener in aluminium needs the isolation and coating strategy specified for that assembly. Paint damage around the hole can become the active corrosion site.
Do not apply an unknown sealant or grease merely to separate metals; it may prevent proper seating, attack paint or lose clamp as it creeps.
Load direction determines which rating matters
Shear load tries to slide the joined layers across the rivet. Tensile load tries to pull the heads apart. Real joints often combine both and add vibration, peel or fatigue. Use the design load and safety factor for the complete joint, including edge distance and substrate bearing strength.
Adding more rivets close together does not automatically increase capacity; closely spaced holes can create a tear line.
Automotive structural repairs follow approved joining schedules
Modern body shells can use spot welds, adhesive bonding, self-piercing rivets and manufacturer-specific blind rivets in defined combinations. High-strength steel and aluminium panels have restricted heat and drilling processes. Follow the model's body repair manual and use the specified rivet, adhesive, pitch and tooling.
Never substitute a general workshop pop rivet in a seat mount, seat-belt anchorage, suspension point, brake component or crash structure without explicit engineering approval.
Hole preparation controls alignment and bearing area
| Preparation step | Correct outcome | Defect to reject | Consequence |
|---|---|---|---|
| Mark and clamp | Layers cannot move while drilled. | Offset holes or trapped gap. | Rivet bends and joint slips. |
| Drill to specified size | Clean round hole with controlled clearance. | Oversize, triangular or torn hole. | Low bearing area and spinning rivet. |
| Deburr | Faces meet fully without raised edge. | Excess countersink or thinned sheet. | Reduced clamp and fatigue life. |
| Protect cut edge | Approved primer/isolation restored. | Bare metal or incompatible coating. | Hidden corrosion starts at hole. |
| Clean swarf | No conductive/sharp chips remain. | Chips in cavities, tyres or electronics. | Rust, short circuit or injury. |
Check behind the work before drilling
Use drawings and physical inspection to locate fuel and brake pipes, high-voltage cables, airbags, wiring looms, glass, trim and moving mechanisms. Disconnect or shield systems as their procedures require. A short drill stop can prevent the bit breaking through into an unseen harness.
Drilling can create hot swarf and sparks. Remove flammable vapour and protect painted or glazed surfaces.
The setting tool must match the rivet
Choose a hand, lazy-tong, pneumatic, hydraulic or battery riveter rated for the rivet diameter, body material and mandrel. Fit the correct nosepiece so the head sits flat and the jaws grip the stem without slipping. A stainless structural rivet may exceed a light hand tool's capacity.
Inspect jaws, spent-mandrel collector and tool oil/air supply. A jammed tool can leave a partly set fastener that must be removed safely.
Installation technique keeps the joint square
Insert into a prepared aligned hole
The flange should touch the front layer and the rivet should enter without hammering or scraping away its coating.
Hold the tool perpendicular
Push the nosepiece firmly to the flange while layers remain clamped. Angled pull creates an eccentric blind head.
Complete one controlled setting cycle
Pull until the designed mandrel break, keeping hands and face out of the ejection path. Do not twist the stem off.
Mandrel fragments are sharp controlled waste
The broken stem can leave the tool or collector with force. Wear eye protection and keep bystanders clear. Empty collectors before they overfill, and use a magnet only where material and surrounding electronics permit.
Count stems in sensitive work areas. A loose steel fragment inside a tyre, seat runner, electrical enclosure or aircraft-style structure can cause later failure.
Inspection needs access to both sides where possible
The front flange should be fully seated without tilt, cracking or severe marking. The blind head should be centred and broad enough for the design. Layers must be closed, with no spinning body or protruding sharp mandrel. Check surrounding sheet for dimpling and coating fracture.
If a set rivet is defective, drill it out using a controlled method that preserves the original hole. Do not punch it through into a closed cavity.
Sealing and finishing are part of the joint specification
Apply seam sealer, cavity wax, paint or other protection only in the order approved for the joint. A sealed-body rivet may reduce a path through its core, but moisture can still travel between sheets or around the hole.
Keep finish products away from brakes, sensors and drainage paths. Reassemble liners and shields so water does not collect around the repair.
Practical rivet FAQs
Q: What does grip range mean?
A: It is the combined material thickness the rivet is designed to clamp.
Q: Can a longer rivet always cover a thinner joint?
A: No. Too much body length can buckle or form a poor blind head.
Q: Is a large flange stronger?
A: It spreads front-face load but does not automatically increase every joint rating.
Q: Can aluminium rivets join stainless steel?
A: Only with an engineered corrosion and load assessment.
Q: Why does a rivet spin in the hole?
A: The hole may be oversized, grip wrong or setting incomplete.
Q: Can a pop rivet replace a spot weld?
A: Only when the vehicle repair method explicitly specifies that riveted joint.
Q: Should the layers be pulled together by the rivet?
A: Clamp them flush first; a large gap can create a false set.
Q: Does a closed-end rivet make any joint waterproof?
A: No. The surrounding hole and sheet interface still require a sealing design.
Q: Which drill size is correct?
A: Use the rivet maker's specified hole range for that exact diameter.
Q: Can a mandrel be cut instead of snapped?
A: Not as a substitute for correct setting; investigate tool and grip selection.
Q: Are rivets reusable?
A: No. Remove a set rivet and install a new specified fastener.
Q: What PPE is required?
A: At minimum use task-specified eye protection and control drilling dust, chips and sharp stems.
Q: What proves a satisfactory installation?
A: Correct formed head, seated flange, closed layers, sound substrate and restored protection.
