VALEO Car Parts

Valeo parts represented in this range

Valeo's official history starts in 1923 with the production of friction materials near Paris; the group adopted the Valeo name in 1980. Its later portfolio developed across transmission, visibility, thermal and electronic systems. This collection has a particularly strong clutch identity. Clutch kits dominate, with flywheels, central slave cylinders and conversion sets providing related repair routes. Headlights, rear lamps and wiper motors are the other major groups.

That breadth makes reference-level identification essential. A Valeo clutch family name can explain likely contents but does not settle a vehicle application. A lamp carrying the Valeo name still needs the correct optical and electronic equipment. Wiper motors are designed around a specific screen, linkage and parking strategy. Every section below therefore starts with system evidence rather than a visual match.

Understanding Valeo clutch-kit formats

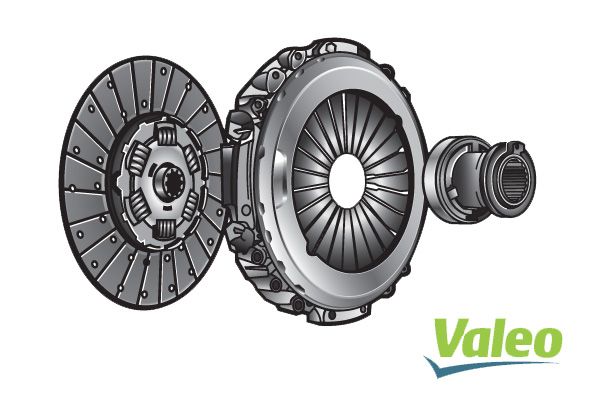

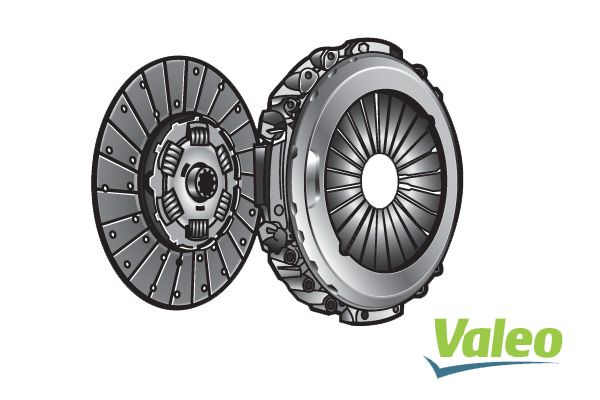

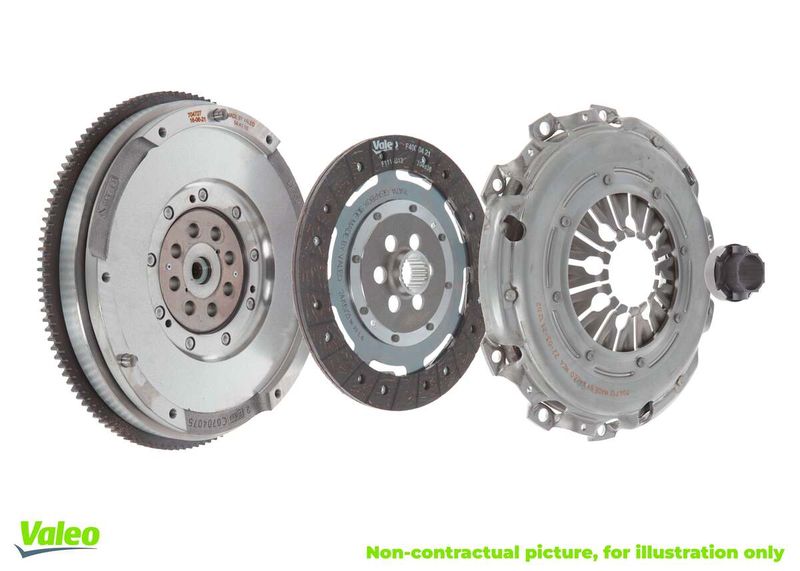

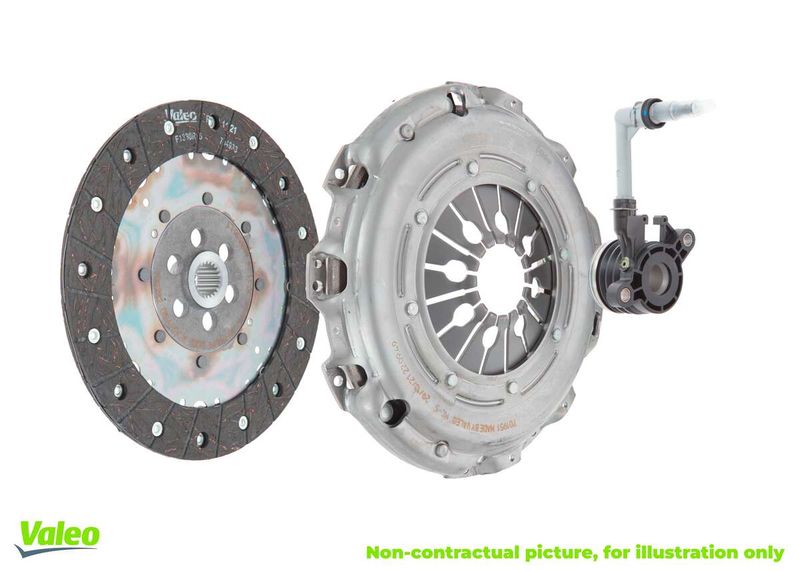

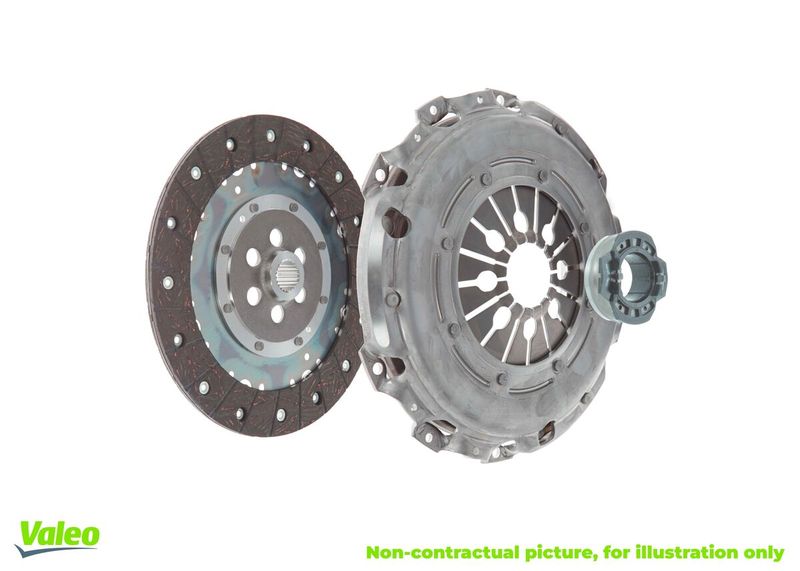

Valeo describes Kit2P as a clutch disc and cover, while Kit3P adds a mechanical release bearing. A Kit3P CSC version includes a concentric slave cylinder in place of, or in addition to, the relevant release component. FULLPACK DMF references can include the clutch, dual-mass flywheel, bolts and, on specified versions, a CSC. These are portfolio descriptions; the exact parts list on the individual reference remains decisive.

A clutch disc transmits engine torque to the gearbox input shaft when clamped by the cover. Diameter, thickness, hub profile, number of spline teeth and damping arrangement must suit the gearbox and flywheel. The cover must match operating direction, release travel and flywheel mounting. A release bearing or CSC must have the correct guide, hydraulic connection and travel. Near-identical dimensions are not enough if the release geometry differs.

Valeo also documents SAT self-adjusting clutch technology and HEC high-efficiency clutch designs on selected products. A self-adjusting cover arrives in a controlled set position and may require a particular installation method. Do not operate, reset or compress its mechanism casually. Some Valeo listings state that special fitting tools are not necessary, while others explicitly require them; read the reference rather than applying one rule to all self-adjusting clutches.

Package completeness should be confirmed before the gearbox is removed. Check for disc, cover, release bearing or CSC, pilot bearing where applicable, alignment tool, cover bolts, flywheel bolts and instructions. The absence of an item in the box does not prove that the old one is reusable. Bolts may be torque-to-yield or otherwise single-use under the vehicle procedure.

Dual-mass flywheels and conversion sets

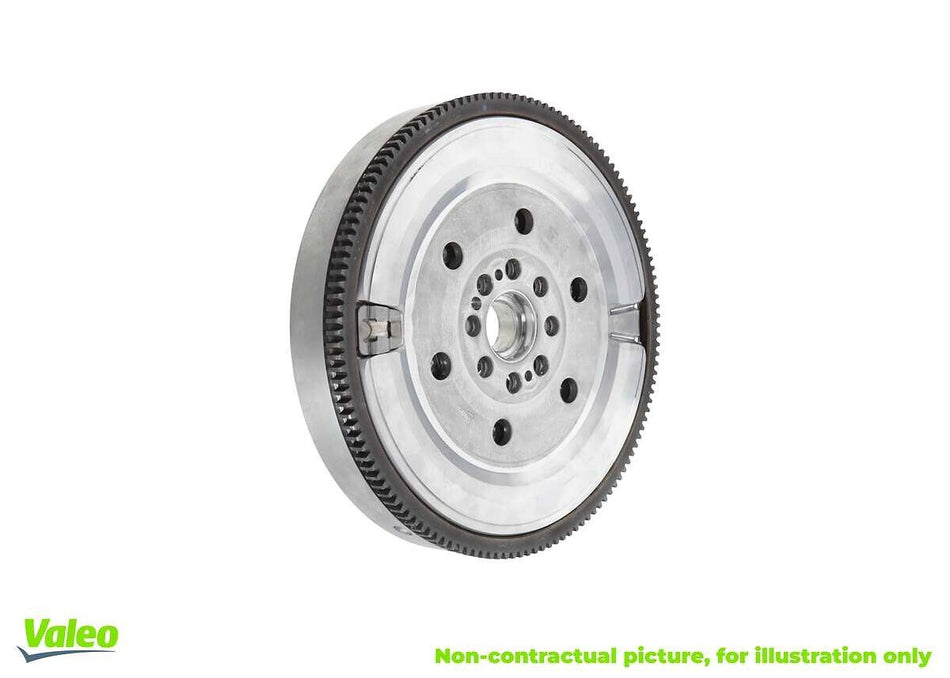

A dual-mass flywheel uses two principal masses with an internal damping system to manage engine torsional vibration before it reaches the gearbox. Its free movement and tilt must be judged against data for the exact flywheel, not by a universal hand-feel rule. Blueing, grease escape, cracked friction surfaces, damaged ring-gear teeth or movement outside the stated limit can indicate replacement, but diagnosis should include the engine's running quality and starting system.

Do not wash a dual-mass flywheel with aggressive solvent or apply grease to its friction face. Lock it with the specified tool during bolt removal and tightening, and use the correct torque and angle sequence. Check the crankshaft rear seal and gearbox input seal for leakage while access is available. Oil contamination can cause a new clutch to slip or judder; fitting friction parts without repairing the leak wastes the repair.

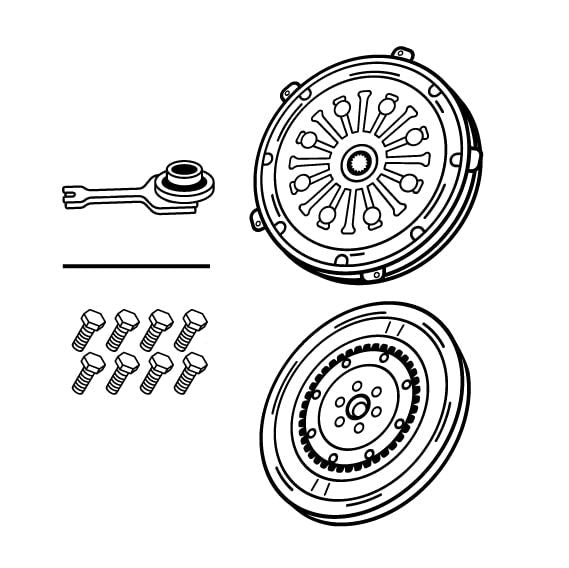

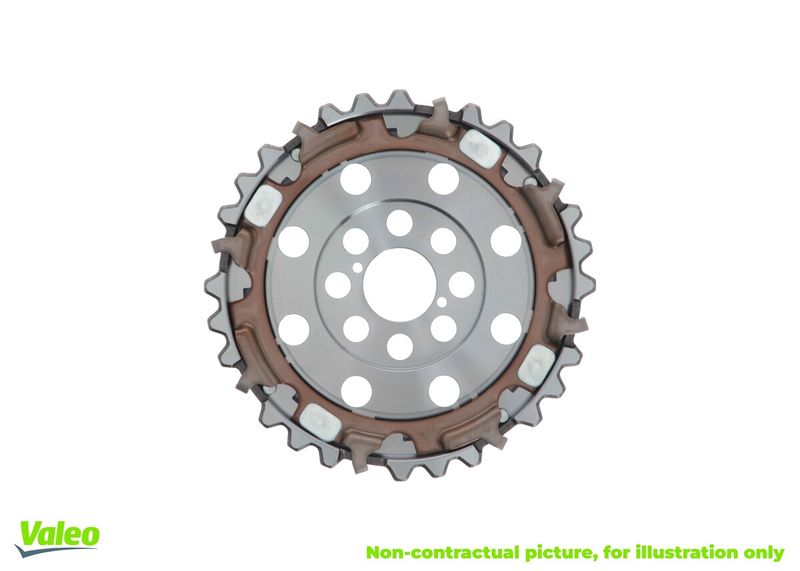

Valeo's Kit4P is a complete conversion concept for listed applications, replacing a dual-mass arrangement with a dedicated solid flywheel, clutch and associated parts. It should only be used as the complete, application-specific system. A random solid flywheel and conventional clutch can alter stack height, starter engagement and torsional behaviour. Where a FULLPACK DMF is specified, components marked for use only within the set should remain together.

Diagnosing clutch symptoms before ordering

Slip appears as engine speed rising without corresponding vehicle acceleration, often most evident under load. Worn or contaminated friction material is one cause, but insufficient release clearance, hydraulic preload or a cover problem may contribute. Drag is the opposite failure to disconnect fully and can make gear engagement difficult; air in hydraulics, restricted travel, disc distortion or gearbox issues should be considered.

Judder can involve uneven friction surfaces, contamination, distorted components, worn engine or gearbox mounts, poor alignment or driveline play. A rattle that changes with pedal position does not automatically identify the dual-mass flywheel. Release bearings, input-shaft bearings, gears, mounts and engine combustion irregularity can produce overlapping noise. Record when the symptom occurs: cold or hot, pedal up or down, in neutral or under drive.

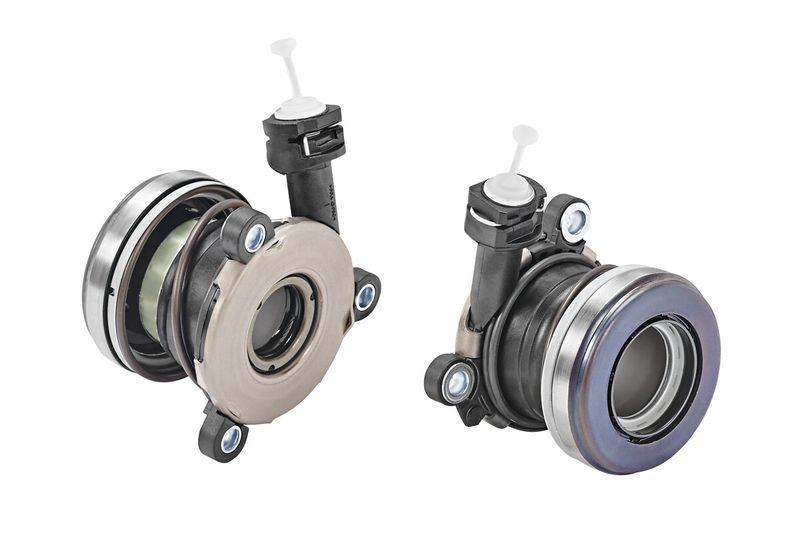

A failed concentric slave cylinder normally requires gearbox removal, which is why replacing a worn or leaking unit during clutch service can be sensible when the repair instructions support it. Match connector, bore, mounting and sensor provision. Use the specified hydraulic fluid, keep the system clean and do not over-stroke a loose CSC. Bleeding methods differ and rapid pedal operation can damage some units.

Clutch installation discipline

Support the vehicle and gearbox with rated equipment and maintain stable alignment. A gearbox hung on the clutch disc can bend the hub and create release problems. Clean the bellhousing, inspect the fork, pivot, guide tube and input splines, and use only the lubricant and amount specified. Excess grease can migrate to the friction surfaces.

Check flywheel run-out or condition as instructed. Centre the disc with the correct side facing the gearbox, tighten the cover progressively in sequence and preserve any transport locks until the stated step. Follow Valeo and vehicle torque figures for that reference. Do not use an impact wrench for precision assembly or reuse stretch bolts merely because their threads look sound.

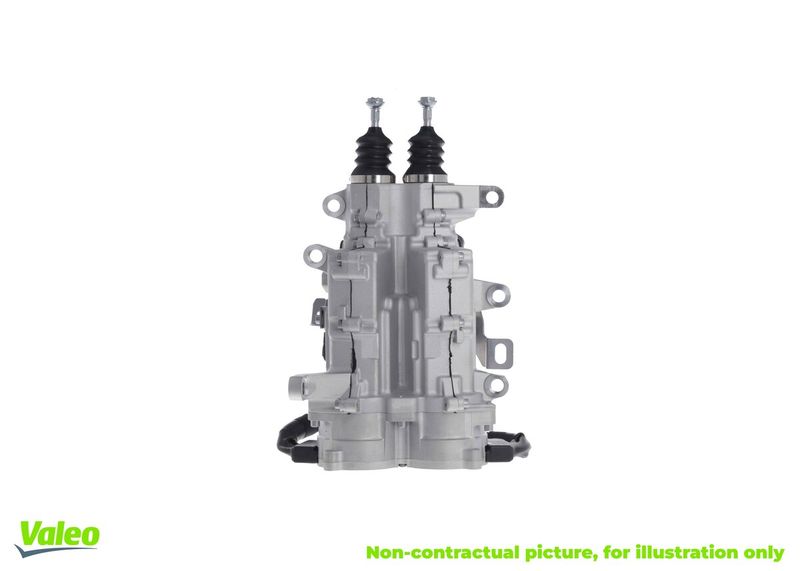

After refitting, bleed hydraulics by the specified method, check pedal return and confirm gear selection before road testing. Review for leaks and abnormal noise. Some vehicles need learned values or actuator procedures, especially where electronic or dual-clutch systems are involved. A conventional manual-clutch method should not be extended to an automated or dual dry clutch without the correct tools and instructions.

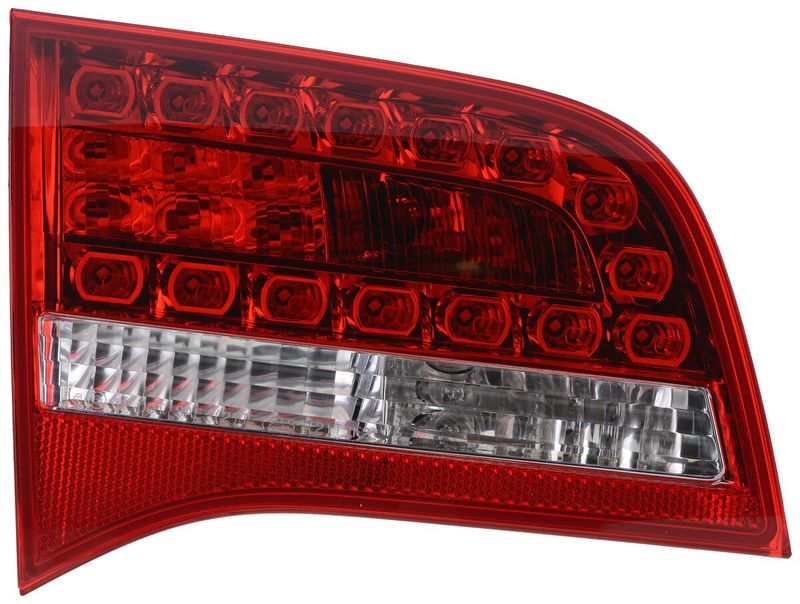

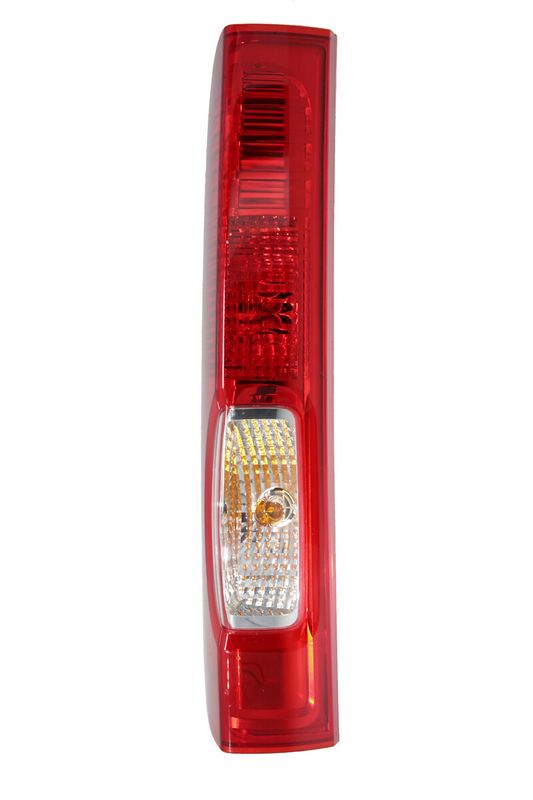

Valeo headlights and rear lamps

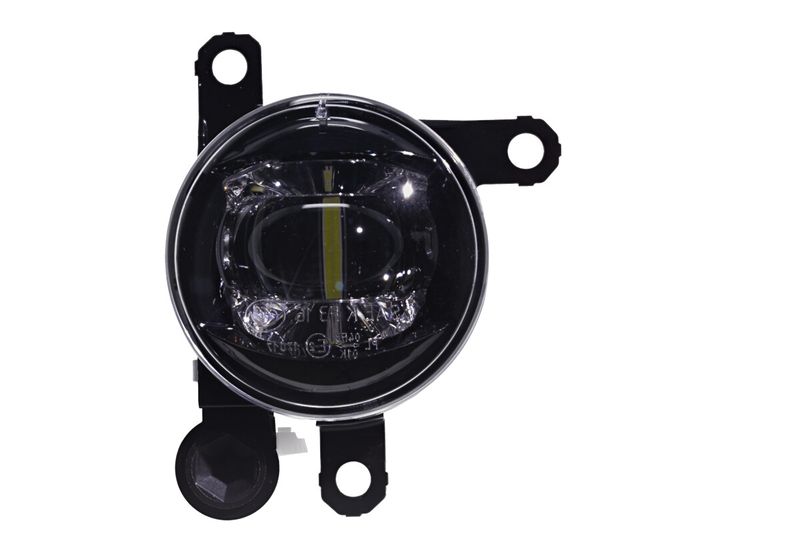

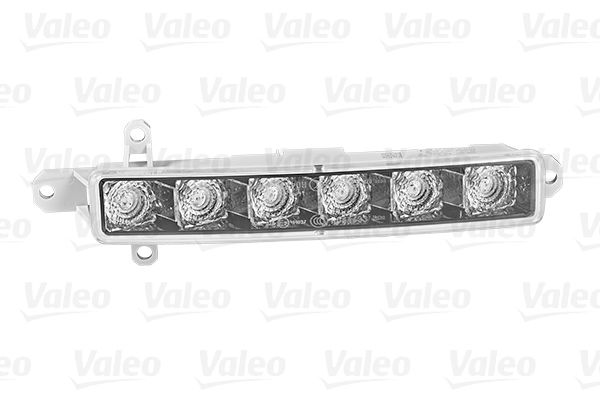

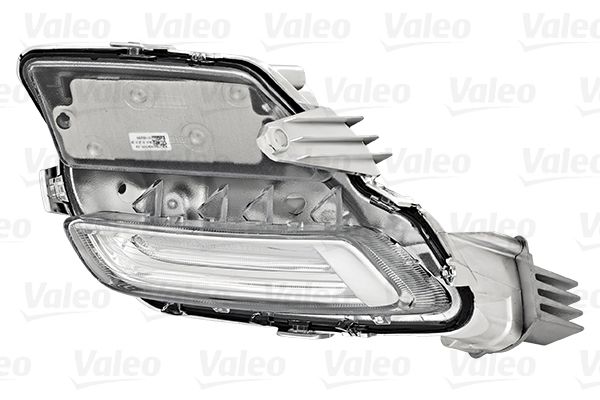

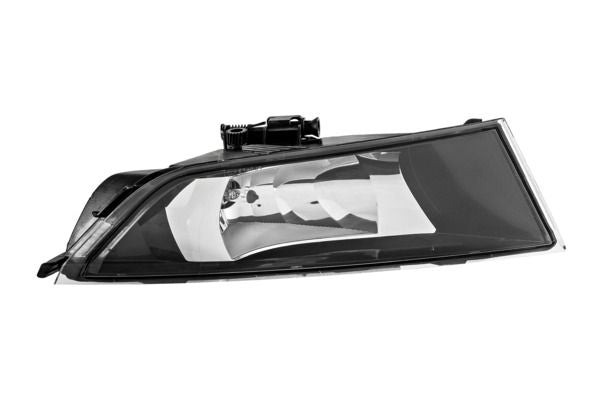

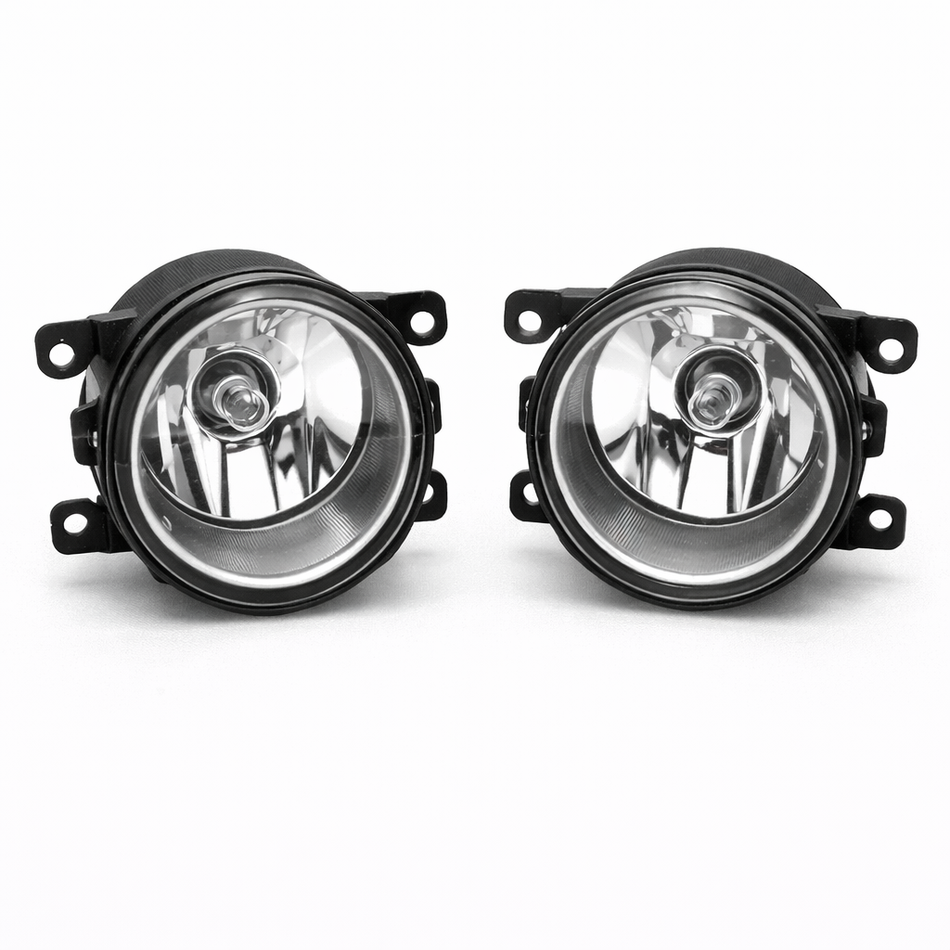

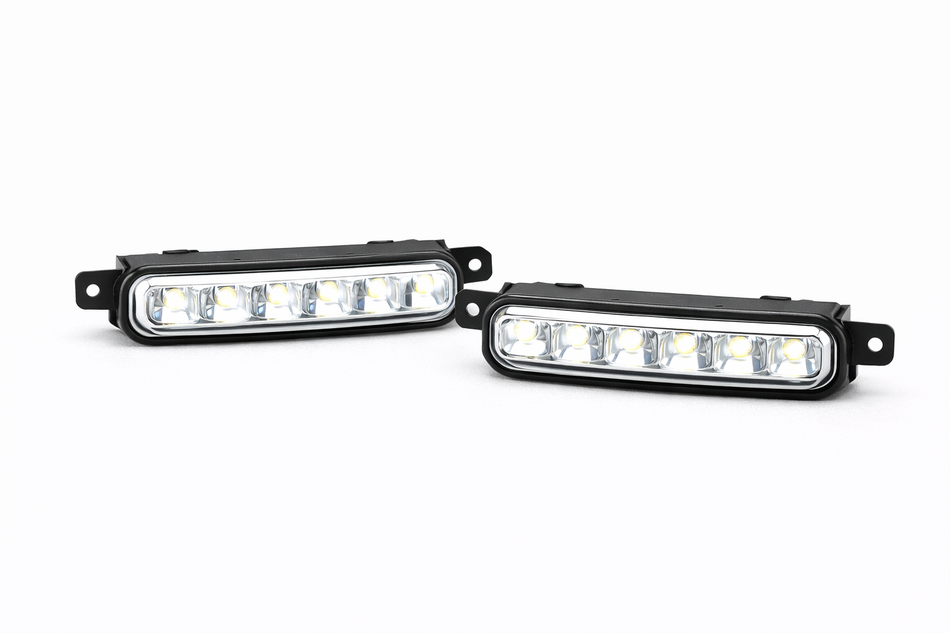

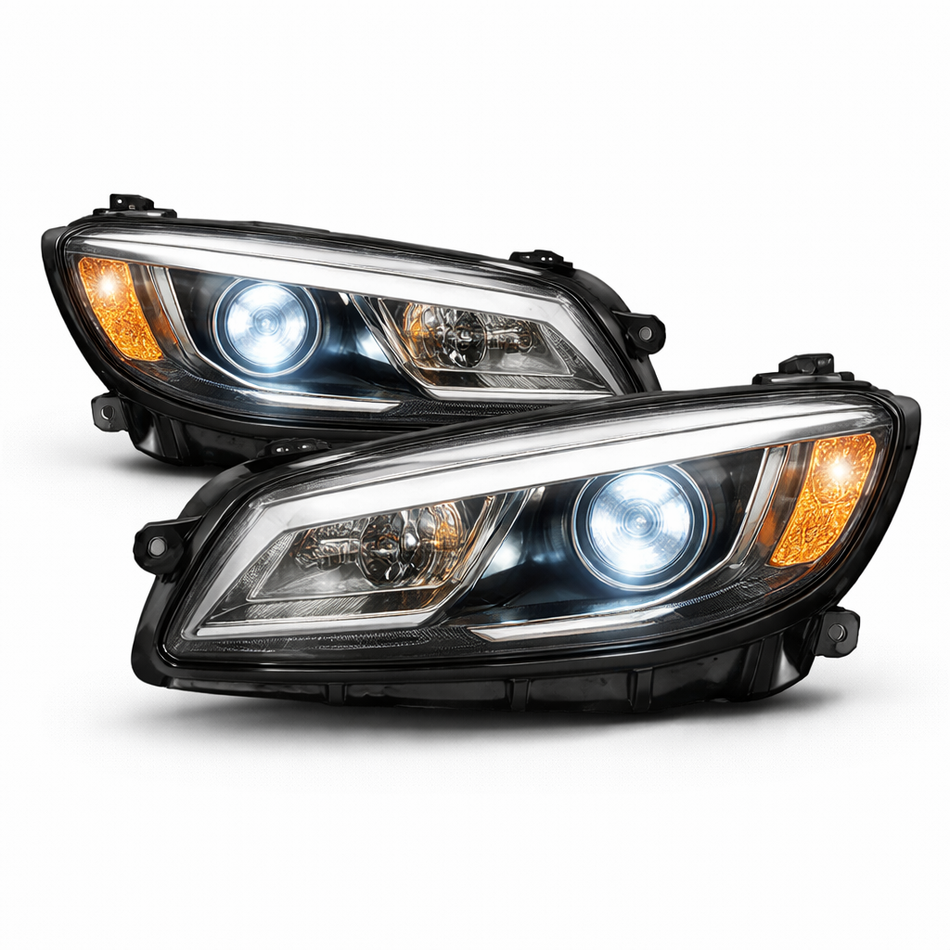

Valeo's lighting work covers headlamps, rear lamps, fog lamps and LED technologies, but an individual replacement must duplicate the vehicle's system. Check left or right side, left-hand-traffic beam for UK use, halogen, xenon or LED source, daytime-running-light function, levelling, cornering or matrix equipment and module contents. Similar styling can hide a different connector or control unit.

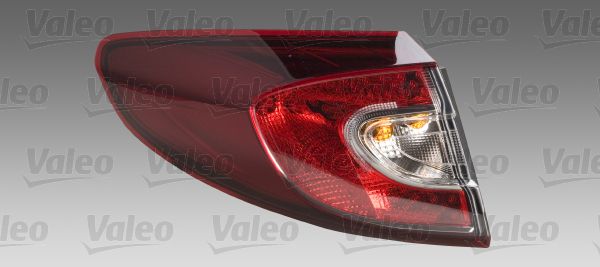

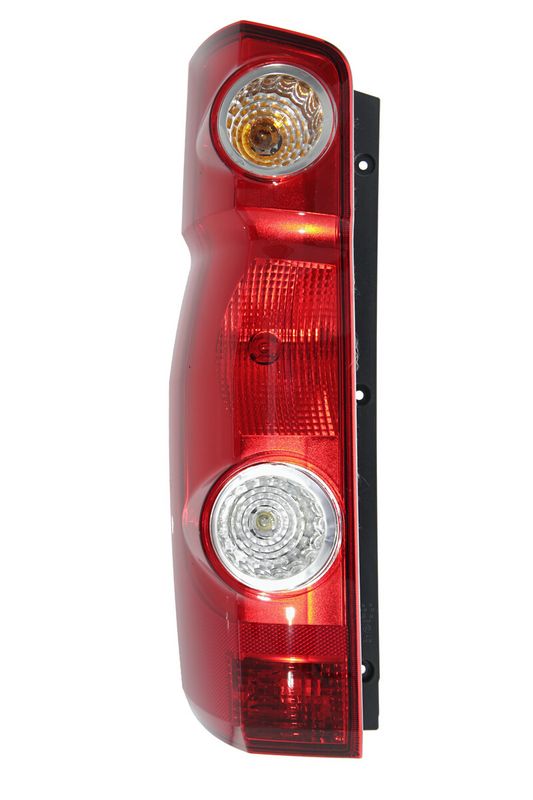

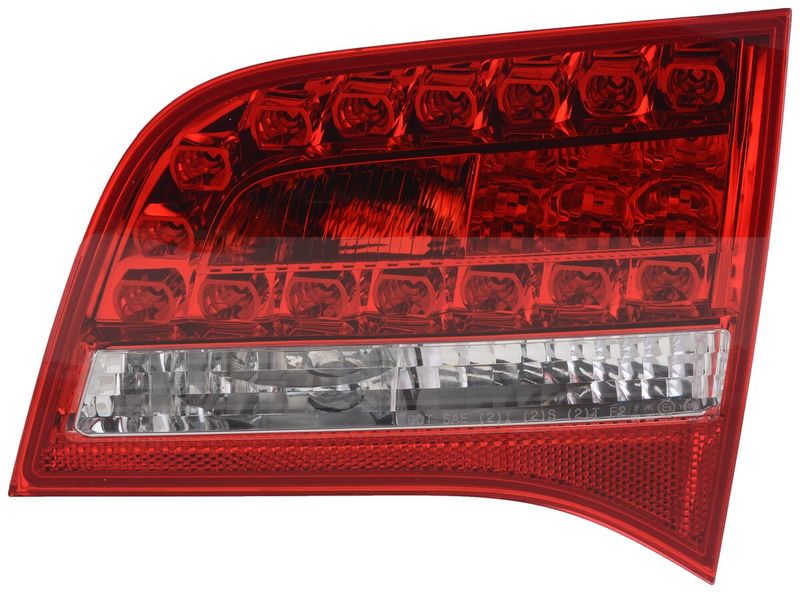

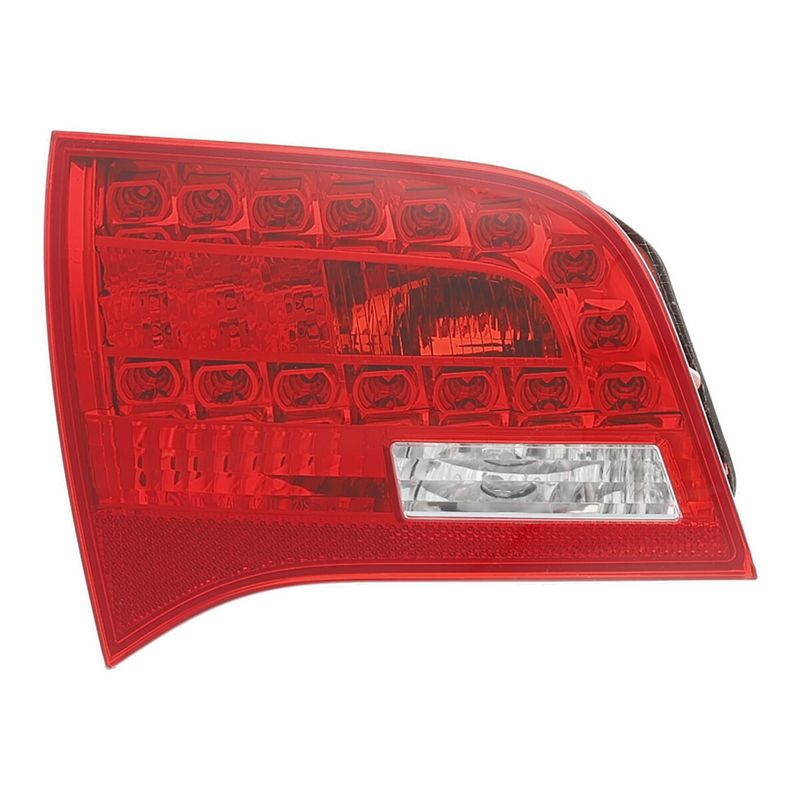

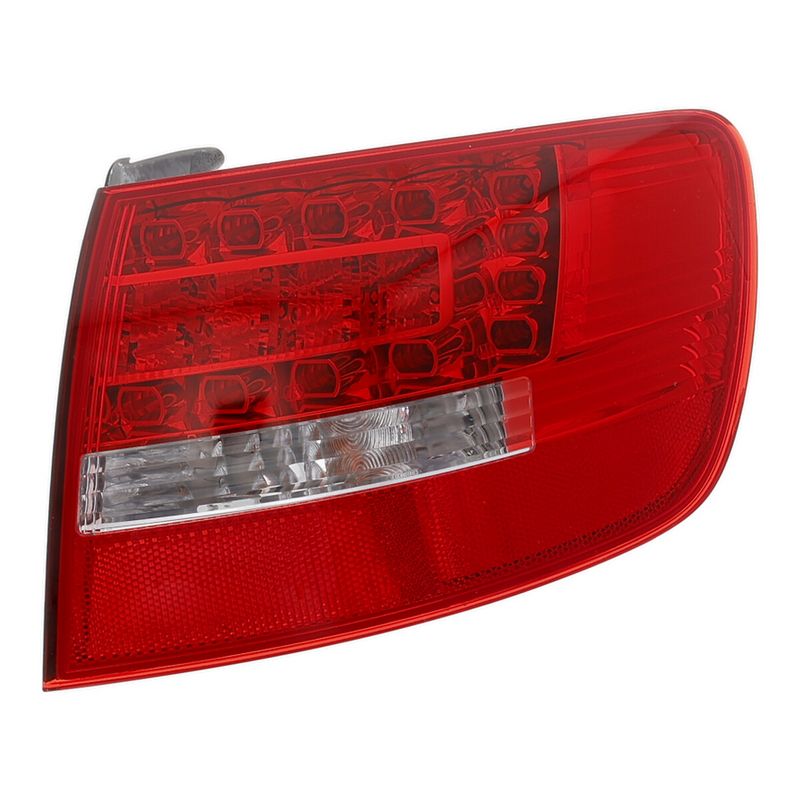

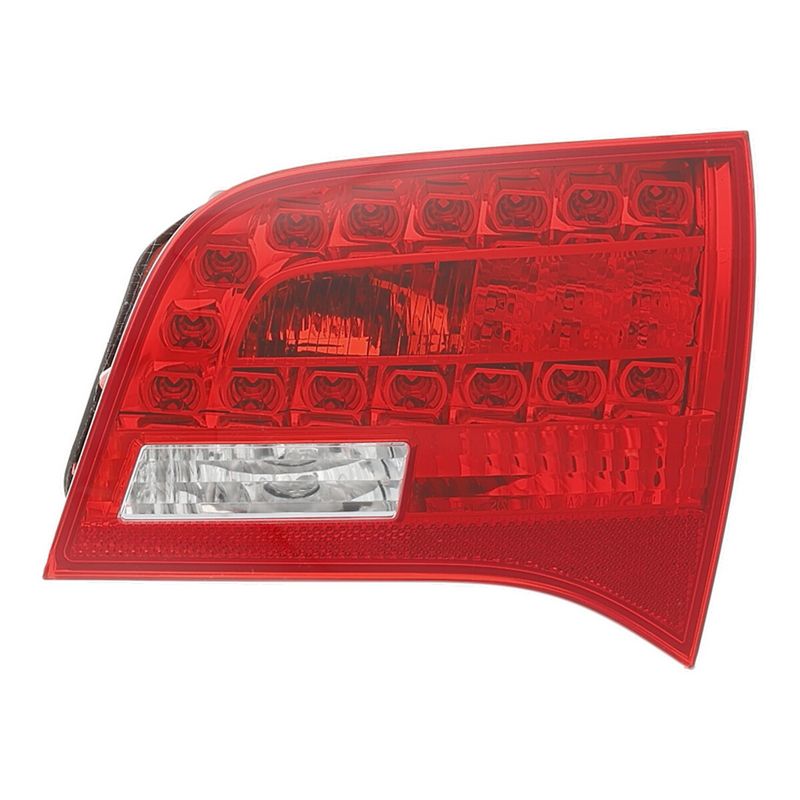

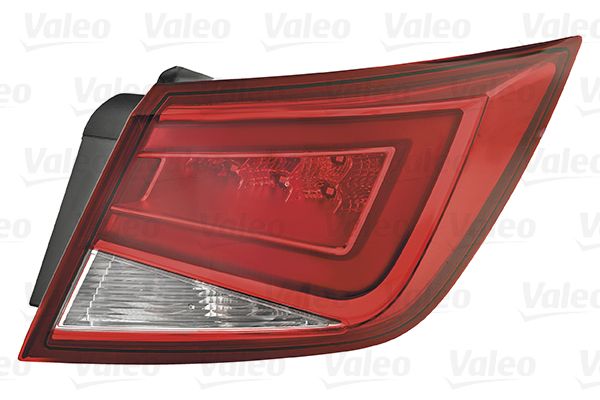

Headlamp replacement may require transferred ballasts or LED drivers, then diagnostic coding and beam alignment. High-voltage xenon work needs the vehicle's isolation procedure. Rear lamps vary by body style and may split functions between the quarter panel and tailgate. Confirm whether bulbs, carrier, seals or modules are included, and correct the cause of water ingress rather than sealing designed vents.

The Great Britain MOT manual assesses mandatory headlights for operation, security, condition and alignment and requires paired lamps to be substantially matched. It also covers position, stop, indicator, fog, reversing and number-plate functions. An existing halogen headlamp converted to HID or LED bulbs is rejected, so the complete optical system must remain appropriate for road use.

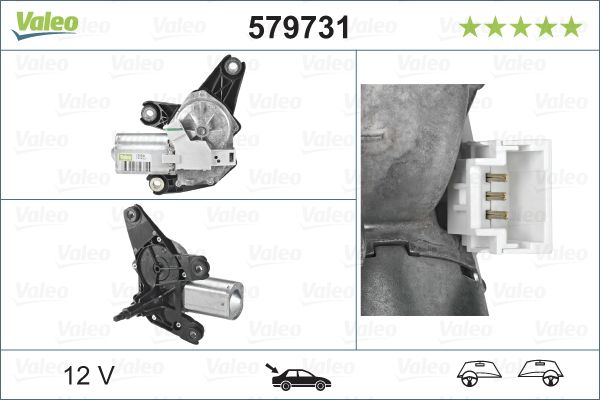

Wiper motors, regulators and comfort components

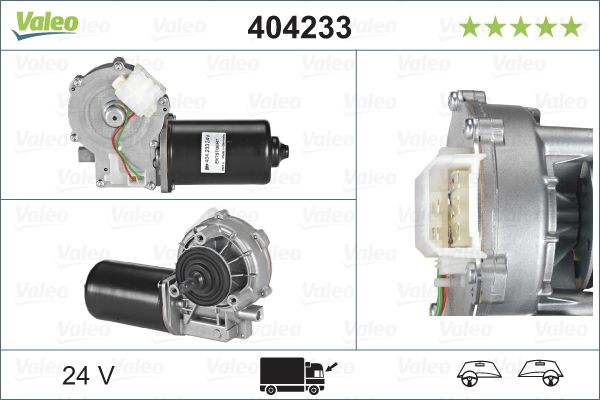

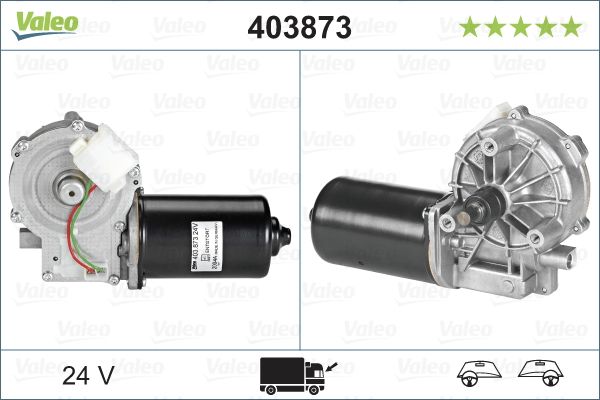

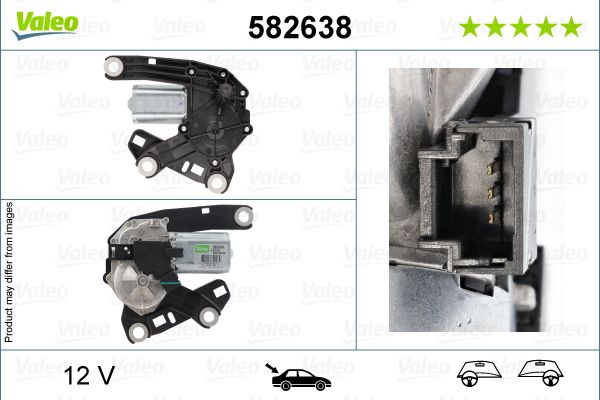

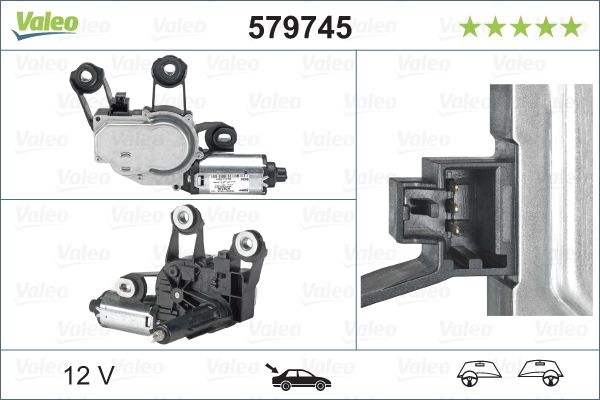

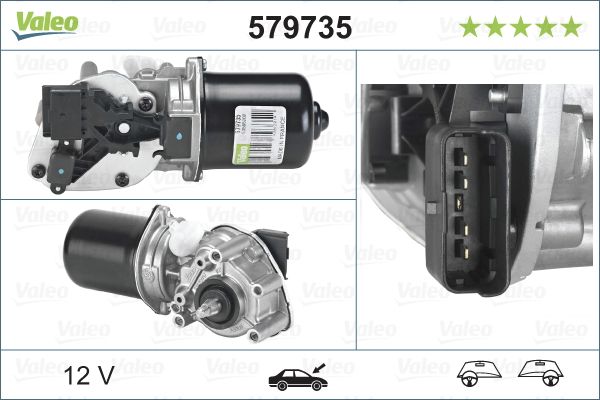

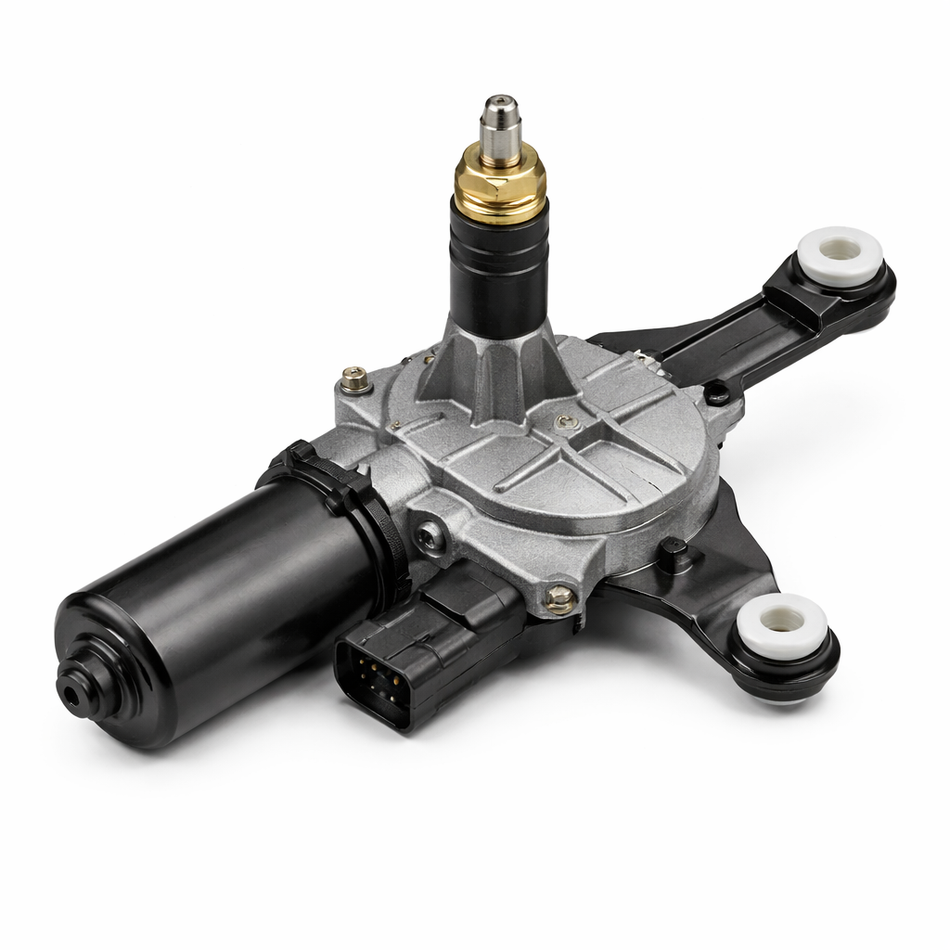

Valeo states that wiper motors are tailored to characteristics such as parking position, wiping angle, area and speed. Match front or rear location, spindle and crank, connector, linkage arrangement, control electronics and left- or right-hand-drive application. Mark the parked arm position before removal, keep fingers clear of a powered linkage and never allow the motor to cycle with loose arms where it can strike the body or glass.

If wipers stop, first check fuse, supply, earth, switch command, linkage seizure and water damage. A healthy motor cannot move a corroded linkage indefinitely. After installation, run the mechanism without arms only if the procedure instructs it, allow it to establish park, then fit arms at the stated screen marks. Confirm sweep clearance, washer operation and that blades do not hit the pillar or scuttle.

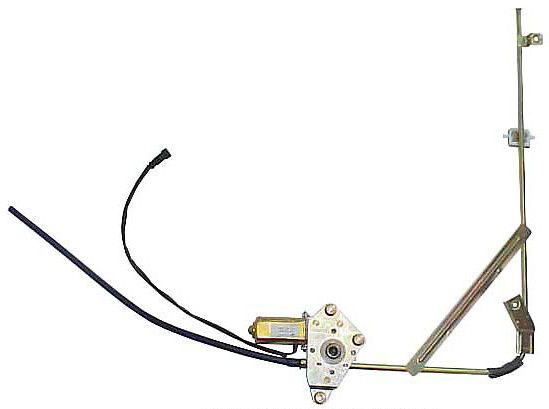

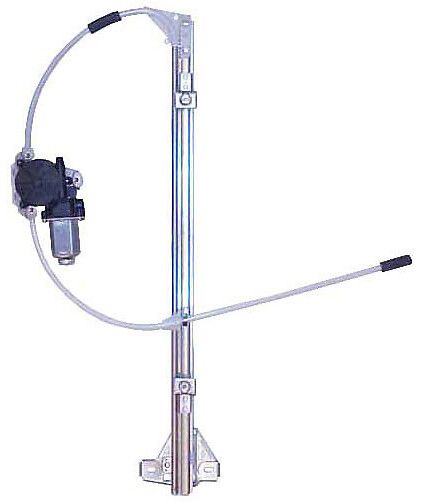

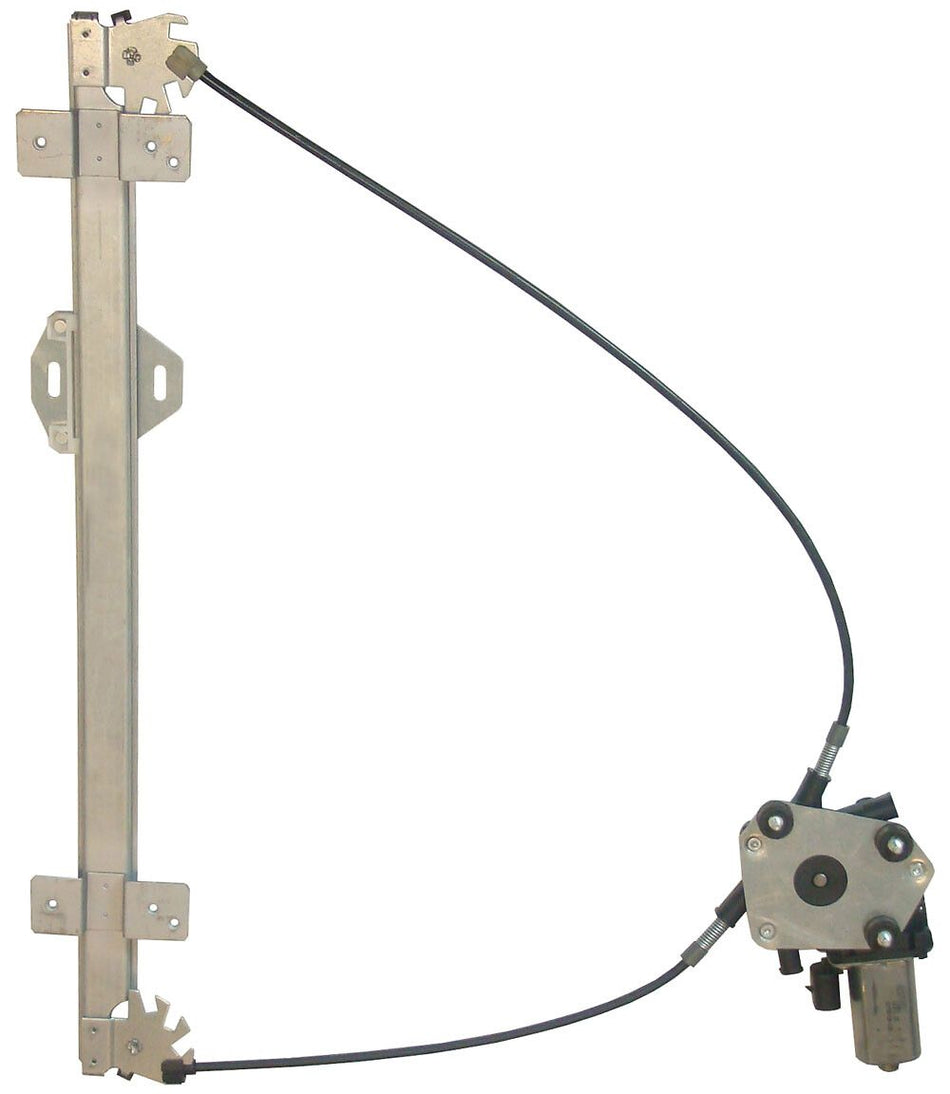

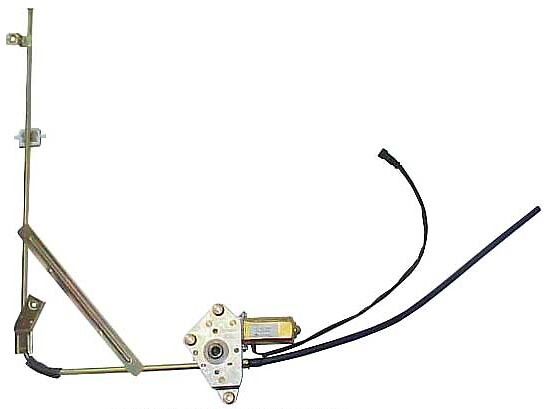

Window regulators differ by door, body and whether a motor is included. Support the glass during service and initialise anti-trap functions where required. Interior blowers vary in diameter, power, rotation, connector, integrated regulator and steering position. A blower fault may instead be a fuse, resistor or electronic controller, blocked filter or damaged wiring.

Common Valeo selection and fitting mistakes

• Ordering a clutch by engine size while omitting the gearbox code and release system.
• Assuming every three-piece kit contains a CSC rather than a mechanical bearing.
• Reusing contaminated friction parts after repairing a seal leak.
• Mixing a flywheel and clutch not listed as a complete compatible system.
• Choosing a headlamp by body shape without checking UK beam pattern and electronics.
• Installing wiper arms before the replacement motor has reached its defined park position.

Valeo questions and answers

Q: What is included in a Valeo Kit2P?

A: Valeo describes Kit2P as disc and cover, but the exact product parts list should still be checked.

Q: What does Kit3P add?

A: A standard Kit3P adds a mechanical release bearing; a Kit3P CSC reference uses the listed concentric slave cylinder format.

Q: Does a clutch kit include the flywheel?

A: Not generally. Look for a FULLPACK DMF or another reference whose contents explicitly list a flywheel.

Q: Can clutch diameter identify the correct kit?

A: No. Spline, gearbox, release system, flywheel, engine and production details must also match.

Q: Must a dual-mass flywheel always be replaced with the clutch?

A: Inspect and measure it against the exact service criteria; replacement depends on condition and the chosen kit.

Q: Can I convert any DMF to a solid flywheel?

A: Only use a complete Valeo conversion set explicitly listed for that drivetrain.

Q: Is a special tool required for every self-adjusting clutch?

A: Requirements vary by reference. Follow the product-specific instruction and any transport-lock procedure.

Q: What commonly causes a new clutch to slip?

A: Contamination, incorrect assembly, hydraulic preload or unresolved seal leakage can undermine new friction parts.

Q: Are Valeo headlights supplied with control modules?

A: Supply contents differ. Verify every bulb, ballast, LED driver, levelling motor and module on the exact listing.

Q: Can a European-market headlight be used permanently in the UK?

A: Only when its approved dipped-beam pattern and application suit left-hand traffic; matching outer shape is insufficient.

Q: Why does a wiper motor need a specific park position?

A: The linkage and arms rely on it to keep the sweep within the screen and body clearances.

Q: What checks complete a Valeo clutch repair?

A: Confirm pedal and release action, gear selection, no leaks, correct fastener procedure, stable road operation and absence of abnormal noise.
