The valve is a pressure vessel closure mounted in a moving wheel
Centrifugal force, flexing, heat, road salt and inflation-tool loads act on the stem. The core seals the internal passage, while the stem-to-wheel interface seals the rim hole.
Both interfaces must suit maximum service pressure, wheel geometry and speed. A valve that merely fits through the hole is not necessarily rated for the application.
Tyre-valve types
| Type | Wheel attachment | Typical use | Service point |
|---|---|---|---|
| Rubber snap-in tubeless | Rubber body pulls through rim hole. | Many passenger/light vehicle wheels within rating. | Age cracks, correct hole and pull method. |
| Metal clamp-in | Nut, grommet and washers clamp to rim. | Higher duty, specialist or TPMS assemblies. | Seal stack and low specified torque. |
| TPMS snap-in | Rubber stem attaches to sensor. | Direct TPMS with replaceable stem. | Sensor-specific screw/torque and stem kit. |
| TPMS clamp-in | Metal stem and sensor retained at wheel. | Direct TPMS. | Grommet, nut, washer, core and cap service set. |
| High-pressure valve | Snap-in or clamp-in rated assembly. | Applications above ordinary passenger-car duty. | Do not substitute standard valve. |
| Extension/angled valve | Approved stem or sealed extension. | Deep wheels, twin wheels or access needs. | Support, balance and leak paths. |
Components and what they do
| Component | Function | Common fault |
|---|---|---|
| Valve stem/body | Carries inflation passage through rim. | Crack, bend, corrosion or wrong rating. |

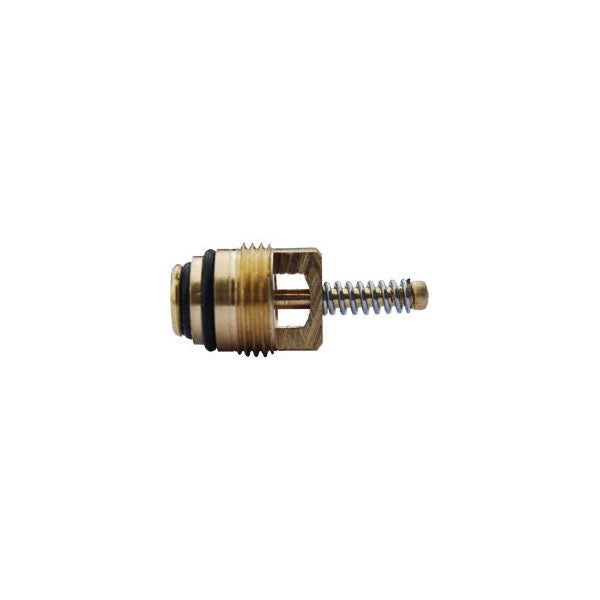

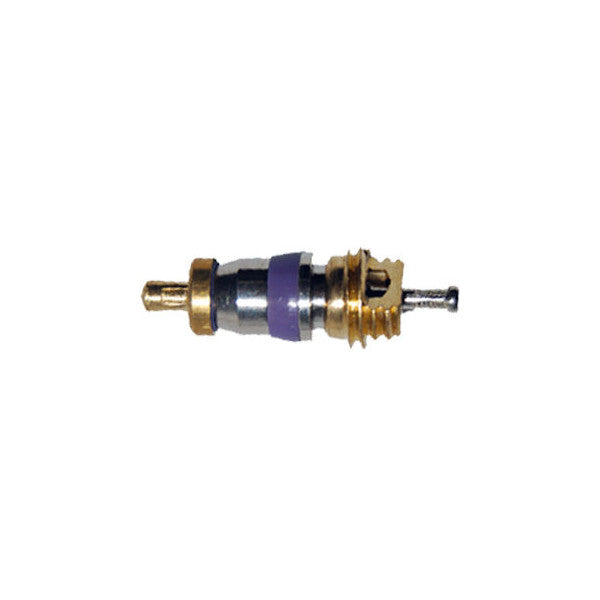

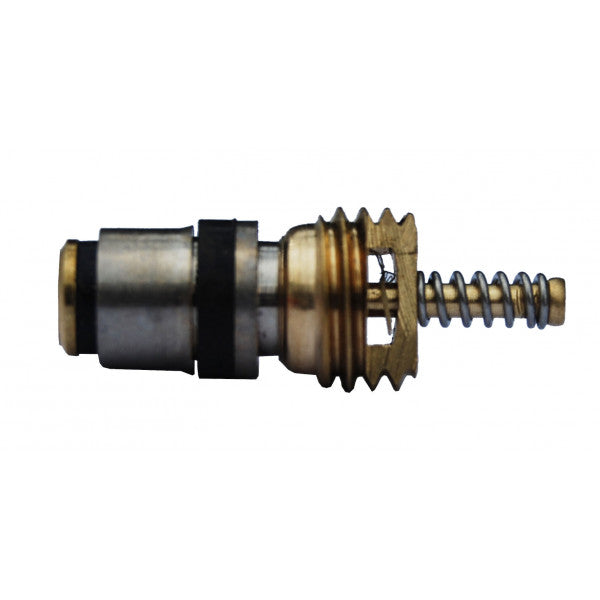

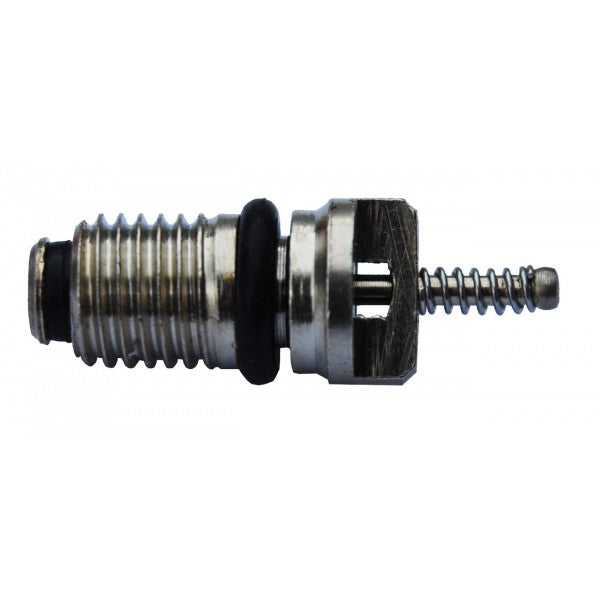

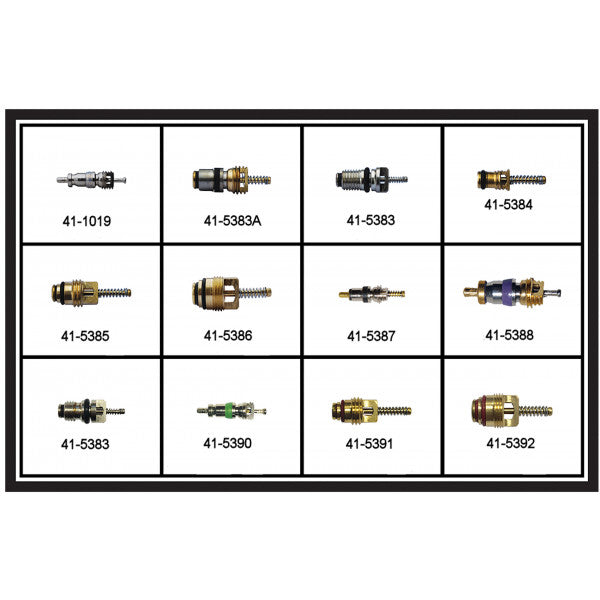

| Valve core | Spring-loaded primary passage seal. | Debris, loose fit, corrosion or damaged seat. |
| Cap | Secondary seal and dirt/water protection. | Missing, cracked, seized or incompatible metal. |
| Grommet/seal | Seals clamp-in stem to wheel. | Compression set, wrong profile or corrosion beneath. |
| Retaining nut/washer | Applies controlled clamp load. | Over-torque, reuse or wrong stack. |
| TPMS sensor | Measures pressure/temperature and transmits data. | Battery/electronic fault or physical damage. |
| Sensor screw | Joins replaceable stem/sensor. | Wrong torque, thread or galvanic corrosion. |
Valve-hole and rim compatibility
Valve holes have controlled diameter, edge radius and seating surface. Corrosion, burrs or paint buildup prevents sealing. Clean without enlarging the hole or removing protective finish beyond the service method.
Some metal stems need a flat washer orientation inside or outside the wheel. Copying a previous incorrect stack repeats the leak.
Pressure, speed and temperature ratings
Valve duty must cover the vehicle's specified cold inflation, pressure rise in service and speed. High-speed centrifugal force bends a flexible stem outward; heavy caps/extensions increase load. Commercial and temporary spare applications can use higher pressures.
Use application data and valve markings. Do not infer rating from stem thickness or metal construction.
TPMS service-kit compatibility
A direct sensor may outlast several tyres, but its grommet, nut, core and cap are exposed service parts. Use the kit specified for that sensor part number and wheel. Similar stems can use different seal shapes or screw torque.
Do not replace a serviceable sensor simply because its valve leaks if an approved stem kit is available; equally, do not attach a new stem to a cracked or corroded sensor housing.
Galvanic corrosion
Dissimilar metals connected by salty moisture form an electrochemical cell. Aluminium TPMS stems are vulnerable when an incompatible brass core or metal cap is installed. Nickel-plated cores and suitable plastic caps are commonly specified, but follow the sensor maker.
Penetrating oil does not reverse structural corrosion and can contaminate the tyre.
Leak diagnosis
| Bubble location | Likely source | Action |
|---|---|---|
| Core opening | Loose/damaged core or debris in seat. | Depressurise as needed; replace with compatible core/torque. |
| Rubber stem crack | Age, ozone, bending or wrong valve. | Replace complete stem and inspect duty. |
| Stem-to-rim base | Grommet, rim corrosion, snap-in damage or wrong hole. | Remove tyre, inspect and reseal correctly. |
| TPMS stem joint | Service seal/screw or sensor body. | Use sensor-specific kit or replace sensor. |
| No valve bubbles | Tyre puncture, bead, rim crack or porosity. | Continue full wheel/tyre leak test. |
| Only during bending | Cracked stem or disturbed base. | Do not keep flexing; replace/inspect promptly. |
Valve cores and torque

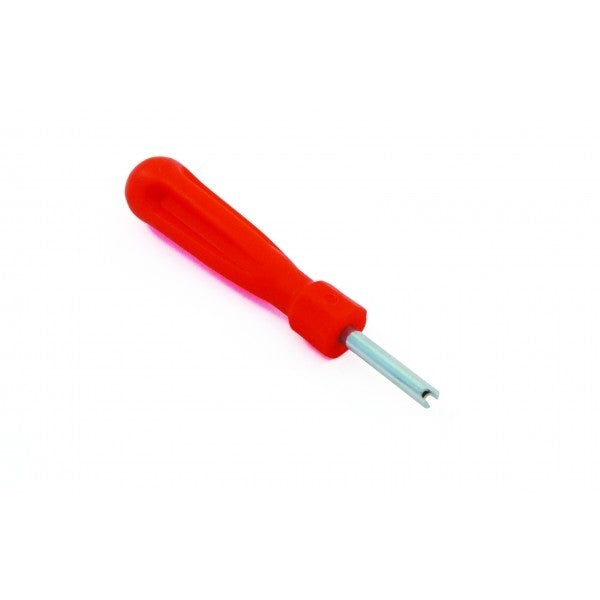

Use a calibrated low-range core tool when a torque is specified. Over-tightening deforms core or stem seat; under-tightening leaks. Keep inflation chuck clean so grit is not blown into the seal.
After core service, inflate and leak-test before fitting the cap. A cap should thread freely without bottoming on the core.
Caps are more than decoration
A compatible cap keeps water and dirt from the core and can provide a secondary pressure seal. Plastic avoids many galvanic problems. Decorative metal caps can seize onto aluminium stems and break them during removal.
Never use pliers aggressively on a TPMS stem. If a cap is seized, deflate and remove the assembly under controlled tyre-service conditions.
Safe tyre deflation and bead work
Prove zero pressure
Remove the core with eye protection and confirm no trapped pressure remains. A blocked core can falsely suggest a tyre is empty. Keep face/body out of the trajectory.
Locate the TPMS sensor
Position bead breaker and demount head away from the valve/sensor according to machine procedure. Pushing the bead into the sensor can crack it or tear the stem.
Installing rubber snap-in valves
Use the approved lubricant and pulling tool on the stem's designed area, not its threads. Pull squarely until the retention ring seats; do not stretch beyond the valve's permitted installation force.
Inspect for cuts caused by a sharp rim hole. Do not install at an angle to improve inflation access unless designed that way.
Installing metal clamp-in valves
Clean the flat sealing area, assemble grommet and washers in exact order and hold the stem orientation while tightening the nut to its low specified torque. The seal works by controlled compression, not maximum tightness.
After initial inflation, leak-test around the base. Retightening beyond specification can split the grommet or crack the sensor.
TPMS programming and relearn
Some sensors are pre-programmed, some clone an ID and others need vehicle-specific configuration. The vehicle may relearn automatically, through a drive cycle, button sequence or diagnostic tool. Record wheel positions if the system identifies location.
A successful radio trigger does not prove pressure accuracy or valve sealing. Test both.
Rim refurbishment and valve seats
Powder coating or painting can build thickness around a clamp-in sealing land and valve hole. Media blasting may round an edge or leave abrasive inside the tyre. After refurbishment, inspect diameter, flatness and protective coating using the wheel/valve requirements.
Do not clamp a metal stem over loose paint or corrosion. Removing coating locally must not expose a corrosion path without an approved refinishing method. A repaired or welded wheel also requires competent structural and leak assessment before a valve is installed.
Dual wheels and extensions

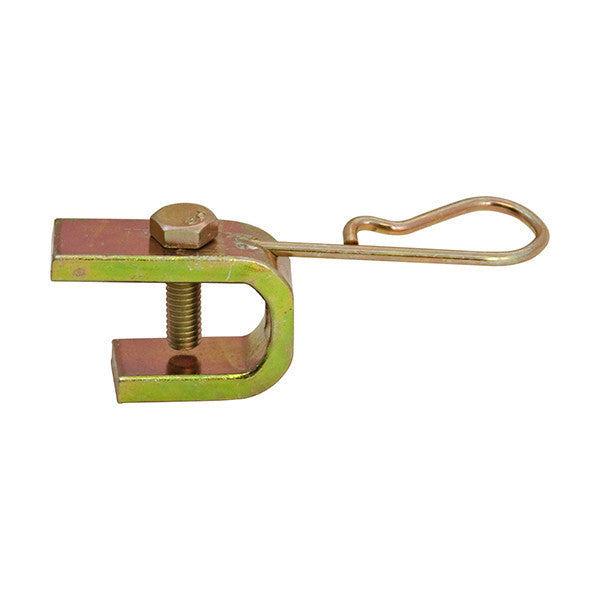

Twin-wheel applications need accessible valves or supported extensions that do not rub, vibrate or loosen the base. A long unsupported metal extension adds centrifugal load; a flexible extension can be trapped between tyres.
Use a rated stabiliser and arrangement approved for the wheel system, then leak-test every connection. Both inner and outer tyre pressures must remain checkable without disturbing the assembly.
Pressure loss while driving
If steering, vibration or TPMS warns of rapid deflation, slow down smoothly and stop in a safe place without severe braking. Do not continue on a flat tyre unless it is a run-flat system operating within its stated speed and distance limits.
A temporary inflation product may not seal a valve and can contaminate a TPMS sensor; follow the vehicle recovery guidance.
Inflation and pressure setting
Use the vehicle placard/handbook cold pressures for tyre size and load. The maximum on the tyre sidewall is not the routine target. Calibrate the gauge and account for temperature.
Inflate in a restraining cage/remote setup where required for commercial or split-rim hazards. Never exceed wheel, tyre or valve ratings.
Nitrogen does not change valve service rules
Nitrogen-filled tyres still lose pressure, change with temperature and need compatible valves, cores and caps. Ordinary air can be added in an emergency where vehicle guidance permits; safety pressure matters more than maintaining purity.
Do not use oxygen or unknown compressed gas for tyre inflation.
UK MOT and road safety
Tyre condition and inflation influence roadworthiness, and direct TPMS malfunction indicators are assessed on applicable vehicles. A visibly damaged valve, significant leak or insecure sensor can lead to dangerous pressure loss even if not isolated as a named test item.
Check pressures regularly when cold and before heavy loads or long journeys.
Practical tyre-valve FAQs
Q: Are all snap-in valves the same?
A: No. Hole size, pressure/speed rating, length and application differ.
Q: Does a leaking cap mean the core is fine?
A: The cap is secondary; test and repair the core/stem seal as well.
Q: Can a brass core fit an aluminium TPMS stem?
A: Use the sensor-specified core; incompatible metals can cause galvanic corrosion.
Q: Should a metal valve nut be tightened hard?
A: No. Use the low specified torque to compress the seal correctly.
Q: Must the TPMS sensor be replaced at every tyre change?
A: Not automatically, but fit its specified service kit and replace damaged/expired components.
Q: Can tyre pressure be set from the sidewall maximum?
A: Use the vehicle's cold-pressure placard/handbook for its tyre and load.
Q: Why does a valve leak only when moved?
A: A cracked stem or disturbed base is likely and needs immediate replacement/inspection.
Q: Can a seized metal cap be forced off?
A: Not on a pressurised vulnerable stem; use controlled tyre-service procedures to avoid breakage.
Q: Does nitrogen prevent pressure loss?
A: No. Check pressure and valve condition normally.
Q: Is valve replacement possible without removing the tyre?
A: Some approved tools exist for defined cases, but inspect TPMS/wheel and follow the safe method.
Q: Why is the TPMS warning still on?
A: Check actual pressure, sensor programming/relearn, battery, radio and module faults.
Q: Can a valve cause rapid deflation?
A: Yes. Stem fracture, core loss or seal failure can release pressure quickly.
Q: What proves a completed repair?
A: Correct rated assembly, zero leaks, balanced wheel as needed, cold pressure set and successful TPMS operation.
