24 Products
COOLZONE Car Parts
Coolzone on AutoMotoPart concentrates on the small interfaces used during vehicle air-conditioning service. Valve cores are the largest group, with different lengths, diameters, threads, seal materials and identifying bands. R134a and HFO-R1234yf high- and low-side adaptors, extensions and bottle connections sit beside compressor and condenser O-ring kits, sealing washers, UV dye, Schrader-core tools and a broad universal seal assortment. A blower-motor resistor is the only substantial item outside the refrigerant circuit.
Identify the refrigerant, service port, component and exact sealing interface before choosing a Coolzone item; similar appearance is not enough. The current AutoMotoPart selection contains 27 Coolzone items, led by 24 maintenance entries, 1 6 o ring x 1 134a entry, 1 blower motor resistor entry, 1 spot gun uv dye 8oz r134a/r1234 entry. These Coolzone figures describe the range on this page rather than every product the brand may make elsewhere.
Read the vehicle refrigerant label and current service information, then keep R134a and R1234yf tools, recovery cylinders and connections correctly separated. High and low sides have different duties and pressures. A valve core must match thread, body dimensions, seal and port design; an O-ring must match size, material, refrigerant and lubricant. A universal kit is an organised assortment, not permission to select the nearest ring. UV dye also needs explicit refrigerant, oil, equipment and dose compatibility so it does not become a substitute for leak diagnosis.
Refrigerant systems hold pressure and must not be opened or vented casually. Qualified personnel should recover the charge with approved equipment, verify zero pressure and use eye, hand and ventilation controls before removing a core, seal or adaptor. Keep ignition sources controlled and never mix gases. Replace protective caps and leak-test by the approved procedure after service. For the blower resistor, isolate the electrical system and diagnose the motor, connector and airflow before replacement. Use this page neutrally, with final selection controlled by refrigerant-specific technical data and competent workshop practice.
Your Current Vehicle
Or
Select Your Vehicle
Popular Part Types
Only part types stocked for this brand are shown.
Car Parts Categories
Browse the main catalogue areas in which this brand has matching products.
Other popular manufacturers of aftermarket automotive parts
Explore established alternatives with related products in the current catalogue.
Coolzone: understand the range before choosing
Coolzone is presented here as an automotive air-conditioning service-parts range rather than a conventional vehicle-parts brand. Its catalogue evidence covers R134a and HFO-R1234yf valve cores, caps, couplers, adaptors, sealing washers and O-rings. The AutoMotoPart selection follows that pattern closely, with UV leak dye and tools alongside one electrical blower-motor resistor.
AutoMotoPart currently lists 27 Coolzone items. The largest Coolzone groups are 24 maintenance entries, 1 6 o ring x 1 134a entry, 1 blower motor resistor entry, 1 spot gun uv dye 8oz r134a/r1234 entry. Coolzone totals can change, so a category count is orientation rather than proof that a particular reference suits a vehicle, workplace or job. The exact Coolzone listing, its current technical information and the item in front of you must agree.
What the Coolzone page actually covers
| Product group in this range | Current entries | Selection focus |
|---|---|---|
| Maintenance | 24 | Match refrigerant family, service-port side, connector profile, thread and pressure equipment. |
| 6 O RING X 1 134A | 1 | Identify valve-core length, body diameter, thread, seal material and any band or application code. |
| BLOWER MOTOR RESISTOR | 1 | Choose O-rings by exact dimensions, material, joint and approved refrigerant-oil compatibility. |
| SPOT GUN UV DYE 8OZ R134A/R1234 | 1 | Verify UV dye against refrigerant, lubricant, injection equipment and product-specific dose. |
The 27-product Coolzone range contains at least 11 valve-related entries, multiple high- and low-side adaptors for R134a or HFO-R1234yf, O-ring and washer kits, two UV dye formats and two valve-core tools. Dimensions and colour-band wording separate several cores. The presence of one blower resistor does not turn the page into a general HVAC-electrical catalogue; refrigerant service remains the dominant subject.
Build a reliable shortlist
Begin with the under-bonnet refrigerant label and a visual map of the circuit. Confirm whether the work concerns a service port, compressor joint, condenser joint or another connection. Record high or low side, thread or coupling, seal dimensions and system oil. Only then compare the complete Coolzone reference.
| Check | Why it matters | Useful evidence |
|---|---|---|
| Refrigerant identity | R134a and R1234yf systems use distinct service controls and must not be cross-contaminated | Vehicle label, current service data and dedicated equipment identification |
| Pressure side | High- and low-side ports differ in duty, connection and expected pressure | Circuit diagram, port marking and full adaptor description |
| Valve core | Thread, length, diameter and sealing design determine retention and leakage | Coolzone code, measured removed core and port specification |
| O-ring or washer | Size alone does not confirm material or refrigerant-oil compatibility | Joint drawing, original specification and exact kit data |
| Dye system | Wrong chemistry, dose or injector can contaminate the circuit | Dye label, refrigerant, oil and recovery-machine instructions |
| Legal competence | Opening and recovering refrigerant may require qualifications and controlled equipment | Current GB rules, workplace procedure and technician certification |
Never use an adaptor to make one refrigerant machine appear compatible with another system. An adaptor changes a physical connection, not gas identity, oil compatibility, equipment approval or recovery-cylinder segregation. If the vehicle label is missing or the gas is suspect, identify the contents with suitable workshop procedures before connection.
Valve cores, service caps and pressure containment
Coolzone valve-core evidence includes M6, M8 and other dimensional variants, neoprene wording, black-band identification and vehicle-family descriptions. The core is a pressure-retaining service component, while the cap can provide protection and an additional sealing function according to the port design. Both must match the specific system rather than simply threading into place.
Recover refrigerant and verify the circuit condition before core removal unless a documented specialist process and tool explicitly permits another method. Use a tool that engages the core without bending the port, and keep dirt out of the open connection. Install to the specified method, renew the correct cap and carry out an approved leak test. Do not overtighten a small core in an attempt to stop a leak caused by damaged port threads or a wrong seal.

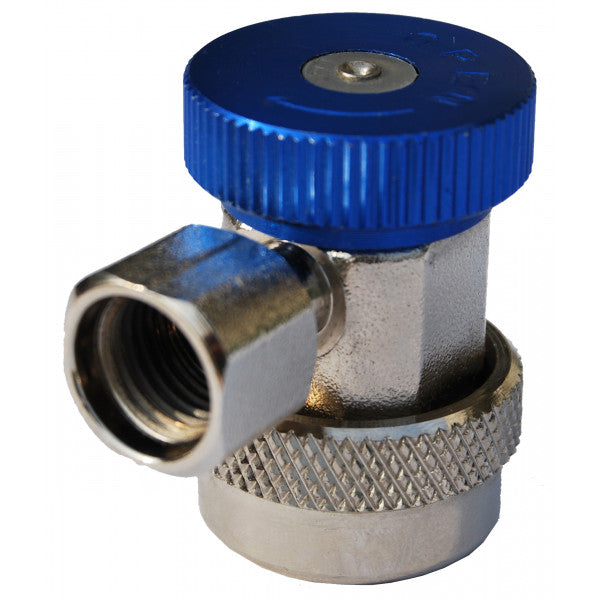

R134a and R1234yf couplers and adaptors

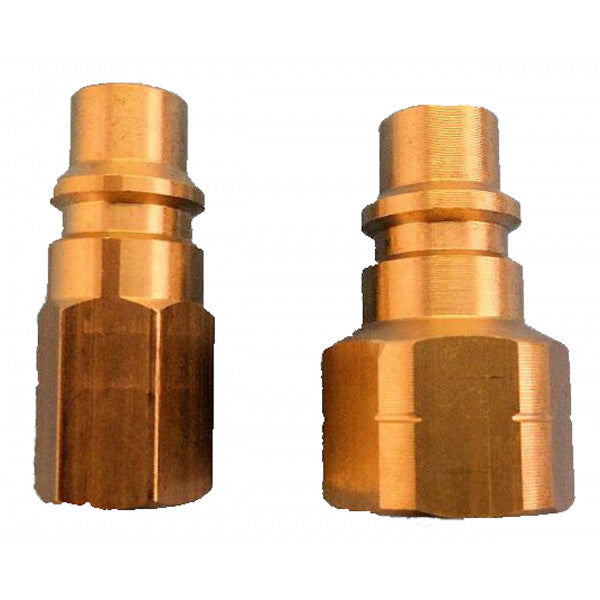

The range separates R134a high- and low-side adaptors from HFO-R1234yf extensions, couplers and bottle adaptors. High and low connections must remain identifiable throughout the service setup. Inspect locking balls, seals, threads and valve actuation before attachment, and reject a coupler that will not lock positively or vents abnormally.
Connect and disconnect only in the sequence stated for the recovery or charging equipment, keeping hands and face away from possible discharge. Hose and machine refrigerant identity should be visibly controlled to prevent mixing. After use, fit protective caps, store connections clean and review any unexplained pressure or refrigerant-composition result before continuing the service.
O-rings, sealing washers and clean assembly
Compressor, condenser and universal O-ring kits appear alongside a specific 11 mm sealing washer and a small R134a O-ring pack. A seal needs the correct cross-section, inside diameter, material and joint design. Stretching an undersized ring or compressing an oversized one can cut, extrude or distort it even when the connection initially feels tight.
Cap every open line and component promptly to limit moisture and dirt. Remove old seals without scratching aluminium faces, then inspect the groove and tube for corrosion or burrs. Use only the lubricant and amount specified for that system, keep sealing surfaces clean and tighten the joint to its technical procedure. A leak at a connection may require repair of the fitting rather than repeated changes of O-ring size.
UV dye supports a leak test but does not replace one
Coolzone evidence includes an 8 oz spot-gun dye described for R134a and R1234yf and a one-litre Elke R134a dye. Those are not automatically interchangeable. Confirm dye standard, refrigerant and oil compatibility, injection method and dose. Too much dye or an unsuitable carrier can interfere with service equipment and make future inspections harder.
Clean old fluorescent residue before the test, introduce dye by its instructions and operate the system only where safe and required. Scan joints, compressor, condenser and evaporator drain with the appropriate lamp and eye protection, then confirm the suspected source with the approved leak method. Repair the cause and clean the area so a later technician can distinguish new leakage from historic dye.
Blower-motor resistor diagnosis is a separate electrical job
A blower resistor controls defined fan speeds or forms part of an electronic blower-control circuit. Loss of one or more speeds can arise from the resistor, but a seized or high-current motor, burnt connector, poor earth, fuse, switch or control signal can be responsible. Diagnose the system and compare the Coolzone 20-0250 reference with the vehicle HVAC application before removal.
Isolate power as directed, allow hot components to cool and inspect the plug for discolouration or melted terminals. Replace damaged wiring by the approved repair rather than fitting a new resistor to an overheated connector. Ensure the resistor or controller is mounted in its designed airflow because cooling can be part of its operation. Test every speed and monitor for smell, heat or recurring fuse failure.
From identification to a checked result
| Stage | Good practice for this range | Mistake to avoid |
|---|---|---|
| Identify | Confirm refrigerant, side, port, joint, dimensions and Coolzone code | Choosing from appearance or nearest O-ring size |
| Recover | Use qualified personnel and equipment to contain the system charge | Venting refrigerant or opening a pressurised connection |
| Protect | Cap openings and keep tools, gases, oils and cylinders segregated | Cross-connecting R134a and R1234yf equipment |
| Assemble | Use correct seals, cleanliness, lubricant and tightening method | Overtightening a core or forcing a coupler |
| Verify | Leak-test, replace caps, record gas and check system operation | Treating cooling output alone as proof of a sealed repair |
Record the Coolzone reference, refrigerant recovered and charged, oil or dye added, seal location and leak-test result through the workshop system. Refrigerant and waste records should follow current legal and environmental requirements. Good traceability protects the next service from accidental mixing.
Reading real Coolzone references
The Coolzone names below are examples from the current range and show why the complete description matters. They are not universal Coolzone recommendations and should not be treated as a fitment list. Within Coolzone, a shared family word can conceal a different dimension, connector, material, pack format, operating condition or installation side.
| Example listing | What to verify beyond the name |
|---|---|
| Coolzone 20-0250 BLOWER MOTOR RESISTOR | Refrigerant, high or low side, connector, thread and equipment |
| Coolzone 41-40138 SPOT GUN UV DYE 8OZ R134A/R1234 | Core dimensions, seal, band, cap and port condition |

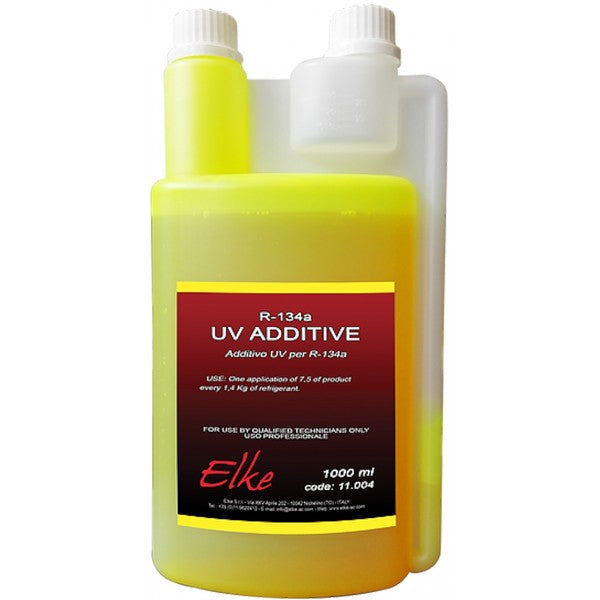

| Elke R134a Economy UV Dye - 1 Litre | O-ring dimensions, material, joint, lubricant and tightening |
| Compressor O-Ring Kit | Dye chemistry, oil, dose, injector and inspection method |
| Condenser O-Ring Kit | Refrigerant, high or low side, connector, thread and equipment |
| Premium High Side Quick Extension | Core dimensions, seal, band, cap and port condition |
| HFO1234yf - High Side Extension | O-ring dimensions, material, joint, lubricant and tightening |
| Coolzone 41-1000A 6 O RING X 1 134A | Dye chemistry, oil, dose, injector and inspection method |
Example names such as valve core or 1/4 adaptor are too broad for selection. Resolve every title to the complete Coolzone part number, dimensional data and refrigerant-side application before connecting a pressure system.
Common errors around Coolzone products
- Opening a Coolzone-equipped air-conditioning connection before refrigerant is recovered and pressure is verified.
- Mixing R134a and R1234yf hoses, cylinders, adaptors or service machines.
- Using a high-side adaptor on a low-side process or forcing a reluctant coupler.
- Selecting a valve core from thread alone while ignoring length, diameter and seal material.
- Choosing the nearest O-ring from a universal kit without checking material and joint dimensions.
- Adding UV dye without confirming refrigerant, oil, equipment and dose.
- Overtightening a core to compensate for damaged port threads.
- Replacing the blower resistor without checking motor current and connector heat damage.
Coolzone questions and answers
Q: What products dominate the Coolzone range?
A: Valve cores, refrigerant-specific couplers and adaptors, O-rings, washers, UV dyes and removal tools dominate.
Q: Can R134a and R1234yf tools be shared?
A: Do not assume so. Use equipment explicitly approved and controlled for each refrigerant, preventing cross-contamination.
Q: Are high- and low-side adaptors interchangeable?
A: No. Match the circuit side, refrigerant, service equipment and complete connector specification.
Q: Can a valve core be changed while pressure remains?
A: Follow only a documented specialist process with approved equipment; routine work requires recovery and verified safe isolation.
Q: How is a replacement core identified?
A: Use the Coolzone number, thread, body length and diameter, seal material, band and port application.
Q: Will any green or black O-ring work in air conditioning?
A: No. Colour and size alone do not establish material, refrigerant, oil or joint compatibility.
Q: Can a universal O-ring kit cover every vehicle?
A: It provides an assortment, but each selected ring still needs an exact specification match.
Q: Does UV dye prove where a leak is?
A: It can indicate a path, but clean inspection and an approved confirmatory leak test are still required.
Q: Can more dye improve visibility?
A: Use only the product-specific dose; excess or incompatible dye can contaminate the service process.
Q: Why must refrigerant be recovered?
A: The circuit is pressurised and refrigerant release creates safety and environmental risks governed by service procedures and law.
Q: Does a failed blower speed always mean the resistor?
A: No. Check motor current, fuse, switch, wiring, earth, connector and control signals.
Q: What service details should be recorded?
A: Record refrigerant, recovered and charged quantities, Coolzone parts, oil or dye, leak checks and technician details as required.
