A level sensor protects the usable washer reserve
The reservoir stores enough cleaning fluid for repeated windscreen use, but its irregular shape makes the remaining volume difficult to judge from outside. A level sensor changes electrical state near a calibrated height so the driver receives notice before the pump draws air.
The threshold is intentionally above an empty tank. It must leave a practical reserve while avoiding nuisance warnings as fluid moves under acceleration, braking or cornering.
Common sensing principles
| Design | How it detects fluid | Typical advantage | Likely fault influence |
|---|---|---|---|
| Float and reed switch | A buoyant ring moves a magnet past a sealed contact. | Simple and isolated from the fluid electrically. | Float sticking, saturation or incorrect orientation. |
| Conductive probes | Fluid completes a very small sensing path between electrodes. | No moving float is required. | Deposits and fluid conductivity affect the reading. |
| Thermal sensor | Liquid changes the cooling rate of a heated element. | Compact electronic package. | Contamination or supply faults alter response. |
| Capacitive sensing | The dielectric effect of fluid changes measured capacitance. | Can sense through an insulated surface. | Reservoir wall, calibration and deposits matter. |
| Integrated electronic module | Local electronics condition a level element and send a signal. | Filtering and diagnostics can be built in. | Pinout, protocol and coding must match. |

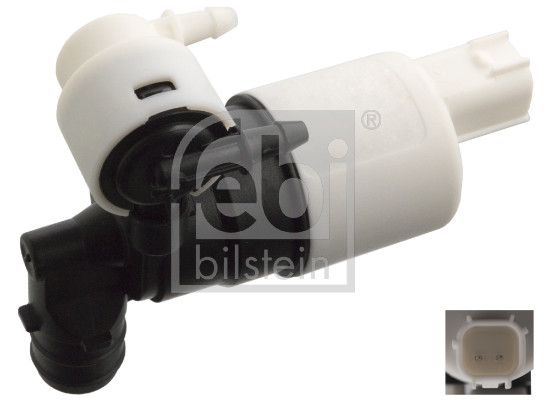

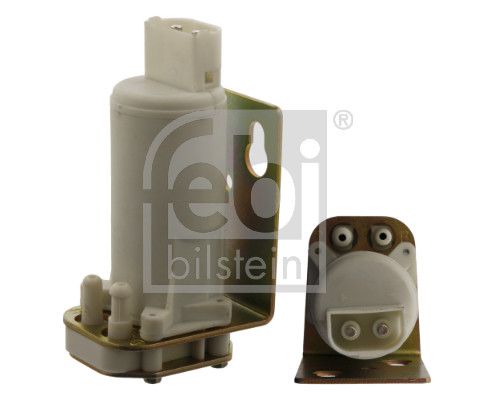

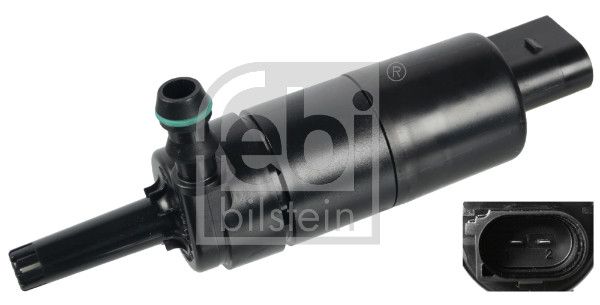

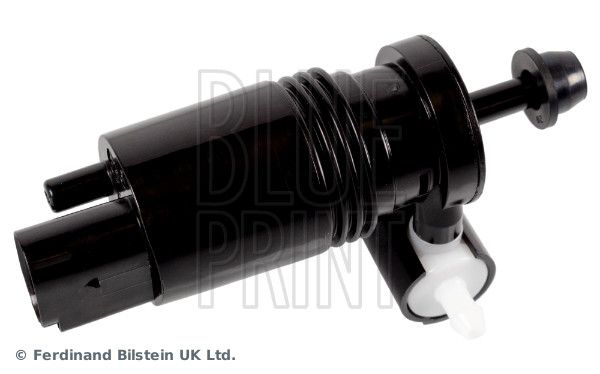

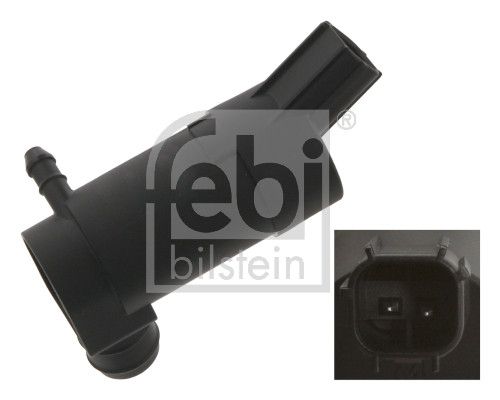

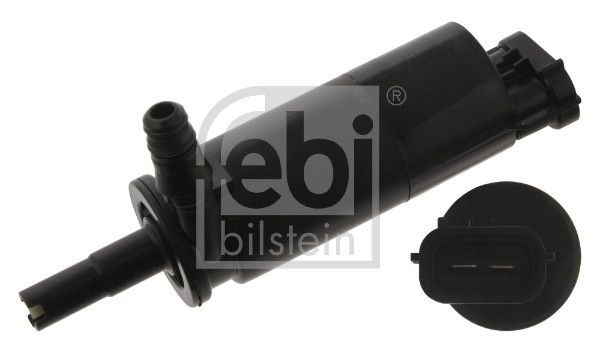

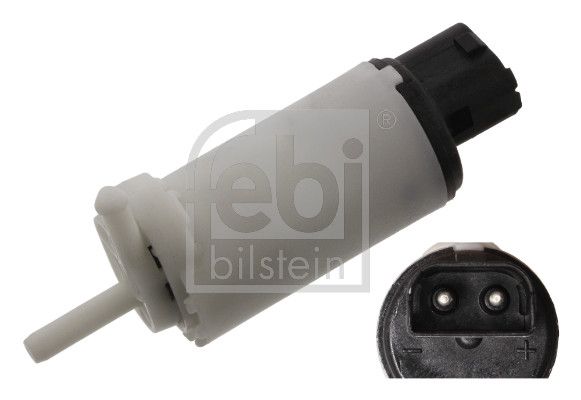

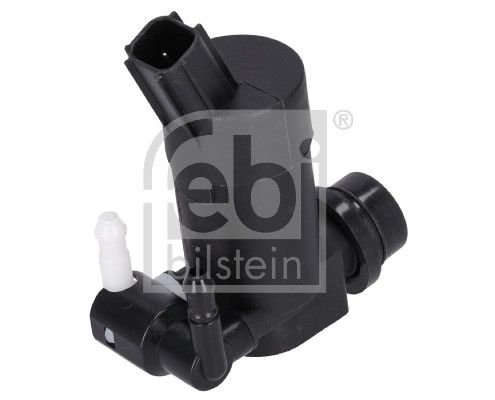

The warning circuit is separate from washer delivery
Level information does not normally power the pump
The stalk switch requests washing through a relay, body controller or direct circuit, while the level input only reports the reservoir state. A failed level sensor can illuminate a message even when the jets work normally.
Conversely, a full tank and a correct level reading do not prove the pump, hose, non-return valve, heater or jets can deliver fluid. Diagnose the warning and spray fault as related but distinct functions.
Float movement and switching height
A magnetic float must travel freely over its intended stroke. Some floats can be installed only one way because reversing them changes the magnet position or switching logic.
The sensor height is chosen around reservoir geometry and pump pickup location. A shorter aftermarket neck or differently shaped tank can trigger at the wrong remaining volume even if the sensor fits the opening.
Signal interpretation
A basic switch may be normally open or normally closed at adequate level. The controller can use a pull-up or pull-down resistor and monitor voltage rather than treating the input as a direct lamp earth.
Some controllers recognise open-circuit and short-circuit values separately from a valid low-level state. Bridging the connector can therefore create a fault, damage an input or conceal a genuine leak.
Warning delay and anti-slosh logic
Fluid crosses the threshold repeatedly on hills and bends. Software commonly waits for a stable low indication before displaying the message, then applies another delay or ignition-cycle rule before clearing it.
A brief workshop movement of the float may not change the cluster immediately. Watch the raw or filtered live value and follow the relevant timing conditions rather than condemning a new sensor too soon.
Sensor, reservoir and pump arrangements
| Arrangement | Service access | Selection concern | Installation note |
|---|---|---|---|
| Separate push-in sensor | Released from a rubber grommet. | Body diameter and switch state. | Usually drains fluid below the opening. |
| Quarter-turn sensor | Unlocked from a moulded flange. | Tabs, seal and insertion depth. | Align stops without over-twisting. |
| Sensor attached to pump | Pump assembly is removed. | Pump pressure, outlets and level circuit. | Do not strain the small hose connections. |
| Sensor moulded into reservoir | Tank replacement may be required. | Whole reservoir geometry and equipment. | Transfer pumps, heaters and seals carefully. |
| Shared tank for front and rear | Often located behind bumper or wheel liner. | Multiple pump positions and connectors. | Label similar plugs before disassembly. |
Accurate part identification
Use the VIN, production date and complete reservoir or sensor number. Facelift changes can alter connector keys, grommet size or warning logic while the visible tank remains similar.
Confirm whether headlamp washing, rear washing, heated jets or a fluid heater changes the reservoir specification. A catalogue image cannot establish hidden insertion depth or electrical calibration.
Washer fluid and material compatibility
Use a product intended for vehicle screenwashing and mix concentrate with suitable water at the stated ratio. The correct winter concentration helps resist freezing but should not exceed the product or vehicle guidance.
Household detergent can foam, attack elastomers and leave vision-obscuring residue. Engine coolant is formulated for a different system and must never be used as screenwash. Mixing unknown chemistries can create deposits that restrict a float or coat probes.
Temperature and freezing behaviour
Water-rich fluid expands when frozen and can crack the tank, displace a grommet or immobilise the float. A frozen reservoir should thaw safely before pump operation because a stalled pump can overheat.
A warning that appears only in severe cold may reflect a trapped float, connector contraction or ice rather than permanent switch failure. Inspect for damage after thawing and restore the correct mixture.
Symptoms and their alternatives
| Observation | Sensor-related possibility | Other credible cause | First check |
|---|---|---|---|
| Warning stays on when full | Float stuck low or wrong switch state. | Open wiring or controller input fault. | Compare actual level with live data. |
| No warning when nearly empty | Float jammed high or switch open internally. | Cluster setting, coding or bulb/display issue. | Move through the specified threshold. |
| Message changes on corners | Slow or sticky float amplifies slosh. | Fluid genuinely close to threshold. | Fill to a known level and recheck. |
| Fluid leaks near sensor | Cracked body or displaced seal. | Split reservoir seam or nearby pump grommet. | Dry the area and trace the highest wet point. |
| Washer will not spray | Tank may be empty despite wrong reading. | Pump, fuse, hose, jet or frozen fluid. | Inspect level and listen for pump operation. |
| Warning returns after replacement | Mismatched sensor or renewed contamination. | Harness intermittency or reservoir geometry. | Verify part number and circuit under movement. |
Initial diagnosis without draining the tank
Confirm the fluid surface with the vehicle level and cold. Look for staining beneath the tank, pumps and hoses, then record warning state and diagnostic codes.
Use live data where available to distinguish raw sensor state from the delayed display. Operate the washers only long enough to establish function; do not run a dry pump continuously.
Connector and wiring inspection
Reservoirs live in wet, exposed areas. Check for green corrosion, fluid migration, loose female terminals, chafing against the body and stone or tyre damage to a wheel-arch harness.
Disconnect only with the ignition state required by the service procedure. Fluid inside a connector may have travelled through a leaking sensor and can wick along copper strands.
Electrical tests
| Test | Purpose | Safe method | Limitation |
|---|---|---|---|
| Live-data observation | Checks controller interpretation. | Compare full and low states after the programmed delay. | Does not locate wiring resistance alone. |
| Switch resistance | Confirms contact change on a passive design. | Disconnect and use specified pins and limits. | Unsuitable for powered electronic sensors. |
| Supply and earth | Checks an active sensor circuit. | Back-probe with high-impedance equipment. | Nominal voltage may collapse under load. |
| Harness continuity | Finds an open between tank and controller. | Isolate both ends before measurement. | Can miss a strand that fails when moved. |
| Voltage-drop test | Reveals resistance in a loaded path. | Apply only the approved diagnostic load. | Requires the correct circuit diagram. |
Mechanical inspection of the sensor
After safe drainage, examine the float for swelling, liquid ingress, cracks and deposits. It should move smoothly without scraping the stem or catching on moulded features inside the tank.
Inspect the sealing land as well as the component. A new grommet cannot seal a cracked boss, distorted flange or heavy scratch caused by previous levering.
Safe fluid handling
Read the screenwash label because concentrated formulations can irritate skin and eyes and may contain flammable alcohols. Avoid sparks, smoking and hot work; use gloves and eye protection appropriate to the product.
Drain into a clean, compatible, labelled container. Do not siphon by mouth, pour into surface water or leave accessible to children or animals. Dispose of contaminated or mixed fluid through an appropriate local route.
Access and removal
Some sensors are reached from above, but others require removal of an undertray, wheel-arch liner, bumper trim or reservoir. Support raised vehicles correctly and never rely on a jack.
Clean road grit away before releasing the component. Plug open hoses and tank ports with clean suitable caps so debris cannot reach pumps or fine washer jets.
Seals and grommets
A dry-looking rubber seal may have lost its elasticity
Use the specified new seal and any approved assembly lubricant. Petroleum grease can swell some elastomers, while silicone products can migrate into sensing or paint-preparation areas.
Seat the grommet squarely in a clean opening before inserting a push-fit sensor. Forcing both together can roll the lip inward and create a leak that appears only when the tank is full.
Installation sequence
| Stage | Action | Problem prevented |
|---|---|---|
| Identify | Match sensor, connector, switch logic and seal. | False or inverted warning. |
| Prepare | Clean the tank opening and inspect its shape. | Grit damage and repeat leakage. |
| Fit seal | Install squarely with approved lubrication only. | Rolled or swollen grommet. |
| Insert sensor | Observe orientation and insertion stop. | Restricted float travel. |
| Reconnect | Lock a dry, tensioned electrical connector. | Intermittent level state. |
| Refill | Add correct mixture in stages while inspecting. | Large spill from an unseen leak. |
| Verify | Check live state, warning delay and washer delivery. | An incomplete system repair. |
Commissioning the complete washer system
Refill slowly enough to observe the sensor and pump joints. If the reservoir was empty, prime according to vehicle instructions and limit pump run time until fluid reaches the jets.
Test front, rear and headlamp washers where fitted, check hose routing and confirm that wiper operation does not smear leaking fluid. Refit liners with every clip so the tank and harness remain protected.
Confirming the warning threshold
A full-to-empty drain solely to prove the lamp is rarely necessary. Where a functional test is specified, use a measured fluid level or controlled float movement and allow for the controller's debounce time.
Verify both transitions if practical: the warning should appear at low level and clear after adequate refill. A message that clears only after an ignition cycle may be normal for that vehicle.
Common mistakes
Frequent errors include assuming a spray failure is the level sensor, ordering by connector photograph, reusing a hardened grommet, fitting the float upside down and masking a warning by bridging the harness.
Other mistakes are filling with household detergent, applying sealant that enters the reservoir, running the pump dry and replacing the switch before repairing a tank leak.
Maintenance and prevention
Maintain seasonal screenwash concentration, keep the filler cap clean and investigate unexplained fluid loss. A cap strainer, where fitted, should remain in place to keep particles away from pumps and the level mechanism.
Do not allow different concentrates to form sediment. If contamination is found, clean the reservoir by an approved method and flush hoses without discharging unsuitable fluid into the environment.
UK roadworthiness and visibility context
Effective screen cleaning supports a clear view in road spray, salt and insects. Do not postpone a genuine low warning when driving conditions require frequent washing.
The warning sensor itself is only one part of the system: fluid, pump, jets and wipers must work together. If visibility deteriorates, stop safely rather than continuing with an obscured windscreen.
Practical washer-fluid-sensor FAQs
Q: Does the sensor switch the washer pump?
A: Usually no; it reports level while a separate circuit operates the pump.
Q: Why is the warning on after filling?
A: The float may be stuck, the circuit open or the display may have a clearing delay.
Q: Can two sensors with the same plug differ?
A: Yes; switch logic, insertion depth and electrical calibration can differ.
Q: May I bridge the connector to test it?
A: Only follow an approved circuit test; an unknown input must not be shorted.
Q: Is resistance testing safe on every sensor?
A: No; powered electronic designs require their specified diagnostic method.
Q: Why does the message appear on bends?
A: The level may be close to its threshold or the float may move too slowly.
Q: Can washing-up liquid replace screenwash?
A: No; use automotive screenwash compatible with the vehicle and temperature.
Q: Can engine antifreeze prevent reservoir freezing?
A: No; coolant is not screenwash and may damage the washer system or finish.
Q: Must the sealing grommet be renewed?
A: Renew it when specified, hardened, swollen or disturbed enough to risk leakage.
Q: Why did the new seal start leaking?
A: It may be rolled, dry-fitted, mismatched or seated in a cracked tank opening.
Q: Does a full-level reading prove washer operation?
A: No; pump, hoses, valves, heaters and jets still need functional checks.
Q: How should drained fluid be handled?
A: Keep it in a compatible labelled container and use a suitable local disposal route.
Q: What confirms a successful repair?
A: A dry seal, plausible live level, correct warning transition and reliable washer delivery.
