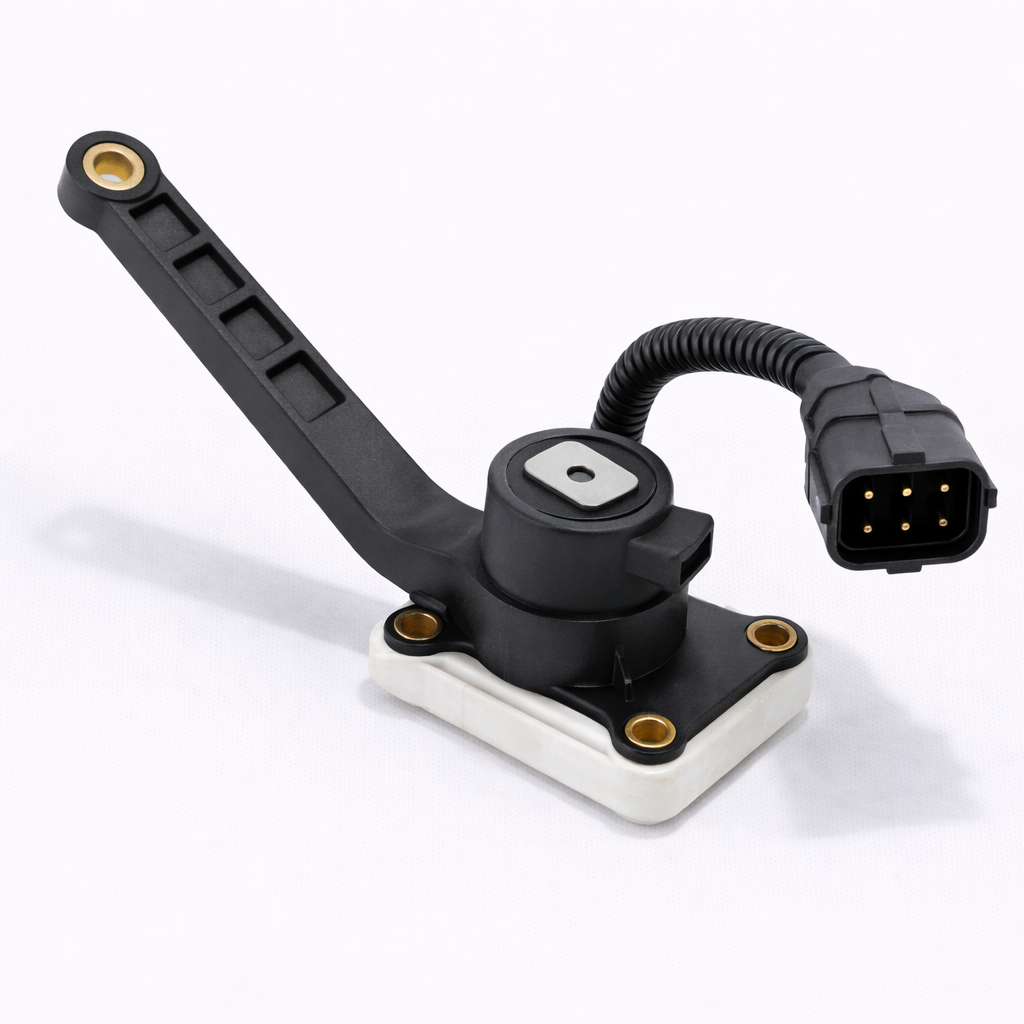

Pedal travel becomes an electronic request
A sensor converts pedal position into voltage, pulse width or digital data. Controllers compare it with pressure, switch and vehicle-state inputs to decide what the driver intends. In brake-by-wire or hybrid systems, travel may help blend regenerative and friction braking.
Because the signal affects safety functions, designs often contain redundant channels and strict plausibility checks.
Brake and clutch applications use travel differently
| Application | Control use | Related input | Failure effect |
|---|---|---|---|
| Brake pedal | Brake request and lamp timing. | Pressure sensor/switch. | Warnings or changed assistance. |
| Hybrid brake | Regeneration/friction blending. | Vehicle speed and hydraulic pressure. | Reduced regen or fallback feel. |
| Clutch pedal | Start enable and torque reduction. | Clutch switches/gear data. | No-start or poor shifts. |
| Automated clutch | Actuator position/driver intent. | Transmission controller. | Harsh or inhibited engagement. |
| Cruise control | Immediate cancellation. | Brake/clutch switch. | Unsafe or nuisance cancellation. |
| Stability control | Driver-demand plausibility. | Pressure/yaw/wheel speed. | System warning or fallback. |
Redundant tracks should move in a defined relationship
A dual-channel sensor may provide two signals that rise together at different slopes, or one rising while the other falls. The controller checks their mathematical relationship and range. Matching one channel to a generic voltage is insufficient.
Graph both signals from rest to full permitted travel and compare with the exact technical limits.
Contactless sensing reduces wear but not all faults
Hall-effect or inductive sensors detect a moving magnet or target without a sliding resistive track. They still depend on alignment, supply, earth and intact electronics. Traditional potentiometers can develop dead spots and noisy transitions.
Technology must be identified before resistance or magnet tests are attempted.
Fitment includes stroke, direction and calibration
| Match point | Evidence | Why it matters | Mismatch outcome |
|---|---|---|---|
| Pedal/system | VIN, brake/transmission options. | Defines travel and controller use. | Wrong function. |
| Part/reference | Original number and catalogue. | Matches calibration and channels. | Plausibility fault. |
| Mount/index | Bracket keys and service drawing. | Sets zero and direction. | Out-of-range at rest. |
| Physical stroke | Pedal and sensor specification. | Prevents end-stop damage. | Broken sensor or limited reading. |
| Connector/pinout | Wiring diagram. | Routes supply, earth and channels. | Short or module damage. |
| Learning requirement | Diagnostic replacement procedure. | Teaches true rest/full values. | Warnings or altered control. |
Pedal mechanics must be sound first
Worn bushes, a bent bracket, heavy floor mat, seized pivot or weak return spring changes the relationship between foot movement and sensor. A correct sensor can report a pedal that physically fails to return.
Inspect rest stop, free movement and linkage before adapting electronics to a mechanical fault.
Hydraulic behaviour provides independent evidence
Brake pressure should develop consistently with travel, while clutch slave movement should follow the pedal without leakage or air compression. A long brake pedal from air or adjustment can make sensor travel high even though the electrical output is accurate.
Do not recalibrate a hydraulic defect into the controller's accepted zero or range.
Symptoms cross multiple systems
| Observation | Sensor possibility | Other cause | Check |
|---|---|---|---|
| Brake lamps stay on | Rest value/adjustment wrong. | Separate switch or pedal return. | Compare travel and lamp switch. |
| Hybrid regen reduced | Travel plausibility fault. | Battery temperature/state or ABS fault. | Read system fallback reasons. |
| Clutch start inhibited | Pedal not reaching learned threshold. | Switch, wiring or start logic. | Live start-permission data. |
| Signal jumps | Worn track/internal fault. | Connector or shared reference. | Graph channels and harness. |
| Fault after pedal repair | Sensor index/calibration disturbed. | Bracket or switch installation. | Mechanical position and learning. |
| Pedal does not return | Sensor mechanically binding. | Spring, pivot or hydraulics. | Stop use and isolate cause. |
Fault codes often describe correlation
Codes may identify signal high/low, channel mismatch, rest-position implausibility or disagreement with brake pressure. Record freeze-frame and all related control-unit faults. Low system voltage can create multiple sensor codes at once.
Do not clear evidence until the pedal state and supply conditions are documented.
Reference voltage and earth must remain stable
Measure supply and sensor earth under operation with high-impedance equipment. A shared five-volt reference short elsewhere can pull both travel channels out of range. Chassis and sensor earth are not automatically interchangeable.
Use the wiring diagram and fused breakout leads; avoid piercing sealed insulation.
Slow graphing reveals dead spots
Move the pedal steadily through its safe range while recording both raw voltages or percentages. A healthy signal changes smoothly without spikes, flat regions or reversals outside its design. Repeat gently to separate an intermittent track from foot movement.
Keep the vehicle immobilised and do not run a powered actuator test with hands near the mechanism.
Brake-light switches may remain separate
Some vehicles retain a discrete switch for redundancy even when a travel sensor exists. Others derive lamp commands electronically. Confirm adjustment and status of both. A working lamp does not prove the analogue travel signal is plausible.
Never bypass a switch to extinguish a warning or obtain start authorisation.
Hybrid brake systems can energise without engine noise
An electric hydraulic pump or brake booster can run when a door opens or key approaches. High-voltage contactors may respond to low-voltage wake-up. Follow the vehicle sleep, key and high-voltage isolation procedures.
Do not assume silence means pressure and energy have dissipated.
Airbag components may be near the pedal area
Knee airbags, pretensioner wiring and restraint control looms can pass under the dashboard. Identify connectors and isolation requirements before removing trim or brackets. Never probe yellow or otherwise identified restraint circuits.
Support trim so it cannot pull on harnesses during access.
Removal should preserve the true rest reference
Record faults and live values
Capture both channels, pedal switches and rest position before power-down.
Secure the pedal
Prevent spring movement and follow the procedure for clips or master-cylinder links.
Release the sensor without over-rotation
Use indexed tabs and do not turn beyond the marked working arc.
Installation may require a preset position
Some sensors arrive locked at a reference angle and self-set when fitted; others need the pedal held at rest or a stated position. Fit new retainers, seat the connector and verify the harness has slack through full movement.
Do not reuse a broken transport lock as an alignment gauge.
Pushrod adjustment is not a signal correction
Brake-booster or master-cylinder pushrod length affects free play and brake release. Clutch pushrod changes can preload hydraulics. Adjust only to the mechanical specification, never to force scan data into range.
Incorrect preload can cause dragging brakes or clutch slip.
Calibration uses a prepared vehicle
Set battery support, pedal rest, hydraulic condition and related switches as instructed, then perform zero-point or replacement learning. Some systems also require steering-angle, pressure-sensor or stability-control calibration.
A failed learn provides diagnostic evidence; do not enter fabricated values.
Static tests precede controlled road checks
Confirm full return, no binding, brake lamps, start permission, cruise cancellation and smooth channel data. Check for hydraulic leaks and a firm brake pedal. Then perform the specified cautious road test and confirm braking or clutch behaviour.
Stop for changed pedal feel, warning lamps, dragging, poor release or reduced braking.
Rest position should repeat after every release
Slowly operate and release the pedal several times while graphing travel. The value should return to the same narrow rest range without sticking or drift. A changing zero can result from sensor mounting, pedal bushes, return spring, floor interference or hydraulic preload.
Correct the mechanical cause before performing zero learning, because adaptation should not chase a moving reference.
UK roadworthiness includes braking controls and lamps
The MOT checks service-brake operation and stop-lamp function, and warning indicators for relevant braking/stability systems. A pedal sensor fault that changes brake response or leaves incorrect lamps is safety-critical even if basic mechanical braking remains.
Do not drive normally while the braking system is in an unexplained fallback mode.
Practical pedal-travel-sensor FAQs
Q: Is a pedal sensor the same as a brake-light switch?
A: Not always; many systems use both or derive lamps electronically.
Q: Can brake and clutch sensors be swapped?
A: Only if the exact part, calibration, mount and application match.
Q: Why are there two signal channels?
A: Redundancy lets the controller check safety plausibility.
Q: Does one correct voltage prove the sensor?
A: No. Graph all channels through the complete safe travel.
Q: Can calibration fix a sticking pedal?
A: No. Repair the mechanical or hydraulic fault first.
Q: Why did a warning appear after pedal work?
A: Check sensor index, switches, wiring and required learning.
Q: Can the sensor be rotated by hand?
A: Only within its specified working arc and installation procedure.
Q: Why is regenerative braking reduced?
A: Travel plausibility is one cause among battery, ABS and system limits.
Q: May a start switch be bypassed?
A: Never; restore the safety interlock correctly.
Q: Does silence mean a hybrid brake is depressurised?
A: No. Follow the model-specific energy isolation procedure.
Q: What requires immediate stop?
A: Changed brake feel, dragging, lost return, warning or inconsistent response.
Q: What proves completion?
A: Smooth correlated signals, successful learn, correct lamps/interlocks and normal pedal control.
