A performance clutch is designed to transmit more torque, tolerate higher thermal load or provide a faster engagement characteristic than a standard road clutch. Capacity comes from the pressure plate's clamp load, friction material and coefficient, effective friction radius, disc count and thermal mass. A power figure alone is not enough: engine torque curve, vehicle mass, gearing, tyres and use determine actual load.

Select by VIN, engine and gearbox codes, input-shaft spline, flywheel design and diameter, crank and release interfaces, clutch actuation, starter arrangement and intended road or competition duty. Check whether the kit expects a dual-mass, single-mass or dedicated flywheel and whether release bearing, concentric slave, pilot bearing and fasteners are included or separate. Physical bolt fit does not prove correct release travel or stack height.

Organic full-face linings generally prioritise progressive road engagement, while segmented ceramic, cerametallic or sintered materials can tolerate different heat and torque but may engage sharply, chatter or wear mating surfaces faster. Higher clamp load can increase pedal effort and loads on hydraulics, release bearing, crank thrust surfaces and pedal bracket. Multi-plate units change stack and setup requirements.

Clutch slip, judder or drag does not automatically require a higher-capacity clutch. Diagnose oil contamination, flywheel condition and run-out, worn hydraulics, release preload, pilot-bearing drag, engine or gearbox mounts, alignment and driving use. Extra clamp cannot correct a leaking crank seal or warped flywheel.

Installation requires a clean, measured assembly. Use the specified flywheel surface finish or replacement policy, exact step height, alignment tool, tightening sequence and new fasteners where required. Never hang gearbox weight on the disc or draw it to the engine with bellhousing bolts. Follow the stated bedding and heat-cycle process, then verify full release, no slip, stable pedal and controlled drivability. Declare performance and flywheel modifications to the insurer and ensure noise, vibration and safe road control remain acceptable.

Your Current Vehicle

Or

Select Your Vehicle
Sorry, this collection is empty.
Continue shopping

A performance clutch manages torque and heat

The clutch clamps friction discs between flywheel and pressure plate so engine torque enters the gearbox. During engagement it deliberately slips, converting energy into heat. A performance design changes holding capacity, heat tolerance or engagement speed for a defined use.

More capacity is not automatically better for road driving. Control, release-system load and driveline protection remain important.

Clutch capacity depends on several design factors

FactorEffect on capacityTrade-off
Clamp loadRaises normal force on friction faces.Can increase pedal/release and thrust-bearing load.
Friction materialChanges coefficient and heat tolerance.Aggressive material may chatter or wear flywheel.
Effective radius/diameterIncreases torque leverage.Must fit bellhousing and rotating assembly.
Number of friction facesMulti-plate design multiplies usable surfaces.Stack height, noise and setup become more complex.
Thermal mass/ventilationAbsorbs and rejects engagement heat.Mass changes engine response and inertia.
Diaphragm geometryControls clamp and release behaviour.Release travel and bearing position are critical.

Torque is more relevant than headline power

A clutch sees torque at the crankshaft before gearbox ratios multiply it downstream. A turbo engine with strong low-speed torque can challenge a clutch differently from a high-revving engine with similar peak power. Launches and towing add thermal energy.

Choose capacity with measured or credible engine torque, duty cycle and a sensible margin, not a marketing number alone.

Friction materials suit different use

Facing styleTypical characteristicRoad-use consideration
Organic full-faceProgressive engagement and broad contact.Generally manageable but heat limit remains finite.
Reinforced organicHigher temperature and load capability.Characteristics depend on exact compound.
Ceramic/cerametallic segmentedHigh bite and heat tolerance.Can engage abruptly and mark mating faces.
Sintered metallicSpecialised high-energy competition duty.Often unsuitable for smooth daily use.
Carbon-based multi-plateSpecial temperature and friction behaviour.Requires its intended operating regime.
Hybrid facingsDifferent material on opposing faces.Orientation and mating surface must be exact.

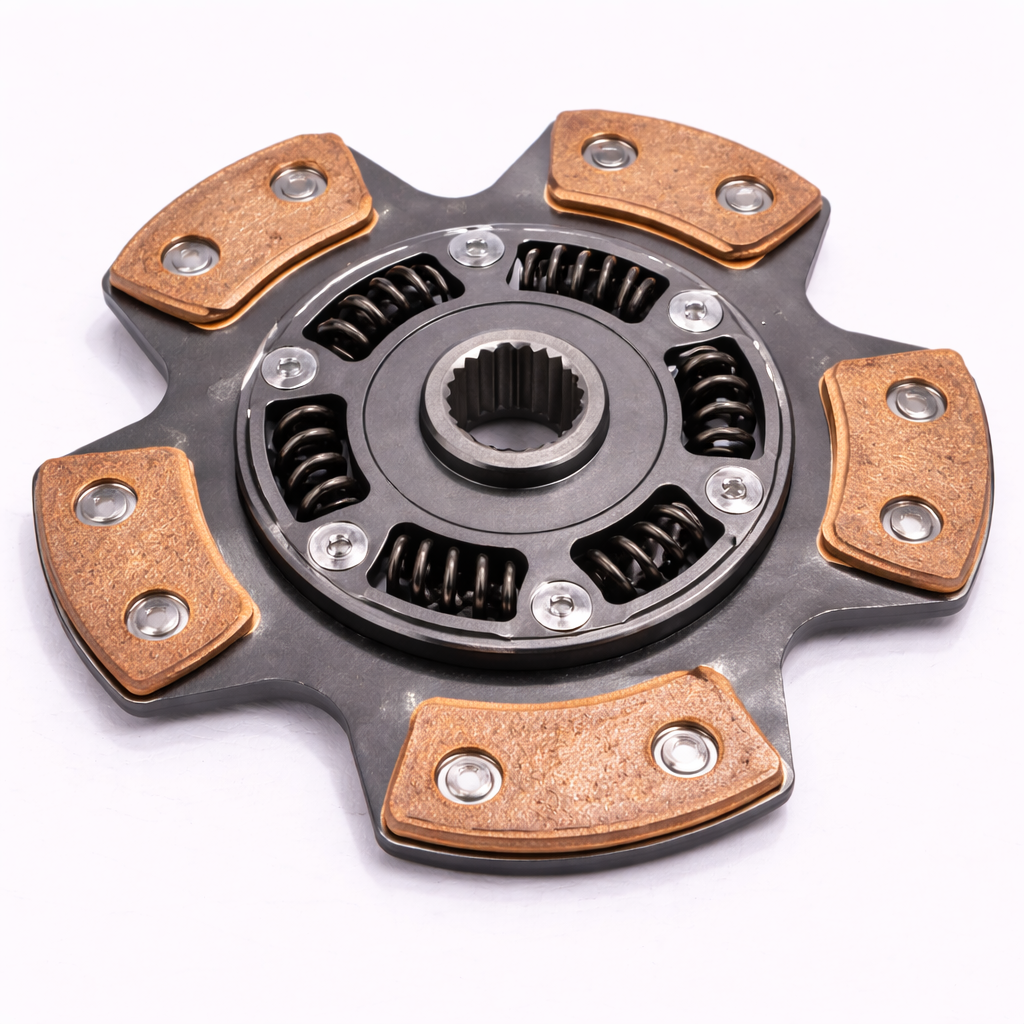

Sprung and rigid hubs change driveline behaviour

A sprung hub uses torsional springs to absorb firing pulses and engagement shock. A rigid disc relies more on a dual-mass flywheel or accepts greater transmission of vibration. Combining a rigid hub with a single-mass flywheel can increase gearbox rattle and shock.

Confirm the intended flywheel and damping strategy as a system.

Fitment extends beyond the friction-disc spline

Selection detailWhat to verifyMismatch risk
VIN/engine/gearboxTorque duty, bellhousing and input shaft.No fit or unsuitable capacity.
Spline count/diameterDisc to input-shaft engagement.Loose, seized or impossible fit.
Flywheel type/stepFriction face and pressure-plate height.Wrong clamp or release position.
Disc diameter/thicknessContact area and stack height.Bellhousing contact or incomplete release.
Release systemBearing, fork, slave travel and preload.Drag, overtravel or constant bearing load.
Fasteners/dowelsPressure-plate location and clamp.Imbalance, loosening or distortion.

Flywheel choice affects more than engine response

A dual-mass flywheel filters torsional vibration; a single-mass unit is simpler and may reduce inertia but can transmit gear rattle and shock. Conversion must account for starter ring, crank sensor, clutch stack, release travel and engine calibration.

Do not resurface a flywheel unless its procedure and dimensional limits permit it. Over-machining changes step height and thermal capacity.

Higher clamp load affects the release system

Pedal and hydraulics

Master and slave cylinders, hoses, pedal pivots and brackets see changed load. A heavy pedal can expose fatigue or flex.

Release bearing

Bearing position and travel must remain within design. Constant preload or overtravel shortens life.

Crankshaft thrust

Release force passes into engine thrust bearings on many layouts. Excess load or holding the pedal down unnecessarily can increase wear.

Symptoms need root-cause diagnosis

SymptomPossible clutch causeOther causes to inspect
Slip under torqueInsufficient capacity, wear or overheated lining.Oil leak, release preload or wrong stack.
Judder on take-upHot spots, aggressive facing or distortion.Mounts, flywheel run-out, contamination and driver input.
Clutch dragWarped disc or wrong release travel.Hydraulics, pilot bearing, splines and gearbox oil.
Noise pedal downRelease bearing or diaphragm contact.Input bearing, fork, guide tube and flywheel.
Gear rattle at idleReduced torsional damping.Gearbox wear, idle quality and mount condition.
High bite pointWear or release geometry.Hydraulic self-adjustment and incorrect parts.

Heat management determines durability

Repeated launches, holding on the clutch, towing and low-speed manoeuvring generate heat. An aggressive disc can survive higher surface temperature but transfer more energy into flywheel and pressure plate. Blue spots and cracks indicate severe thermal stress.

Allow cooling between high-energy events and never use the clutch as a hill-hold device.

Bedding follows the friction-system procedure

Some clutches require a period of moderate engagements so facing and flywheel establish even contact; specialist competition materials can use another process. Follow the exact instructions and avoid both prolonged slip and full-torque use until complete.

A bedding procedure cannot correct run-out, oil contamination or wrong release travel.

Engine and gearbox mounts influence engagement

Collapsed mounts let the powertrain rotate, changing linkage geometry and producing judder or clunk. Rigid performance mounts can transmit noise and vibration into the body. Inspect mounts and driveshaft joints before attributing every symptom to friction material.

Use the intended mount system for road or competition duty.

Installation begins with measurements

Check flywheel face, run-out, step height, pilot support, crank flange and gearbox input shaft. Verify disc slides on clean splines without excessive play, then remove it for clean assembly. Friction surfaces must remain free from grease and fingerprints.

Replace leaking crankshaft or gearbox seals before fitting the clutch.

Alignment protects the disc and input shaft

Use the correct centring tool and pressure-plate dowels. Tighten cover bolts gradually in the specified sequence so the diaphragm and cover do not distort. Confirm disc orientation; a reversed hub can contact flywheel bolts or prevent release.

Do not let the gearbox hang on the disc during installation.

A controlled installation sequence prevents drag

  1. Confirm torque requirement, duty and complete compatible system.
  2. Diagnose original slip, drag, contamination or thermal failure.
  3. Measure flywheel, crank flange, pilot and input-shaft condition.
  4. Renew required seals, bearings, hydraulics and fasteners.
  5. Clean mating faces and keep friction material dry.
  6. Orient and centre every disc and intermediate plate.
  7. Tighten pressure plate gradually to exact specification.
  8. Align gearbox without drawing it in with bolts.
  9. Bleed or adjust release travel by the vehicle procedure.
  10. Complete static checks, bedding and progressive torque validation.

Post-installation checks include hot operation

Verify pedal return, bite, full disengagement and gear selection while stationary. Road-test progressively for slip, judder, noise and driveline vibration, then recheck hydraulic leaks. Observe behaviour after the clutch is hot as well as cold.

Stop if engagement becomes unpredictable or the clutch will not release fully.

Road use, insurance and MOT remain relevant

Declare clutch, flywheel and associated performance modifications accurately to the insurer. A harsh clutch that makes manoeuvring unpredictable can reduce road safety even if it holds torque. Noise and vibration from a conversion should not hide mechanical faults.

The clutch is not fully assessed internally during an MOT; a pass does not prove capacity or fitment quality.

Usage data makes future diagnosis more reliable

Record the clutch kit, flywheel, release components, fastener policy, measured flywheel run-out and installation mileage. If the vehicle is later tuned, compare the new torque curve and operating duty with the clutch's validated capacity rather than assuming the original selection still applies. A clutch that holds a brief acceleration may still overheat during repeated launches or sustained manoeuvring.

Changes in bite position, pedal effort or engagement smoothness are useful early evidence. Investigate a new hydraulic-fluid loss, burning smell, release noise or full-load flare promptly. Continuing to drive a slipping clutch can overheat the flywheel and pressure plate, while forcing gear selection against drag can damage synchromesh. Where aggressive friction material produces an expected characteristic, document that distinction without dismissing a worsening fault as “normal performance-clutch behaviour”.

Practical performance-clutch FAQs

Q: Is clutch capacity determined by horsepower?
A: Torque, heat, duty and design are more directly relevant.

Q: Is the most aggressive lining best for road use?
A: No. Engagement, noise and wear trade-offs may be unsuitable.

Q: Does higher clamp load always mean a heavy pedal?
A: Not always, but release-system load must be checked.

Q: Can a performance clutch stop an oil-contaminated slip?
A: No. Repair the leak and contaminated surfaces.

Q: Can every clutch use the original flywheel?
A: No. Match the complete specified flywheel and stack.

Q: Is a single-mass conversion always quieter?
A: No. It can increase gearbox rattle and vibration.

Q: Can a flywheel always be resurfaced?
A: Only where the exact procedure and limits permit it.

Q: Does clutch drag mean more clamp is needed?
A: No. Diagnose release, hydraulics, splines and distortion.

Q: Can gearbox bolts pull the unit into place?
A: No. This can bend the disc or damage shafts.

Q: Is bedding optional?
A: Follow the exact friction-system instructions.

Q: Can a stronger clutch damage other parts?
A: It can transfer more shock to gearbox and driveline.

Q: Must the insurer be told?
A: Declare all performance and flywheel modifications accurately.

Q: Should judder be accepted as normal?
A: Some materials are abrupt, but severe judder needs diagnosis.

Q: What confirms successful installation?
A: Full release, controlled engagement, no slip and stable hot operation.
