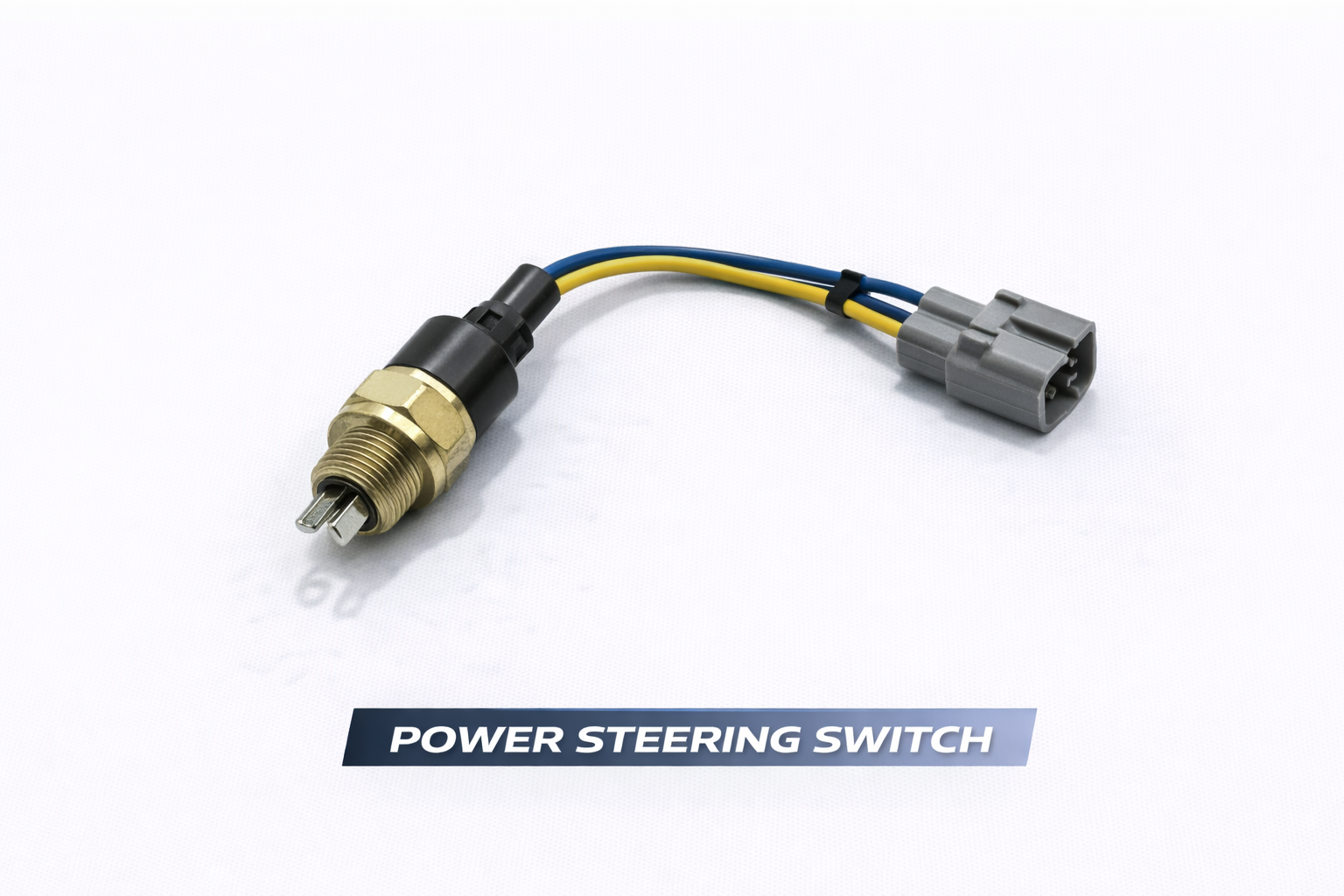

The switch reports steering load to engine management
A hydraulic power-steering pump consumes more engine torque when the driver turns against tyre and road resistance. Pressure rises as the control valve directs flow to assist the rack. A pressure switch changes state above a calibrated threshold so the engine controller can anticipate that load.
The controller may raise idle torque, delay another load or modify throttle control; the switch does not regulate hydraulic pressure itself.
Hydraulic and electrical functions meet at one port
| Feature | Function | Failure mode | Effect |
|---|---|---|---|
| Pressure port | Exposes diaphragm to steering fluid. | Restriction or contamination. | Delayed response. |
| Diaphragm/piston | Converts pressure into movement. | Rupture or sticking. | Leak or fixed state. |
| Electrical contacts | Open or close at threshold. | Wear or arcing. | Intermittent signal. |
| Connector seal | Excludes water and fluid. | Hardened seal or cracked body. | Corrosion or fluid in plug. |
| Thread/seat | Locates and seals the unit. | Cross-threading or wrong seal. | External leak. |
| Terminal circuit | Routes state to controller. | Open, short or poor earth. | False load request. |
A pressure sensor is not the same component
A switch normally produces two discrete states, whereas a pressure sensor supplies a changing voltage, current or digital value. Three wires often suggest supply, earth and signal, but terminal count alone is not definitive. Applying an ohmmeter or jumper appropriate to a switch can harm a powered sensor circuit.
Identify the wiring diagram, signal type and diagnostic data description before testing.
System pressure varies with operating condition
At straight-ahead idle, fluid circulates with relatively low load. Turning the wheel increases resistance; near a mechanical stop, pressure can rise sharply and the relief valve may operate. Fluid temperature, engine speed, tyre contact and pump condition influence actual values.
Never hold steering against full lock to force a switch state for longer than the vehicle's brief permitted test time.
Fitment requires the correct port and calibration
| Match point | How to confirm | Why it matters | Wrong-part risk |
|---|---|---|---|
| Vehicle/steering variant | VIN, build and rack/pump data. | Locates hydraulic architecture. | Part belongs to another system. |
| Switch threshold | Technical part specification. | Times engine compensation. | Stall or unnecessary idle rise. |
| Thread form | Exact metric/imperial and taper data. | Preserves housing and location. | Cracked or stripped port. |
| Seal type | O-ring, washer or tapered seat. | Controls hydraulic leakage. | Leak despite high torque. |
| Probe depth | Original and catalogue dimensions. | Avoids obstructing a passage. | Restricted flow or damage. |
| Connector/pinout | Keying and circuit diagram. | Ensures correct electrical state. | Short or false signal. |
Leakage can travel through the connector
An internal diaphragm failure may let steering fluid migrate into the electrical cavity and wiring. Capillary action can carry fluid beyond the plug, so cleaning the visible connector is not enough. Inspect terminals and loom for saturation and follow the approved repair extent.
External oil on the switch may instead have run down from a reservoir, hose or engine leak; trace the highest wet point.
Idle stumble needs electrical and hydraulic context
If the switch does not report load, engine speed may dip when steering at parking speeds. If it remains permanently active, the controller may hold an elevated idle or log plausibility faults. However, dirty throttle control, weak charging, low pump output and incorrect base idle can produce similar behaviour.
Compare commanded torque or idle compensation with switch state rather than replacing the switch from symptom alone.
Heavy steering is rarely caused by an electrical switch
A simple pressure switch reports pressure but does not create assistance. Heavy steering calls for fluid level and condition checks, belt/pump drive assessment, leaks, aeration, hose restriction, pump flow/pressure and rack mechanics. An internal switch blockage is possible but is not the default diagnosis.
Do not increase engine speed or repeatedly hit full lock to overcome abnormal assistance.
Symptoms can be organised by urgency
| Observation | Possible cause | Verification | Response |
|---|---|---|---|
| Fluid spraying/misting | Cracked switch or port leak. | Engine off visual trace. | Stop, depressurise and repair. |
| Fluid inside connector | Internal switch failure. | Inspect plug and loom. | Renew switch and affected terminals. |
| Idle dips only while steering | No load signal. | Live state and circuit test. | Test before replacement. |
| Signal always active | Stuck switch or shorted wire. | Compare disconnected circuit safely. | Locate electrical/hydraulic cause. |
| Foamy reservoir fluid | Air ingress or wrong bleeding. | Level, leak and return flow. | Correct before sensor judgement. |
| Sudden loss of assistance | Major fluid, belt, pump or rack fault. | Secure vehicle and inspect. | Do not continue normal driving. |
Fluid specification is a material requirement
Hydraulic steering systems may specify a particular power-steering fluid, automatic-transmission fluid or central-hydraulic fluid. Colour is not a reliable specification and mixing can harm seals, lubrication and cold-temperature behaviour. Use the exact approved type from vehicle information.
If the wrong fluid is present, follow a controlled correction process rather than simply topping up with another product.
Aeration distorts pressure and damages the pump
Air can enter through low fluid, a leaking suction hose or an incorrect bleed method. Bubbles compress, causing noise, erratic assistance and unstable pressure-switch operation. Find the entry path and allow foam to settle as required.
Do not interpret a rapidly flickering switch signal until the hydraulic supply is stable and correctly bled.
Electrical diagnosis protects the controller
Record fault codes and live state, then use the wiring diagram to identify pull-up, earth and expected switching logic. Test supply and ground under load where applicable. A fused test lead and suitable high-impedance meter prevent uncontrolled current into a module input.
Never short terminals in the hope of simulating the switch without knowing circuit design.
Mechanical pressure testing needs rated equipment
If system diagnosis requires a gauge and valve set, every hose, adaptor and gauge must be rated for the specified steering pressure. Install in the designated position, route away from belts and exhaust, and follow the permitted valve-closure duration.
Pressure testing should be performed by trained personnel because injection injury, hot fluid and moving-engine hazards coexist.
Safe preparation removes stored and operating hazards
Park with steering in the prescribed position, switch off, secure the vehicle and allow components to cool. Isolate electrical power where access demands it. Clean around the switch so debris cannot enter, then depressurise using the service procedure.
Wear eye protection and gloves compatible with the fluid, but never use a gloved hand to feel for a pinhole leak.
Removal must support the parent housing
Disconnect by the locking feature
Release the plug without pulling wires and inspect for fluid or green corrosion.
Use the intended socket or spanner
Avoid side load on a plastic body or thin hydraulic pipe.
Control the open port
Catch fluid and fit a clean compatible blank only if the procedure allows it.
Seal design governs installation
Replace the specified O-ring or sealing washer and lubricate it only with an approved compatible fluid. A tapered thread may require a stated sealant, while many straight threads must remain free of it. Loose tape or excess compound can block a passage or relief valve.
Start threads by hand and reject a unit that does not turn freely through expected engagement.
Torque protects both seal and port
Hold adjoining fittings or the rack housing as instructed and tighten the switch to its specific torque. More torque does not cure a wrong washer or damaged seat; it can split an aluminium port. Reconnect the dry, undamaged plug until its lock is positive.
Route wiring away from the steering shaft, heat and hose movement.
Bleeding avoids prolonged full-lock operation
Fill with the approved fluid and use the wheel-off-ground or diagnostic bleed sequence specified for the vehicle. Move steering smoothly without aerating the reservoir, monitor level and inspect for leakage. Some electro-hydraulic systems require a scan-tool routine.
Do not hold the wheel against its stop; relief operation rapidly heats fluid and loads the pump.
Final verification joins both sides of the repair
Check the switch state at low load and during a brief permitted steering load, confirm stable idle response and clear only verified historic faults. Inspect the dry port under operation, verify fluid level after de-aeration and ensure steering is smooth, quiet and consistent.
Any new leak, binding or sudden assistance change requires shutdown and reinspection.
Practical power-steering-pressure-switch FAQs
Q: Does the switch control steering pressure?
A: No. It reports load; hydraulic valves and pump determine pressure.
Q: Is a three-wire unit always a sensor?
A: Often, but confirm the exact circuit and signal specification.
Q: Can a faulty switch make steering heavy?
A: A simple reporting switch rarely causes the main loss of assistance.
Q: Why does the engine stumble when parking?
A: Test the load signal, but also check hydraulic load and engine idle control.
Q: Can thread tape be used?
A: Only if expressly specified; loose material can contaminate the system.
Q: Is fluid colour enough for selection?
A: No. Use the exact vehicle-approved specification.
Q: May I check a leak with my finger?
A: Never. Pressurised fluid can penetrate skin.
Q: Why is fluid in the connector?
A: The internal pressure barrier may have failed and fluid may wick into the loom.
Q: Should steering be held at full lock for testing?
A: Only for the very brief specified check, never continuously.
Q: Does a new switch require bleeding?
A: Opening the hydraulic port can introduce air, so follow the system procedure.
Q: What requires immediate shutdown?
A: Spraying fluid, smoke, sudden assistance loss or fluid reaching hot/moving parts.
Q: What proves a correct repair?
A: A dry port, correct signal transition, stable idle and smooth aeration-free assistance.
