Ramps and chocks control different vehicle movements
A drive-on ramp supports tyre load above the floor, a levelling ramp changes a parked vehicle's attitude and a chock wedges against a tyre to resist rolling. An extension changes a service ramp's approach angle but depends on that ramp's structure. Safe use requires the correct combination rather than treating all moulded or steel blocks alike.
Chocks supplement the parking system; they do not create a working platform.
Product types have distinct load paths
| Product | Primary purpose | Critical match | Do not assume |
|---|---|---|---|
| Steel service ramp | Raises and supports one vehicle axle. | Pair capacity, tyre width and structure. | Suitable for every low vehicle. |
| Wide/low-profile service ramp | Accommodates wider tyres or lower approach. | Platform, extension and clearance. | Greater width means greater rating. |
| Ramp extension | Reduces entry angle into named ramp. | Exact ramp model and retention. | Universal independent support. |

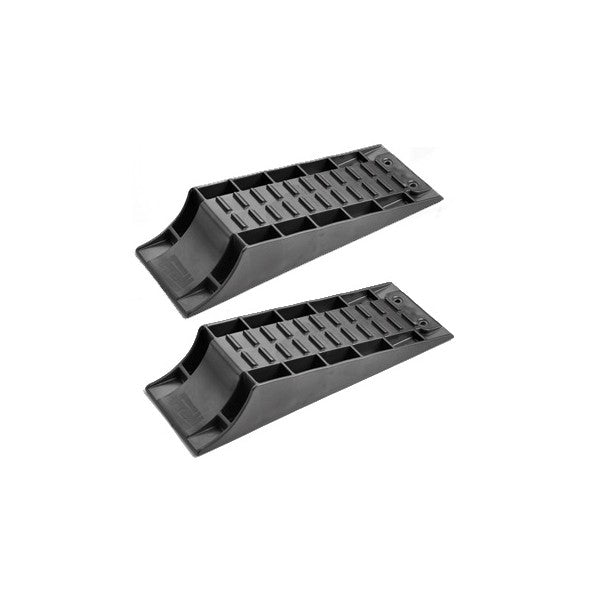

| Stepped levelling ramp | Raises one or more caravan wheels to level. | Wheel load, width and step choice. | Approved for work underneath. |

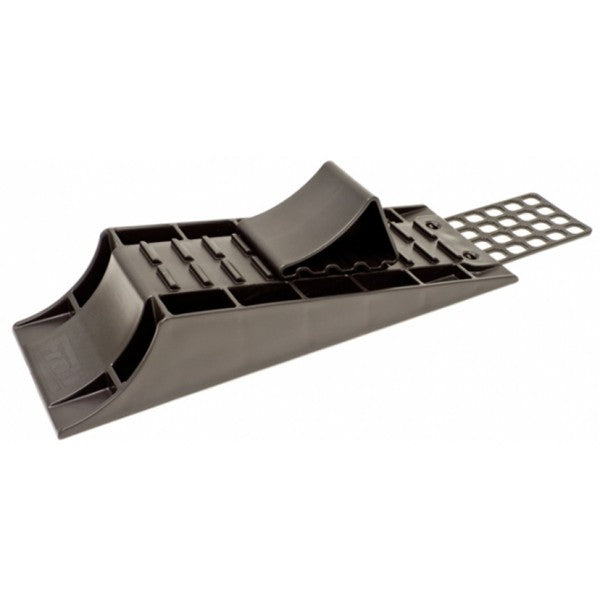

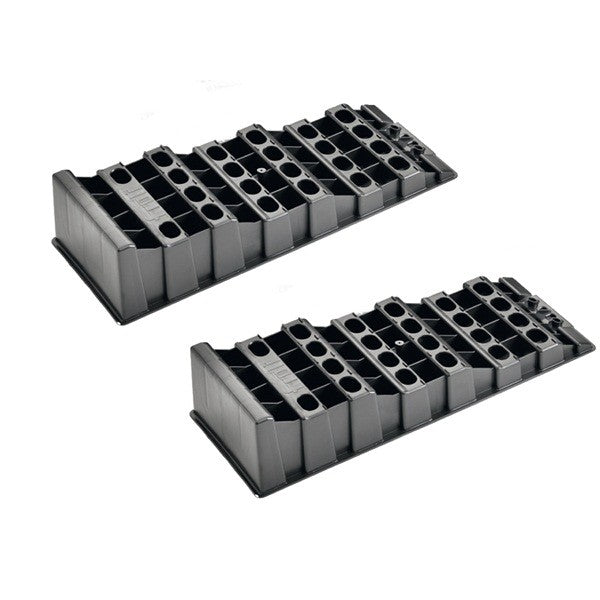

| Multi-part leveller | Builds an intended interlocking height. | Complete product system and limit. | Unrelated blocks may be stacked. |
| Wheel chock | Resists rolling at tyre contact. | Tyre radius, slope and surface. | One small chock restrains every vehicle. |
Capacity must be interpreted at the loaded wheel or axle
Axle load depends on vehicle layout, cargo, fluids and gradient. A caravan wheel on one side can carry more when the body is being levelled. Read whether a rating applies to one item, a pair or a complete set and use conservative actual weights.
Do not divide plated gross weight evenly without evidence of load distribution.
Tyre width and contact length determine support
The tread must sit fully on the ramp track or leveller step without sidewall bearing on sharp edges. Twin-wheel and wide low-profile tyres need specifically compatible platforms. A tyre that overhangs can deform, walk sideways or miss the end stop.
Measure the actual fitted tyre and account for steering angle before purchase.
Selection begins with the complete movement plan
| Plan item | Why it matters | Evidence | Mismatch result |
|---|---|---|---|
| Actual wheel/axle load | Must remain below stated rating. | Weighing data and load condition. | Structural overload. |
| Tyre size/track | Needs full centred support. | Measured tread and axle track. | Overhang or ramp misalignment. |
| Approach/departure angle | Bodywork must clear before tyre climbs. | Vehicle geometry and ramp dimensions. | Bumper, sill or exhaust contact. |
| Ground condition | Base must not sink, slide or rock. | Hard level-area inspection. | Ramp movement or collapse. |
| Restraint/chock plan | Prevents roll after positioning. | Vehicle and equipment instructions. | Vehicle leaves platform. |
| Intended activity | Levelling and underbody work differ. | Product's explicit permitted use. | Occupant enters under unsupported setup. |
Approach angle protects low bumpers and undertrays
The tyre rises while the bumper and sill move forward. A ramp can clear at rest yet contact bodywork halfway up. Compatible extensions lengthen the slope; loose boards can shift, split or create an unretained transition.
Measure the lowest structure and use only the ramp maker's approved extension arrangement.
The ground carries concentrated base loads
Ramp feet or moulded ribs concentrate weight. Soft asphalt can deform, gravel moves and paving can crack over a void. Sweep the area and inspect for oil, ice, drains and slope. All base points must contact together.
Do not bridge uneven ground with bricks, timber scraps or sheet metal.

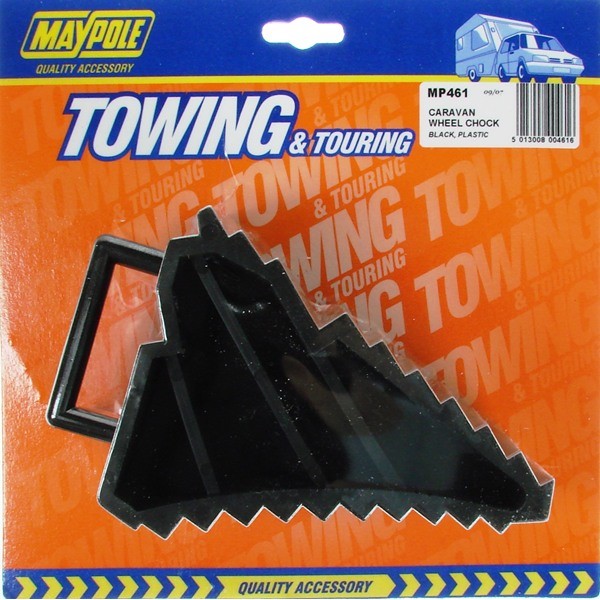

Chock geometry should match the tyre
A chock works by creating a rising barrier and friction against the ground. If too small, it can wedge only beneath a tread edge or slide. The face should seat across a useful width of tyre, and the base must grip the actual surface.
Use pairs and both directions where the risk assessment or product instructions require them.
Gradient changes which side needs restraint
Place chocks on the downhill side before releasing any brake, and consider both sides of a wheel if direction can change during lifting or levelling. Steering angle can let a vehicle roll around a single chock.
Never rely on the gearbox park pawl or handbrake alone for work around or beneath a vehicle.
Pre-use inspection removes damaged equipment
| Area | Inspect for | Reject when | Reason |
|---|---|---|---|
| Steel ramp frame | Bends, cracked welds and corrosion. | Distortion or structural rust. | Load path weakened. |
| Platform/tread | Grip, contamination and edge damage. | Oil, missing surface or tyre-cutting edge. | Wheel can slip or be damaged. |
| Polymer leveller | Cracks, UV damage and crushed cells. | Split, whitening or deformation. | Progressive collapse. |
| Extension interface | Correct hooks, pins and seating. | Mismatch, looseness or missing retainer. | Entry section separates. |
| Chock | Face, base tread and handle/rope. | Split, rounded or contaminated. | Reduced barrier and friction. |
| Labels/identity | Capacity and model remain traceable. | Unknown rating or mixed components. | Safe selection impossible. |
Driving onto ramps needs a clear spotter protocol
Align both ramps parallel with the tyre centres and engage extensions. The spotter stands to the side, never ahead or behind, and uses agreed stop signals. The driver approaches at idle or the lowest controllable speed without steering corrections on the slope.
Stop immediately if a ramp moves, turns or a tyre leaves the centre line.
Tyre spin is an immediate stop condition
Applying more throttle on a slipping ramp can eject it, overshoot the platform or damage the tyre. Reverse safely to the floor, correct alignment, grip or equipment choice and begin again.
Do not have people push a vehicle while they stand in its path.
Safe positioning follows defined stages
Align and clear
Set the equipment square, remove people from the path and verify body clearance.
Move slowly to the datum
Use the spotter and stop with tread fully on the intended platform or step.
Secure before approach
Apply the parking procedure, switch off, select the stated gear and place chocks.
Stability is checked from outside the vehicle envelope
Confirm every ramp base remains flat, tyres are centred and chocks make full contact. Look for rocking, frame twist and body or exhaust contact. If any issue exists, drive down and reset rather than reaching under to move loaded equipment.
Prevent anyone entering or rocking the vehicle during the check.
Under-vehicle work needs explicit equipment permission
Service ramps designed and rated as supports may permit access when used exactly as instructed. Caravan levellers generally address parking attitude and should not be assumed safe for maintenance underneath. Some procedures may require secondary stands even with service ramps.
Follow both vehicle and ramp guidance and never crawl under based on appearance alone.
Levelling should not overload one wheel or twist the body
Assess side-to-side and fore-aft level, axle configuration and appliance needs. Raise in small intended steps and monitor tyre centring. On twin axles, products may need coordinated support so one tyre is not suspended or overloaded.
Once level, secure the vehicle using its parking and chocking procedure before occupants move around.
Departure reverses the restraint sequence
Remove tools and people, start and prepare the vehicle as specified, then remove chocks only when the service brake and driver control rolling. Use the spotter to reverse or drive off slowly and straight. Account for extensions and chocks before leaving.
Inspect equipment after any overshoot or impact.
Cleaning and storage preserve structural evidence
Remove oil, salt and grit using compatible products, dry steel and store ramps so they cannot fall or be driven over. Keep polymer items away from excessive heat and sunlight. Pair components and labels so ratings are not mixed.
Quarantine damaged equipment rather than marking it for “light vehicles only”.
Practical ramps-and-chocks FAQs
Q: Are levelling ramps safe for work underneath?
A: Only if the product explicitly approves that use; do not assume it.
Q: Is a two-tonne rating always per ramp?
A: No. Read whether it applies to one item, a pair or axle.
Q: Can ramp extensions fit any ramp?
A: No. Use only the named compatible parent ramp.
Q: May timber reduce the approach angle?
A: Do not use loose improvised transitions.
Q: Can tyres overhang the platform?
A: No. The tread must have full intended support.
Q: Where should a spotter stand?
A: To the side, clear of the vehicle's forward and rearward paths.
Q: What if a tyre spins on the ramp?
A: Stop, return to the floor and correct the setup.
Q: Does park or the handbrake replace chocks?
A: No. Use the complete restraint procedure.
Q: Can chocks be used on oil or gravel?
A: The surface must provide suitable stable grip; clean or relocate.
Q: May a loaded ramp be kicked straight?
A: No. Remove the vehicle and realign unloaded.
Q: Why inspect polymer whitening?
A: It can indicate stress and developing cracks.
Q: What requires immediate retirement?
A: Cracks, bends, bad corrosion, deformation, missing locks or unknown rating.
Q: What proves a stable setup?
A: Rated compatible equipment, flat ground, centred tyres and complete restraint.
