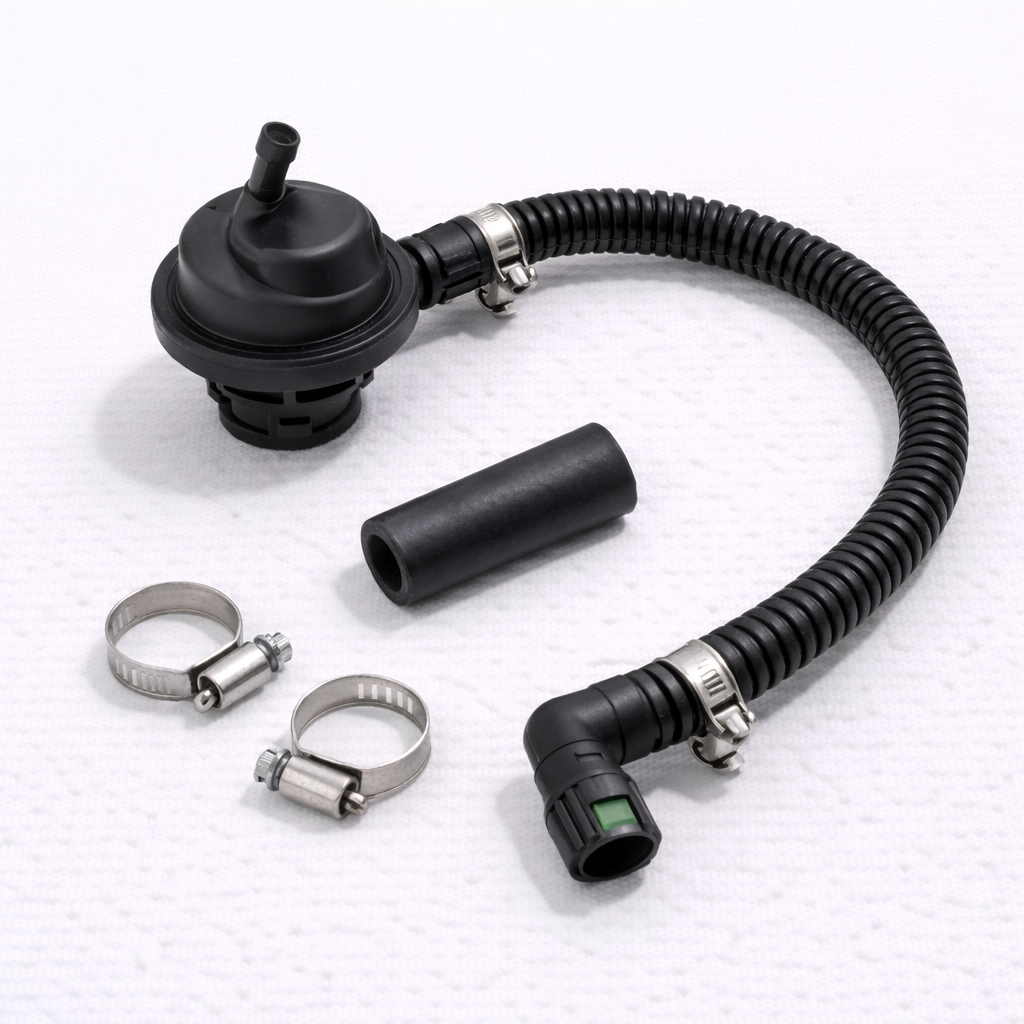

Repair Set, Crankcase Breather

A crankcase-breather repair set restores the valves, diaphragms, seals, oil-separation parts and connections that control blow-by gas leaving the engine. Combustion gas that passes the piston rings must be ventilated; the system routes it back into the intake while regulating crankcase pressure and returning separated oil where the design permits. It is part of emissions control, lubrication management and oil-leak prevention.

Kit contents vary from a diaphragm and spring to a complete pressure-control valve, separator insert, cover, O-rings, clips and hoses. Select by VIN, engine code, production date, rocker or cam-cover revision, induction type and cold-climate equipment. Port size alone is not enough: valve calibration, flow direction, spring rate, membrane material and oil-return geometry must match the engine.

A split diaphragm or open valve can create excessive intake air, whistling, unstable idle, mixture faults and high oil consumption. A blocked separator, frozen hose or stuck-closed valve can raise crankcase pressure, forcing oil past seals and gaskets or disturbing turbocharger oil drainage. Excess vacuum can pull oil mist into the intake and make an oil cap unusually difficult to lift. None of these observations proves the kit is the only fault.

Diagnose using engine-specific pressure or vacuum data, scan values, smoke testing at safe low pressure and inspection of every hose, seal and drain. Check cylinder condition, turbocharger, intake leaks and oil level because heavy blow-by or oil carry-over can overwhelm a sound breather. Never seal the system shut, vent it beneath a road vehicle or substitute an unrestricted hose.

Work on a cool engine with ignition and rotating hazards controlled. Clean around openings before disassembly and prevent fragments entering the valve train, sump or intake. Plastic covers and clips become brittle with heat; use the release method rather than levering against sealing faces. Fit only oil- and temperature-compatible parts, observe diaphragm and check-valve orientation, and tighten covers evenly to the low specified torque.

After repair, clear relevant faults and verify idle, fuel corrections, crankcase pressure, oil leakage and breather flow across the stated operating range. Reinspect after full heat cycles and monitor oil level. Smoke, a new oil leak, heavy suction, pressure at the filler or a recurring whistle needs prompt diagnosis. An MOT emissions result does not prove the separator, drains or pressure regulation are healthy.

Your Current Vehicle

Select Your Vehicle

Sorry, this collection is empty.

Continue shopping

Crankcase ventilation controls blow-by and pressure

Some combustion gas passes the piston rings into the crankcase. It carries fuel vapour, water vapour, soot and oil mist. Without controlled ventilation, pressure would build and force vapour or oil through seals. The breather system draws these gases into the intake so they can be burned while separating as much liquid oil as practical.

The system must balance flow. Too little ventilation raises pressure; too much creates an intake leak and excessive vacuum. A calibrated valve, diaphragm or orifice responds to manifold pressure, turbocharger boost and engine airflow.

A repair set may cover several functions

Component	Function	Failure effect
Pressure-control diaphragm	Modulates crankcase vacuum across engine load.	Whistle, air leak or incorrect pressure.
Spring and cap	Sets valve response and retains the membrane.	Wrong calibration or detached diaphragm.
Check valve	Controls direction during boost or manifold vacuum.	Boost enters crankcase or ventilation stops.
Oil separator	Coalesces droplets from blow-by gas.	Oil carry-over or blockage.
Drain seal/return	Returns separated oil to the engine.	Pooling, leakage or re-entrainment.
O-rings/gaskets	Seal the housing to cover, block or hoses.	Unmetered air and external oil leakage.
Breather hoses/connectors	Route clean and dirty ventilation paths.	Collapse, split or disconnection.

Turbocharged engines require two pressure paths

At idle and light load, manifold vacuum may draw vapour through a metered path. Under boost, a check valve closes that route so charge pressure cannot enter the crankcase, and ventilation flows towards the compressor inlet where pressure is lower. The valves and hoses must switch paths without becoming an unrestricted boost leak.

A wrong check-valve direction can pressurise the crankcase only under load, producing leaks that do not appear at idle. Diagnose through the operating conditions in which the symptom occurs.

Exact calibration and cover revision matter

Engines sharing a capacity can use different diaphragms, springs, ports and separator labyrinths according to emissions stage or cover revision. A kit may be intended for a particular removable cap, while another cover is bonded or non-serviceable.

Selection detail	What to confirm	Mismatch risk
VIN/engine code	Breather flow and induction strategy.	Wrong vacuum regulation.
Cover/housing number	Cap, diaphragm seat and internal passages.	No seal or unsuitable repair.
Production revision	Updated valve, heater or drain design.	Repeat failure or incompatible ports.
Aspiration	Naturally aspirated or turbo pressure routing.	Boost leak or crankcase pressurisation.
Cold-climate equipment	Heated hose, insulation and separator version.	Electrical mismatch or freezing risk.
Material specification	Oil, fuel vapour and temperature resistance.	Swelling, hardening or early split.
Kit boundary	Diaphragm only or complete valves, seals and hoses.	Unrepaired adjacent fault.

Oil separation protects intake and lubricant inventory

Labyrinths, cyclones, mesh or impact surfaces encourage suspended droplets to merge and drain. Their efficiency changes with gas velocity, oil temperature and engine condition. A blocked drain can let separated oil pool until it is drawn into the intake.

Some oil film in breather plumbing can be normal. Pools of oil, rapid consumption, blue smoke or a soaked charge cooler require broader diagnosis including oil level, separator, turbo seals, valve guides and cylinder blow-by.

Pressure symptoms point in opposite directions

Observation	Possible breather cause	Other checks
Whistle at idle	Torn diaphragm or air leak.	Intake gasket, turbo hose and accessory noise.
Oil cap strongly held down	Excessive crankcase vacuum.	Use specified pressure measurement; some vacuum is normal.
Vapour pushes from filler	Blocked valve, hose or separator.	Excessive ring blow-by and engine temperature.
New oil leaks	Crankcase pressure forcing weak seals.	Gasket age, oil level and seal installation.
Lean mixture fault	Unmetered air through split diaphragm or hose.	Fuel delivery, manifold and sensor faults.
Blue exhaust smoke	Oil drawn through failed separator.	Turbo, rings, guides and overfill.
Boost-control fault	Check valve leaking between pressure paths.	Charge system, wastegate and sensors.
Sludge or emulsion	Restricted ventilation or short-trip condensation.	Coolant leak and correct engine warm-up.

Crankcase pressure must be measured correctly

Oil-cap feel and a glove placed over the filler are crude observations, not calibrated tests. Use a suitable low-range manometer and the specified connection at the stated engine temperature, speed and load. Conventional pressure gauges may lack the resolution for small vacuum values.

Opening the oil cap changes the circuit, and some engines alter running noticeably when it is removed. Compare with vehicle data rather than transferring a value from another engine family.

Smoke testing uses very low controlled pressure

A smoke machine can reveal cracked hoses, cap seals and housing joints. The crankcase contains large seals that can be displaced by excessive test pressure, so use the equipment, adapter and limit approved for intake and breather diagnosis. Do not feed workshop air directly into the system.

Close or command valves only as the test procedure states. Smoke emerging at a designed fresh-air inlet may be normal unless that path is intentionally isolated.

Engine wear can overwhelm a healthy separator

Worn or damaged rings increase blow-by mass. Even a correct breather may then show pressure, vapour and oil carry-over. Repairing a diaphragm can improve control but cannot restore cylinder sealing.

If pressure remains high with confirmed open hoses and valves, perform appropriate compression, leak-down or blow-by evaluation. Diagnose before repeatedly fitting breather components.

Condensation and freezing can block flow

Short journeys in cold weather may not evaporate water from the oil and breather. Emulsion can collect in high or exposed hoses and freeze, abruptly sealing the outlet. Some engines use insulation, a heated pipe or revised separator for this risk.

Use the complete cold-climate configuration

Do not remove a heater or substitute an uninsulated hose. Check its supply and resistance using model data. A failed heating circuit, wrong oil, defective thermostat or persistent short-trip use can contribute to recurrence.

Membranes and seals work in a harsh environment

Diaphragms flex in hot oil vapour and fuel dilution. Material must tolerate oxidation, additives and temperature without hardening or swelling. O-rings need the correct cross-section and compression; a general rubber ring of similar size may not survive.

Plastic caps and housings age through heat cycles. A cap that clips on but has damaged locking tabs can lift under pulsation. Replace structural parts when retention or sealing is uncertain.

Removal requires cleanliness around engine openings

Allow the engine to cool, remove loose dirt and identify every hose before releasing brittle connectors. Use the designed tabs or collar; pulling on a rigid plastic pipe can break a hidden branch. Cover exposed cylinder-head, sump and intake openings immediately.

Pieces of old diaphragm, seal or cap must be accounted for. Fragments left in an oil return can block drainage, while debris entering an intake port can damage the engine.

Diaphragm orientation and seating control regulation

The membrane lip must sit continuously in its groove and the spring must locate on the intended faces. Do not stretch the diaphragm, crease it under the cap or use sealant unless expressly specified. Sealant can detach and obstruct a metering passage.

Do not force a non-serviceable cover

If the housing cap is welded, bonded or lacks an approved repair process, cutting it open can weaken retention and alter calibration. Use the correct complete cover or breather assembly.

A controlled installation restores every flow route

Confirm engine, cover revision and full kit scope.
Record symptoms, faults, oil use and pressure measurements.
Inspect every breather hose, check valve, intake port and drain.
Assess blow-by, turbo and oil level where evidence requires it.
Clean externally and protect all open engine passages.
Remove the serviceable housing without breaking connectors.
Account for every old seal, spring and membrane fragment.
Fit new parts dry or lubricated only as specified.
Orient check valves and route hoses without kinks.
Tighten covers evenly and reconnect heaters and sensors.

Post-repair validation covers idle and boost conditions

At operating temperature, remeasure crankcase pressure in the stated conditions. Observe idle quality, mixture corrections, breather noise and oil-cap behaviour. Where safe and instrumented, verify the pressure path transitions correctly when manifold pressure changes.

Check for fresh oil around seals after a controlled drive and again after heat soak. Monitor oil level over meaningful mileage. A recurring leak may have been exposed by earlier pressure but still needs its own repair.

Emissions, MOT and safety remain relevant

Crankcase vapour is intended to remain in a closed emissions system. Venting it to atmosphere, fitting an unrestricted catch container or deleting calibrated valves can create odour, oil contamination, mixture faults and non-compliant emissions operation.

An MOT emissions pass does not prove pressure regulation or oil separation is healthy. Visible smoke, warning lamps, significant oil leaks and insecure pipework require prompt repair, and oil reaching hot exhaust parts presents a fire risk.

Practical crankcase-breather repair-set FAQs

Q: What does the breather repair set restore?
A: It restores specified pressure-control, separation and sealing parts.

Q: Is every kit just a diaphragm?
A: No. Contents can include valves, springs, seals, covers and hoses.

Q: Can a kit be matched by hose size?
A: No. Calibration, flow direction and cover revision must match.

Q: Is some crankcase vacuum normal?
A: Yes, but compare a measured value with engine-specific data.

Q: Does a whistle prove the diaphragm is split?
A: No. Intake and hose leaks can sound similar.

Q: Can a blocked breather cause oil leaks?
A: Yes. Excess pressure can force oil through weak seals.

Q: Can excessive vacuum increase oil use?
A: Yes. A failed regulator can draw excess oil mist into the intake.

Q: Is oil in a breather hose always abnormal?
A: A film can be normal; pooling or rapid use needs diagnosis.

Q: Can workshop air be used for smoke testing?
A: No. Use controlled low-pressure equipment and limits.

Q: Will a breather kit cure worn piston rings?
A: No. Excessive blow-by requires engine diagnosis.

Q: Can a heated hose be replaced by plain hose?
A: No. Preserve the specified cold-climate protection.

Q: Can sealant be added around the diaphragm?
A: Only if the exact procedure specifies it.

Q: Does an MOT pass prove the system is healthy?
A: No. Pressure, flow and separation need direct assessment.

Q: What confirms a successful repair?
A: Correct pressure, stable idle, no leaks and controlled oil carry-over.
