Caliber: understand the range before choosing
Caliber Europe supplies in-car audio equipment. This collection contains two single-DIN receivers and three coaxial speaker sizes whose specifications align with Caliber RMD055DAB-BT, RMD035 and CDS4G, CDS5G and CDS6. A sixth generic FM transmitter has conflicting brand evidence, so it is treated as an unidentified accessory until its exact maker and reference are confirmed.
AutoMotoPart currently lists 6 Caliber items. The largest Caliber groups are 6 audio visual entries. Caliber totals can change, so a category count is orientation rather than proof that a particular reference suits a vehicle, workplace or job. The exact Caliber listing, its current technical information and the item in front of you must agree.
What the Caliber page actually covers
| Product group in this range | Current entries | Selection focus |
|---|---|---|
| Audio Visual | 6 | Match every audio item by exact model, dimensions, electrical load, connector, signal source and vehicle interface; do not transfer Caliber identity to the generic transmitter. |
Three of six titles are coaxial speaker sets, two are single-DIN tuner or media receivers and one is a socket-powered FM transmitter. The live descriptions provide enough specification to identify the Caliber radios and speaker families, but the FM transmitter text names a different supplier and therefore remains an identity exception.
Build a reliable shortlist
Draw the entire system before ordering. Show battery and accessory feeds, earth, receiver outputs, amplifier if fitted, speaker impedance, antenna and DAB path, microphone, USB and SD sources. Add the physical aperture, depth and cable space. A verified adaptor belongs in the plan wherever the factory connector or data function differs.
| Check | Why it matters | Useful evidence |
|---|---|---|
| Model | Similar Caliber radios and speakers vary in tuner, depth and dimensions | Full reference, rear label and official specification |
| Vehicle interface | ISO shape does not guarantee pinout or retained data functions | Vehicle wiring, fascia and interface documentation |
| Radio | DAB+ needs a compatible aerial system; FM does not supply it | Aerial type, power feed, earth and reception test |
| Speakers | Nominal diameter omits cut-out, depth, impedance and RMS power | Measured aperture, glass clearance and CDS model data |
| Amplification | Peak output labels cannot be matched directly | RMS power, impedance, channel configuration and clean gain |
| Transmitter | Identity and radio compliance are unresolved by the title | Maker, model, UK marking and Ofcom IR2030 conformity |
Do not cut a factory loom or enlarge a door aperture before confirming the full installation. A model-specific fascia, harness, antenna adaptor or speaker ring can preserve trim, sealing and reversibility while providing a safer basis for testing.

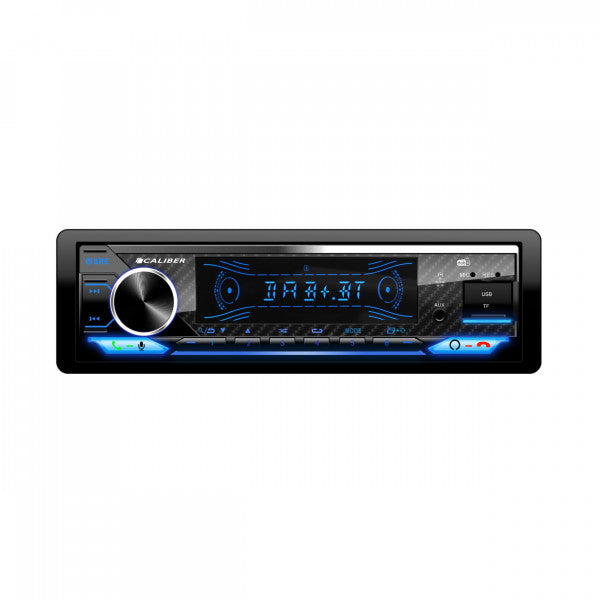

RMD055DAB-BT and RMD035 receivers
The RMD055DAB-BT evidence describes a single-DIN DAB+ and FM receiver with Bluetooth streaming and hands-free calling, USB, SD, AUX, RCA output and a detachable panel. Its official support page supplies the reference-specific manual. DAB reception needs its own supported aerial, cable route and earth; an existing FM aerial is not automatically sufficient.

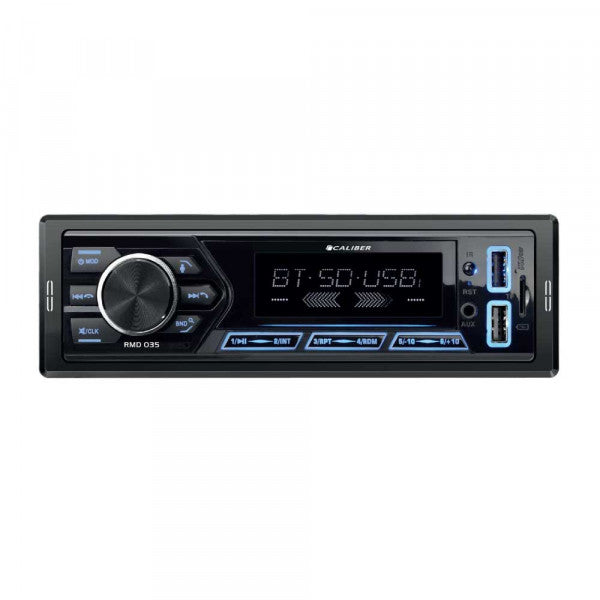

RMD035 is a very shallow single-DIN FM receiver with Bluetooth, USB, SD, AUX, rear RCA and built-in ISO connection. Official data identifies a 40mm installation depth. Shallow packaging helps behind a crowded dash but does not resolve polarity, data-bus switching, factory amplifier, active aerial or steering-control compatibility.
CDS4G, CDS5G and CDS6 speaker sizing
The 4-inch title aligns with CDS4G: a 10cm 2-way coaxial set with grilles, 40W RMS, 80W maximum and 44mm mounting depth. The official page identifies its built-in diameter separately. Check whether the live pack is G/grille specification because Caliber also lists similar CDS4 variants with a different cut-out.
The 5.25-inch evidence aligns with CDS5G at 13cm, 40W RMS, 100W maximum and 47mm depth. The 6.5-inch evidence aligns with CDS6 at 16.5cm, 50W RMS, 120W maximum and 56mm depth. Retain model, cut-out and depth; nominal inches and included grilles do not prove a vehicle door fit.
Mechanical and electrical speaker checks
Remove the door card with the correct procedure and keep clear of side airbags, latches and moisture barriers. Measure the aperture and the distance to glass, regulator and trim across full movement. Use a rigid sealed adaptor ring where supported, maintain drainage and protect terminals from water without enclosing the speaker in trapped moisture.
Verify 4-ohm load and connect with correct polarity. A factory system may use a non-standard impedance, shared crossover or amplified signal, making direct replacement inappropriate. Set amplifier gain from clean RMS capability, not peak marketing watts, and high-pass small speakers where the system design requires it to prevent excessive cone travel.

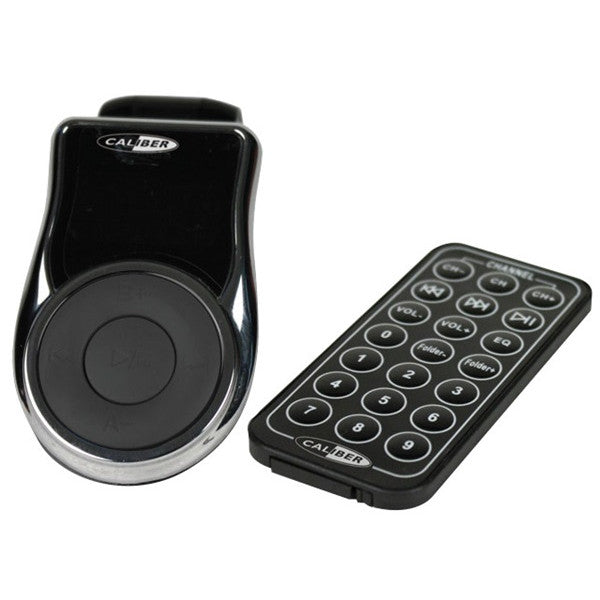

The generic FM transmitter is an identity exception
The transmitter title lacks a Caliber model, and the live description attributes the accessory range elsewhere. Do not present it as a Caliber product or borrow Caliber warranty, manual or compatibility. Recover the device label, manufacturer, input voltage, USB/SD formats, maximum capacity and conformity marks before connecting it.
Ofcom treats compliant very-low-power FM audio devices as short-range radio equipment operating on a non-interference basis under the applicable interface requirement. Use only a UK-compliant product, select a clear frequency and keep volume controlled at the source and receiver. Cease use if it interferes with another service or the documentation cannot establish conformity.
Safe installation and functional verification
Follow the vehicle battery-disconnection and wake-up procedure, especially where coded systems, battery monitoring or airbags are involved. Confirm each wire with the exact diagram and measurement. Fuse any new feed close to its source, make a sound earth, route microphone and aerial cables away from interference and secure the receiver without trapped wires.
Before trim returns, test ignition switching, memory retention, all sources, DAB and FM reception, Bluetooth calls, RCA output and each speaker at low level. Check balance and polarity, then raise volume gradually while listening for distortion or rattles. Verify steering, windows, locks and airbags remain unobstructed and confirm no excessive battery draw after shutdown.
From identification to a checked result
| Stage | Good practice for this range | Mistake to avoid |
|---|---|---|
| Identify | Capture Caliber model or flag the transmitter as unresolved | Selecting from a generic size or feature title |
| Measure | Check dash depth, fascia, speaker cut-out, depth and moving clearance | Assuming single-DIN or 6.5-inch guarantees fit |
| Map | Confirm power, ISO pinout, aerials, interface, impedance and RMS load | Matching amplifier power from peak watts |
| Install | Protect circuits, looms, moisture barriers and safety systems | Cutting factory wiring or routing across airbags |
| Verify | Test every source, channel, retained function and shutdown state | Refitting trim before reception and polarity checks |
Record receiver model, firmware, harness, fascia, antenna and fuse references, plus each speaker model, impedance, polarity and adaptor. For the transmitter, retain the manufacturer, model and UK conformity evidence or leave it unused.
Reading real Caliber references
The Caliber names below are examples from the current range and show why the complete description matters. They are not universal Caliber recommendations and should not be treated as a fitment list. Within Caliber, a shared family word can conceal a different dimension, connector, material, pack format, operating condition or installation side.
| Example listing | What to verify beyond the name |
|---|---|
| Caliber DAB & FM Tuner with USB/SD reader and AUX-Input | RMD055DAB-BT identity, DAB aerial, ISO pinout, chassis depth and Bluetooth microphone |
| Speakers - 2-Way Coaxial with Grills - 4in. | CDS4G 10cm size, cut-out, 44mm depth, 4-ohm load and 40W RMS |
| Speakers - 2-Way Coaxial with Grills - 6.5in. | CDS6 16.5cm size, cut-out, 56mm depth, 4-ohm load and 50W RMS |
| FM Transmitter - USB SD Fit | Unidentified transmitter maker, model, 12/24V input, media limits and UK compliance |
| Speakers - 2-Way Coaxial with Grills - 5.25in. | CDS5G 13cm size, cut-out, 47mm depth, 4-ohm load and 40W RMS |
| Caliber FM Tuner with USB/SD Reader, AUX-Input & Blutooth | RMD035 identity, 40mm depth, FM/Bluetooth/USB/SD/AUX and vehicle interfaces |
The dimensions in the live speaker descriptions align closely with official Caliber CDS models, but the exact pack label should confirm the G/grille suffix. The FM transmitter cannot be resolved the same way and remains outside verified Caliber identity.
Common errors around Caliber products
- Calling the generic FM transmitter a Caliber product without a model label.
- Assuming an ISO plug has the correct permanent and accessory pinout.
- Installing a DAB receiver without a compatible aerial plan.
- Choosing speakers by nominal diameter without cut-out and depth measurements.
- Matching an amplifier to speaker peak power rather than RMS and impedance.
- Blocking a window regulator, door drain, moisture barrier or side airbag.
- Using an FM transmitter without UK conformity evidence.
- Refitting trim before testing polarity, reception and battery shutdown.
Caliber questions and answers
Q: Which Caliber products are represented?
A: Two receivers and three coaxial speaker sizes are evidenced; the sixth FM transmitter has unresolved brand identity.
Q: What does RMD055DAB-BT provide?
A: DAB+, FM, Bluetooth, USB, SD and AUX in a single-DIN receiver, subject to exact manual and aerial requirements.
Q: What distinguishes RMD035?
A: It is a shallow 40mm single-DIN FM/Bluetooth media receiver without the evidenced DAB+ function.
Q: Does single-DIN guarantee vehicle compatibility?
A: No. Fascia, depth, wiring, switching, aerial, amplifier and retained controls still need verification.
Q: Which model matches the 4-inch speaker evidence?
A: The dimensions and power align with Caliber CDS4G, but confirm the model on the actual pack.
Q: Which model matches 5.25 inches?
A: The 13cm, 47mm-deep evidence aligns with CDS5G, subject to pack-label confirmation.
Q: Which model matches 6.5 inches?
A: The 16.5cm, 56mm-deep evidence aligns with CDS6, subject to cut-out and pack checks.
Q: Can peak speaker watts be used to set an amplifier?
A: No. Use continuous RMS power, impedance, clean signal and the system's crossover design.
Q: Are the included grilles always usable in a factory door?
A: No. Factory trim may cover the speaker; measure and preserve the vehicle's mounting and safety layout.
Q: Is the FM transmitter legal in the UK?
A: Only use it if exact documentation proves compliance with current Ofcom short-range-device conditions.
Q: Can an FM transmitter work in a 24V socket?
A: The live description mentions 12V/24V, but verify the exact device label before connection.
Q: What should be tested after installation?
A: Ignition, memory, reception, Bluetooth, every source and speaker, polarity, retained vehicle functions and shutdown draw.
