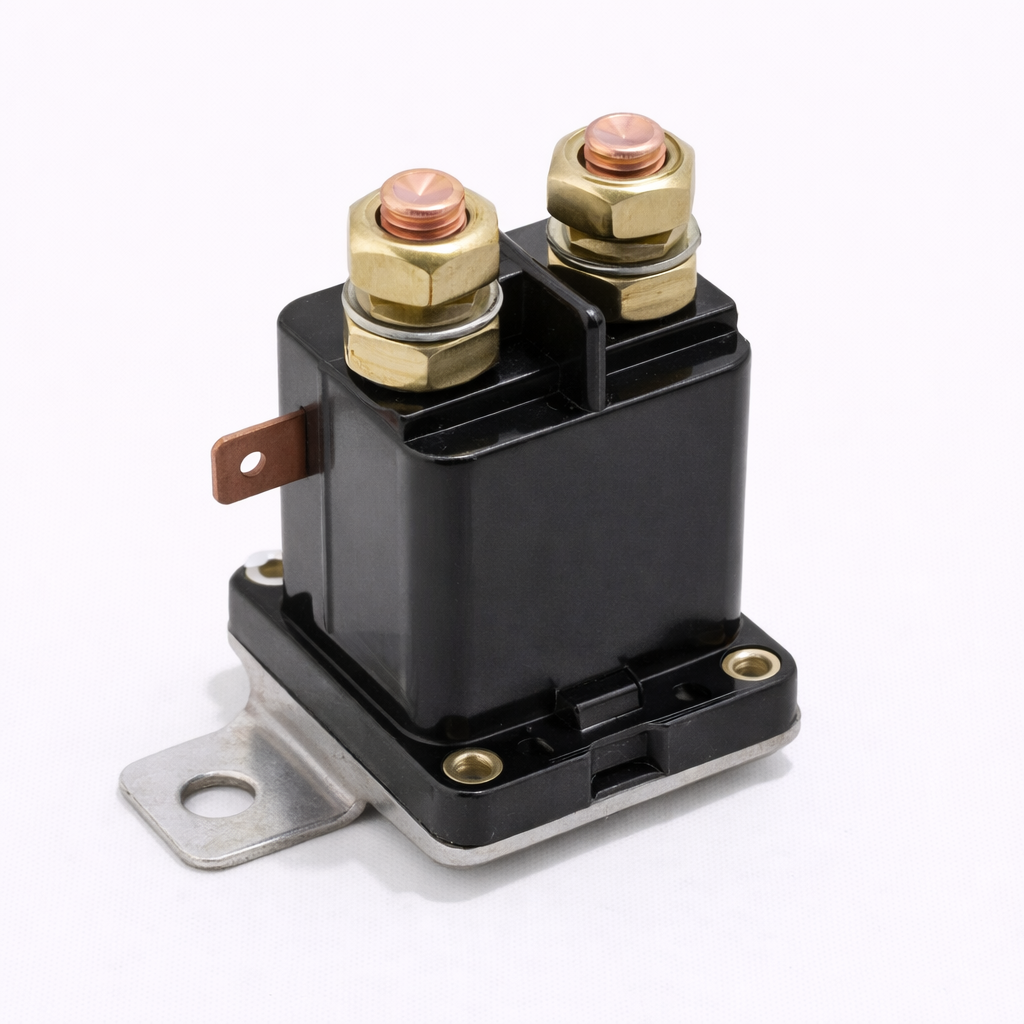

The starter relay separates command from load
Turning a key or pressing a start button creates a request rather than necessarily feeding the starter directly. Vehicle logic first checks security and transmission conditions, then energises a relay coil. Its magnetic field pulls an armature so contacts can pass current to the starter solenoid.
The solenoid then engages the pinion and closes the much heavier motor circuit. The relay is one link in a chain, not the complete starting system.
Terminal numbers describe functions, not physical fit
| Common designation | Typical role | Expected state | Important caution |
|---|---|---|---|
| 30 | Battery or fused contact supply | Often live at all times | Confirm before probing or bridging. |
| 87 | Normally open switched output | Live when relay operates | May feed starter solenoid. |
| 87a | Normally closed contact | Connected to 30 at rest | Not interchangeable with a second 87. |
| 85 and 86 | Coil terminals | Voltage difference energises coil | Polarity can matter with suppression. |
| Relay case diagram | Shows internal connections | Reference for that exact unit | Never infer it only from pin pattern. |
The control circuit may be power- or earth-switched
One vehicle can supply the coil from the ignition switch and let an engine control unit switch the earth. Another may provide a permanent earth and switch positive voltage. Networked vehicles can receive a digital start request before a module decides whether to drive the relay.
Test both coil terminals relative to a known reference and interpret them using the wiring diagram rather than expecting one universal pattern.
The starter solenoid remains a substantial load
Although the relay does not normally carry full starter-motor current, the solenoid's pull-in winding can demand a significant surge. Pitted contacts, weak terminal tension or corroded cable connections cause voltage drop at that moment. An unloaded continuity test may pass even though the circuit fails during cranking.
Use suitable load-aware voltage measurements and equipment rated for the circuit.
Fitment requires the complete electrical specification
| Match point | Evidence | Reason | Mismatch risk |
|---|---|---|---|
| Vehicle and build data | VIN, date, engine and transmission | Starting logic changes within a model. | Wrong control behaviour. |
| Original reference | Relay and parts data | Identifies intended internal design. | Incorrect contacts or rating. |
| Nominal voltage | Component marking | Sets coil current and magnetic force. | Failure to pull in or overheating. |
| Pin arrangement | Diagram, numbers and keying | Routes supply, output and coil. | Short circuit or unintended cranking. |
| Contact rating | Technical specification | Handles solenoid surge and repetition. | Welded or burnt contacts. |
| Suppression | Diode or resistor symbol | Controls coil switch-off voltage. | Reverse-polarity damage or interference. |
Diode suppression makes coil polarity critical
A diode placed across the coil clamps the reverse voltage generated when current is removed. Connecting that relay with reversed coil polarity can effectively short the driver circuit and blow a fuse or damage the diode. A resistor-suppressed relay is usually less polarity-sensitive but is not therefore a universal substitute.
Read the exact case diagram and match the specified replacement rather than relying on colour or brand.
Contacts fail through heat, arcing and contamination
Every opening event can create a small arc. High solenoid current, low system voltage that causes chatter, excessive cranking time and a dragging starter increase contact stress. The surfaces may become resistive, transfer material or weld closed. Moisture at an exposed relay box adds corrosion.
A new relay will fail again if the solenoid or terminal fault that overloaded the old one remains.
Symptoms should be traced along the start chain
| Symptom | Relay-related possibility | Other likely area | Diagnostic direction |
|---|---|---|---|
| No sound and no crank | Open coil or no contact closure | Authorisation, fuse or switch | Check command and coil voltage. |
| Relay clicks once | Resistive or burnt contacts | Battery, cable, solenoid or motor | Measure output under load. |
| Rapid clicking | Relay dropping out with low voltage | Discharged battery or poor connection | Observe battery and coil voltage. |
| Intermittent crank | Worn contacts or loose socket | Range/clutch switch or cable | Use voltage-drop and movement checks. |
| Starter stays engaged | Welded contacts possible | Sticking solenoid or command fault | Stop engine and isolate safely. |
| Hot relay or socket | Resistance or overload | Spread terminal or solenoid fault | Remove from service and inspect. |
Battery condition must be tested under demand
A battery can show plausible voltage with no load but collapse when the solenoid and motor are requested. That voltage drop may release the relay, which then reconnects as voltage recovers, creating rapid chatter. Test battery condition and state of charge by an approved method before condemning control components.
Cold temperature, oil viscosity and extended standing can increase starting demand without creating a relay defect.
Cable voltage drop reveals hidden resistance
Measure across a connection while it carries current: excessive voltage across a supposedly closed relay or cable indicates resistance. Test positive and earth paths separately and follow the manufacturer's maximum values. A meter lead placed on oxidised hardware may conceal the fault, so choose clean defined test points.
Do not pierce sealed wiring indiscriminately; use approved breakout or back-probing methods.
Coil checks require correct isolation
Resistance or continuity testing must be performed with the relay disconnected and the circuit de-energised. Comparing coil resistance with technical data can identify an open or shorted winding, but temperature and meter accuracy affect the result. Never apply an ohmmeter to a live module driver.
A plausible coil reading does not confirm that the contacts carry load or that the armature moves consistently.
Bench energising needs current control
If the test procedure permits it, use a fused, current-limited source at the stated nominal voltage with insulated leads. Observe suppression polarity and keep the contact side isolated from accidental shorts. A click proves movement only; measure contact resistance or voltage drop using an appropriate test load.
Do not hold the coil powered longer than instructed or probe beside fuel vapour and an unprotected battery.
Bridging sockets can bypass safety interlocks
Connecting contact terminals manually may cause immediate cranking regardless of ignition, immobiliser, clutch or transmission state. The vehicle can move, the engine can start and an accidental short can produce extreme heat. Use a wiring-diagram-led diagnostic procedure and a fused remote tool only when specifically authorised.
Never leave a bridge installed as a repair or use an unfused screwdriver across live terminals.
Safe preparation prevents unexpected vehicle movement
Secure the transmission and wheels
Select Park or neutral as instructed, apply the parking brake and use additional restraint appropriate to the work.
Control ignition and battery energy
Remove the key or disable keyless starting, then isolate power by the vehicle procedure before resistance or replacement work.
Stay clear of moving machinery
Belts, fans and pulleys may move whenever a remote start command or test is made.
Battery isolation can require additional planning
Some vehicles need window, steering, security or battery-monitor procedures before and after disconnection. High-voltage hybrid systems have separate isolation boundaries; the 12-volt starter logic must not be confused with traction-voltage components. Use approved support equipment only when the service information allows it.
Never bypass a disconnection requirement merely to preserve radio settings.
The socket deserves the same attention as the relay
Inspect female terminals for heat discolouration, looseness, corrosion and displacement. A spread contact creates resistance that heats both socket and new relay blade. Check the housing latch, seal and fuse-box drain path, and repair terminals with the specified parts and crimping process.
Cleaning a severely annealed terminal does not restore its spring force.
Installation should not force or alter pins
Compare case diagram, terminal numbering and locating features before insertion. Align blades squarely and press on the body, not the cover seam. The relay should seat to the intended depth and remain retained against vibration.
Do not file a blade, bend a terminal or remove a key to make an incorrect unit fit.
Functional testing includes every interlock
After restoring power, confirm normal authorised cranking and immediate starter release when the command ends. Verify that the vehicle refuses to crank in prohibited transmission positions and responds correctly to clutch, brake and security requirements. Check diagnostic codes and live start-request data where appropriate.
Listen for abnormal starter overrun and inspect the relay area for heat after a controlled test.
Starting faults have urgency beyond inconvenience
A non-cranking vehicle should not be repeatedly operated until cables overheat or the battery is exhausted. Unexpected cranking, operation in gear, smoke, melting insulation or a starter that remains engaged requires immediate isolation when it can be done safely and competent recovery or repair.
Reliable starting must never be achieved by defeating immobiliser or transmission safety controls.
Practical starter-relay FAQs
Q: Does a clicking relay prove it is good?
A: No. The coil may move while burnt contacts fail under solenoid load.
Q: Can any relay with the same pin shape be fitted?
A: No. Circuit, rating, voltage and suppression must match exactly.
Q: Why does coil polarity matter?
A: A suppression diode can short or fail if 85 and 86 are reversed.
Q: Is rapid clicking usually the relay itself?
A: Often it reflects battery voltage collapse or connection resistance.
Q: Can I bridge the socket to get home?
A: That can bypass interlocks and cause movement or fire; use safe recovery.
Q: Why test voltage during cranking?
A: High-resistance faults may appear only while substantial current flows.
Q: Can I test resistance with the battery connected?
A: Not on a live circuit; isolate and follow the electrical procedure.
Q: What causes a relay socket to melt?
A: Loose terminals, resistance, overload or prolonged operation can create heat.
Q: Is a new relay enough after melting?
A: No. Repair the socket and identify the excessive current or poor connection.
Q: Why can the starter remain engaged?
A: Contacts, solenoid mechanics or the control command may be stuck.
Q: Must the Bosch reference match?
A: Use vehicle fitment and the exact cross-reference, not brand recognition alone.
Q: What proves a correct repair?
A: Consistent cranking, prompt release, sound voltage drops and working safety interlocks.
