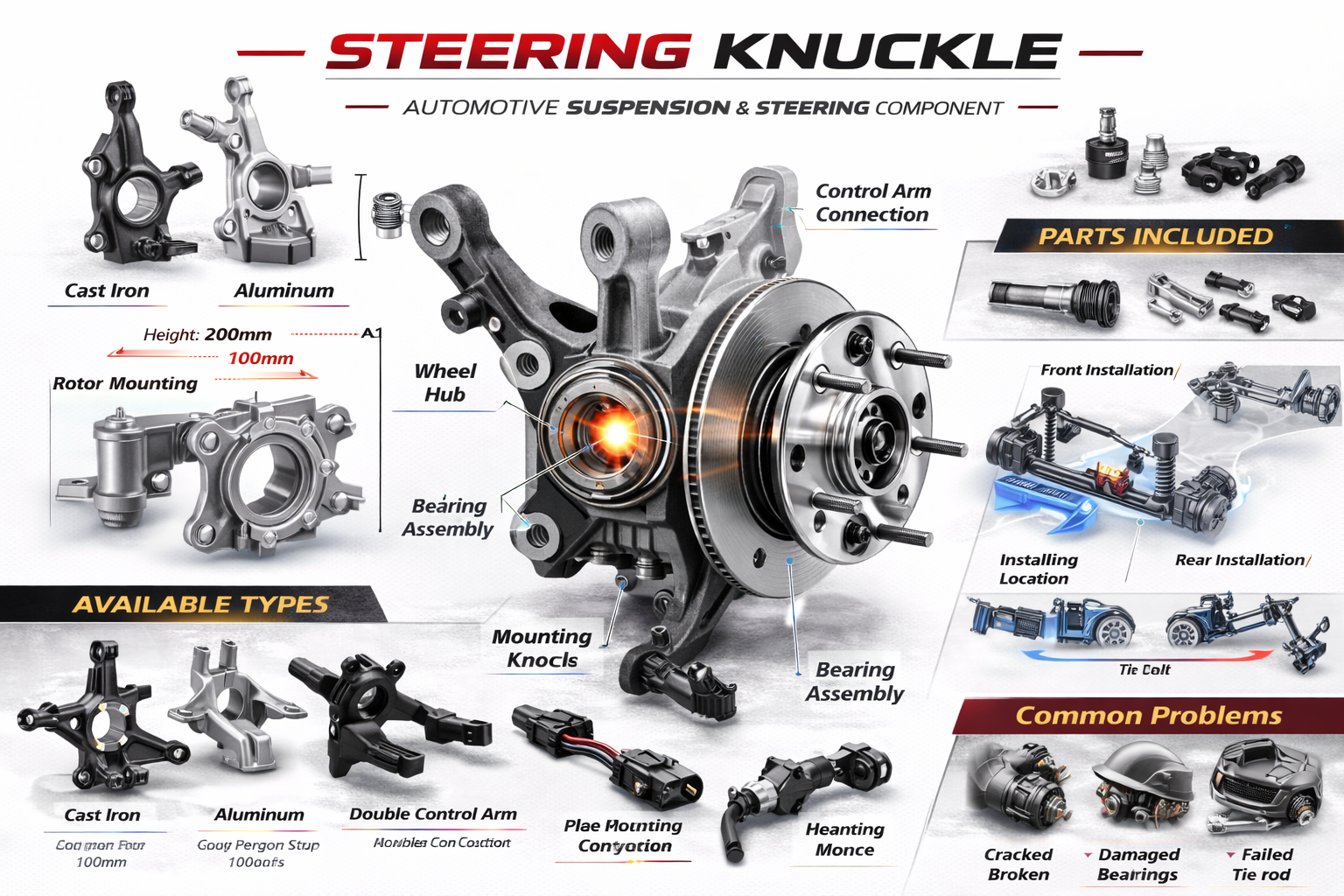

Steering Knuckle

The steering knuckle carries wheel loads and defines geometry

Road forces enter through the tyre, hub and bearing, then pass through the knuckle into ball joints, control arms or strut. The steering arm transfers track-rod movement to wheel angle. Machined faces position the brake and speed sensor. Small dimensional changes therefore affect alignment, braking and electronic stability inputs.

A knuckle is not a cosmetic bracket and must not be straightened or welded without an authorised engineering method.

Suspension architecture changes the carrier interfaces

Protection covers are related parts, not structural knuckles

A cover can shield a kingpin, joint or machined area from contamination. Check each product title and scope. Fitting a cover does not correct wear, a crack or a distorted carrier.

Restore every cover in its proper orientation so it cannot rub a brake disc or trap water.

Exact fitment preserves steering and brake dimensions

Cast material changes repair and handling limits

Ductile iron, forged steel and aluminium each have specific strength, corrosion and pressing behaviour. Aluminium is light but can suffer galvanic corrosion around steel inserts and is easily gouged. Cast iron can crack under impact without obvious bending.

Do not use uncontrolled flame, welding or straightening. Replace collision-damaged parts according to body and suspension repair data.

Symptoms require comparison with every connected joint

Collision and kerb impacts need a wider assessment

A wheel impact can bend the rim, strut, lower arm and subframe while leaving the knuckle visibly intact. Measure steering-axis and wheel alignment values, inspect body mounting points and compare wheelbase and setback. Electronic sensor calibration cannot compensate for bent metal.

Cracks around steering and caliper arms require immediate replacement and investigation of attached components.

Corrosion at interfaces changes measured geometry

Rust scale behind a bolt-on hub or brake carrier prevents flat seating and creates run-out. Galvanic corrosion can seize a bearing in an aluminium bore. Clean only by the approved method, preserving machined dimensions and protective coating.

Deep pitting, enlarged bores and exfoliation need measurement and possible knuckle replacement, not heavier tightening.

Safe disassembly controls springs, brakes and shafts

Chock, lift and support the vehicle on rated equipment. Follow coil-spring or air-suspension isolation. Remove the caliper and support it independently; cap hydraulic lines only if the procedure requires disconnection. Release the axle nut and driveshaft using a puller.

Keep fingers away from the heavy carrier's drop path and support it before the final joint is released.

Tapered studs need the correct separator

Remove locking nuts or pins, protect threads and use a puller or separator at the designed cast bosses. Hammering the knuckle ear can crack it; striking the stud ruins threads and can damage the joint. Some pinch-bolt joints use a cylindrical pin rather than a taper.

Never apply heat near a sealed ball joint, brake hose or wheel-bearing grease unless explicitly authorised.

Preserve steering and suspension orientation

Mark adjustable interfaces

Record cam bolts, strut positions and shim stacks as a starting point without assuming they preserve final alignment.

Support every attached component

Do not let driveshaft, strut or track rod hang by boots and hoses.

Account for spacers and shields

Note the order and side of ABS brackets, dust shields and washers.

Bearing removal applies force through the correct race

For a press-in bearing, remove the retaining circlip, support the carrier around the bore and press the hub and races in the stated order. When pressing a bearing into the knuckle, load the outer race; when pressing the hub into the bearing, support the inner race. Force through balls or rollers brinells a new bearing.

Use a shield and rated tooling. Stop if the assembly cocks or pressure rises unexpectedly.

Magnetic encoder bearings have a required orientation

Some wheel bearings contain a magnetic target on one seal face. Install it towards the sensor. Verify with the approved detector rather than colour alone, and keep magnetic debris away. A reversed bearing can be mechanically sound but produce no wheel-speed signal.

Protect the encoder from impact and strong magnets.

Ball-joint bores and tapers must not be altered

Clean the taper dry as specified, inspect for fretting and seat the correct stud. Reaming, filing or using a sleeve to accept another joint changes contact and steering geometry. Pinch-joint bores need their defined bolt and orientation.

Replace a knuckle with a cracked ear or stretched clamp slot.

New hardware and tightening sequence restore clamp

Fit specified one-use axle nuts, bearing circlips, caliper bolts, pinch bolts and self-locking nuts. Start every fastener by hand and use calibrated torque plus angle where stated. Hold ball-joint studs by the approved internal drive without damaging boots.

Tighten bonded suspension bushes at defined ride height. Keep grease and anti-seize off dry tapers and bolt faces unless specified.

Brake and sensor restoration need dedicated checks

Clean hub and caliper faces, fit the dust shield without contact and route the wheel-speed harness through every clip. Refit the brake, pump the pedal before movement and bleed if the hydraulic circuit was opened. Check sensor air gap and live wheel speed.

Do not road-test with a soft pedal, rubbing shield or ABS harness near the tyre.

Alignment and calibration prove the geometry

Set tyre pressures and ride height, then measure camber, caster and toe on appropriate equipment. Investigate values outside adjustment rather than forcing eccentric bolts to their limits. Centre the steering wheel and calibrate steering-angle or ADAS functions where required.

Conduct a controlled test for steering return, braking stability and warning lamps, then re-inspect fasteners and wheel bearing.

UK MOT safety depends on secure steering and suspension

Cracks, excessive joint movement, insecure wheel bearings and seriously corroded steering or suspension components can cause MOT failure and loss of control. A protective cover cannot hide or repair structural damage. Remove the vehicle from use when the carrier or its attachments are unsafe.

Keep alignment and calibration evidence with the repair record.

Practical steering-knuckle FAQs

Q: Is a knuckle cover the complete steering knuckle?
A: No. Check the product scope; a cover is only a protective related part.

Q: Are left and right knuckles interchangeable?
A: Usually not; steering, brake and sensor locations are handed.

Q: Can a bent knuckle be straightened?
A: Follow authorised repair data; safety-critical cast carriers are normally replaced.

Q: Does wheel play prove the knuckle is worn?
A: No. Isolate bearing and joint movement before condemning the carrier.

Q: Can a different ball-joint taper be reamed to fit?
A: No. Use the exact matched knuckle and joint.

Q: Why does bearing press direction matter?
A: Force through the wrong race damages the rolling elements.

Q: Can a magnetic bearing fit either way?
A: No. Its encoder face must point towards the wheel-speed sensor.

Q: Should anti-seize be added to tapers?
A: Not unless the manufacturer explicitly specifies it.

Q: Can the caliper hang on its hose?
A: No. Support it independently.

Q: Is marking the strut enough to preserve alignment?
A: No. Perform measured wheel alignment after assembly.

Q: What if the ABS warning appears after repair?
A: Check encoder orientation, sensor gap, wiring and live wheel speeds.

Q: Which hardware should be renewed?
A: Every axle nut, circlip and self-locking or torque-to-yield fastener specified.

Q: What damage requires immediate withdrawal?
A: A crack, loose taper, bearing movement, binding steering or insecure brake mounting.
