Steering linkage turns gear movement into wheel angle
A rack moves laterally and pushes or pulls track rods connected to the steering arms. A recirculating-ball or worm steering box rotates an output arm, which moves a series of links across the axle. In both systems, joints must articulate as the wheels steer and the suspension rises or falls.
The linkage controls toe relationship and transmits road reaction back to the gear. Small movement at several worn joints accumulates into significant steering-wheel free play.

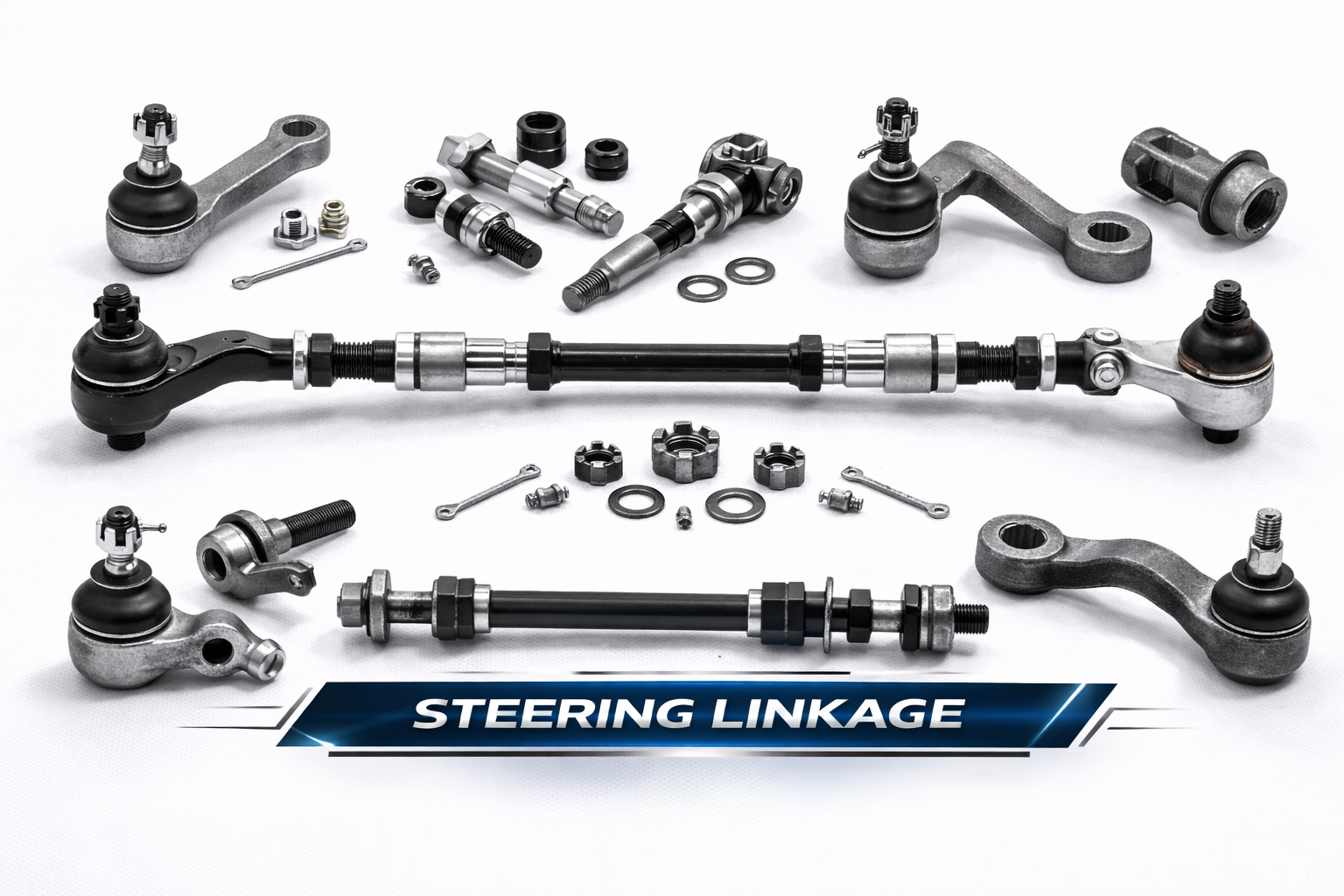

Rack and steering-box systems use different components
| Component | Function | Typical connection | Common fault |
|---|---|---|---|
| Inner track rod/rack joint | Transfers rack movement while allowing angular change. | Threaded/locked to rack, protected by bellows. | Ball-socket play, binding or loose rack connection. |
| Outer track-rod end | Connects rod to steering arm and provides toe adjustment. | Taper pin plus threaded shank/locknut. | Free play, seized adjustment or split boot. |
| Centre/relay link | Carries steering-box movement across vehicle. | Ball joints to arms and side rods. | Joint wear, bending or incorrect orientation. |
| Pitman/drop arm | Converts steering-box shaft rotation into link movement. | Indexed spline and ball/taper connection. | Loose spline, damaged taper or wrong indexing. |
| Idler arm | Supports opposite end of centre link. | Chassis pivot/bush and link joint. | Vertical movement, bush wear or bracket corrosion. |
| Drag link | Connects steering box/arm to axle steering arm in some layouts. | Ball joints or replaceable ends. | Play, bent tube or seized adjuster. |
Exact application protects taper and geometry
Use VIN and build data, steering gear identity, right- or left-hand drive, axle, suspension and wheelbase. Commercial chassis, four-wheel-drive and heavy-duty options can use different link lengths or arms. Some left and right ends use opposite threads to make adjustment possible.
Compare taper direction and size, thread pitch, rod bend, overall adjustment range, boot clearance and locking method. A taper that enters a hole is not necessarily the correct included angle or seating depth.
Ball joints need articulation without looseness
A spherical pin moves within a lined socket under controlled preload. Grease and a sealed boot protect the bearing surfaces. Some joints are permanently lubricated; others have specified grease points and intervals. Adding a grease nipple to a sealed joint is not an acceptable upgrade.
Joint stiffness should be assessed by the service method. A new joint can feel firm, but a seized joint can also resist movement and prevent steering return. Both excessive play and binding require attention.
Symptoms must be traced through the full path
| Symptom | Possible linkage cause | Other systems to inspect | Urgency |
|---|---|---|---|
| Steering free play | Ball-joint, idler, spline or adjustment wear. | Column joints, rack/box mounts and wheel bearings. | Immediate inspection; separation risk must be excluded. |
| Wandering | Variable toe from worn link or loose taper. | Tyres, alignment, suspension bushes and body geometry. | Do not continue if control is unstable. |
| Knock on direction change | Joint clearance or loose rack/arm connection. | Mountings, springs, anti-roll bar and brakes. | Prompt diagnosis before further wear. |
| Uneven tyre wear | Incorrect or changing toe. | Pressure, camber, bearings and damaged arms. | Align only after all movement is repaired. |
| Poor self-centring | Seized joint or bent link. | Castor, top mounts, rack, column and tyres. | Safety concern; diagnose before normal use. |
| Steering wheel off-centre | Unequal rod adjustment or shifted component. | Mechanical rack centre, alignment and crash damage. | Correct geometry before sensor calibration. |
Free play inspection needs the correct loading state
Some joints show movement with wheels loaded; others need the axle supported in a specified position. Follow the vehicle test method. Have an assistant move the steering gently through a small range while observing each joint, rack mounting and arm.
Place fingers safely across a joint only when the method permits and away from pinch points. Do not lever against brake hoses, sensor rings or thin boots. Movement between a taper pin and its arm hole is especially serious.
Boot condition and joint condition are both recorded
Inspect rubber for splits, missing clips, twisting, heat damage and grease leakage. A sound boot does not prove the socket is unworn, and a damaged boot does not quantify internal play. Assess both findings.
Boot-only renewal is suitable only where the manufacturer permits it, the joint is still within limits and contamination has not entered. Clean with compatible products and use the specified grease; general-purpose grease can attack polymers or change preload.
Bent links require replacement and structural checks
A rod can bend from kerb impact, collision, incorrect recovery or using it as a jacking point. Do not heat, hammer or press it straight. The material and residual stresses are safety-critical, and straightening can conceal a crack.
Inspect wheels, knuckles, suspension arms, rack/box, body mountings and axle. Measure geometry before assuming the bent link was the only damaged part.
Safe removal protects tapers and steering gear
- Record steering position, alignment symptoms and relevant diagnostic data.
- Chock, lift and support at approved points.
- Keep steering centred and protect the clockspring from rotation.
- Clean exposed threads and record approximate rod dimension.
- Remove locking pins, retainers and nuts by the defined sequence.
- Use the specified puller/separator without loading the boot or arm incorrectly.
- Counter-hold the rack or rod where service data requires it.
- Inspect taper holes, threads, bellows and adjacent components before assembly.
Hammer shock is not a universal separator
Striking a steering arm may be permitted only in particular service procedures with defined location and support. Casual blows can crack cast parts, damage bearings and distort the taper. Never strike the threaded pin or fit a nut to absorb uncontrolled hammering.
Inner track rods require rack protection
Removing an inner joint can transmit torque into the rack teeth, pinion or housing. Use the specified rack holding method and inner-rod tool. Do not clamp a polished rack bar with general grips.
Refit locking washers, stakes or thread-locking system exactly. Install bellows without twist, equalise their internal air where designed and secure correct clamps. A cable tie is not automatically an acceptable bellows clamp.
Taper joints depend on clean complete seating
Clean the dry mating taper as specified. Grease or paint can alter seating and allow movement even when nut torque appears correct. The pin must pull fully into the hole with sufficient thread available for the locking device.
Use the stated new self-locking nut or castellated nut and split pin. Never back a nut off below minimum torque merely to align a split-pin hole unless the procedure specifically permits the direction and limit.
Adjustment is only a starting point before alignment
| Control | Purpose | Limitation |
|---|---|---|
| Counted turns | Places new end near previous length. | Part dimensions and old alignment can differ. |
| Measured rod length | Preserves approximate toe for workshop movement. | Does not establish rack centre or final geometry. |
| Equal thread engagement | Maintains strength and balanced adjustment. | Must also meet toe and wheel-centre requirements. |
| Mechanical rack centre | Balances travel and steering geometry. | Steering-wheel position alone can be misleading. |
| Alignment equipment | Measures toe and related angles. | Cannot compensate for loose or bent components. |
| Angle-sensor calibration | Aligns electronic zero after mechanical correction. | Cannot fix unequal rod lengths or wrong indexing. |
Post-repair verification
| Check | Method | Required outcome |
|---|---|---|
| Fastener security | Verify torque, locking devices and witness records. | Complete seating and no reused one-use hardware. |
| Joint movement | Steer through full safe range with suspension position checked. | No bind, play, boot twist or contact. |
| Geometry | Complete four-wheel alignment where applicable. | Correct toe, centred gear and balanced adjustment. |
| Clearance | Check wheels, brakes, hoses and body at lock/travel. | No interference or stretched line. |
| Electronic systems | Scan and calibrate steering/ADAS as required. | No relevant faults and correct zero. |
| Road behaviour | Controlled progressive road test. | Stable response, return and centred wheel. |
UK MOT and roadworthiness context
Steering linkage, joints, arms, boots, locking devices and free play can be assessed during an MOT. Excessive wear, binding, damage, insecure attachment or a component likely to detach can be a serious defect. Exact assessment depends on the system and severity.
Do not wait for an MOT when steering response changes, a joint is loose or directional control is uncertain. Arrange repair or recovery. Alignment cannot make an unsafe joint roadworthy.
Common steering-linkage mistakes
- Ordering by model name while ignoring steering gear and drive side.
- Replacing one joint without inspecting the full linkage and mountings.
- Using a fork separator when the reusable boot/joint must remain undamaged.
- Hammering the threaded pin or cast arm without an approved method.
- Applying removal torque through the rack teeth.
- Greasing a taper that must be assembled dry.
- Reusing locking nuts or split pins.
- Counting turns as a substitute for alignment.
- Calibrating a steering-angle sensor before mechanical centring.
- Driving with known play because the vehicle still steers.
Practical steering-linkage FAQs
Q: What is the difference between inner and outer track rods?
A: The inner joint connects to the rack; the outer end connects to the wheel steering arm.
Q: Does a split boot prove the joint is loose?
A: No. Inspect boot condition and joint movement separately.
Q: Can a bent steering rod be straightened?
A: No. Replace it and inspect connected structure for impact damage.
Q: Are all taper joints interchangeable?
A: No. Angle, diameter, depth and thread must match exactly.
Q: Can a ball-joint pin be hammered out?
A: Use the approved separator or procedure; uncontrolled impact can damage safety-critical parts.
Q: Why count rod-end turns?
A: It provides only a rough installation starting point before alignment.
Q: Must wheel alignment follow replacement?
A: Yes when rod length or steering geometry has been disturbed.
Q: Can alignment correct steering free play?
A: No. Repair worn or loose components before measuring geometry.
Q: Why keep the steering centred?
A: It protects clockspring travel and supports balanced rack and rod adjustment.
Q: Should taper pins be greased?
A: Follow service data; many friction tapers require clean dry assembly.
Q: When must the vehicle not be driven?
A: With loose, binding, bent or insecure linkage or uncertain directional control.
Q: What completes repair?
A: Secure fasteners, free articulation, correct alignment, calibration and safe road behaviour.
