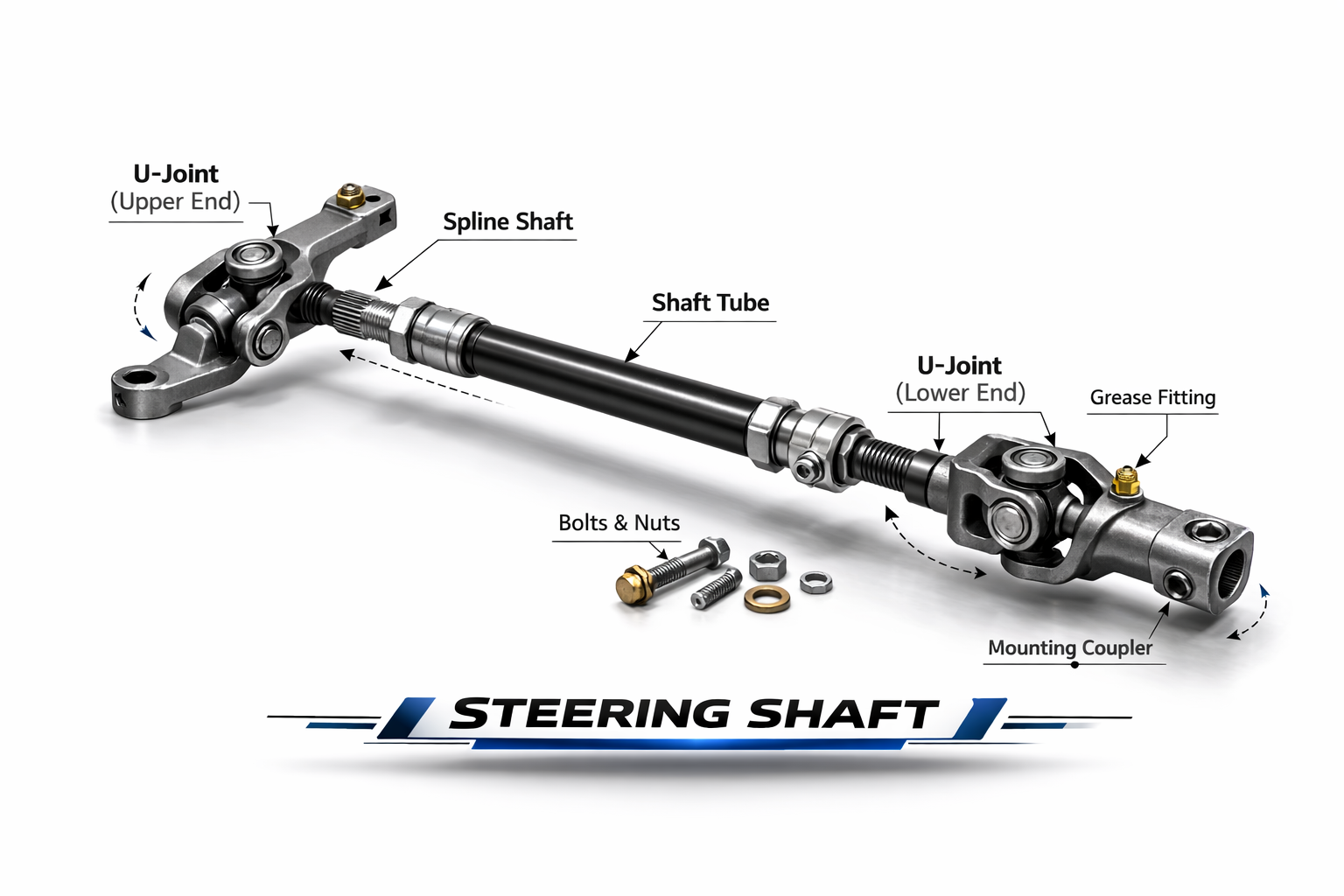

The steering shaft is a precise torque and safety link
The driver's hand torque passes through the column and intermediate shaft to the rack or steering box. Universal joints accommodate angular offsets while a telescopic section handles body movement and assembly. A collapsible design can reduce intrusion during a collision.
These functions require controlled geometry; a shaft is not simply a metal rod with splines at both ends.
Each feature addresses a different movement
| Feature | Purpose | Expected movement | Fault concern |
|---|---|---|---|
| Splined coupling | Transfers torque and indexes position. | None after clamping. | Fretting or rotational play. |
| Universal joint | Transmits rotation through an angle. | Smooth articulation. | Seizure, notch or looseness. |
| Telescopic section | Allows axial installation/body motion. | Specified sliding range. | Binding or separation. |
| Collapsible element | Manages crash displacement. | No routine service deformation. | Unsafe hammering/stretching. |
| Pinch-bolt groove | Captures coupling axially. | Bolt crosses machined relief. | Shaft can pull off. |
| Boot/shield | Excludes dirt and protects joint. | Flexes without contact. | Water ingress or rubbing. |
Universal-joint phasing affects speed smoothness
A single angled universal joint creates small speed variation through each revolution. Where two joints are used, their relative orientation can cancel or compound that variation. Factory clocking and master splines preserve the intended relationship.
Assembling a shaft one spline out or with sliding sections mis-phased can create cyclic stiffness even when neither joint is worn.
Telescopic travel must remain centred in use
The installed shaft needs reserve movement in both directions for powertrain, subframe and body motion. If the wrong-length shaft is forced in, it can preload column or rack bearings. Too little engagement threatens separation.
Never lengthen a collapsible shaft by pulling aggressively or shorten it with hammer blows.
Fitment is specific to the entire steering layout
| Match detail | Evidence | Why it matters | Mismatch outcome |
|---|---|---|---|
| VIN/build/drive side | Vehicle identity. | Defines column and gear positions. | Wrong angles or length. |
| Column/rack reference | Part labels and option codes. | Matches splines and interfaces. | No fit or looseness. |
| Spline/master tooth | Technical drawing and original. | Indexes steering centre. | Wheel off-centre or forced fit. |
| Installed length | Specified datum measurement. | Preserves telescopic reserve. | Preload or disengagement. |
| Joint clocking | Factory marks and keyed assembly. | Controls velocity variation. | Cyclic bind. |
| Fastener/groove | Bolt diameter and shaft relief. | Provides axial capture. | Coupling separation. |
Free play should be traced joint by joint
With safe access, have an assistant move the steering wheel through a small angle while observing each coupling. The input and output of a sound joint move together. Relative motion at splines, cross bearings or telescopic interfaces identifies the source.
Keep hands away from pinch points and never perform this check beneath an unsupported vehicle.
Stiffness can change with steering position
Corroded universal-joint bearings may bind at particular angles, giving a notchy wheel or poor self-centring. Contact between shaft and heat shield, bulkhead seal or wiring can also create position-dependent effort. A steering rack or top mount can feel similar.
Disconnecting components for isolation requires restraint-system and clock-spring control, not casual trial separation.
Symptoms demand safety-weighted urgency
| Observation | Shaft possibility | Other source | Response |
|---|---|---|---|
| Rotational clunk | Loose spline or worn joint. | Rack mounts or column play. | Inspect before further road use. |
| Notch every half-turn | Seized universal joint/phasing. | Column bearing or rack. | Treat as urgent binding. |
| Wheel fails to return | Joint stiffness/contact. | Alignment, top mounts or rack. | Do not accept as normal. |
| Wheel off-centre after repair | Incorrect spline index. | Alignment/toe setting. | Re-establish centre correctly. |
| Airbag/angle warning | Clock spring rotated during work. | Sensor calibration/wiring. | Diagnose restraint/angle system. |
| Visible coupling separation | Missing bolt or wrong groove engagement. | Collision damage. | Do not drive. |
Corrosion attacks lower joints
A lower universal joint often sits near road splash and exhaust heat. Failed boots or drainage allow rust into needle bearings, creating stiffness before obvious play. Penetrating oil may change noise temporarily but cannot restore sealed bearing surfaces.
Renew the approved shaft or serviceable joint and restore shields rather than treating lubrication as a repair.
Pinch bolts are designed for a machined groove
The bolt should pass through a relief in the male shaft so the coupling cannot slide off even if clamp friction falls. If the shaft is not fully inserted, the bolt may sit beside the end or damage splines. Never substitute a smaller bolt that clears an incorrectly positioned shaft.
Use the exact grade, locking method and one-use rule from the vehicle procedure.
The clock spring has a limited rotation window
Inside the steering wheel, a flat electrical cable carries airbag and control circuits while coiling and uncoiling through normal steering range. With the shaft disconnected, the wheel can rotate beyond its centred turns and tear the cable.
Centre and positively restrain the wheel before separation; do not rely on the column lock alone unless instructed.
Airbag isolation needs time and key control
Switch off, keep the key outside detection range, disconnect the battery by procedure and observe the specified waiting time for restraint energy reserves. Hybrid vehicles may require additional high-voltage precautions when working around electric steering components.
Never probe airbag circuits with an ordinary test lamp or ohmmeter.
Wheel alignment must be centred before removal
Place the road wheels straight ahead and confirm steering-wheel centre. Mark relative positions only where permitted and photograph master-spline orientation. If the existing wheel is already off-centre, diagnose alignment rather than building the error into the new shaft.
Do not turn the rack or column independently once disconnected.
Access requires stable support and controlled movement
Use a lift or rated stands at approved points and maintain clearance from exhaust heat and rotating parts. If the rack or subframe will move, support and locate it by the service method. Movement can change shaft length or trap fingers.
Never loosen a steering coupling while someone can turn the wheel.
Removal preserves alignment and collapse features
Restrain the steering wheel
Use the specified device so it cannot rotate after the lower connection is released.
Remove the complete pinch bolt
A bolt through the groove prevents the coupling sliding even when loose.
Separate without impact
Use approved spreading or release points; do not hammer the telescopic shaft.
Inspection extends beyond the removed shaft
Check column output and rack input splines, bulkhead bearings, seals, heat shields and mounting brackets. Fretting, burrs or corrosion can prevent the replacement seating fully. Collision movement or subframe misalignment may place the shaft off-axis.
Do not file a master spline or widen a clamp to make an incorrect part fit.
Installation uses natural length and clocking
Keep the replacement at its supplied/service length, align master splines and slide it into full documented engagement. Confirm joints are phased and the telescopic section is not bottomed. Insert pinch bolts only when their grooves align completely.
Start fasteners by hand and use new locking hardware as specified.
Torque and witness checks secure the connection
Tighten each coupling bolt with a calibrated wrench while counter-holding as directed. Paint witnessing may support later inspection but does not replace torque. Refit boots and shields without rubbing the rotating shaft.
After torque, perform the specified axial pull check and verify the bolt crosses the capture groove.
Calibration may follow electrical reconnection
Restore battery power with the work area clear and follow steering-angle, electric-power-steering and window or stability-system initialisation. Read faults before clearing and verify the angle data shows near centre with wheels straight.
Calibration cannot compensate for a shaft assembled one spline out or incorrect wheel alignment.
Final checks cover static and dynamic safety
With wheels safely supported or on the ground as specified, turn lock to lock and check smooth effort, clearance and consistent joint motion. Confirm steering-wheel centre, self-return and absence of clunk on a cautious road test. Reinspect fasteners and boots.
Any binding, lost motion, warning or contact requires immediate correction before normal driving.
UK MOT steering requirements are safety-critical
The MOT checks steering operation, security, condition and excessive play. A worn or insecure shaft joint can constitute a serious defect. Passing a previous test does not make a new clunk or notch acceptable until the next inspection.
After collision, steering or subframe work, verify the full linkage and alignment rather than replacing only the most visible shaft.
Practical steering-shaft FAQs
Q: Is a steering shaft the same as a steering column?
A: It is usually the intermediate link between column and steering gear.
Q: Can a shaft with matching splines be used?
A: No. Length, master index, phasing, joints and capture grooves must match.
Q: Why must the wheel be restrained?
A: Uncontrolled rotation can destroy the clock spring.
Q: Can a stiff universal joint be lubricated?
A: A sealed corroded joint normally requires approved replacement.
Q: May the shaft be hammered shorter?
A: Never. That can damage collapsible safety features.
Q: What does the pinch-bolt groove do?
A: It provides axial capture as well as clamp location.
Q: Why is steering notchy after fitting?
A: Check joint phasing, clocking, contact, length and rack/column condition.
Q: Can calibration centre a crooked wheel?
A: Not if mechanical indexing or alignment is wrong.
Q: Are pinch bolts reusable?
A: Follow the vehicle rule; many require new locking fasteners.
Q: Is slight rotational play normal?
A: Trace it against the specified limit; coupling lost motion is safety-relevant.
Q: What means do not drive?
A: Binding, separation, major free play, missing bolt or unreliable steering response.
Q: What proves completion?
A: Captured torqued couplings, smooth full-lock movement, centred data and precise road response.
