Temperature is a control input, not merely a gauge value
Controllers use temperature to set fuelling, fan speed, lubrication protection, charging, gearshift, after-treatment and cabin comfort. The sensor must represent the intended medium at the intended location. A plausible number can still be wrong enough to alter control decisions.
Diagnosis therefore compares the reading with physical reality and related sensors over time.
Vehicle sensors measure many different environments
| Location | Typical control use | Environment | Common confounder |
|---|---|---|---|
| Engine coolant | Fuelling, fans and overheat protection. | Pressurised liquid. | Air pocket or low level. |
| Intake/charge air | Air-density and boost calculation. | Fast airflow and oil mist. | Heat soak after stopping. |
| Engine/transmission oil | Protection and shift/lubrication strategy. | Hot viscous fluid. | Wrong level or restricted flow. |
| Exterior air | Display, climate and ice warning. | Road airflow and splash. | Radiator/sun heat. |
| Exhaust/after-treatment | Catalyst, DPF and emissions control. | Very high gas temperature. | Harness heat damage. |
| Brake/wheel area | Commercial protection/monitoring. | Road debris and radiant heat. | Dragging foundation brake. |

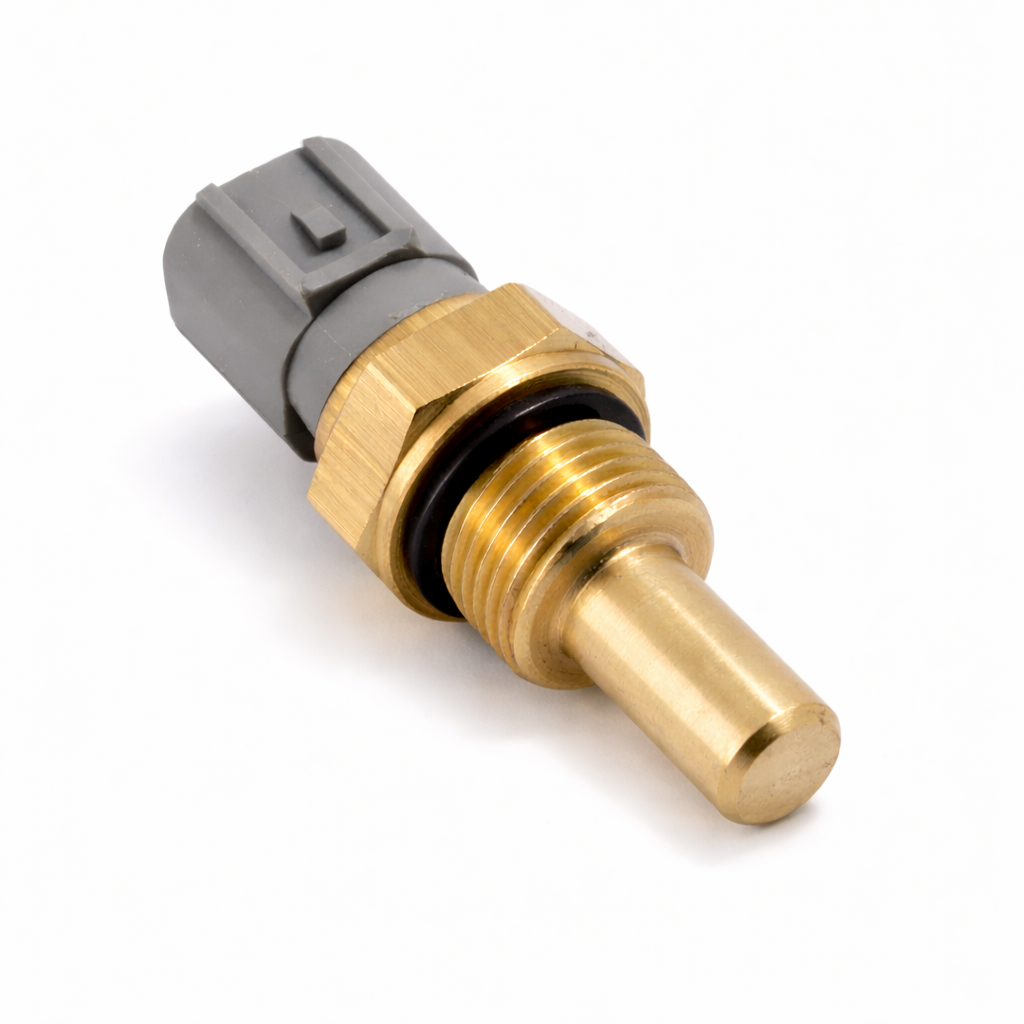

Thermistors change resistance with temperature
An NTC thermistor decreases resistance as it warms; a PTC device increases. A controller supplies a reference through an internal resistor and interprets the resulting voltage. Open and short circuits often appear as extreme cold or hot substitute values.
Use the exact temperature-resistance curve because two NTC sensors with matching threads can have very different calibration.
Thermocouples and digital sensors need different tests
A thermocouple generates a small voltage related to the temperature difference between its junction and reference. Semiconductor and network sensors may transmit conditioned digital data. Applying an ohmmeter or external voltage as though every sensor were a two-wire thermistor can misdiagnose or damage them.
Identify technology from the circuit diagram and component specification first.
Fitment includes calibration, response and packaging
| Match point | Evidence | Why it matters | Mismatch effect |
|---|---|---|---|
| Vehicle/system | VIN, chassis and option codes. | Defines measured medium and controller. | Wrong function. |
| Part/calibration | Original number and data. | Maps signal to temperature. | Plausible but biased reading. |
| Probe geometry | Length, diameter and response spec. | Places tip in correct flow. | Slow or contact damage. |
| Thread/seal | Washer, O-ring, clip or taper. | Retains fluid and positions tip. | Leak or poor earth. |
| Connector/pinout | Keying and wiring diagram. | Routes reference, earth and signal. | Short or no communication. |
| Range/material | Temperature and chemical rating. | Survives the environment. | Drift, melt or fracture. |
Cold-soak comparison is a powerful first check
After the vehicle rests long enough, coolant, intake, oil and ambient sensors should be reasonably close to actual surrounding temperature, allowing for location. One sensor far from the group suggests bias, wiring or heat source.
Compare before starting, since engine heat rapidly removes this simple common reference.
Heat soak explains some apparently high readings
After shutdown, airflow stops while heat moves from exhaust and engine metal into the intake or under-bonnet air. An intake or exterior sensor near the radiator may legitimately rise. Once moving, it should recover at a rate consistent with location.
Do not replace an ambient sensor solely because a parked sun-heated value differs from a weather app.
Symptoms are specific to the control system
| Observation | Sensor/wiring possibility | Physical cause | Response |
|---|---|---|---|
| Extreme cold reading | Open circuit or wrong calibration. | Genuine severe ambient cold. | Test circuit against reality. |
| Extreme hot reading | Short to earth/reference fault. | Actual overheating. | Stop and verify safely. |
| Reading jumps | Connector/harness intermittency. | Air pocket crossing probe. | Graph data and inspect system. |
| Slow response | Wrong probe or contamination. | Poor flow/thermostat behaviour. | Compare related temperatures. |
| Fans run continuously | Fallback from missing coolant signal. | Real high temperature. | Read faults before replacing relay. |
| Display differs from scan data | Separate sender/module/coding. | Display damping strategy. | Identify signal paths. |
Fault codes describe electrical plausibility
High-input and low-input codes often mean open or short circuits rather than physically high or low temperature. Rationality codes compare rate and relationship with other sensors. Record freeze-frame, substitute values and fan or derate response.
Clearing a code removes evidence and can temporarily reset fallback without fixing the cause.
Reference voltage and sensor earth are shared resources
Several sensors may share a five-volt supply or low-noise earth. One chafed circuit can bias all of them. Test the network with the wiring diagram and disconnect components only in a controlled sequence.
Do not add a chassis earth to a dedicated controller sensor-earth wire.
Harness heat and vibration cause intermittent faults
Wires near exhausts, cylinder heads and gearboxes harden, chafe and break inside intact insulation. Inspect terminal tension, oil or coolant ingress and route through every clip. Wiggle tests should be gentle and observed in live data.
Use approved high-temperature sealed repairs rather than household connectors.
Independent temperature measurement needs emissivity awareness
An infrared thermometer reads surface radiation, not internal fluid directly. Shiny metal, angle and distance can produce error. A contact probe or measured black reference spot may be more reliable where safe.
Compare at a physically meaningful location and allow for expected gradient between sensor tip and accessible surface.
Resistance testing should avoid self-heating
Disconnect the sensor as specified and measure with a suitable low-current meter at known temperature. Warm it gradually in a controlled bath only where removal and immersion are permitted. Check the curve at several points, not one room-temperature value.
Never immerse an electrical connector or heat a fuel-contaminated sensor with a flame.
Actual overheating takes diagnostic priority
Steam, coolant loss, oil-pressure warning, brake smoke or transmission protection can indicate real damage. Stop safely and let components cool; do not remove a pressure cap or touch a brake to prove temperature. Investigate level, flow, fans, mechanical drag and load.
A disconnected sensor that removes a warning does not make the system safe.
Safe removal depends on the measured medium
Cool and depressurise
Drain hot coolant, oil, fuel or air circuits only by their specific procedure.
Clean around the opening
Prevent scale and road grit entering precision fluid or air passages.
Protect wiring and threads
Release connectors by their locks and use a square-fitting socket.
Exhaust sensors remain dangerously hot
After-treatment probes can seize in threaded bosses and their harness insulation is specialised. Allow full cooling, support the exhaust and use the approved release method. Excess force can tear a thin boss from an expensive catalyst or filter.
Apply anti-seize only if supplied or specified, since it changes torque and electrical characteristics.
Fluid sensors require exact sealing
Fit the specified new O-ring, washer or clip and lubricate only with compatible fluid. Thread tape can insulate a body-earth sensor or detach into a passage. Start threads by hand and torque carefully in plastic or aluminium housings.
Refill the exact approved fluid and bleed air before judging the new reading.
Exterior-sensor location prevents false heat
Mount the sensor in its original bracket, exposed to representative airflow but shielded from direct radiator, road and solar heat as designed. Do not cable-tie it inside the engine bay. Restore undertrays and air guides that influence its environment.
Some displays intentionally delay or filter changes, so allow the stated drive cycle.
Final verification follows a realistic temperature cycle
Check cold-soak agreement, start response and gradual warming while monitoring related data and physical signs. Confirm fans, fuelling, climate, derating or warnings respond normally. Inspect every opened port for leaks at operating pressure.
Stop if the reading departs from reality or the system genuinely overheats.
Rate of change can expose location and flow faults
A sensor that eventually reaches a plausible value may respond too slowly because its probe is coated, outside the flow or surrounded by trapped air. Compare its warm-up curve with related temperatures and known thermostat or fan events. Sudden steps suggest electrical interruption rather than real thermal mass.
Use trend data over a complete controlled cycle, keeping real overheating limits in priority.
Practical temperature-sensor FAQs
Q: Are all two-wire temperature sensors interchangeable?
A: No. Calibration, technology, range, thread and controller must match.
Q: What is an NTC sensor?
A: Its resistance decreases as temperature increases.
Q: Does a high-input code mean overheating?
A: Often it means an open circuit; verify the code definition and reality.
Q: Why compare sensors after a cold soak?
A: They share a useful known ambient reference before the engine warms.
Q: Can an infrared thermometer prove coolant temperature?
A: It measures a surface and requires location/emissivity interpretation.
Q: May thread tape be used?
A: Only if specified; it can impair earth or contaminate passages.
Q: Why do fans run when a sensor is unplugged?
A: The controller may use a protective fallback strategy.
Q: Can one bad sensor affect several readings?
A: Yes, if it shorts a shared reference or earth circuit.
Q: Why is exterior temperature high when parked?
A: Sun and radiator heat soak can bias the local air temporarily.
Q: Must coolant be bled after replacement?
A: Yes when the circuit was opened and the vehicle procedure requires it.
Q: What requires immediate shutdown?
A: Steam, fluid loss, smoke, burning odour or confirmed dangerous temperature.
Q: What proves completion?
A: Plausible cold-to-hot data, correct system response and leak-free installation.
