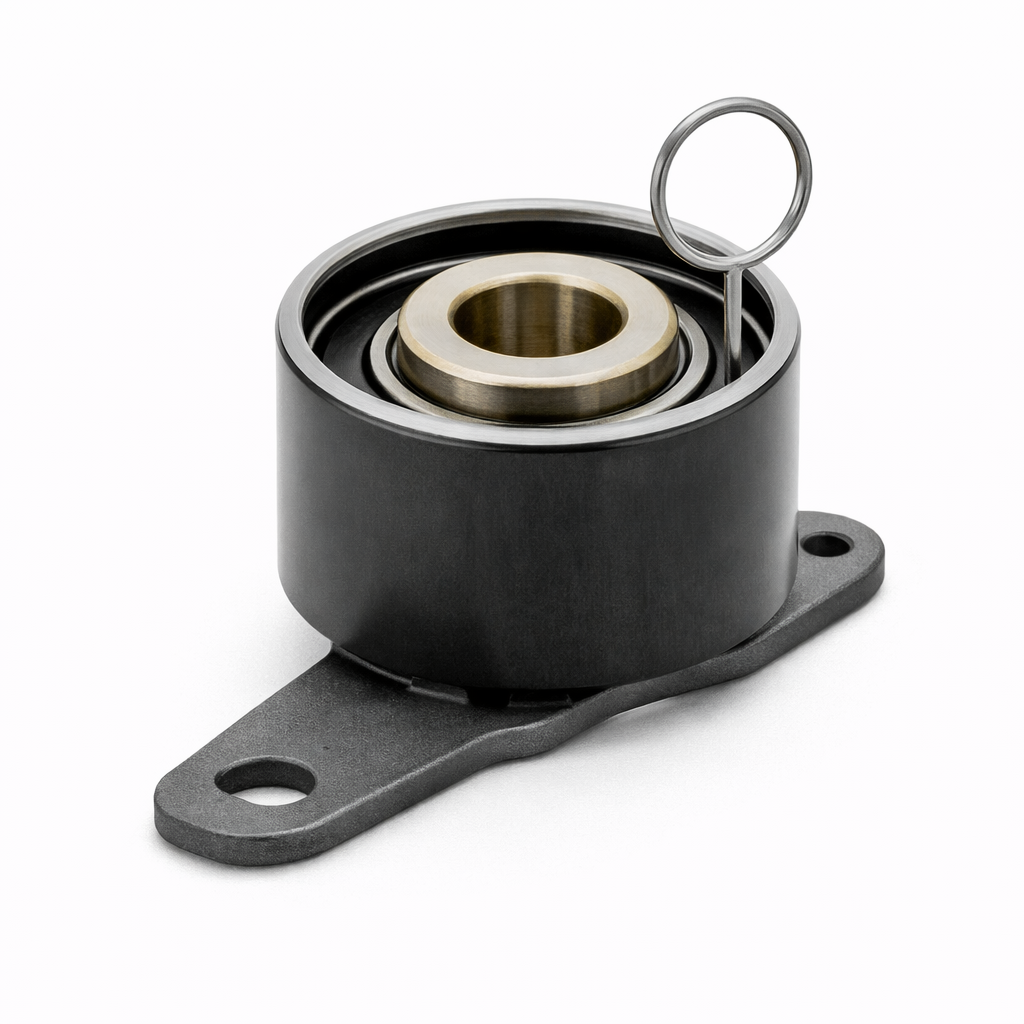

Timing Belt Idler Pulley

A timing-belt idler pulley guides the belt around the crankshaft, camshafts, tensioner and sometimes the water pump while maintaining the designed wrap angle and belt span. Unlike an automatic tensioner, a fixed idler normally does not regulate belt force, although some engines use an eccentric idler during initial adjustment. Its bearing, outside diameter, running surface and offset directly affect belt tracking and valve timing reliability.

Match by VIN, engine code, production date and the complete timing-drive layout. Confirm smooth or toothed surface, diameter, width, flange form, bearing bore, mounting offset, fastener and any spacer or eccentric scale. A pulley that bolts on but sits a few millimetres out of plane can walk the belt into a cover or flange. Check whether it is supplied with a new bolt and whether that bolt is one-time-use, torque-plus-angle or installed with a specified locking compound.

Whine, chirp, rumble, belt-edge polishing, rubber dust or an unstable timing trace can indicate pulley trouble, but tensioner bearings, water pumps, covers, sprockets and auxiliary drives can sound similar. Inspect with the engine stopped and safely supported. Feel for roughness, play, seal leakage, heat discolouration and eccentric running; do not judge a sealed bearing by spinning it at high speed with compressed air. A quiet pulley can still be beyond its service interval.

Timing work can cause severe engine damage if shafts move independently. Establish the approved timing position, support the power unit where mountings are removed and use the specified locking tools. Never rely on paint marks alone or turn an interference engine with the belt off unless the procedure permits it. Keep oil, coolant, brake cleaner and fingerprints away from the new belt. Repair every leak before assembly.

Clean the mounting face, install all spacers in their original order and tighten with a calibrated tool while holding an eccentric only at its designated feature. Set tension in the specified engine-temperature and rotation conditions, then rotate the crank by hand through the required cycles and recheck timing, pointer and tracking. Refit covers and mounts before controlled start-up. Timing-belt idler pulleys listed below should be renewed according to the engine’s complete timing-service plan, not treated as an isolated visible wheel.
