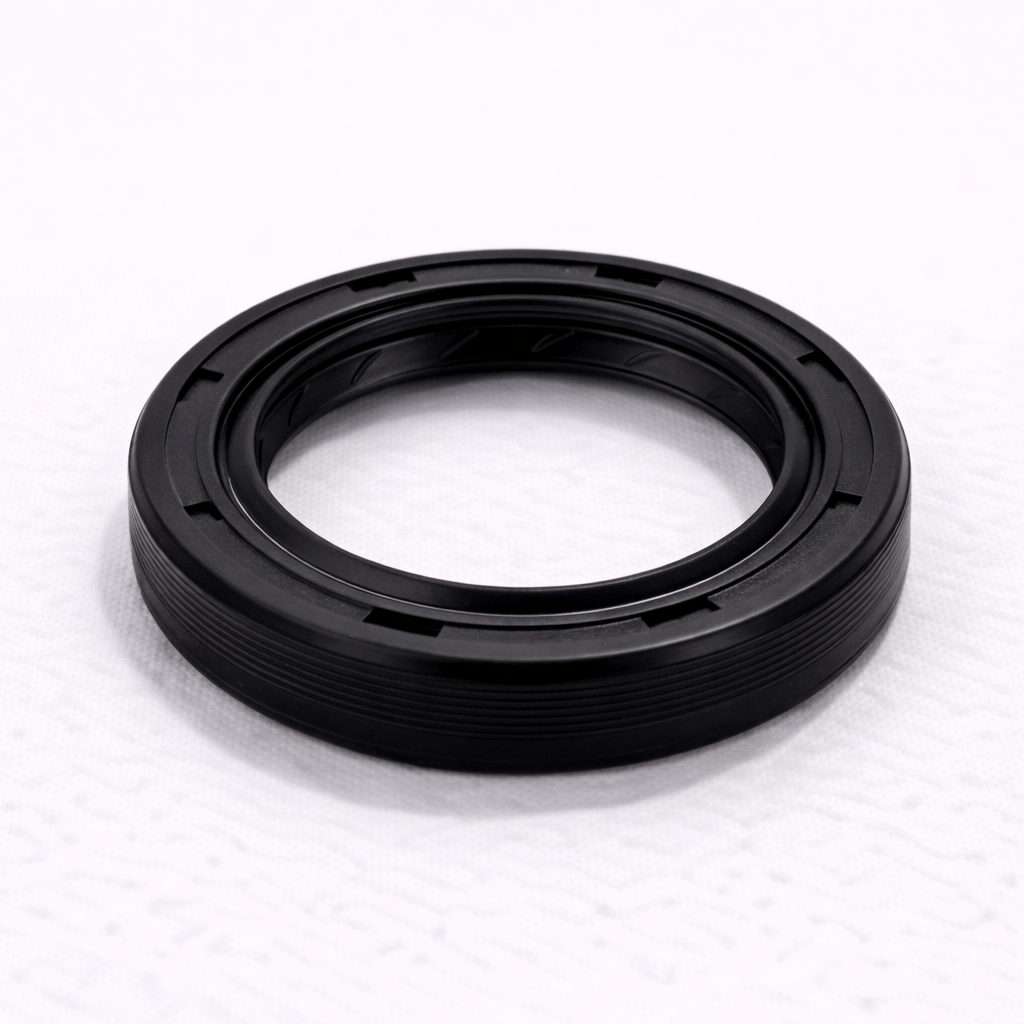

The seal supports an oil-fed chain-control assembly
A timing chain synchronises crankshaft and camshaft rotation. The tensioner takes up controlled slack so the chain remains engaged with its sprockets while allowing for wear and thermal movement. Many tensioners combine a mechanical spring and ratchet with an engine-oil-fed piston. The mounting seal prevents oil escaping at the joint and may also separate an oil gallery from the outside of the engine.
The gasket is therefore small but installation-critical. A leak reduces oil level and contaminates surrounding components; an incorrectly positioned seal can obstruct the tensioner feed. Removing the tensioner to reach it can also remove the restraint that prevents the chain jumping teeth.
Tensioner designs impose different service procedures
| Design feature | How tension is developed | Seal relevance | Service caution |
|---|---|---|---|
| Spring-loaded plunger | Spring provides initial force | External joint retains oil/splash | Plunger may extend when removed |
| Hydraulic plunger | Engine oil pressure supports chain load | Gasket may border a pressurised feed | Feed hole must remain aligned and clean |
| Ratchet-assisted hydraulic | Ratchet limits collapse; oil damps movement | Correct thickness preserves installed geometry | Reset and release sequence is design-specific |
| Externally adjustable legacy type | Manual setting controls guide position | Seal closes adjuster/tensioner housing | Adjustment requires engine-specific data |
| Integrated internal tensioner | Assembly works behind timing cover | Separate external gasket may not apply | Major timing-cover procedure may be required |
Do not infer the reset method from appearance. Some plungers must be compressed slowly and pinned; others are non-resettable or need replacement once released. Applying vice pressure to the wrong type can damage its non-return valve or ratchet.
Exact engine and tensioner revision determine fitment
Begin with VIN, engine code and build date, then compare the original tensioner and seal references. Manufacturers may revise oil passages, gasket thickness or tensioner bodies during an engine’s life. A seal that aligns with the bolts can still partly cover a gallery or fail to support the full flange.
| Match point | Evidence to use | Mismatch risk |
|---|---|---|
| Engine variant | VIN, engine code and production break | Wrong profile or oil-port position |
| Tensioner revision | Original number and body markings | Incorrect sealing land or thickness |
| Seal construction | Catalogue specification and removed part | Compression or fluid compatibility failure |
| Bolt openings | Diameter, spacing and locating features | Pinched gasket or restricted mounting |
| Oil-feed aperture | Repair illustration and clean face comparison | Tensioner starvation and chain rattle |
| Kit contents | Gasket, O-rings, plugs, bolts and tensioner | Unsafe reuse or duplicate parts |
Seal materials are selected for heat, oil and clamp load
Fibre and coated paper gaskets conform to fine surface variation at a defined thickness. Moulded rubber seals maintain elasticity in a groove, while metal or bonded-metal types control compression under higher temperatures and oil pressure. Each relies on suitable flange finish and correct fastener load.
A thicker homemade gasket can move the tensioner away from its intended position or alter an oil path. A thin layer of uncontrolled liquid sealant can squeeze inward and detach into the lubrication system. Use the specified dry, lubricated or locally sealed installation state rather than adding products “for insurance”.
Engine oil is both lubricant and hydraulic medium
Where the tensioner is hydraulic, oil viscosity, level, cleanliness and pressure affect its response. Select oil by the vehicle manufacturer’s viscosity grade and required performance approval, not simply by a generic label or what another engine uses. The filter also needs the correct flow and anti-drain characteristics for the application.
Long drain intervals, sludge, fuel dilution or a low level can delay tensioner filling after start-up. Changing the mounting seal cannot correct a restricted gallery, worn oil pump or unsuitable lubricant. If an oil-pressure warning appears, stop the engine and establish actual pressure by the approved test.
Oil leakage must be traced before dismantling
Clean the area using a method safe for connectors, belts and finishes, then inspect after controlled running. Oil travels downwards and rearwards with airflow. A cam-cover corner, breather hose, timing-cover joint or pressure switch above the tensioner can make the tensioner flange appear responsible.
UV dye may be appropriate only when approved for the oil and used at the specified concentration. Powder and solvent traces should not enter the engine. Repair excessive crankcase pressure or a blocked ventilation system because it can force oil past an otherwise serviceable seal.
Leak patterns and chain symptoms have different meanings
| Observation | Possible seal/tensioner link | Other important cause | Response |
|---|---|---|---|
| Fresh oil at flange | Compressed, split or displaced gasket | Leak tracking from above | Clean, trace and confirm before removal |
| Brief cold-start rattle | Oil draining from tensioner/feed | Worn chain, filter drain-back or wrong oil | Diagnose promptly; avoid repeated starts |
| Continuous chain noise | Tensioner not supplied or released correctly | Broken guide, elongated chain or low pressure | Stop engine to prevent timing damage |
| Timing correlation fault | Chain may have jumped during service | Wear, sensor or variable-timing fault | Do not continue running until timing is verified |
| Oil on belt/exhaust | External flange leak may spread | Adjacent cover or hose leak | Stop for smoke, fire risk or belt contamination |
| Metal/plastic debris in oil | Tensioner or guide deterioration | Other internal engine wear | Escalate to internal inspection |
Chain rattle is not a gasket diagnosis
Noise can result from chain elongation, damaged guide faces, a weak tensioner spring, ratchet wear, delayed oil pressure or variable-camshaft mechanisms. Accessory drives, vacuum pumps and heat shields can imitate timing noise. Use fault codes, oil history, sound location, mechanical timing checks and measured oil pressure where required.
Do not repeatedly start an engine to listen for improvement. If chain control is lost, an interference engine can bend valves within moments. The absence of a fault code does not confirm safe mechanical timing.
Removal can release the engine’s timing restraint
The chain may remain apparently taut until valve-spring loads rotate a camshaft or the crankshaft moves slightly. Once the tensioner is removed, slack can migrate to the driven side and permit a sprocket to jump. On some engines the chain guide can also fall or move beyond recovery without removing the timing cover.
Follow the manufacturer’s procedure for crankshaft position, locking tools, guide support and rotation direction. Paint marks alone do not lock the shafts. Never rely on selecting a transmission gear as a substitute for specified timing tools.
Access work can create secondary hazards
Park on level ground, secure the vehicle and let the engine cool. Disconnect electrical power only as prescribed, preserving settings and high-voltage safety where relevant. Remove covers, intake parts or engine supports according to their procedures. If an engine mount is disturbed, support the powertrain at the approved point with rated equipment.
Hot exhaust parts and engine oil can burn. Oil spilled on an auxiliary belt can cause deterioration or loss of drive, while oil reaching an exhaust can smoke or ignite. Protect and clean these areas rather than allowing runoff into undertrays.
Surface preparation protects the oil system
Contain open galleries
Use lint-free protection positioned so it cannot be left inside. Do not scrape debris towards the oil-feed hole or chain case.
Preserve the flange
Remove gasket residue with the approved tool and chemical. Abrasive rotary discs can remove metal, round edges and introduce damaging particles.
Inspect rather than disguise
Check for corrosion, cracks, pulled threads and flange distortion. Excess sealant cannot compensate reliably for structural damage or an incorrectly machined face.
The tensioner must be assessed while accessible
Inspect the plunger, ratchet and contact end as far as the repair data permits. Scoring, sticking, broken spring force or a damaged non-return feature may require complete tensioner replacement. Examine accessible guide surfaces for grooving, missing material or heat damage and review measured chain wear where the manufacturer provides a limit.
A new seal around a worn tensioner leaves the greater risk unresolved. Conversely, a sound tensioner should not be condemned solely because the external gasket hardened. Keep parts clean and identify their installed orientation.
Priming, resetting and releasing are design-specific
A hydraulic unit may need filling with clean approved engine oil. A ratcheting type may require the pawl to be released before slow compression and insertion of a retaining pin. Some designs are installed compressed and released through an access point; others extend when the engine is turned in a stated direction.
Never compress a tensioner rapidly in a vice without instructions. Trapped oil can create excessive internal pressure, and an unsupported body can crack. Do not pre-extend a unit if that prevents correct bolting or over-tensions the chain.
Installation preserves oil-feed alignment
Confirm the seal’s orientation against the repair illustration and ensure every oil aperture is fully open. Place it on clean dry locating features unless the specification requires a dressing. Install the tensioner squarely without using bolts to drag a spring-loaded, misaligned flange into place.
Renew torque-to-yield or otherwise single-use fasteners where stated. Tighten in the prescribed sequence and stages using calibrated tools. Under-tightening permits movement and leakage; excessive torque crushes the gasket, distorts the body or pulls threads from an aluminium head.
Liquid sealant has narrow approved uses
Some joints require small dabs at cover intersections or a named anaerobic/semi-drying product; many tensioner gaskets install dry. Use only the product, bead size, location and cure time specified. General-purpose silicone is not automatically oil-resistant or suitable for a pressurised gallery.
Remove excess external sealant only by the approved method and never assume a visible bead proves internal coverage. Squeezed-out material inside can block the tensioner feed or oil-pickup screen.
Manual rotation checks mechanical timing safely
After the tensioner is released, the procedure may require turning the crankshaft slowly by hand through a defined number of revolutions in its normal direction. Remove locking tools when instructed, use the correct crank tool and never use the starter for this check. Resistance must not be forced.
Return to the timing reference position and confirm marks or locking-tool fit exactly as specified. This validates phase after slack has distributed. It does not replace checking chain wear, camshaft adjuster position or tensioner extension limits where applicable.
Initial oil pressure may need to be established before firing
Depending on engine design, service information may specify disabling fuel or ignition and cranking to build oil pressure, or it may prohibit extended cranking. Follow that method and maintain battery voltage. Refill with the approved oil and filter, accounting for any amount drained.
On first start, watch the oil-pressure indicator and listen without revving. A momentary characteristic sound must be judged against manufacturer data, but continuous rattle, knocking or warning indication requires immediate shutdown.
Verification combines leakage, noise and timing evidence
| Stage | Check | Required outcome |
|---|---|---|
| Before start | Oil level, tools removed, connectors and covers restored | Complete, clean and correctly assembled engine |
| Initial start | Oil-pressure indication and chain sound | Pressure establishes; no persistent rattle |
| Warm idle | Tensioner flange and adjacent leak sources | Dry joint without fresh tracking |
| Diagnostics | Timing correlation and cam-control faults/data | No repair-induced timing discrepancy |
| Controlled road check | Noise and running across permitted conditions | Normal performance without warnings |
| Final inspection | Oil level, undertray, belts and exhaust | Stable level and no contamination |
Maintenance reduces tensioner and seal stress
Maintain the correct oil level and change oil and filter at the specified time and mileage using the required approval. Investigate dilution, sludge and recurring low level. Repair crankcase-ventilation faults that increase pressure. Listen to new start-up noise and inspect seepage before it becomes a large loss.
There is no universal preventive interval for the seal alone. Replace it when disturbed or when instructed with related timing work. Never reuse a compressed gasket merely because it appears intact.
Oil loss and timing faults affect road safety
A minor damp mark can develop into loss onto the road, tyre, belt or exhaust, while a timing fault may stop the engine without warning. UK roadworthiness assessment considers fluid leakage and engine-related safety defects in context, but an MOT certificate does not guarantee that a newly observed leak or rattle is acceptable.
Stop immediately for an oil-pressure warning, persistent chain noise, severe leakage, smoke or abnormal running after the repair. Do not drive in the hope that a hydraulic tensioner will eventually fill.
Practical timing-chain-tensioner-seal FAQs
Q: Does this seal control chain tension?
A: No. It seals the mounting joint; the tensioner and guides control chain slack.
Q: Can I match it only by engine capacity?
A: No. Use engine code, build date, tensioner revision and original references.
Q: Does oil near the tensioner prove its gasket leaks?
A: No. Clean and trace cam-cover, timing-cover, switch and breather sources first.
Q: Can the tensioner be removed without locking the engine?
A: Only if the exact manufacturer procedure explicitly permits it.
Q: May I rotate the engine with the tensioner out?
A: Not unless the prescribed timing procedure specifically requires and controls that movement.
Q: Is a hand-cut gasket suitable?
A: No. Profile, thickness, material and oil-feed alignment must be correct.
Q: Should silicone be applied to both faces?
A: Only use sealant where the service data names its type, amount and location.
Q: Does start-up rattle mean the seal has failed?
A: Not necessarily; oil pressure, filter, chain, guides and tensioner condition all matter.
Q: Can an old tensioner be refitted automatically?
A: Reuse depends on its condition and the engine procedure; some units are one-use.
Q: Why is oil specification important?
A: Hydraulic response depends on correct viscosity, cleanliness and approved performance.
Q: What requires immediate shutdown?
A: Oil-pressure warning, persistent rattle, timing faults, severe leakage, smoke or abnormal running.
Q: What proves the repair is complete?
A: Verified mechanical timing, normal oil pressure and sound, a dry joint and stable oil level.
