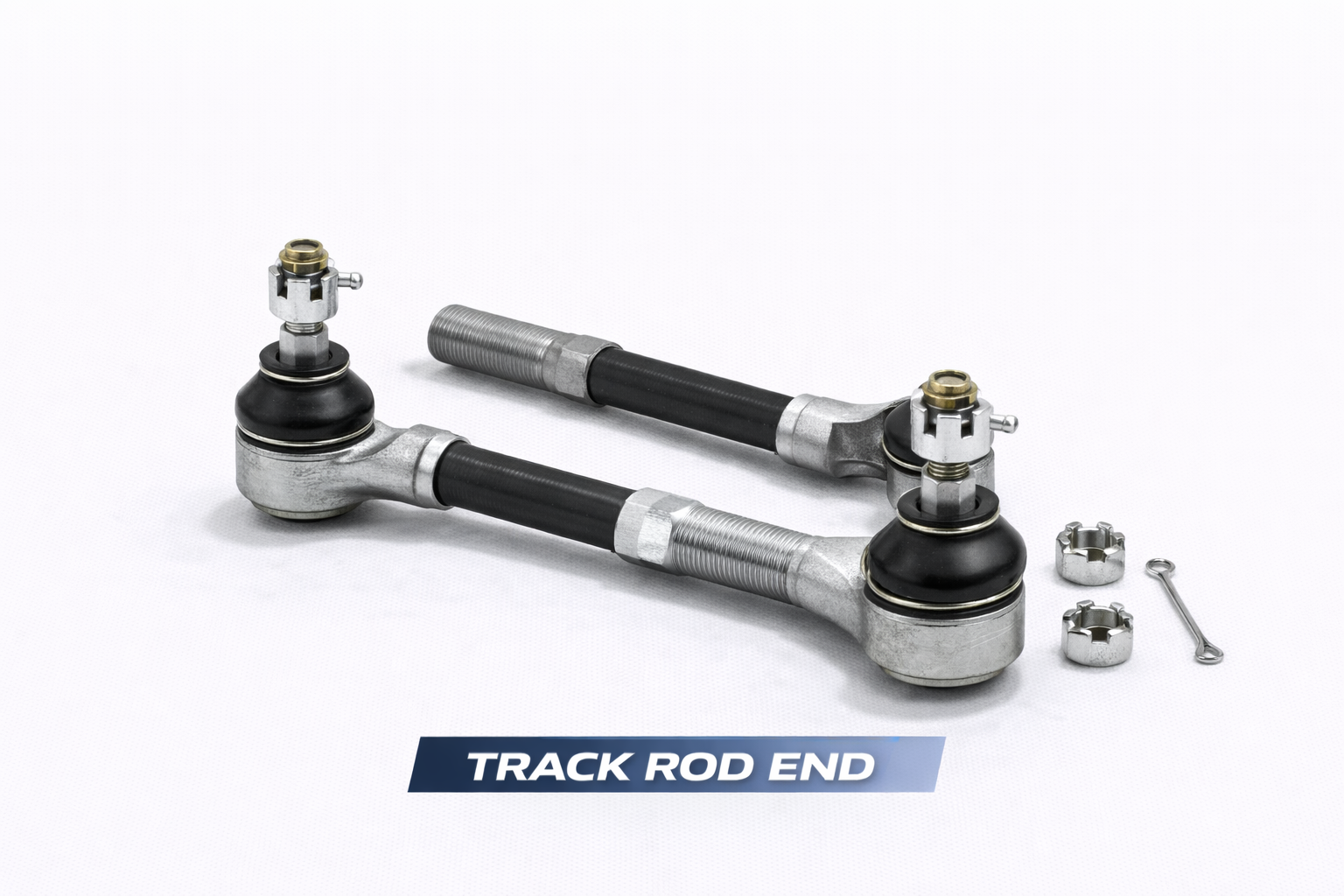

Track Rod End

A track-rod end is the articulated outer connection between a steering rack or linkage and the steering arm on the wheel carrier. Its ball-and-socket joint transmits push and pull while allowing suspension and steering angles to change. The threaded shank also forms part of the toe-adjustment system, and the tapered stud creates a rigid, accurately located connection in the steering arm.

Select by VIN, axle and side, steering rack or box type, thread diameter, pitch and hand, shank length, taper dimensions, stud height, ball-joint offset and any bend. Left and right parts may be mirrored or use opposite threads. A nut that starts and a taper that enters the hole do not prove correct seating, articulation or steering geometry.

Wear can show as delayed response around straight ahead, clicking during small steering reversals, wander, changing toe and feathered tyre wear. A split boot allows water and grit to displace grease, but boot damage is not the only test: the joint may be loose with an intact cover or stiff from corrosion without obvious play. Check inner track joints, rack mounts, wheel bearings, ball joints, bushes, tyres and wheel alignment as part of the diagnosis.

Any measurable movement between the ball stud and socket beyond the vehicle limit, a bent shank, loose taper or severe stiffness is safety-critical. Do not inject grease through a sealed boot, hammer the joint body, weld it, straighten it or tighten the taper nut beyond specification to hide play. A detached joint causes immediate loss of directional control at that wheel.

Before removal, centre and secure the steering, record thread engagement and measure a repeatable reference length. This supports initial reassembly but does not replace alignment. Use an appropriate separator that protects the steering arm, gaiter, brake hose and sensor wiring. Never strike an aluminium knuckle or heat the joint without a vehicle-approved procedure.

Inspect the steering-arm taper, then fit and tighten the stud exactly as specified, using new locking hardware where required. Preserve safe adjuster-thread engagement and an untwisted boot. Set toe professionally and verify steering-wheel centre. Correct looseness, binding or uncertain seating before road use.
