Chassis and derivative outrank the model badge

DB9, Vantage, DBS and Rapide overlap in production era and some engineering, yet powertrain installation, wheelbase, brake and suspension options vary. Later DB11, current Vantage and SUV architectures introduce different electronics and chassis systems.

Capture VIN, build date, chassis/derivative, engine, transmission and axle. Add factory and current brake, wheel, damper, aero and track modifications.

Supplier origin is not Aston Martin fitment evidence

An engine, gearbox, brake or controller can originate from a wider supplier family while using Aston-specific calibration, sump, mounting, cooling, exhaust, ratio, bracket or software. The donor application can identify a core design but not approve the finished part.

Require exact part-number cross-reference and compare functional capacity. A plug and bolt pattern cannot reveal torque rating, sensor scale or security coding.

Preserve a technical record before removal

VH-era torque path runs through a torque tube

Many DB9, DBS, Rapide and related Vantage derivatives mount the gearbox/transaxle at the rear and connect it to the front engine through a torque tube. Bearings, couplings, shaft alignment and mounts therefore influence vibration and gear engagement.

A noise attributed to the differential can travel through the tube. Check engine/transaxle mounts, shaft/bearing condition, clutch or converter and wheel bearings before dismantling the final drive.

Powertrain support must preserve tube alignment

Use approved lift/support fixtures and sequence. Allowing engine or transaxle to hang on the tube can damage couplings or bonded mount points. Mark shim and bracket positions before separation.

Manual, automated manual and automatic are separate systems

Some Vantage derivatives use a conventional manual; others use an electro-hydraulically actuated manual, while DB9/Rapide and later cars can use torque-converter automatics. Clutches, flywheels, hydraulics, fluids and adaptations differ.

Automated-clutch warnings require battery voltage, hydraulic pressure, actuator position, clutch wear and learned bite point to be captured. A relearn cannot correct a worn release bearing or leaking actuator.

Driveline configuration changes service decisions

V8 and V12 service uses complete engine identity

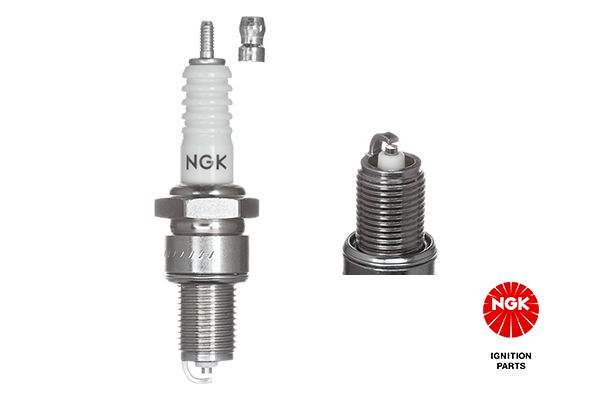

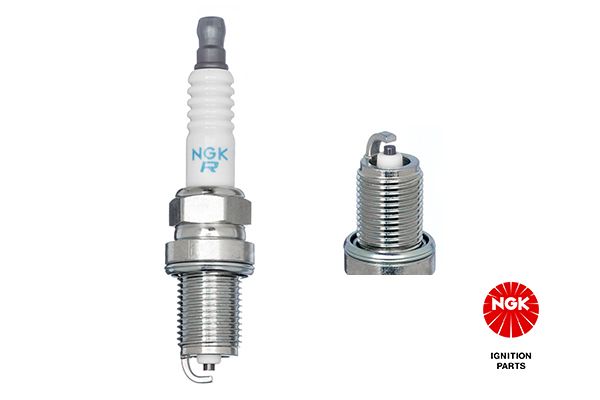

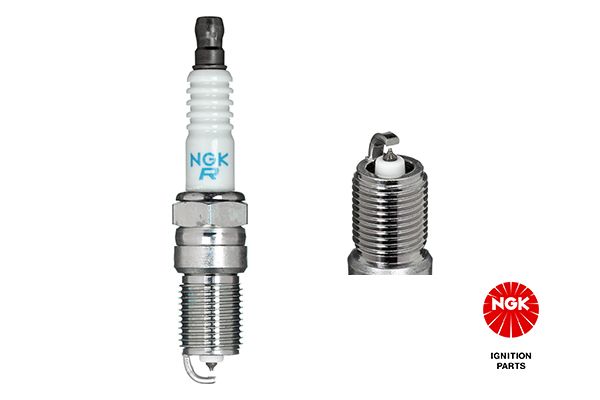

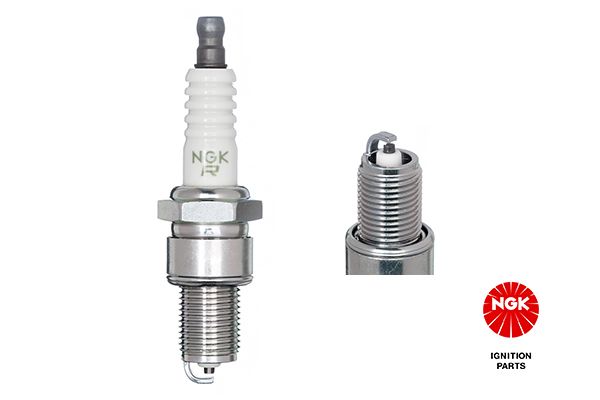

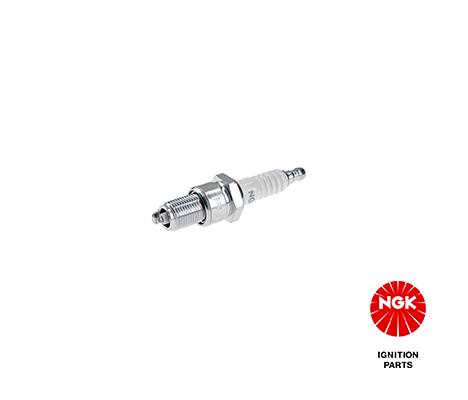

Cylinder count and capacity do not establish sump, ignition coils, injection, timing, oil cooler or exhaust. Later supplier-derived engines can be substantially changed for installation. Record full code and labels.

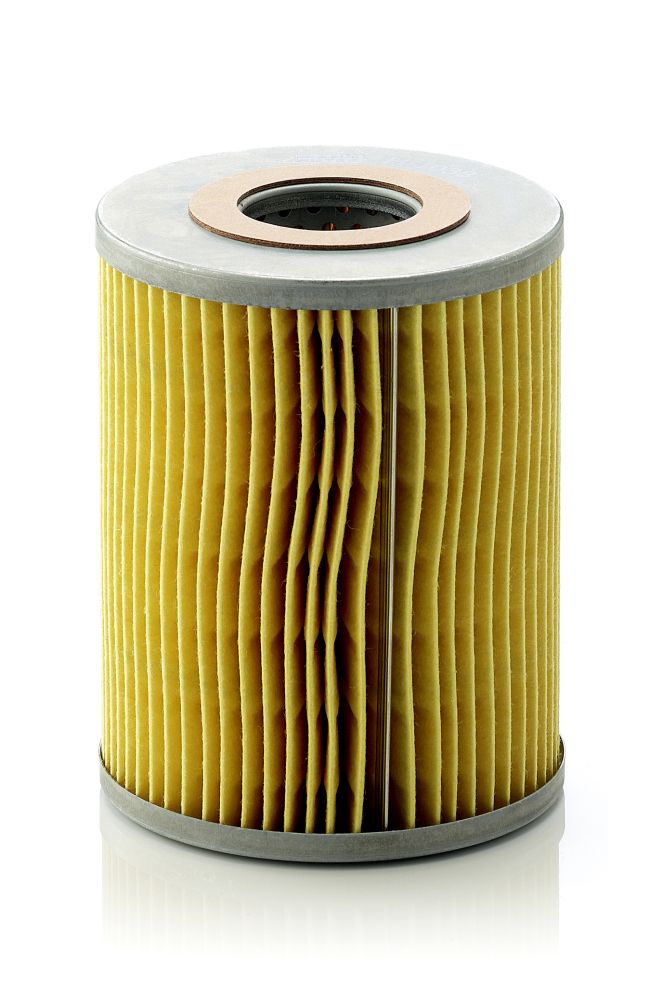

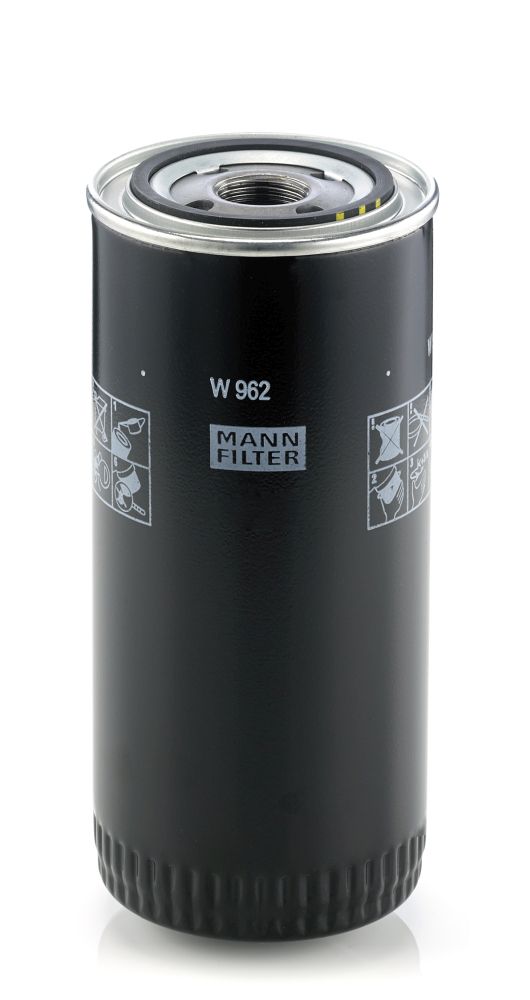

Use the exact oil approval, viscosity, filter and level conditions. Track operation increases heat and lateral load but does not permit arbitrary overfill. Stop for pressure warning, heavy smoke or fuel leakage.

Cooling systems depend on front airflow and long routing

Engine, charge-air, gearbox and cabin circuits can share a crowded front heat-exchanger stack. Debris between cores reduces capacity without an external leak. Inspect fans, shutters where fitted, pumps, header tank, caps and hoses.

Use the specified coolant and vacuum/diagnostic bleed procedure. Pressure-test cold. Overheating, steam or rapid loss requires shutdown before heat soak damages wiring, composites or catalysts.

Bonded aluminium cannot be repaired by steel habits

Extrusions, cast nodes and sheet sections use structural adhesive and mechanical fastening according to chassis. Heat, welding, grinding contamination and unapproved holes can reduce strength. Follow the exact sectioning and cure method.

Inspect bonded seams, suspension pickups and sill sections after impact or incorrect lifting. Adhesive separation may not produce an obvious outer crack. Measure chassis datum before attempting wheel alignment.

Adhesive and rivet specification is structural

Surface treatment, open time, cure temperature, rivet material and spacing transfer crash and suspension loads. A visually tidy substitute is not evidence of strength.

Composite panels can hide or exaggerate damage

Composite bonnets, clams, splitters or diffusers need resin- and reinforcement-compatible repair. Cracks can extend under paint, yet an outer panel can break while the aluminium structure remains straight. Remove enough trim to distinguish the two.

Restore mounts, heat barriers and airflow. A poorly secured splitter or diffuser can change cooling and high-speed stability, not just appearance.

Brake material changes inspection limits

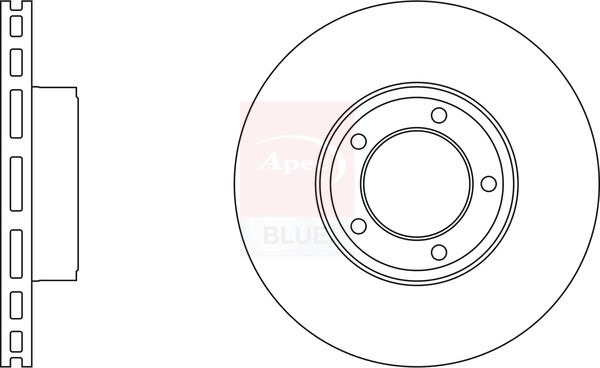

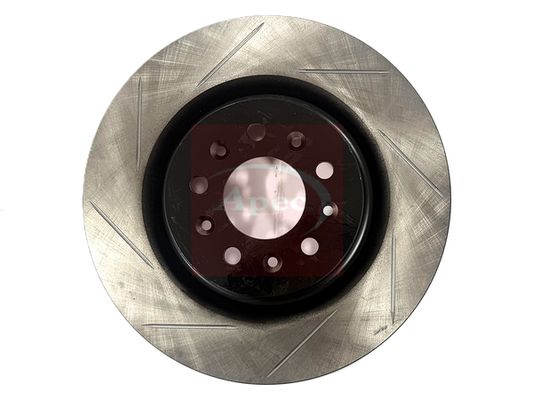

Iron and carbon-ceramic discs require matched pads and different condition assessment. Ceramic chips, heat history and wear indicators are not judged using iron minimum thickness alone. Protect discs during wheel work.

Confirm diameter, direction, offset, caliper and wear sensors. Use the specified high-temperature brake fluid where required, but select by approval and service condition rather than label claims.

Track braking must still work cold on the road

Competition-oriented pads can need heat for full friction and may create noise or disc wear in daily use. Road pads can fade on circuit. Select a proven combination for the intended environment and observe bedding and cooling.

Inspect ducts, hoses, seals and fluid after high-temperature use. Long pedal, cracking, fluid loss or severe vibration ends the session and prevents road driving.

Suspension setup begins from pickup integrity

Ride height, damper option, spring rate, shim position, tyre pressure and wheel offset influence geometry. Record chassis datum and alignment before dismantling. A bent arm or pickup can be hidden by excessive shimming.

Tighten bonded bushes at defined position and use correct locking hardware. Later active or air-suspension systems add height sensors, reservoirs, valves and calibration; support the body independently before depressurisation.

Wheels and tyres define road and track limits

Front/rear sizes can differ. Match diameter, width, offset, centre bore, fastener seat, load/speed rating and brake clearance. Semi-slick compounds can lose grip in cold and standing water.

Inspect inner shoulders, heat cycles and age. Modified wheel offsets increase bearing loads and may reduce body clearance. Declare changes to the insurer.

Low-voltage supply affects every control module

A weak battery or ground drop can create automated gearbox, damper, ABS and body faults. Load-test at the actual battery location and measure long cable paths. Preserve diagnostic data before disconnecting.

Replacement modules may need security pairing, VIN and derivative coding. Use stable programming support and correct water ingress or connector damage first.

Fire and restraint systems belong in one safety review

Inspect fuel tank, pumps, hoses, rails, oil lines, exhaust heat shields and firewall seals. Fuel smell or dampness rules out engine start. Track harnesses need compatible seats, belt angles, anchors and roll-over environment.

Do not drill the bonded tub for harnesses or extinguisher mounts without an approved method. Preserve airbags and standard belts for road use where required.

ADAS calibration follows structure and alignment

Later camera/radar systems depend on correct glass, bracket, ride height and thrust angle. Complete structural and wheel alignment before calibration after windscreen, bumper or chassis work.

A live sensor image does not prove aim. Keep the calibration report and assume assistance is unavailable when warnings remain.

Fault urgency rises with control and fire risk

Close the job with mechanical and setup records

1. Record VIN, chassis, derivative, engine and gearbox.
2. Document options, modifications, geometry and ride height.
3. Inspect bonded structure, composite and lift points.
4. Capture pressure, temperatures, faults and fluid condition.
5. Control fuel, spring, brake, heat and actuator hazards.
6. Use exact fluids, adhesives, rivets and locking hardware.
7. Restore heat shields, ducts, undertrays and fire barriers.
8. Bleed cooling/brakes and set transaxle levels correctly.
9. Align, learn and calibrate the defined derivative.
10. Verify progressively and retain the setup sheet.

MOT and track checks answer different questions

MOT roadworthiness covers tyres, brakes, steering, suspension, structure, lamps, visibility, restraints, emissions equipment and warnings. Scrutineering does not establish public-road legality; MOT does not certify a bonded repair or circuit setup.

Declare powertrain, wheel, aero, suspension and restraint changes to the insurer. Fuel leaks, structural damage and brake faults prohibit both road and track use.

Practical Aston Martin parts FAQs

Q: Does supplier origin prove a part fits Aston Martin?
A: No. Installation, calibration and capacity can differ.

Q: Do DB9, DBS and Rapide share every transaxle part?
A: No. Confirm derivative and gearbox code.

Q: Can torque-tube vibration be diagnosed as differential noise?
A: Not without checking mounts, bearings and alignment.

Q: Can clutch learning repair worn hardware?
A: No. Verify clutch and hydraulic condition first.

Q: Is extra oil safer on track?
A: No. Follow the exact level method.

Q: Can bonded aluminium be welded routinely?
A: No. Use the chassis-specific repair method.

Q: Does a cracked composite panel prove tub damage?
A: No, but the tub must be inspected.

Q: Are ceramic-disc limits the same as iron?
A: No. Material-specific assessment is required.

Q: Are track pads ideal when cold on road?
A: Not necessarily; compounds have temperature windows.

Q: Can any sill area support a jack?
A: No. Use the published reinforced lift points.

Q: Does a matching module plug prove compatibility?
A: No. Security, coding and software must match.

Q: Can harness mounts be drilled into the tub?
A: Only with an approved structural method.

Q: Does MOT status approve track modifications?
A: No. Road legality and insurance remain separate.

Q: What confirms an Aston Martin repair?
A: Sound structure, correct setup and stable measured operation.
