Bentley parts selection must begin with model generation, build data and option codes. Continental GT, Flying Spur, Bentayga and Mulsanne use different engines, gearboxes, brakes, air-suspension and electronic systems, while classic models form another service era. Record the VIN/chassis number, production date, engine and transmission codes, driven axles, brake/suspension options and installed component number before deciding fitment.
VW-era engineering relationships can help identify the broad platform or powertrain family, but they do not prove interchange with a Volkswagen Group application. Bentley-specific calibration, cooling, exhaust, mounts, body packaging, brake capacity, suspension tuning and electrical configuration may differ. Require an exact cross-reference or supersession and verify connectors and dimensions on the vehicle.
Modern V8 and W12 applications use unrelated turbo, ignition, injection, timing, lubrication and thermal components. Mulsanne powertrain and chassis systems are separate again. Earlier Bentley engines, carburettors/injection and high-pressure hydraulic/self-levelling systems need chassis-specific manuals, fluids and depressurisation; colour or marque history is not enough to select a hydraulic fluid.
Manual and automatic gearboxes, transfer cases and front/rear differentials each have their own lubricant and level procedure. Use the engine-specific oil viscosity and approval, correct coolant and brake fluid. All-wheel-drive systems need compatible axle ratios and closely matched tyre size, construction, wear and pressure. Large wheels must retain load rating, fastener seat and brake clearance.
Match iron or carbon-ceramic brakes by option, disc material, dimensions, caliper and wear sensors. Air suspension can retain pressure after shutdown; support the body independently and use diagnostic depressurisation. A low corner needs leak-down, line, valve block, compressor, sensor and linkage checks before part replacement.
Diagnose oil/coolant warnings, transmission behaviour, ride-height faults, charging issues and ADAS messages from full-system data and measurements. Restore heat shields, brake ducts, undertrays, clips and grounds, then calibrate suspension, steering and cameras/radar. Do not drive with brake/steering defects, unsafe ride height, tyre damage, overheating, fuel leakage, red warnings or structural damage; repair or recover before UK road or MOT use.
Your Current Vehicle
Or
Select Your Vehicle
Shop Parts by Category
Choose a category to view parts for your selected vehicle.
Vehicle Models and Options for BENTLEY
BENTLEY Car Part Categories
Only categories with verified fitment products are shown.
BENTLEY Parts Catalogue Online
Browse catalogue-backed parts by vehicle system.
Separate classic and modern engineering before fitment
Classic Bentley vehicles and the later Continental GT, Flying Spur, Bentayga and Mulsanne ranges have different chassis, hydraulic, engine and electrical systems. The badge provides historical continuity, not component interchange.
Record chassis/VIN, build date, model derivative, engine, gearbox and axle. On modern vehicles capture brake, suspension, wheel and driver-assistance options; on classics document previous conversions and part numbers.
Platform relationship is only a starting clue
VW-era Bentleys share engineering ancestry with other Volkswagen Group vehicles, but complete parts can differ in cooling capacity, software, mounts, acoustic treatment, braking and suspension. Similar plugs and castings are not sufficient.
Use exact cross-references, option data and fitted measurements. A supplier number may identify an electronic core without proving Bentley coding, connector pin use or bracket position.
Build a model-specific evidence file
| Evidence | Selection value | Remaining question |
|---|---|---|
| VIN/chassis/build | Generation, market and original model. | Later retrofit or replacement. |
| Engine code | V8, W12 or classic powertrain family. | Turbo, emissions and ancillary revision. |
| Gearbox/axle label | Transmission, transfer, ratio and fluid. | Software or controlled-differential option. |
| Brake option | Iron/ceramic disc, caliper and wheel clearance. | Previous conversion quality. |
| Suspension option | Air spring, damper and active chassis system. | Current ride-height calibration. |
| Installed number/scan | Hardware and controller identity. | Internal wear or incorrect coding. |
Continental GT and Flying Spur vary within generations
Body style does not establish engine, turbo arrangement, gearbox, all-wheel-drive generation or brake package. V8 and W12 variants have different intake, exhaust, cooling and front-axle loads. Facelifts can also change electronics and driver assistance.
Read complete engine and gearbox codes and option data. Confirm radiator/charge-cooler hose routing, caliper casting and damper label before ordering.
Bentayga adds SUV load and active-chassis options
Bentayga variants can differ by powertrain, seating, towing package, air suspension, active anti-roll equipment and brake system. Gross/axle mass and wheel load rating are part of fitment. Large diameter alone does not establish wheel capacity.
Towing, accessory and luggage loads must remain within plated limits. A replacement spring or air bag cannot increase authorised axle mass. Check ride height and alignment under the stated setup conditions.
Mulsanne forms a separate powertrain path
Mulsanne should not be treated as a Continental saloon with different bodywork. Engine, gearbox installation, cooling, rear-drive chassis, brakes, electronics and air-suspension calibration are model-specific. Use its own build and service data.
Low-volume revisions make removed-part labels valuable. Retain photographs and supersession evidence until hot/cold validation is complete.
Powertrain architecture sets the service boundary
| Area | Details to identify | Error to avoid |
|---|---|---|
| Modern V8 | Engine code, turbo, injection, timing and oil approval. | Assuming every group V8 service part is equal. |
| W12 | Generation, turbo system, cooling and ignition. | Selecting by capacity alone. |
| Mulsanne V8 | Model-specific engine, mounts, cooling and exhaust. | Using Continental data. |
| Classic engine | Chassis/engine number, fuel and ignition system. | Applying modern electronic assumptions. |
| Automatic gearbox | Unit, filter, fluid, temperature and level method. | Choosing oil by colour or ratio count. |
| AWD system | Transfer/centre drive, axles, ratios and tyres. | Ignoring circumference mismatch. |
Turbocharged engines depend on clean heat paths
Modern V8 and W12 engines can contain multiple turbochargers, charge coolers, oil/coolant lines, bypass/wastegate controls and heat shields according to generation. A boost code can originate from leakage, sensing, control, exhaust restriction or engine condition.
Compare requested and actual pressure, air mass, fuel pressure and temperatures. Inspect turbo oil supply/return and crankcase ventilation. Fuel leakage, heavy oil smoke or uncontrolled boost requires immediate shutdown.

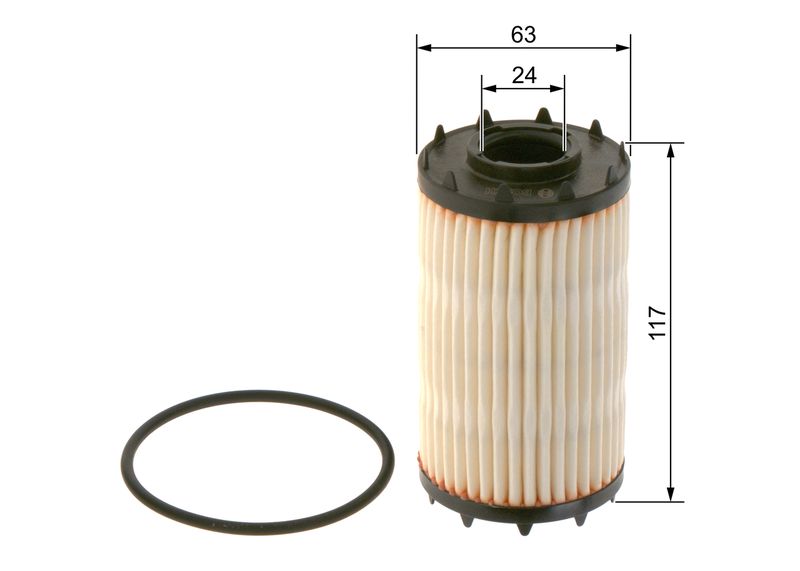

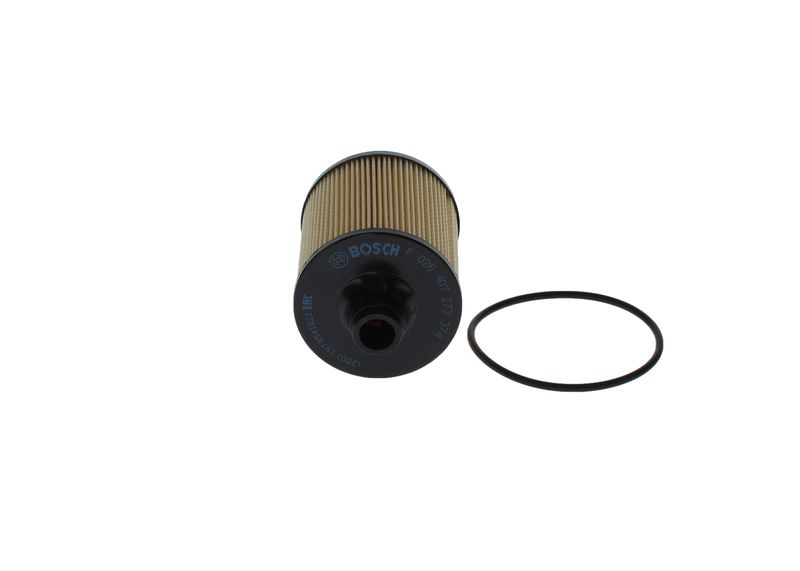

Engine oil approval matters under heat and load
Use the exact viscosity, named approval, capacity and level process. Electronic level measurement may require a defined oil temperature, idle period and level ground. Filling cold to an assumed quantity can overfill.
Stop for oil-pressure warnings. Test mechanical pressure, pickup, dilution and bearing/turbo supply before replacing a sender. Additives cannot restore worn bearings or clear a restricted line.
Cooling systems can contain several circuits
Engine, charge-air, gearbox and hybrid circuits where applicable may use separate pumps and heat exchangers. Identify each reservoir and valve path. Use the specified coolant chemistry and diagnostic bleed procedure.
Pressure-test only when cold. Inspect front radiator packs for debris and damage, not just visible coolant. Overheating, steam or rapid loss is a stop condition, particularly before turbo heat soak.
Transmission and axle fluids cannot be generalised
Automatic units, transfer systems and differentials use different friction and viscosity properties. Fill level can depend on fluid temperature and selector sequence. Identify every casing and confirm the fill plug before draining.
Shift faults can come from battery voltage, engine torque control, mounts, fluid, temperature, valve control or internal clutches. Preserve adaptations before reset. A relearn cannot repair worn friction material.
Classic hydraulic systems need chassis-specific chemistry
Certain classic Bentley braking or self-levelling systems operate at high pressure and use dedicated hydraulic fluid. System design and fluid can differ by chassis era. Never select by colour or introduce conventional brake fluid unless the exact manual specifies it.
Stored pressure remains after the engine stops
Accumulators can retain energy. Depressurise with the documented method, support the car and protect against injection injury. Cleanliness is essential when opening valves or lines.
Air suspension faults should be measured over time
Modern air systems use bags/struts, compressor, reservoir, valve block and height sensors. Record corner heights after shutdown and over a defined interval. One low corner points differently from a vehicle that cannot raise any axle.
Support the structure independently and use diagnostic pressure release. After replacement, inspect lines, calibrate ride height, align wheels and confirm headlamp and ADAS aim.

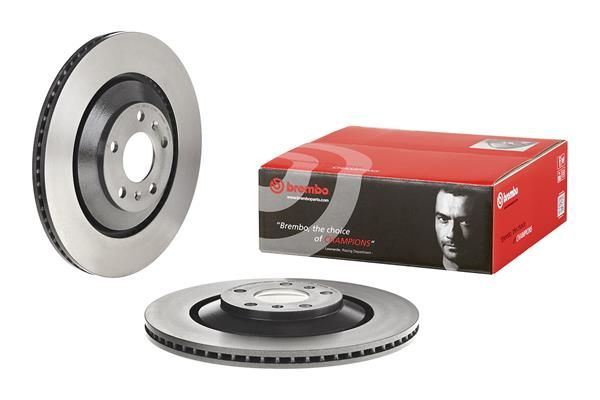

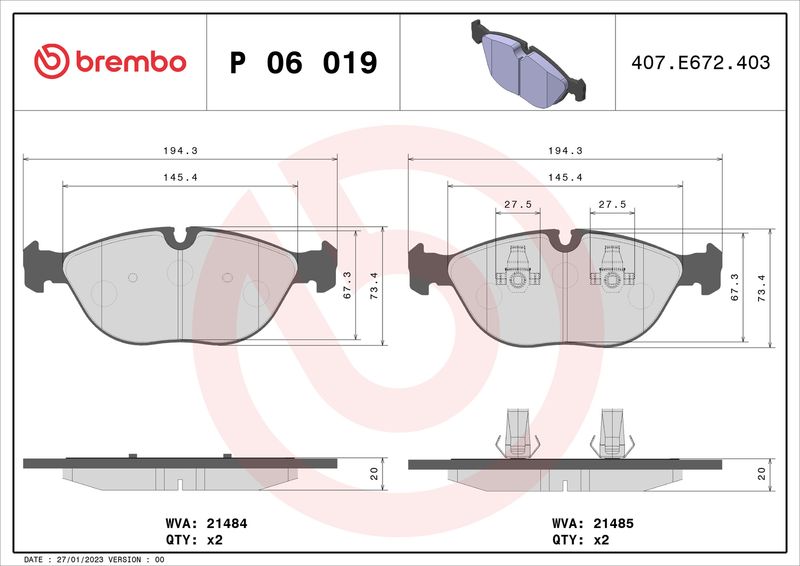

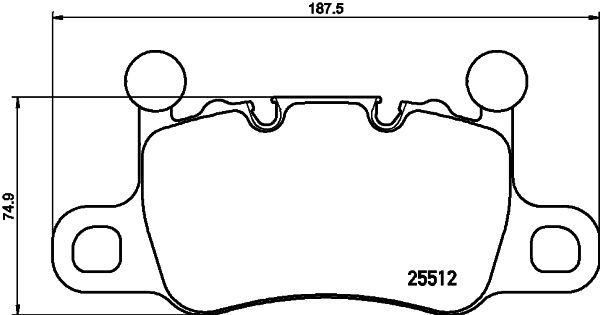

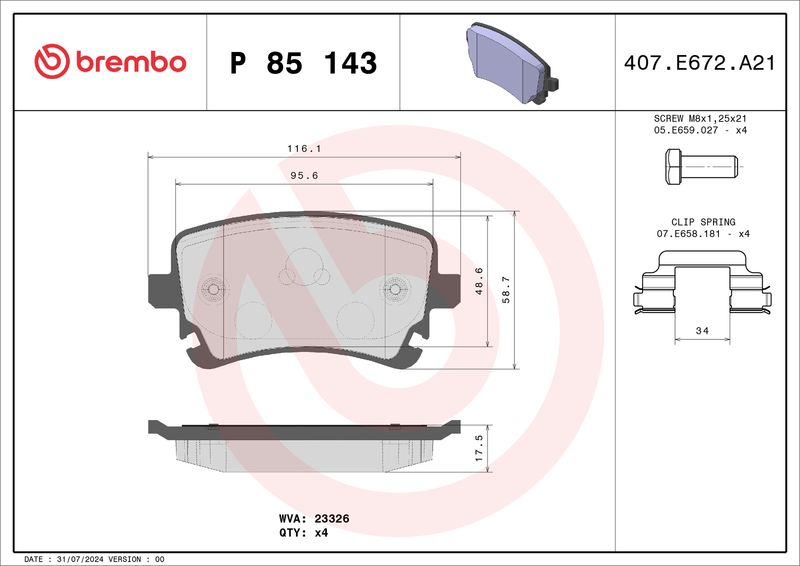

Brake material and option code must match
Iron and carbon-ceramic discs require their compatible pads, wear assessment and handling. Ceramic damage limits are not iron-disc thickness rules. Protect ceramic surfaces from impact and inappropriate chemicals.
Caliper piston layout, disc direction, diameter and offset affect fit. Restore cooling ducts. Use electronic parking-brake service mode and complete the diagnostic bleed routine where specified.
Tyres and wheels carry mass, heat and AWD duty
Use approved size, construction, load/speed rating and pressure. Front/rear sizes can differ. Closely matched rolling circumference supports all-wheel-drive control, while correct load rating is essential on Bentayga and Flying Spur.
Inspect inner shoulders, wheel cracks, bead corrosion and fastener seats. A wheel style associated with the model does not prove genuine dimensions or load capacity.
Network faults often begin with low-voltage supply
Multiple suspension, gearbox, brake and body warnings can follow battery deterioration or a resistive ground. Test under load and measure cable drop before controller replacement. Scan every relevant module.
Replacement electronics need vehicle configuration, security and software compatibility. Keep programming support stable and preserve the original coding. Repair water ingress first.
ADAS depends on body and ride-height geometry
Windscreen, grille, bumper, suspension and alignment work can disturb cameras/radar. Confirm brackets, glass, ride height and thrust angle before calibration. A communication-only scan does not prove aim.
Calibration failure can be a mechanical clue
Repeated target failure should prompt inspection of sensor mount, body datum, wheel alignment and height sensors. Software cannot compensate for bent structure.
Use symptom severity to control movement
| Symptom | Evidence path | Immediate limit |
|---|---|---|
| Oil-pressure warning | Correct level state, mechanical pressure and supply path. | Stop engine immediately. |
| Transmission fault | Voltage, fluid, temperature, pressure and adaptations. | Recover if engagement is unstable. |
| Low air-suspension corner | Height decay, bag, line, valve, compressor and sensor. | No use with tyre/body contact. |
| Brake pull/long pedal | Fluid, hydraulics, calipers, discs and tyres. | Do not road-test. |
| Fuel or coolant leak | Pressure, hoses, pumps, heat exchangers and caps. | Stop; control heat/ignition. |
| ADAS/chassis warning | Supply, geometry, sensors, brackets and calibration. | Assume assistance is unavailable. |
Close the repair against its option build
- Record chassis/VIN, build, engine, gearbox and options.
- Verify installed numbers and exact cross-reference evidence.
- Capture faults, heights, fluid state and tyre measurements.
- Control high pressure, heavy components, heat and fuel.
- Use exact fluids, seals, one-use hardware and torque stages.
- Restore cooling, brake ducts, undertrays, clips and grounds.
- Fill and bleed at defined temperature and position.
- Calibrate suspension, steering and parking brake.
- Align chassis before driver-assistance calibration.
- Validate progressively and reinspect hot and cold.
MOT condition is independent of prestige or age
UK checks cover tyres, brakes, steering, suspension, structure, lights, visibility, restraints, emissions and warning lamps. Historic testing status depends on the individual vehicle and current rules; roadworthiness still applies.
Declare wheels, suspension, exhaust and powertrain changes to the insurer. An MOT pass does not validate hydraulic fluid, option coding or ADAS calibration.
Practical Bentley parts FAQs
Q: Do VW-era related parts automatically fit a Bentley?
A: No. Exact reference, option and calibration must agree.
Q: Are Continental GT V8 and W12 service parts shared?
A: Not generally; powertrain systems differ.
Q: Can Mulsanne data be inferred from Flying Spur?
A: No. Treat Mulsanne as a separate architecture.
Q: Can oil level be checked under any conditions?
A: No. Follow model-specific temperature and attitude.
Q: Is one lubricant suitable for gearbox and transfer case?
A: Not unless both exact specifications explicitly match.
Q: Can classic hydraulic fluid be chosen by colour?
A: No. Chassis-specific chemistry is essential.
Q: Does a low corner prove air-bag failure?
A: No. Test lines, valves, compressor and sensors.
Q: Can air suspension support workshop access?
A: No. Support the structure independently.
Q: Are ceramic-disc limits the same as iron?
A: No. Use material-specific inspection criteria.
Q: Can wheel style confirm load rating?
A: No. Read dimensions and certified capacity.
Q: Can one tyre upset all-wheel-drive operation?
A: Yes. Compare circumference, pressure and wear.
Q: Does low battery voltage create chassis warnings?
A: Yes. Test supply under load first.
Q: Does MOT status prove ADAS calibration?
A: No. Calibration is separately verified.
Q: What confirms a Bentley repair?
A: Correct option evidence and stable calibrated operation.
