A Daewoo identification file needs a badge timeline

Daewoo model families crossed ownership, market and branding changes. Some vehicles developed under Daewoo continued under Chevrolet names, sometimes with revisions to lamps, engines, trim, emissions or electronics. The engineering boundary may not align with the badge-change date on a registration document.

Record what the vehicle was built as, what it is registered as now and what hardware is actually installed. Parts evidence should reconcile all three.

Use a transition matrix before choosing a component

Matiz packaging makes dimensions decisive

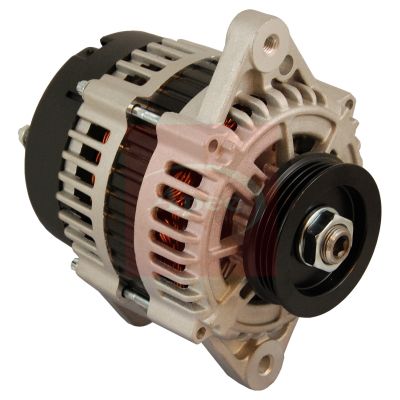

The compact engine bay leaves little tolerance for differences in hose shape, alternator position, radiator outlets, engine mount and exhaust routing. Confirm Matiz generation, engine, steering side, gearbox and brake arrangement. Later Chevrolet-badged relatives require their own application evidence.

A component that bolts on but changes belt alignment or fan clearance is not acceptable. Compare mounting planes and pulley offsets, not only connector or bolt count.

Lanos parts follow body, engine and market

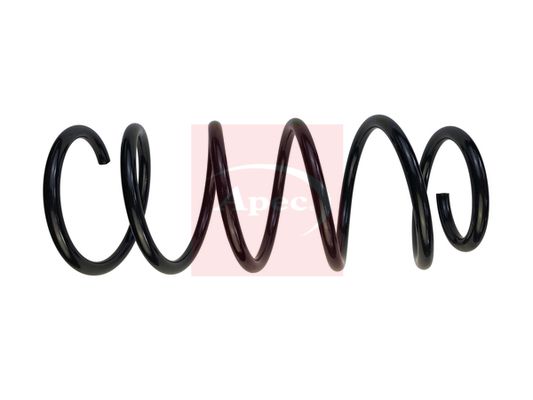

Hatchback and saloon-type configurations can alter exhaust length, rear lamps, cables, springs and glass. Engine variants change ignition, timing, cooling and clutch components. Identify whether emissions and fuel-system parts match the original market.

Inspect intake hoses and vacuum lines for splits before condemning idle valves or sensors. Age-hardened rubber can create mixture faults that move as the engine or hose warms.

Nubira and Leganza need complete powertrain codes

Nubira body and generation choices affect chassis, exhaust and electrical parts, while Leganza saloon applications add their own engine, automatic and brake packages. Similar-looking control units or sensors can carry different calibration and pin functions.

Use engine and transmission identity together when selecting mounts, driveshafts, coolers and fluids. Photograph wiring routes because aged clips can break during dismantling and must be restored without contact with heat or moving parts.

A later Chevrolet label is evidence, not automatic supersession

Accept a cross-reference only when technical data explicitly links both exact applications. A newer package label or visually matching part does not prove backwards compatibility with an earlier Daewoo build.

Corrosion inspection starts at loaded structures

Cooling faults should be solved before parts are ordered

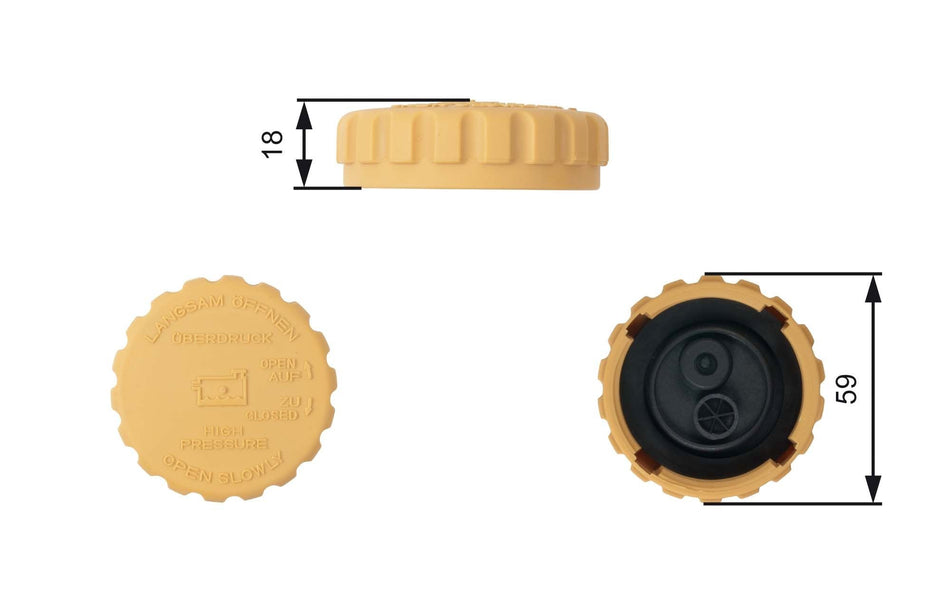

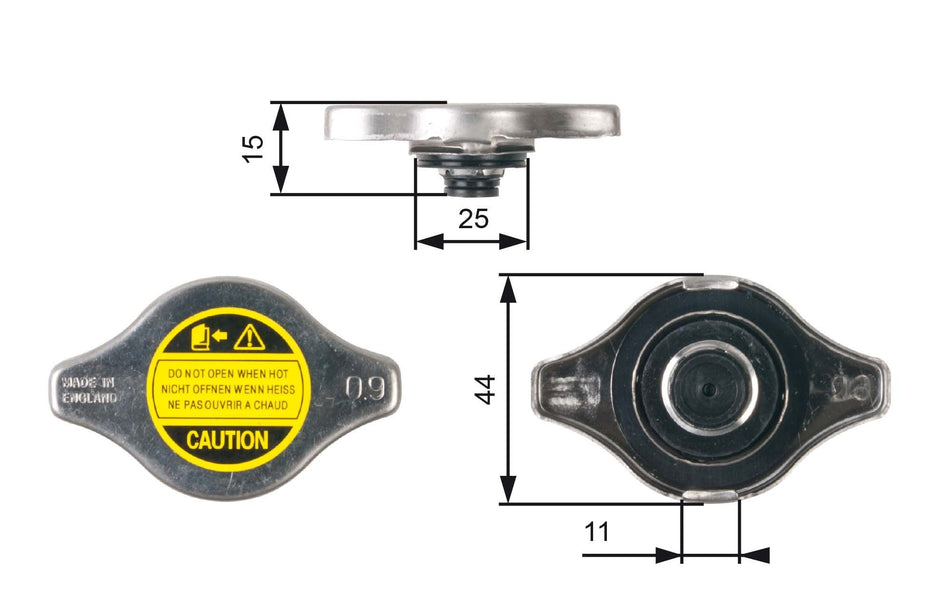

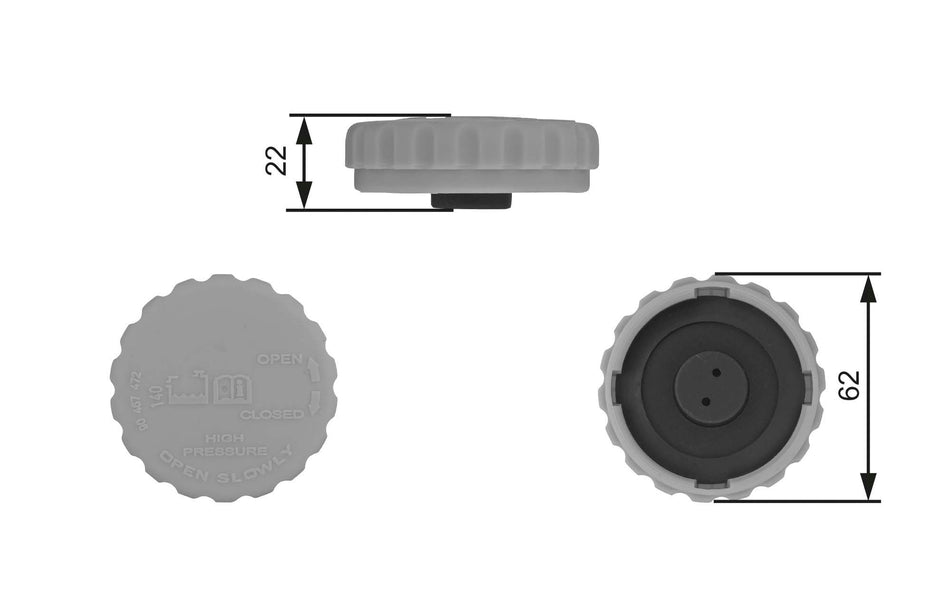

Pressure-test a cold system, inspect cap, radiator seams, thermostat housing, pump, hoses, heater circuit and fan operation. A coolant-temperature reading can be wrong because of a sensor, connector or ground, but boiling, hard hoses and coolant loss require mechanical investigation.

Do not open a hot expansion vessel or continue driving to see whether the temperature settles. Aluminium cylinder heads can distort after severe overheating, so test combustion leakage and compression where evidence supports it.

Coolant chemistry matters to mixed metals and seals

Identify the approved coolant for the exact engine and build. Colour is not a standard; two products that look alike can use incompatible inhibitor packages. If the existing chemistry is unknown, choose a controlled drain/flush decision rather than mixing.

Use clean water quality and concentration stated by the procedure, bleed trapped air and verify cabin heat and fan cycles. Recheck level only after complete cooling.

Small electrical losses create large diagnostic errors

Measure battery condition, cranking drop, alternator output and ground voltage under load. Inspect fuse-box terminals, ignition-switch supply, relay contacts and engine/body earth straps. Corrosion inside a crimp can remain hidden beneath sound insulation.

Use the original fuse rating. A larger fuse allows wiring to become the protective element, increasing fire risk. Replacement modules and immobiliser parts may need exact market/security matching.

Timing service is engine-code work

Fuel compatibility is a materials question

Aged hose, pump diaphragms, O-rings and plastic connectors may not suit current petrol containing ethanol. Read material markings and use a hose rated for the fuel, pressure and under-bonnet temperature. Ordinary rubber tube and worm clips are not universal fuel repairs.

After storage, drain stale fuel by a controlled method and inspect the tank. Never use an electric workshop vacuum or unapproved pump for petrol.

Manual and automatic drivetrains separate early

A manual repair needs gearbox code, clutch diameter, spline, release bearing/slave design and flywheel. Correct engine or gearbox oil leaks before installing friction parts. Check cable or hydraulic actuation through full travel.

An automatic requires its unit code, pan/filter, cooler, fluid specification and level procedure. Broad DEXRON-family wording does not prove the correct generation. Inspect drained fluid for odour and debris before deciding on further service.

Brake work includes the cause of uneven wear

Identify disc or drum dimensions, calliper/wheel-cylinder system, master-cylinder bore and parking-brake cables. Clean and inspect both sides. A collapsed flex hose, corroded piston or seized slider can destroy new friction material quickly.

Use the specified hydraulic fluid and dedicated clean tools. Repeated pumping on an unknown master cylinder can move seals into corroded bore areas; follow a controlled bleed method and test pedal before road movement.

Storage faults appear only when movement resumes

Tyres can crack internally, wheel cylinders can leak after the first pedal application and seals can fail as shafts rotate. Before start-up, inspect oil and coolant, turn the engine safely, establish lubrication as instructed and check the intake for obstruction.

Move initially in a controlled private area after braking and steering are proven. Stop immediately for wheel heat, fuel smell, coolant loss or charging smoke.

Fault urgency follows containment and control

Upgrades should solve a measured problem

Ignition, cooling, brake and suspension updates can be appropriate when engineered for the exact model. Record wiring, fluid, wheel clearance and geometry. A larger radiator or calliper can create hose, fan, master-cylinder or wheel conflicts.

Declare modifications to the insurer and retain required emissions and lighting equipment. Avoid tuning an ageing engine until compression, fuel pressure, cooling and brakes are known sound.

MOT preparation should expose, not conceal, age

UK testing considers applicable brakes, steering, tyres, suspension, structure, lamps, visibility, emissions and warning systems. It does not verify timing-belt history, coolant compatibility or that a Chevrolet-era cross-reference is technically correct.

Roadworthiness remains continuous. Serious corrosion and leaks require repair even when a certificate has time remaining.

Common Daewoo parts mistakes

• Ordering from the current badge without the original build identity.
• Assuming every later Chevrolet cross-reference is backwards compatible.
• Using registration capacity instead of engine code.
• Fitting a sensor before checking supply, earth and mechanical cause.
• Choosing coolant from colour.
• Using any DEXRON-family fluid in an unidentified automatic.
• Renewing a timing belt without tensioner/pump procedure.
• Covering subframe or sill corrosion with underseal.
• Fitting unmarked hose in a petrol system.
• Road-testing after storage before proving brakes and tyres.

Practical Daewoo parts FAQs

Q: Why does the badge timeline matter?
A: Some Daewoo-developed vehicles later used Chevrolet branding with market and production revisions.

Q: Is a Chevrolet-badged part automatically suitable?
A: No. Require an explicit cross-reference for the exact Daewoo build and system.

Q: How should Matiz parts be confirmed?
A: Use generation, VIN/build, engine, gearbox, steering side, dimensions and installed references.

Q: What is urgent corrosion?
A: Corrosion affecting subframes, suspension, steering, brake lines or other structural load paths needs immediate assessment.

Q: Can coolant be identified by colour?
A: No. Match the required chemistry and concentration, then bleed the exact engine correctly.

Q: Does a temperature code prove the sensor failed?
A: No. Test actual temperature, coolant level, wiring, earths, thermostat and fan operation.

Q: Are all DEXRON fluids interchangeable?
A: No. Use the exact automatic-transmission specification or an explicit approved supersession.

Q: Should the water pump accompany a timing belt?
A: Follow the engine procedure and inspect whether pump access, age and drive make renewal necessary.

Q: Can modern petrol damage old hose?
A: Incompatible aged materials can harden, swell or leak; use rated fuel hose and seals.

Q: What comes before starting after storage?
A: Check fuel, lubrication, cooling, wiring, brakes, tyres and engine freedom under a controlled plan.

Q: Does an MOT assess timing-belt history?
A: No. Maintenance evidence and roadworthiness responsibilities extend beyond test items.

Q: When should a Daewoo be recovered?
A: Recover it for fuel/coolant loss, deficient control, structural insecurity, unsafe tyres, smoke or lost drive.
