Lamborghini models divide into distinct architectures

Gallardo and Huracán are not simply different bodies over one unchanged V10 system. Aventador follows a separate V12, carbon-structure and transmission path. Urus is a front-engined turbocharged SUV with different mass, chassis and automatic transmission, while newer electrified cars add high-voltage boundaries.

Start with VIN, build date, derivative, market, engine, transmission, driven axles, brakes, suspension and wheel options. Preserve installed labels and scan identity before dismantling.

Supplier ancestry is only the first line of evidence

A part can share a supplier or broad group design and still differ in internal specification, software, connector usage, bracket or thermal capacity. Lamborghini option data and model-specific supersessions take priority over visual similarity.

Check dimensions, handedness, operating range and calibration. When a supersession requires a matching pair, adapter or software update, treat the instruction as part of fitment.

Create an option-controlled component record

V10 service parts follow engine generation

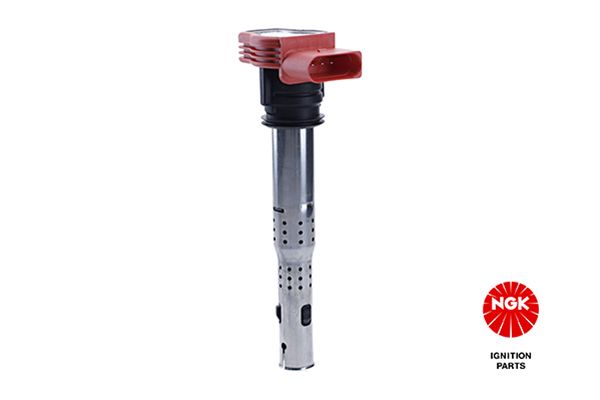

Gallardo and Huracán can differ in injection, ignition, intake, exhaust, oil circulation, mounts and management. Identify exact engine code and production phase. Do not choose coils, injectors, pumps or filters solely from cylinder count.

Misfire diagnosis includes compression, leak-down, spark, injector operation, fuel pressure, air leakage and mechanical timing. Protect catalysts by avoiding repeated running with an active misfire.

V12 systems require their own heat and timing plan

Aventador and other V12 families use unique packaging, cooling, lubrication and exhaust shielding. Work methodically across banks and retain component position. An imbalance can reflect air, fuel, ignition, compression or sensor-reference issues.

Account for every shield, clamp and ground. Radiant exhaust heat can damage body, hose or loom when a small protection item is omitted.

Urus brings SUV mass and turbocharged duty

Urus brakes, tyres, suspension and driveline carry much higher mass and load than a two-seat supercar. Confirm axle limits, towing data where relevant and wheel load rating. A spring or tyre replacement cannot increase plated capacity.

Turbo faults need charge-air leak testing, requested/actual pressure comparison, wastegate control, oil and coolant path inspection and exhaust assessment. Do not replace a turbo from a single underboost code.

Oil and coolant belong to the exact engine

Dry-sump or electronic levels require exact conditions

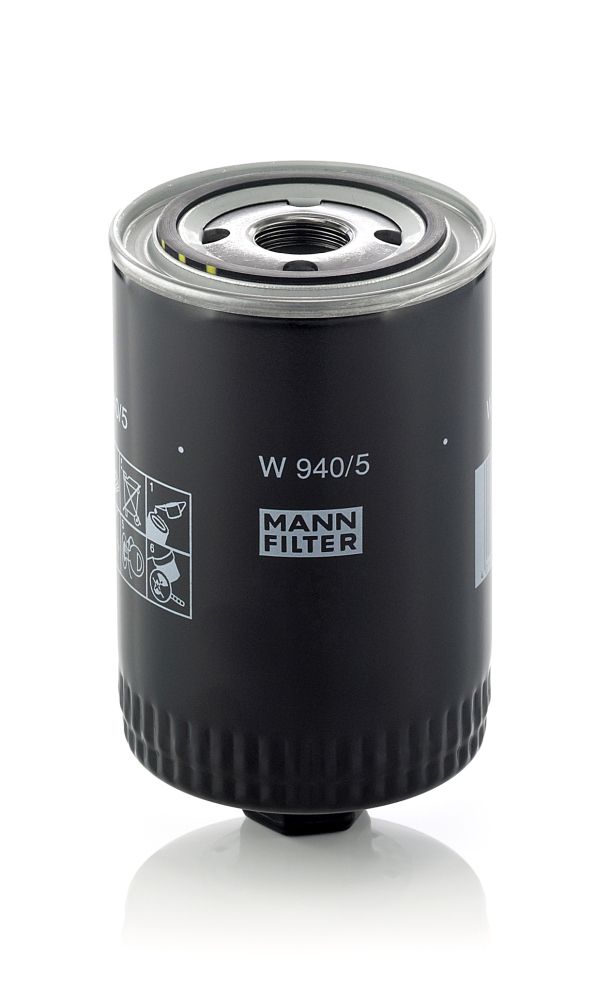

Follow the model procedure for temperature, engine state, level ground and waiting time. A cold reading or delayed display can lead to overfill. Use only the specified filter and seals and inspect lines disturbed during service.

Shut down immediately for an oil-pressure warning. Confirm actual pressure and supply paths before assuming an electrical fault.

Cooling capacity depends on clean airflow

Low noses and complex radiator stacks collect road debris. Inspect all layers, ducts, shutters and fans. Pressure-test cold, compare inlet/outlet temperatures and activate pumps or valves diagnostically.

After-run activity may be intentional

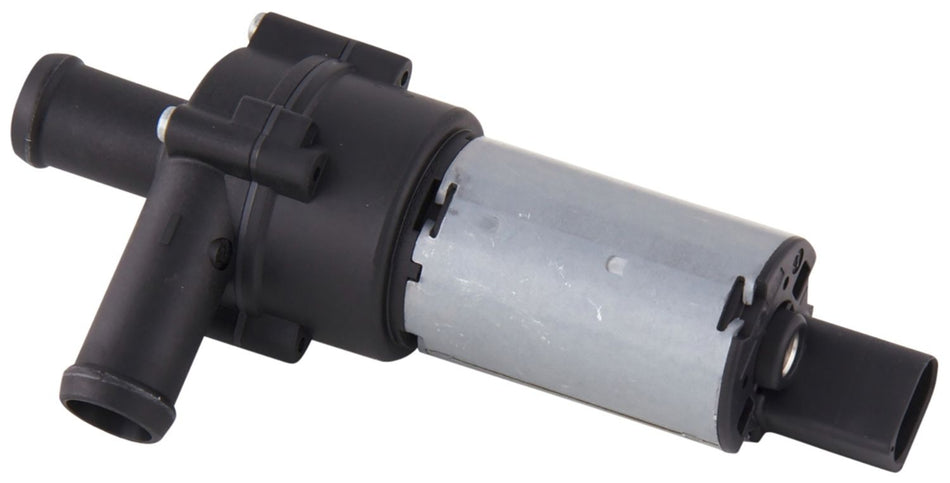

Fans and pumps can continue to control heat after shutdown. Do not disable them because they appear to drain the battery; test supply, command and excessive heat generation instead.

Transmission type changes the diagnostic language

Traditional manual, automated single-clutch, dual-clutch and torque-converter transmissions have different failure evidence. Record gear selection, clutch values, pressure, temperature, voltage and adaptation before reset.

An adaptation procedure belongs after correct mechanical repair, fluid level and actuator installation. It cannot restore a worn clutch, leaking hydraulic unit or damaged gearbox.

Carbon-ceramic brake inspection is not an iron-disc check

Follow the applicable condition method, damage limits and wear indicators for the ceramic rotor. Thickness alone may not describe serviceability. Handle rotors with protected tools and avoid grease or aggressive cleaners.

Use the correct compatible pads and sensors. A chipped edge, impact mark or material change needs assessment to the exact specification, not resurfacing on ordinary brake equipment.

Iron brake packages still vary by derivative

Record diameter, thickness, offset, ventilation and caliper casting. Match axle friction and restore ducts. Use electronic parking-brake service mode where fitted and complete the correct bleed routine.

Verify brake balance and heat after controlled bedding. A pedal that changes or a wheel that becomes abnormally hot is a stop condition.

All-wheel drive depends on compatible rolling size

Use approved front and rear tyre specifications, which may be intentionally staggered. Compare pressure, wear and circumference. An incorrect single tyre can affect differential and stability-control operation.

Inspect wheel barrel, offset, fastener seat and load rating. Static clearance does not prove clearance at full lock, bump and brake temperature.

Nose-lift and aerodynamic systems need complete restoration

Front-axle lifting equipment can include hydraulic or electro-hydraulic pressure, actuators, hoses, switches, sensors and control logic. A vehicle that settles or will not lower needs leakage, pressure and position diagnosis. Support the structure independently and release stored pressure by the specified method.

Active spoilers, flaps and cooling shutters rely on undamaged hinges, actuators, position feedback and airflow paths. After bumper, undertray or collision work, confirm free movement and correct fasteners. Do not manually force an actuator or substitute a fixed position without engineering and diagnostic evidence.

Ride-height change affects alignment, headlamp aim, brake-duct position and camera or radar references. Complete chassis setup at the normal specified state and calibrate relevant systems before assuming a warning is only cosmetic.

Carbon and aluminium structures need controlled lifting

Use the designated jacking points, blocks and lift sequence. Avoid loading floors, aerodynamic panels or battery protection. After an impact, measure structural datums before aligning wheels.

Composite repair requires model-approved materials, scarf geometry and cure. Aluminium joining needs contamination and heat control. Cosmetic straightness is not a structural test.

High-voltage derivatives require specialist isolation

Trained personnel must secure the vehicle, prevent charging or remote wake-up, follow the documented shutdown and verify absence of dangerous voltage. Capacitors and batteries can remain energised when the engine is silent.

Battery impact changes workshop risk

Deformation, coolant leakage, unusual temperature, odour, hiss or smoke calls for a quarantine and emergency plan. Do not lift or charge a suspect vehicle until it is assessed by competent personnel.

Electronics and ADAS need stable physical references

Load-test the low-voltage supply and grounds because multiple warnings can share one voltage cause. Save all-module data before programming or replacement.

Set tyre pressures, ride height and geometry before calibrating steering, cameras or radar. Inspect brackets and body position; software cannot compensate for a bent mount.

Fault severity controls the next movement

Close-out includes heat, aero and calibration

1. Confirm VIN, derivative and option equipment.
2. Save fault, software, pressure and geometry baselines.
3. Plan lifting, heat, fuel and electrical safety controls.
4. Use exact fluids, seals and one-time hardware.
5. Restore every duct, shield, undertray, clip and ground.
6. Fill and bleed at defined temperature and position.
7. Perform gearbox, brake and chassis setup as specified.
8. Align before assistance-system calibration.
9. Validate progressively without high load.
10. Reinspect leaks, tyre state, temperatures and fasteners.

MOT compliance is not a performance approval

The UK test covers defined brakes, steering, tyres, structure, lighting, visibility, restraints, emissions and warnings. It does not confirm track readiness, ceramic-disc health beyond its test scope, option coding or high-voltage isolation.

Power, exhaust, wheel, brake, suspension and software changes require engineering consideration, insurance disclosure and compliance with road noise and emissions rules.

Practical Lamborghini parts FAQs

Q: Is a Lamborghini model badge enough for fitment?
A: No. VIN, build, powertrain and options are needed.

Q: Do Gallardo and Huracán share all V10 parts?
A: No. Engine generations and installations differ.

Q: Can a group-platform part be assumed identical?
A: No. Specification, software and calibration must match.

Q: Are ceramic rotors measured like iron rotors?
A: No. Use the prescribed ceramic condition method.

Q: Can any pad be used with carbon-ceramic discs?
A: No. Fit the approved compatible friction material.

Q: Does an underboost code prove turbo failure?
A: No. Diagnose air, control, fuel, oil and exhaust paths.

Q: Is one transmission fluid suitable across models?
A: No. Identify each gearbox and separate circuit.

Q: Can one different tyre affect all-wheel drive?
A: Yes. Rolling circumference and wear must remain suitable.

Q: Can the underfloor be used as a lifting point?
A: No. Use only the documented structural pads.

Q: Is a silent hybrid electrically safe?
A: No. High-voltage isolation must be proven.

Q: Does clearing an ADAS warning calibrate the sensor?
A: No. Calibration is a separate measured procedure.

Q: When should a Lamborghini be recovered?
A: For critical brake, steering, tyre, heat, fuel, transmission or HV faults.

Q: Does an MOT pass confirm high-speed suitability?
A: No. It is a minimum roadworthiness inspection.
