Separate Proton’s engineering eras before selecting parts

Proton history includes early licensed architectures, later in-house engines and bodies and periods of external chassis-engineering input. Those relationships explain design influences but do not provide a fitment rule. Saga, Satria, Gen-2 and Persona names cover distinct generations, and Persona itself can refer to different market/body eras. Start from vehicle identity rather than a family tree.

Record the full VIN, production month, original sales market, model/chassis and body code, steering side, engine and transmission identifiers and factory equipment. A UK first-registration date can lag manufacture. Inspect the installed component for casting, label, connector and dimensions because older cars may have replacement engines, gearboxes or trim from another version.

Engineering ancestry does not equal interchange

An early Saga component may derive from a licensed design, yet export calibration, connector, mount or brake specification can differ. Later Proton-developed vehicles can share an engine family without sharing sump, intake, wiring or software. Treat any cross-reference as a claim to verify using original numbers and physical evidence.

Identify engine code, timing and control generation

Gen-2 and Persona applications are often associated with CamPro-family engines, but that word covers revisions in intake control, head hardware, sensors and software. Satria and Saga generations use additional engine families. Record full code, displacement, output and emissions configuration. Inspect the timing cover and label; do not infer belt or chain from model name.

Timing work needs the correct belt/chain, tensioner, idlers, seals, water-pump relationship and locking/marking procedure. Establish whether the engine can suffer valve contact if timing is lost, and avoid rotating cams and crank independently where the procedure prohibits it. Use the current schedule for the specific market and engine rather than one Proton interval.

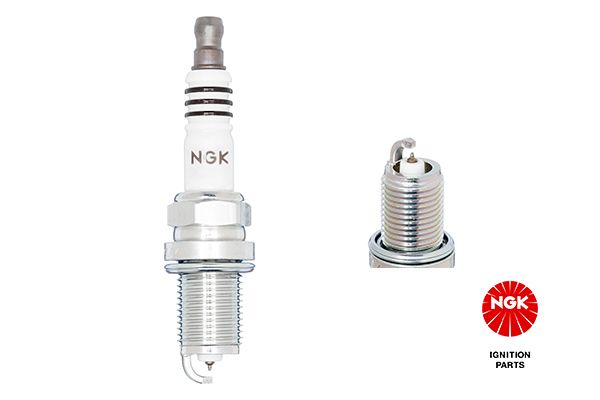

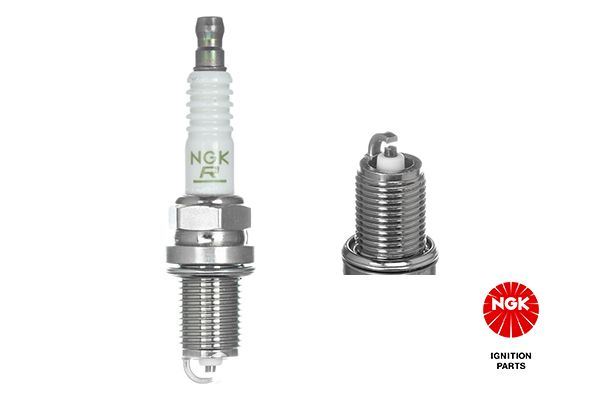

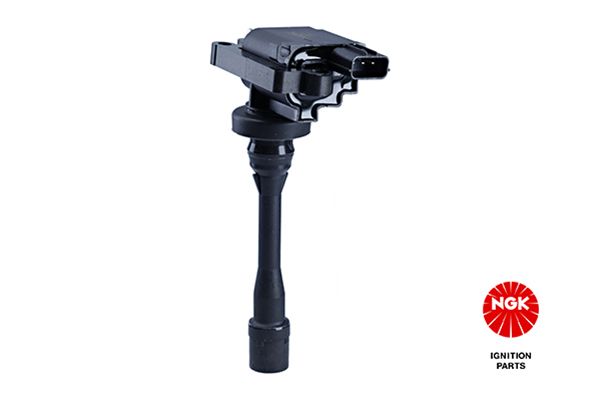

Misfire or poor idle diagnosis should start with compression, timing correlation, plugs, coils/leads as fitted, vacuum leaks, fuel pressure and sensor data. An electronic throttle or variable intake fault cannot be corrected by indiscriminate adjustment. Save codes and freeze frames before battery disconnection.

Differentiate manual, stepped automatic and CVT systems

Proton models use manual gearboxes, conventional torque-converter automatics and continuously variable transmissions according to generation. These are separate service families. The selector lettering or number of apparent ratios is not a gearbox code. Record casing label, controller, sump, cooler and driveshaft output.

A manual clutch complaint can involve hydraulics/cable as fitted, release bearing, mounts, flywheel or linkage. An automatic shift fault can arise from fluid level, solenoids, valve body, speed sensors, engine torque data or mechanical wear. A CVT relies on its specified friction fluid, pressure control and belt/pulley system; ordinary automatic fluid can cause damage.

Diagnose before changing unknown CVT fluid

Identify what fluid is present, check level under the prescribed temperature and selector process and inspect for overheating or debris. Save control codes, battery voltage and learned data. A flush, additive or adaptation reset can worsen a worn or incorrectly filled unit. Use the model-specific drain/fill or service method and complete any required relearn.

Inspect cooling for leaks, airflow and control

Cooling faults on an ageing Proton can involve radiator blockage, cap, thermostat, pump, fan motor/relay, temperature sensor, hose, heater core or trapped air. UK-market heating and overseas-market cooling arrangements may differ. Pressure-test when cold, compare actual temperature to scan data and verify commanded fan operation.

Do not open a hot cap or treat repeated top-up as normal. A slow leak can corrode connectors and cause overheating under load. Sealant can obstruct small passages and mask head-gasket, radiator or heater-core failure. Shut down if the gauge enters its danger zone, vapour appears or coolant escapes abruptly.

Use the exact approved coolant and concentration. Dye colour is not chemical identification. If service history is unknown, assess corrosion, deposits and mixture before using an approved flush/refill process. Restore bleed points and heater controls so trapped air can escape.

Find ageing faults at structures, earths and moving looms

Inspect sills, floors, subframes, suspension mounts, jacking points, brake/fuel pipe routes and seat-belt areas. Water entry through glass, seams or drains can corrode hidden floor and connectors. Underseal can conceal rather than prevent existing corrosion. Structural repairs need sound parent metal, correct joining and restored protection.

Electrical diagnosis should include voltage-drop testing at battery terminals, engine/body earths, fusebox feeds and the affected component while loaded. Gen-2, Persona, Satria and Saga door looms, window switches, central locking and boot wiring age differently with body. Inspect flex points before replacing a motor or module.

Match brakes, suspension and body application

Measure disc diameter, working thickness and offset and identify caliper, pad and wear hardware. Rear drum or disc arrangements vary. Drum components need correct shoe width, cylinder bore and adjuster. An overtight handbrake cable can cause drag while hiding poor shoe adjustment.

Springs and dampers depend on body, engine and market load. Gen-2 hatch, Persona saloon and Satria applications should not be assumed to share rates. Inspect top mounts, control-arm bushes, ball joints, anti-roll links, wheel bearings and subframe corrosion. After replacement, set geometry with sound joints and correct tyre pressure.

Body and bumper parts can differ around facelift, lamp, sensor and market requirements. Check mounting points and restraint/impact equipment rather than forcing an exterior panel to fit. Airbag and seat-belt parts require exact position and specification; never use a resistor to hide an SRS warning.

Choose each fluid from the unit and manual

Engine oil must meet the grade and performance specification for the complete engine and market. A viscosity match alone cannot prove additive compatibility. Manual oil, automatic fluid and CVT fluid are distinct. Use gearbox code, approved fluid and temperature/level method.

Brake and clutch hydraulic fluid, power steering where fitted, coolant and refrigerant each have separate specifications. Avoid universal substitutes without documented approval. Keep filling tools clean, particularly for CVT and brake service, and label drained samples when investigating contamination.

Use fault urgency and maintenance history properly

Safely halt for red warnings about lubrication pressure, engine heat, braking or steering assistance. Do not continue with a fuel leak, structural tyre defect, loose wheel bearing or severe transmission slip. An SRS warning needs prompt diagnosis because restraint protection may be reduced.

Read all relevant modules and save codes, freeze frames and supply voltage before clearing. A weak battery or poor earth can create unrelated-looking warnings. Test the named component and its circuit rather than treating a code as a parts order.

Follow the schedule for the exact model, engine, gearbox and market. A service-stamp or reminder reset does not establish timing, CVT fluid, corrosion or brake condition. Preserve older invoices and original part numbers as vehicles become harder to catalogue.

Keep imported and modified Protons roadworthy in Britain

Headlamps need suitable UK beam pattern and markings, and rear fog, indicators and speed indication must meet applicable requirements. Exhaust and engine changes must retain required catalyst, sensors and lawful emissions. Wiring modifications need correct fuse protection and must not impair restraints.

The MOT can assess structure, brakes, steering, suspension, tyres, lamps, seat belts, warnings and applicable emissions. It cannot prove a cross-reference is correct, uncover every concealed repair or validate a CVT service. Keep the vehicle roadworthy between tests.

Suspension lowering, wheel changes and engine tuning affect clearance, geometry, cooling and insurance. Verify full-lock/bump contact, tyre coverage, brake fit and speed indication. Document reversible changes for later diagnosis.

Proton identification and maintenance FAQs

Q: Are Saga generations mechanically interchangeable?
A: No. Use VIN, chassis, engine, gearbox, market and installed part evidence.

Q: Does shared engineering ancestry prove a part fits?
A: No. Mounts, calibration, connectors and export specifications can differ.

Q: Are Gen-2 and Persona parts always shared?
A: No. Body, production revision, trim and mechanical application still matter.

Q: Does CamPro identify one engine specification?
A: No. Confirm full code, output, intake/head revision and emissions equipment.

Q: Can a timing kit be selected by engine capacity?
A: No. Identify engine code and exact belt/chain arrangement.

Q: Is CVT fluid ordinary automatic-transmission oil?
A: No. Use the exact CVT specification and prescribed level process.

Q: Should a juddering CVT be flushed immediately?
A: No. Save diagnostics, identify fluid and assess pressure/mechanical condition first.

Q: Is coolant colour a reliable Proton specification?
A: No. Match approved chemistry and concentration to the exact cooling system.

Q: Does voltage at a fuse prove the circuit is healthy?
A: No. Load-test and measure voltage drop through feeds and earths.

Q: Can underseal hide structural corrosion?
A: Yes. Inspect metal and load-bearing areas rather than judging the coating.

Q: Are overseas-market lamps suitable for UK use?
A: Verify beam, markings, colour and position; appearance alone is insufficient.

Q: Does an MOT pass prove a CVT was serviced correctly?
A: No. Fluid, filter, level and diagnostic records remain separate.

Q: Is a catalogue cross-reference sufficient evidence?
A: No. Confirm original number, dimensions, connector, position and production application.
