Generation changes the entire mechanical layout

The fortwo name covers 450, 451 and later 453-era architectures with different engines, transmissions and electrical systems. The first forfour and later rear-engined forfour are also distinct. A short body and familiar cell shape are not enough to select parts.

Record VIN, chassis code, build date, engine or traction motor, gearbox and brake/suspension options. Check the physical layout before ordering, particularly where imported or converted vehicles are involved.

Use architecture clues in a defined order

Rear-engine packaging changes access and heat flow

On many fortwo models and later forfour applications, the engine sits behind the passenger compartment. Cooling pipes run forward, exhaust heat is concentrated at the rear and service access can be through panels above or below the powertrain.

Restore every heat shield, duct and undertray. A missing panel can heat wiring, intake or body components even when coolant temperature appears normal. Never run in a confined space merely because the engine is small.

Combustion engines still need full code identification

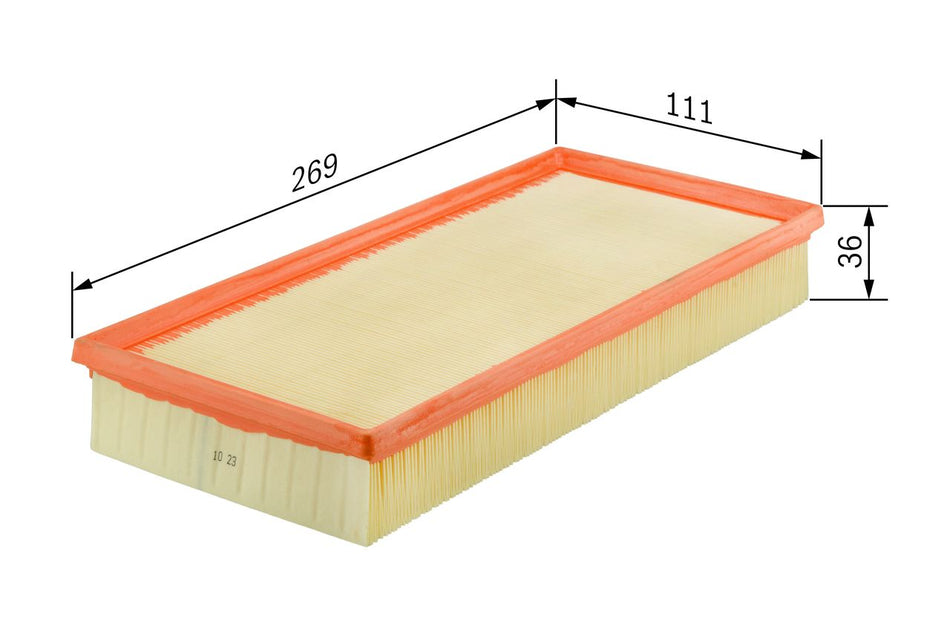

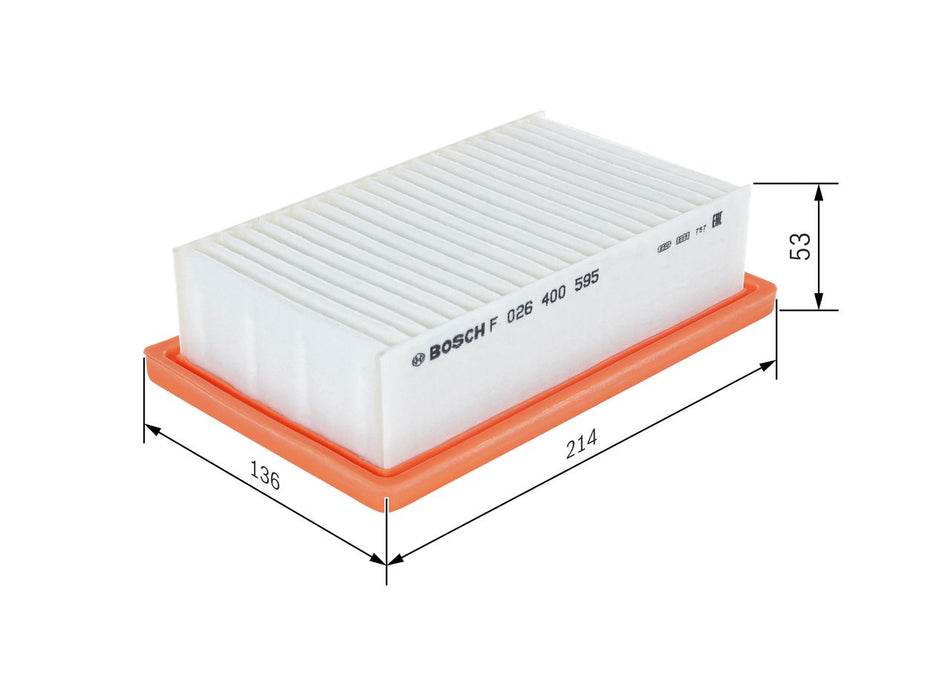

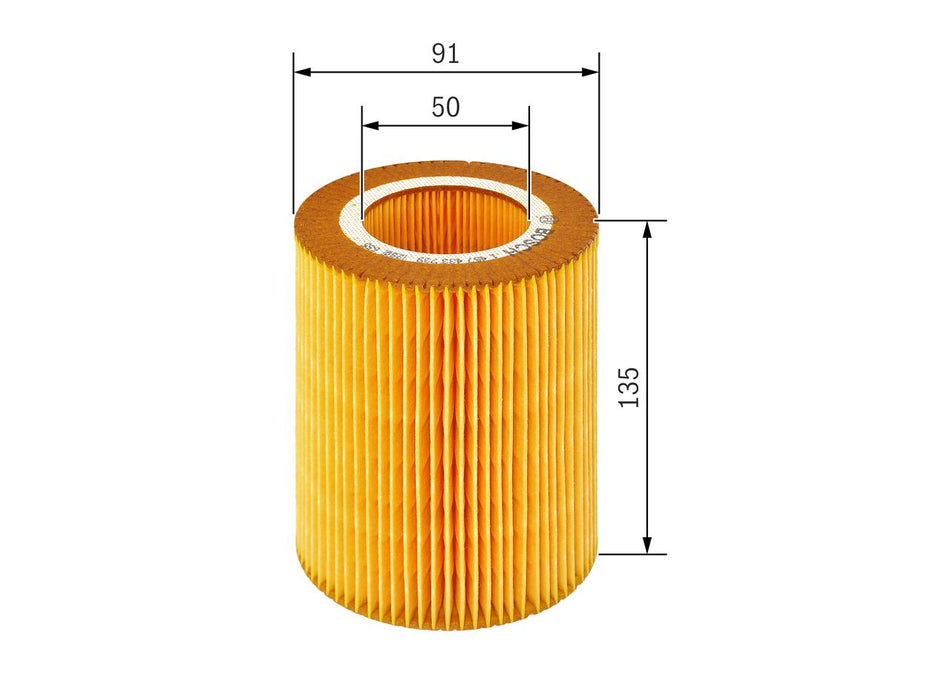

Petrol, turbo petrol and diesel engines differ in timing, injection, turbo, ignition/glow and emissions equipment. Capacity and advertised output do not identify injectors, sensors, filters or belt kits. Read the engine code and production range.

On turbo applications, check air leaks, boost control, oil feed/return and crankcase ventilation before replacing the turbocharger. Heavy oil smoke, fuel leakage or uncontrolled engine speed requires immediate shutdown.

Cooling systems have long pipe paths and small reserves

Rear-mounted engines can use long coolant lines to a front radiator, creating several high points and bleed dependencies. Identify expansion tank, cap, thermostat, pump, fan and heater routing. A seemingly full tank can coexist with trapped air.

Use the exact coolant chemistry and bleed procedure, including diagnostic pump or fan operation where specified. Pressure-test cold. Stop for overheating or heater loss and never open a hot cap.

Underbody coolant pipes need impact inspection

Lift damage, road debris or incorrect jacking can deform pipes and restrict flow without an immediate external leak. Inspect supports, corrosion, flattening and joint seals before diagnosing the head or radiator.

Automated manual is a manual gearbox with actuators

Early fortwo automated-manual systems use a dry clutch and conventional gearsets operated by controlled actuators. The pause during a shift reflects clutch disengagement and gear selection; it is not torque-converter slip. Driving technique and learned bite point influence smoothness.

Selection faults can arise from a weak 12-volt battery, clutch wear, actuator position, wiring, mounts, selector mechanism or gearbox. Record clutch and actuator data before adjustment. A relearn cannot restore a worn release mechanism.

Transmission generations need separate fluids and tests

Clutch learning has mechanical prerequisites

Before adaptation, inspect actuator mounting, release travel, clutch wear, gearbox input and engine/gearbox mounts. Set any mechanical preload by the exact procedure. Running a teach-in against a seized release arm can overload the actuator.

Maintain stable battery voltage and secure the vehicle because gear engagement can occur. Confirm the correct software and prerequisites. If learning fails, preserve the error rather than repeating until components overheat.

EQ architecture adds a traction energy boundary

smart EQ variants include a high-voltage battery, inverter, motor, charger, DC-DC converter and reduction gear. Battery generation, voltage, cooling and charge interface follow the exact chassis. Combustion parts should not be inferred from a shared body panel.

Trained personnel must isolate, lock out, wait and prove dead. Orange cables can remain live after the display is blank. Control keys and charging equipment, and do not use ordinary meters outside their rating.

Battery impact changes the recovery decision

Underbody deformation, water ingress, abnormal heat, odour or smoke requires a controlled area and specialist guidance. Do not charge, open or support a damaged battery enclosure. Towing method must suit the driven axle and electric system status.

The 12-volt battery operates contactors and controllers. Low voltage can prevent ready mode, but disconnecting it is not a complete high-voltage isolation.

Brake size is small, not low consequence

Identify front disc diameter, thickness, offset and caliper, plus rear disc or drum, shoe and wheel-cylinder layout. ABS encoder arrangement can be within a bearing or hub. A low-mass car still requires balanced emergency braking.

Check caliper release, drum adjustment and hose routing. Electric models can use regeneration, which may reduce friction-brake activity and permit corrosion. Inspect both disc faces and parking brake physically.

Front and rear tyres may deliberately differ

Some smart models use narrower front than rear wheels and tyres. Record axle position, width, offset, size, load and speed rating. Rotating a staggered set front-to-rear can be incorrect even where diameter is similar.

Set cold pressures by axle and load. Stability control depends on predictable rolling dimensions. Oversized or mismatched tyres can affect steering, ABS and body clearance.

Plastic panels and the safety cell have different roles

Replaceable exterior panels can be cosmetic, while the tridion safety cell, subframes, floor and restraint mountings carry structural load. A cracked panel may hide deformation underneath. Measure suspension points and door apertures after impact.

Panel colour and shape do not prove correct clips or crash compatibility. Structural repair must follow material, joining and sectioning procedures. Do not heat or pull the safety cell by generic bodyshop habit.

Suspension and steering need compact-scale accuracy

Springs and dampers vary by generation, engine or battery mass and axle. Small wheelbase makes toe, thrust angle and tyre differences noticeable. Match top mounts, bump stops and anti-roll components as a complete stack.

Support the car only at approved points, especially around battery or underbody pipes. Tighten bonded bushes at defined position and complete alignment and steering-angle calibration.

Electrical diagnosis begins with rear earth paths

Heat, moisture and compact connectors can affect engine, transmission and lighting circuits. Load-test battery and grounds, inspect fuse/relay feeds and retrieve all module codes. A low supply can imitate clutch-actuator or steering failure.

Controllers may require immobiliser, VIN and configuration matching. Use stable programming power and repair wiring or water entry first. A used module with a matching socket may not authorise starting.

Modern assistance sensors require calibration

Depending on generation, cameras and radar can be affected by windscreen, bumper, ride height and wheel alignment. Confirm bracket and glass specification, then calibrate after relevant work. A warning means the function may not be available.

Short wheelbase does not reduce alignment precision

Thrust angle and steering centre must be set accurately before sensor calibration. A straight steering wheel can coexist with incorrect toe or rear alignment.

Fault behaviour determines whether movement is safe

Complete the service from cell to software

1. Identify fortwo/forfour generation and chassis code.
2. Record engine/motor, gearbox, wheel and brake specification.
3. Inspect underbody cooling, battery and structural condition.
4. Save faults, learned values, voltage and mechanical wear.
5. Control clutch movement, pressure, heat and high voltage.
6. Use exact lubricants, coolant, seals and fasteners.
7. Restore heat shields, ducts, panels, clips and earths.
8. Bleed cooling/brakes and set mechanical actuator prerequisites.
9. Teach clutch, align chassis and calibrate sensors.
10. Verify progressively without exceeding tyre or heat limits.

Compact dimensions do not change UK safety duties

MOT condition includes tyres, brakes, steering, suspension, structure, lighting, visibility, restraints and warning lamps. Electric propulsion does not remove inspection of friction brakes or chassis. An MOT pass does not validate clutch adaptation or high-voltage isolation.

Declare wheel, suspension, software and propulsion changes to the insurer. Never drive with unstable engagement, compromised safety cell, unsafe brakes or exposed battery damage.

Practical smart parts FAQs

Q: Are all smart fortwo generations mechanically similar?
A: No. Identify the 450, 451 or later architecture.

Q: Is every smart forfour rear engined?
A: No. Layout depends on generation.

Q: Is the early automated manual a conventional automatic?
A: No. It uses a dry clutch and manual gears.

Q: Can clutch adaptation repair worn hardware?
A: No. Mechanical prerequisites must be sound.

Q: Can any gearbox oil be used after an actuator repair?
A: No. Use the exact transmission specification.

Q: Does a full coolant tank exclude trapped air?
A: No. Long pipe routes require correct bleeding.

Q: Can front and rear smart wheels be swapped?
A: Not where the approved set is staggered.

Q: Are plastic exterior panels structural?
A: The underlying safety cell carries primary structure.

Q: Does regeneration eliminate brake corrosion?
A: No. Inspect discs, pads and parking mechanisms.

Q: Does 12-volt disconnection isolate smart EQ?
A: No. Complete the formal high-voltage process.

Q: Can a damaged EQ battery be charged for diagnosis?
A: No. Obtain trained assessment first.

Q: Can low voltage create a gearbox warning?
A: Yes. Test the supply under load.

Q: Does an MOT pass validate clutch learning?
A: No. Adaptation needs separate verification.

Q: What confirms a smart repair?
A: Correct generation, stable engagement and verified safe operation.
