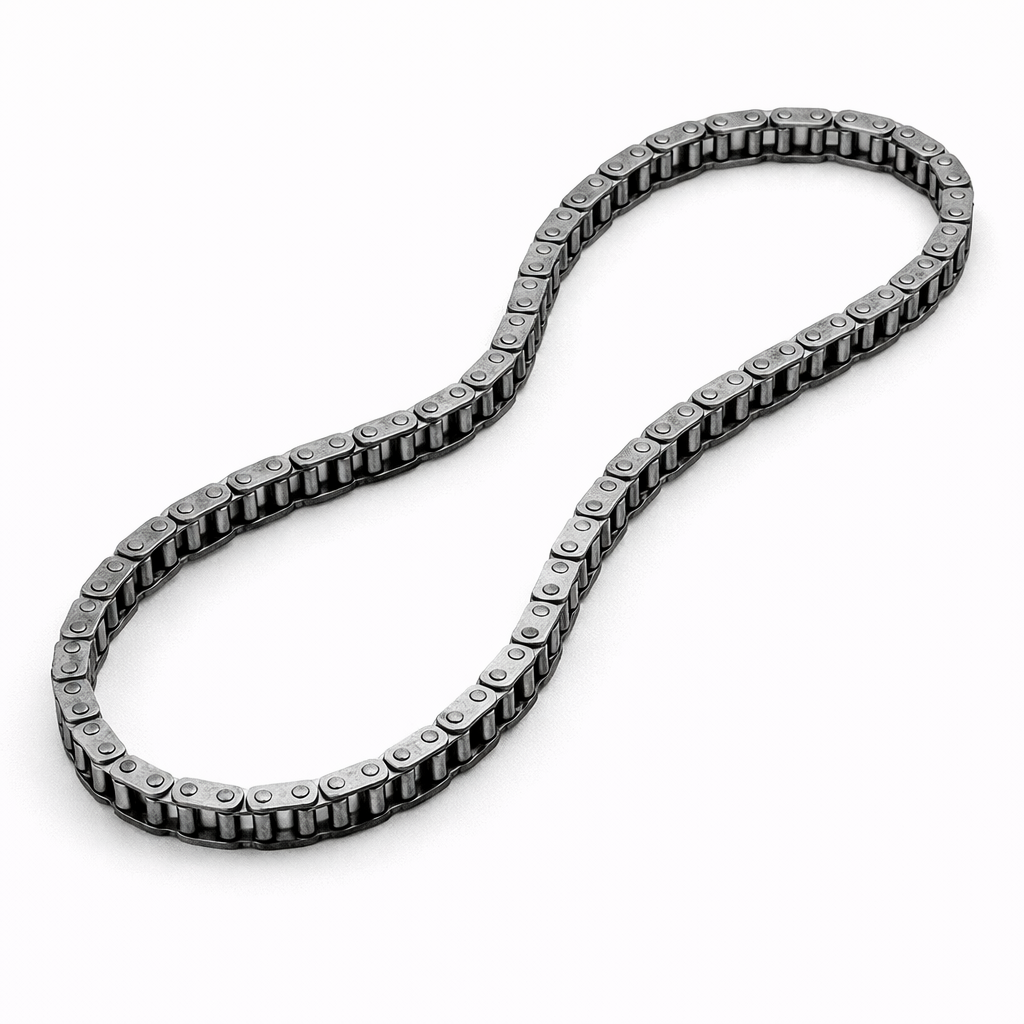

Timing Chain

The chain keeps valve events tied to crank angle

The crankshaft turns twice for each four-stroke camshaft revolution. Sprocket tooth counts create that ratio, while the chain transfers torque and maintains phase. A small timing error changes cylinder filling, emissions and starting; a large error can bring valves and pistons together.

Chain drive is durable but not maintenance-free. Articulating joints, guides, tensioner and sprocket teeth all depend on clean oil, correct geometry and controlled loading.

Timing-drive components

Roller and silent-chain construction

Roller chain

Rollers engage sprocket teeth while pins and bushes articulate. Wear at many joints adds together and increases effective chain length. The chain can still look intact while timing has shifted.

Inverted-tooth or silent chain

Shaped link plates engage sprocket teeth with low noise and compact width. Link count, plate stack and guide design are application-specific. Joining or shortening automotive timing chain is not a service substitute for the correct assembly.

Hydraulic tensioning and oil quality

A hydraulic tensioner uses engine oil pressure plus a spring or ratchet. A check valve may retain oil after shutdown. Wrong viscosity, low level, sludge or a worn oil pump delays pressure and allows start-up slap.

Replacing the tensioner without correcting oil-feed loss gives temporary improvement at best. Conversely, brief noise can arise from an unsuitable filter draining galleries even when the chain itself remains within limits.

Fitment details

Variable valve timing changes diagnosis

A cam phaser rotates the cam relative to its sprocket under oil control. A worn phaser lock, sticking oil-control valve or blocked filter can rattle and set the same correlation codes as chain wear. Scan commanded and actual angles under defined conditions.

Phasers often need to be parked or locked during assembly. Turning one against its stop or installing it unprimed can damage the mechanism or shift initial timing.

Symptoms and urgency

Correlation codes are not a parts list

Crank and cam sensors generate position signals. A code appears when their relationship falls outside a modelled range, but sensor air gap, trigger-wheel damage, wiring, phaser movement and software can also affect it.

Compare waveforms with known timing references when available. Clearing a code removes evidence and does not retension a chain.

Mechanical inspection and measurement

Some engines publish tensioner protrusion, chain elongation or cam-angle adaptation limits. Others require cover removal and timing-tool fit. Do not estimate chain wear solely by pulling it away from a sprocket.

Inspect every guide face, pivot, sprocket and oil passage. Search the sump and pickup for missing rail pieces. A new chain running on hooked sprockets wears quickly.

Failure causes beyond normal wear

Planning the replacement scope

A complete repair commonly includes chain, guides and tensioner, with sprockets or phasers according to wear and engine instructions. Multi-chain engines may need secondary chains and balance-shaft components. Oil seals, cover gaskets, crank bolt and injector seals can be single-use.

Check engine damage before ordering only a kit. Bent valves, cracked followers and damaged pistons require cylinder-head or engine work.

Locking tools and reference position

Set the engine to the specified service position before removing tension. A piston at exact top dead centre can be unsafe on some procedures until cams are positioned, so follow the sequence. Locking pins locate shafts; they are not generally strong enough to counter-hold tightening torque.

Use the approved counter-hold and angle-tightening method. Paint marks copied from the old chain cannot compensate if it had already jumped.

Clean assembly

Prevent sealant, grit and broken guide material entering oilways. Fit coloured links to marks only as instructed; after rotating the engine they may not align again for many revolutions, which is normal.

Preload, prime, compress or release the tensioner by its exact method. Premature release can obstruct installation; failure to release leaves slack.

Manual rotation and clearance check

Remove locking tools as instructed and turn the crank slowly in its normal direction through the specified number of cycles. Stop at any solid resistance. Refit timing tools or measure references to confirm timing.

Do not use the starter for this check. On interference engines, one wrong tooth can cause contact before the ECU has a chance to set a fault.

Sealing covers and oil system

Timing covers often form part of the oil system and meet the cylinder head, block and sump at several joints. Use only specified sealant bead size and locations. Excess sealant can detach and block the pickup; too little causes leaks.

Replace crank seals with the correct installation sleeve and depth. Prime oil circuits and verify pressure before allowing sustained start-up.

Commissioning

Start with a charged battery and monitor oil pressure. Listen for abnormal chain or phaser noise, check leaks and read cam actual/requested angles. Allow the engine to reach defined conditions and complete a cold restart after it has stood.

Do not immediately clear adaptation values unless the repair instructions require it. Some systems need a specific relearn.

Maintenance and operating limits

Use the approved oil and filter, maintain level and shorten intervals only according to severe-service guidance. Investigate fuel dilution, coolant contamination and pressure warnings quickly. “Lifetime chain” does not mean the drive survives neglected lubrication.

Avoid repeated cranking when the engine turns unusually fast, backfires or loses compression after a timing noise.

UK MOT and emissions context

The chain is internal and not directly inspected, but incorrect valve timing can cause warning lamps, excessive emissions, noise and unsafe breakdown. Removing variable-timing or emissions functions is not a lawful repair.

A passed MOT does not prove chain adaptation, guide condition or oil pressure is healthy. Respond to symptoms between tests.

Practical timing-chain FAQs

Q: Do timing chains actually stretch?
A: Wear at many pins and joints increases effective length; the metal links do not simply elongate like elastic.

Q: Is a cold-start rattle always the chain?
A: No. Tensioner drain-down, oil/filter, phaser and pressure faults can sound similar.

Q: Can only the chain be replaced?
A: Guides, tensioner and sprockets must be inspected and often renewed as a matched system.

Q: What is an interference engine?
A: Valves and pistons occupy overlapping space at different times, so timing loss can make them collide.

Q: Does a correlation code prove the chain is worn?
A: No. Sensors, trigger wheels, wiring and variable-timing components also affect correlation.

Q: Can thicker oil stop chain rattle?
A: It may mask noise but can worsen cold flow; diagnose pressure and use the specified oil.

Q: Why are plastic pieces in the sump?
A: A timing-guide rail may be breaking up and the pickup and full drive need urgent inspection.

Q: Do coloured chain links realign after manual rotation?
A: Not necessarily for many revolutions; verify fixed timing references instead.

Q: Can locking pins hold tightening torque?
A: Usually no. Use the specified counter-holding tool.

Q: Should the tensioner be primed?
A: Follow its exact procedure; designs differ in filling, compression and release.

Q: Can a chain jump while starting?
A: Yes, especially with slack, failed guides or low initial tension.

Q: Does a timing chain have a fixed service interval?
A: Some engines provide inspection or replacement guidance; others rely on condition and lubrication history.

Q: Can timing-chain faults affect emissions?
A: Yes. Incorrect valve timing changes combustion, catalyst operation and diagnostic monitoring.
