Autolamps: understand the range before choosing
Autolamps is a UK automotive-lighting range whose official catalogue covers 12V and 24V bulbs, including a dedicated LED section. The official LED page is particularly important for this collection because it states that these retrofit LED types should be sold for off-road use only. The range here must therefore be approached through its exact voltage, base, dimensions, colour and intended use, without treating a matching cap as proof of road legality or lamp compatibility.
AutoMotoPart currently lists 71 Autolamps items. The largest Autolamps groups are 71 maintenance entries. Autolamps totals can change, so a category count is orientation rather than proof that a particular reference suits a vehicle, workplace or job. The exact Autolamps listing, its current technical information and the item in front of you must agree.
What the Autolamps page actually covers
| Product group in this range | Current entries | Selection focus |
|---|---|---|
| Maintenance | 71 | Confirm 12V or 24V, complete base code, dimensions, colour, LED layout, polarity and permitted use. |
Every entry is grouped as a bulb, but the titles reveal substantial differences. BA15S appears frequently, alongside BAY15D, BAZ15D, BAU15S, BA9S, wedge and festoon forms. Voltage, colour and emitter count further divide the list. Treat the familiar three-digit conventional-bulb references in some names as search clues only; the complete Autolamps record and the actual holder still need to agree.
Build a reliable shortlist
Separate four questions before ordering: is the intended use permitted, does the electrical rating agree, does the mechanical interface fit, and will the lamp assembly operate correctly with that light source? A yes to one cannot answer the others. The checklist below helps prevent a cap match from concealing a voltage or functional mismatch.
| Check | Why it matters | Useful evidence |
|---|---|---|
| Permitted application | The official LED range is identified for off-road use only | Current Autolamps product wording and rules for the intended setting |
| System voltage | A 12V and 24V article sharing one base are not substitutes | Vehicle data, measured system only where appropriate, and bulb marking |
| Full base code | Contact count and pin geometry control location and circuits | Holder construction and complete code such as BA15S or BAY15D |
| Physical envelope | An LED body can foul a lens, reflector, cover or contact | Festoon length, diameter, overall dimensions and lamp clearance |
| Light characteristics | Colour and distribution must suit the function and rules | Lamp purpose, lens, optical design and current requirements |
| Electronic behaviour | Polarity and monitoring can cause no-light, flicker or warnings | Circuit design, diagnostic information and a controlled functional test |

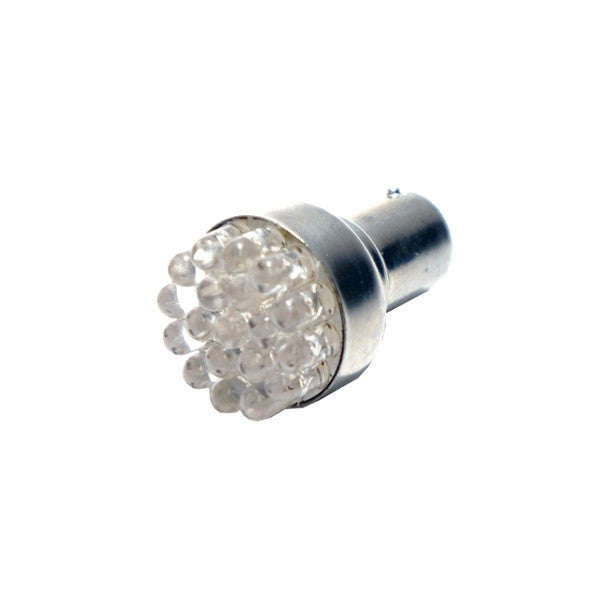

Do not infer brightness or optical suitability from LED count. A 19-LED article and a 5-LED article distribute light differently, while the reflector or lens may have been designed around a filament at a defined point. If the holder marking, application data and Autolamps specification disagree, stop rather than filing pins, bending contacts or modifying the lamp body.
Voltage is a fixed starting point
The collection includes many visually similar 12V and 24V pairs. Vehicle category alone is not enough: commercial and specialist equipment can use different nominal systems, and auxiliary circuits may not follow a casual assumption. Read reliable vehicle information and the known-correct lamp marking. Never test a lower-voltage candidate by briefly connecting it to a higher-voltage circuit.
System condition also matters. Repeated lamp failure, pulsing output or heat damage at a holder calls for diagnosis of supply, earth, charging behaviour and connections before another bulb is installed. An LED retrofit can draw differently from a filament bulb, but lower nominal consumption does not cure a corroded contact, loose earth or over-voltage fault.
Bayonet, wedge and instrument bases
BA15S denotes a 15mm bayonet form with a single contact, while BAY15D, BAZ15D and BAU15S names indicate different contact or pin arrangements. BA9S is smaller, and B8.5D tacho entries serve another holder style. Wedge references such as W2x4.6D and W2.1x9.5D rely on their exact dimensions and contact layout. These codes should be copied in full rather than reduced to 'bayonet' or 'wedge'.
Inspect the holder for overheating, green corrosion, weakened springs or distorted contacts. A correct bulb should locate and turn or press into place normally. Excess force can push contacts back, crack an ageing holder or connect the wrong circuit. Where a dual-function lamp is involved, verify both functions independently and check that the contacts have not been reversed or bridged.
Festoon length and installation
Autolamps festoon examples include 11x30mm and 11x38mm formats in both voltage and colour variants. The nominal length controls spring contact pressure and available space; a short lamp can sit loose, while a long lamp can overload contacts or fail to fit behind a cover. Measure a known-correct undamaged bulb and use the complete reference rather than estimating through the lens.
Festoon lamps and some wedge LEDs are polarity-sensitive. If a permitted installation does not illuminate, isolate the circuit and follow the product guidance before reversing orientation; do not rotate or short a live bulb with a metal tool. Once working, refit the lens without trapping wires and confirm the cover does not press on the LED body as vibration and temperature change.
Colour, optics and exterior-lighting restrictions
The range includes multiple colours, but availability is not permission to use a colour for any exterior function. The lamp lens, light source and optical system work together, and road-vehicle rules distinguish front, rear, indicator, stop, fog, reversing, registration and warning functions. The current MOT manual also assesses aspects including operation, colour, security and light-source compatibility.

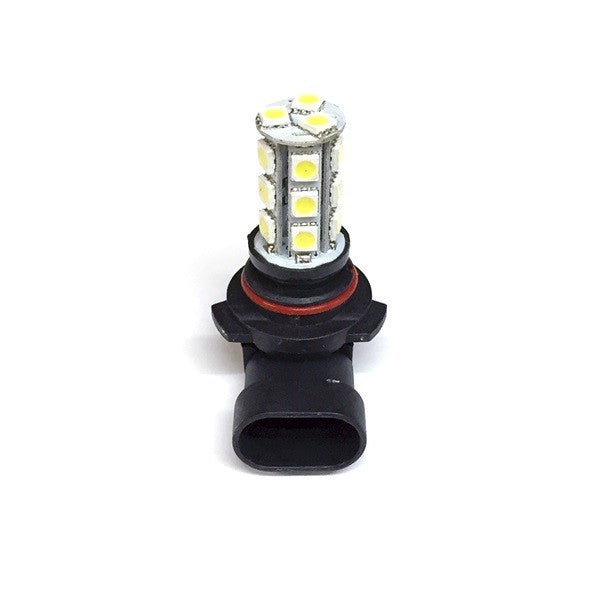

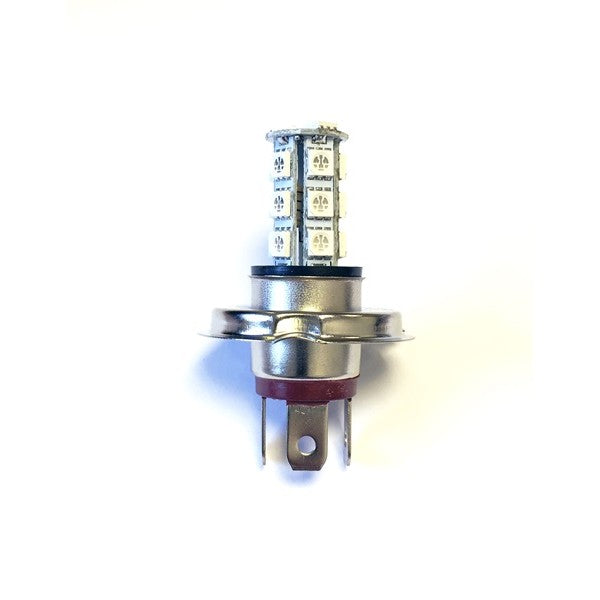

Headlamp conversion requires especially careful treatment. An LED body carrying a P43T, H9, H10, 9005 or 9006-style name should not be assumed suitable for a road headlamp merely because it can be inserted. Beam formation depends on the approved lamp unit and light-source position. Follow Autolamps' off-road statement for this LED range and obtain current authoritative advice for any proposed exterior application.
Warnings, flicker and completion checks

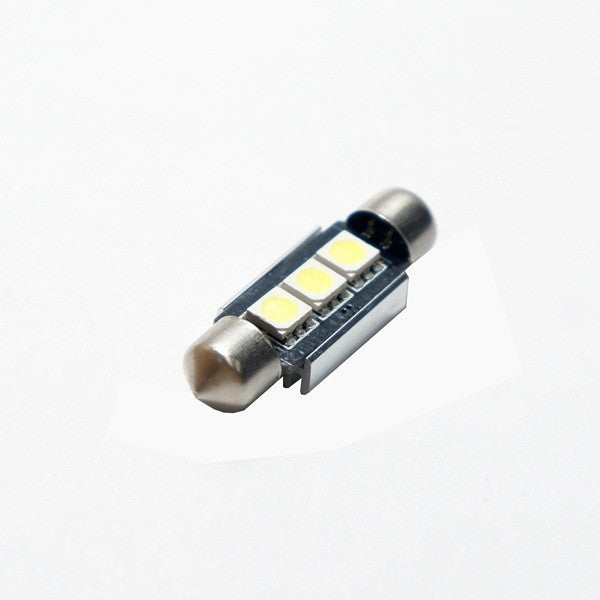

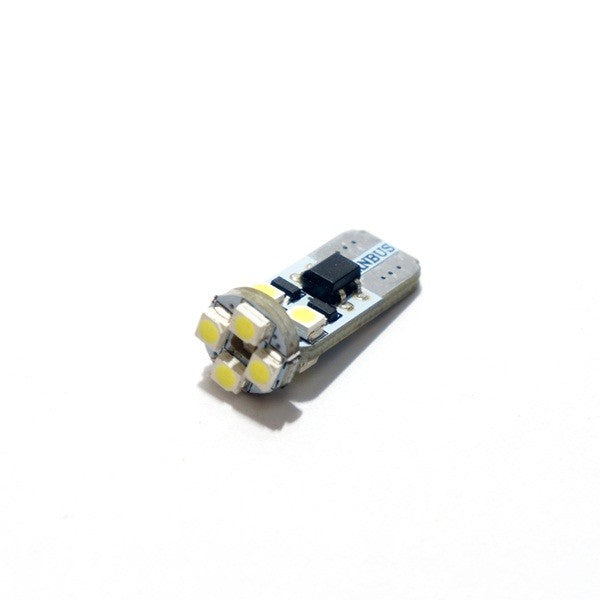

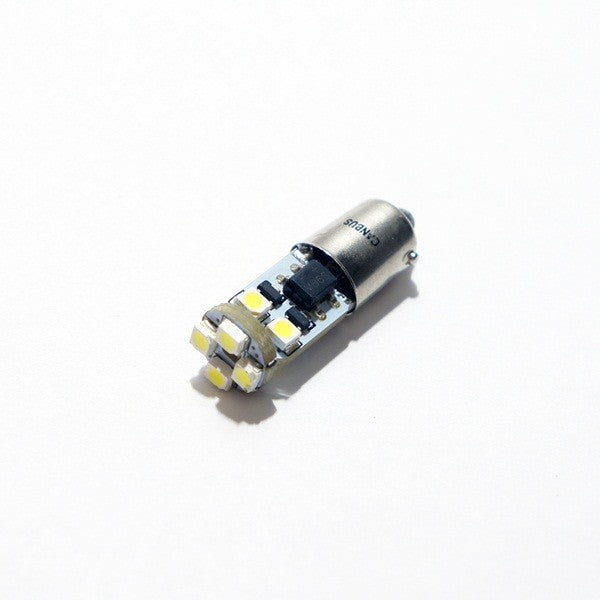

Some product titles mention CANbus, but that word does not guarantee warning-free operation on every monitored circuit. Vehicles can check current in different ways, pulse a circuit while off or share lamp functions through control modules. Do not add resistors or coding changes without a documented, safe procedure; extra components can introduce heat and electrical faults.
After a permitted installation, operate the circuit through all relevant states and observe from outside where safe. Check for stable output, correct function, matched behaviour where a pair is required, secure covers and no dashboard warning. Recheck after a short operating period for excessive heat or intermittent contact, then store or dispose of the removed bulb safely rather than leaving fragile glass or small parts loose in the vehicle.
From identification to a checked result
| Stage | Good practice for this range | Mistake to avoid |
|---|---|---|
| Define use | Establish location, function and whether the LED application is permitted | Beginning with colour or emitter count |
| Identify | Record voltage, complete cap code, dimensions and Autolamps reference | Calling every similar bulb a direct replacement |
| Inspect | Check holder, wiring, contacts, lens and available space | Using a new bulb to mask heat or corrosion damage |
| Install | Isolate as required, avoid force and observe polarity guidance | Filing pins, bending contacts or shorting a live holder |
| Verify | Test every function, warnings, stability, covers and temperature | Assuming illumination alone proves a correct result |
Retain the original marking and new Autolamps number until the circuit has operated reliably. If a warning, flicker or abnormal heat appears, remove power and diagnose the system; adding an undocumented load or continuing to run a poor contact can turn a selection error into wiring or control-unit damage.
Reading real Autolamps references
The Autolamps names below are examples from the current range and show why the complete description matters. They are not universal Autolamps recommendations and should not be treated as a fitment list. Within Autolamps, a shared family word can conceal a different dimension, connector, material, pack format, operating condition or installation side.
| Example listing | What to verify beyond the name |
|---|---|
| LED Bulb - 24V BA15S 5-LED - Green | 24V system, BA15S single-contact base, green output and permitted use |
| LED Bulb - 12V BA15S 5-LED - White | 12V system, BA15S holder, white output, space and circuit behaviour |
| LED Bulb - 12V BA15S 5-LED - Yellow | 12V rating, BA15S interface, yellow colour and intended function |

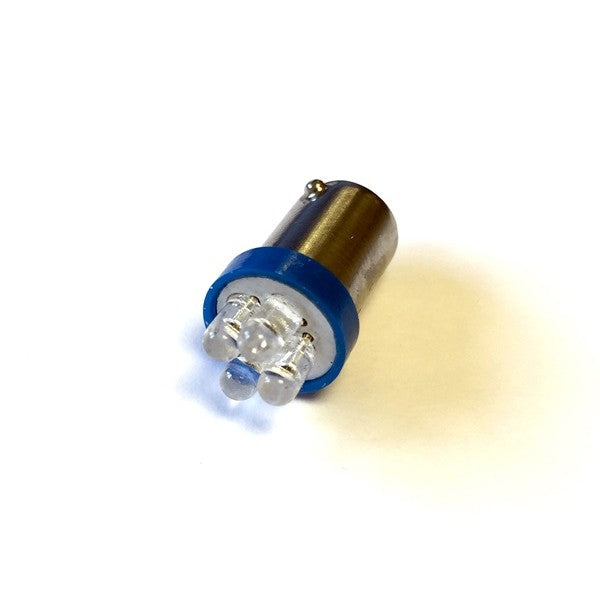

| LED Bulb - 12V BA9S 4-LED - White | 12V, BA9S cap, white output, holder depth and polarity |

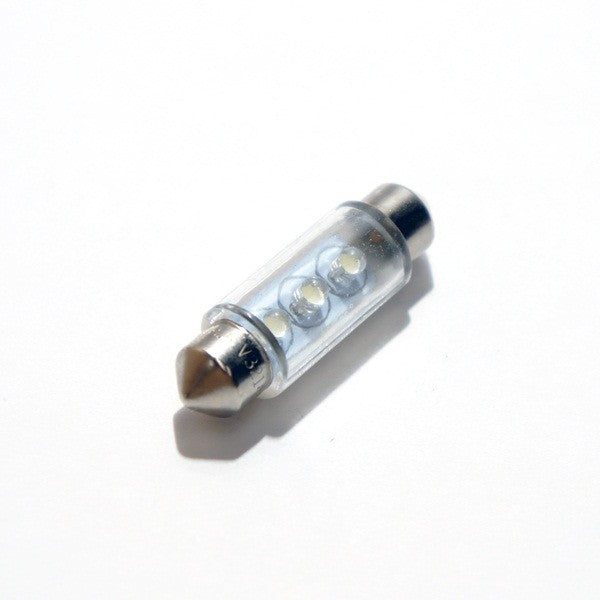

| LED Bulb - 12V Festoon 11X38mm 3-LED - Red | 12V, 11x38mm festoon length, red output and allowed location |
| LED Bulb - 24V Festoon 11X38mm 3-LED - Red | 24V, 11x38mm format, red output, spring pressure and clearance |
| LED Bulb - 12V Festoon 11X30mm 4-LED - Blue | 12V, 11x30mm format, blue output and permitted environment |
| LED Bulb - 12V Festoon 11X30mm 4-LED - White | 12V, 11x30mm body, white output, polarity and lens clearance |
The examples show repeated shapes with different voltage or colour, and repeated voltage with different bases or dimensions. Search-result thumbnails cannot show contact count reliably. Use the written specification, inspect the holder and respect the official usage statement before opening a pack or altering the vehicle.
Common errors around Autolamps products
- Assuming a familiar conventional bulb number makes an LED retrofit road legal.
- Installing a 12V Autolamps article on a 24V circuit because the base fits.
- Reducing BA15S, BAY15D, BAZ15D and BAU15S to one generic bayonet type.
- Choosing a festoon without checking its stated length and available cover space.
- Treating LED count as a reliable comparison of beam pattern or useful output.
- Using coloured light for an exterior function without confirming current requirements.
- Defeating a lamp warning with an undocumented resistor or wiring alteration.
- Ignoring a burnt holder, weak earth or charging fault after repeated failures.
Autolamps questions and answers
Q: What does the Autolamps collection contain?
A: It contains LED bulbs in 12V and 24V forms with multiple bayonet, wedge, instrument and festoon interfaces.
Q: Are these Autolamps LEDs approved for road use?
A: The official Autolamps LED page says these types should be sold for off-road use only; do not infer road permission from fit.
Q: Can a 12V bulb replace a 24V bulb?
A: No. Match the circuit's specified voltage as well as the physical base.
Q: Is BA15S the same as BAY15D?
A: No. Contact count and pin arrangement differ, so use the complete base code.
Q: How do I select a festoon LED?
A: Confirm voltage, full stated length and diameter, contacts, colour, polarity, clearance and permitted use.
Q: Does a larger LED count mean more useful light?
A: Not necessarily; emitter output, orientation and the lamp optics all affect the result.
Q: Why might an LED work only one way round?
A: Some LEDs are polarity-sensitive, so follow the instructions after isolating the circuit.
Q: Will a CANbus-labelled bulb prevent every warning?
A: No. Monitoring strategies vary, and the complete product and vehicle information must agree.
Q: Can I modify bayonet pins to fit?
A: No. A pin mismatch indicates the wrong interface and modification can create insecure or incorrect contacts.
Q: What if the new bulb flickers?
A: Stop and check compatibility, supply, earth, monitoring pulses, contacts and installation rather than adding an improvised load.
Q: Should paired exterior lamps be checked together?
A: Yes. Where the application is permitted, compare function, colour, stability and condition on both sides.
Q: What details should I retain?
A: Keep the complete Autolamps reference, voltage, base, colour, size and intended location until operation is verified.
