A competition harness works only as part of a restraint system
Webbing spreads crash load across the pelvis and shoulders and transfers it into vehicle anchorages. The seat keeps the body positioned, while the buckle, adjusters and end fittings maintain strap geometry. Roll-over protection and head-and-neck restraints can change the acceptable arrangement.
Adding more straps does not automatically improve safety if the load paths are wrong.
Three- and four-point products have different layouts
| Configuration | Strap arrangement | Key application check | Main concern |
|---|---|---|---|

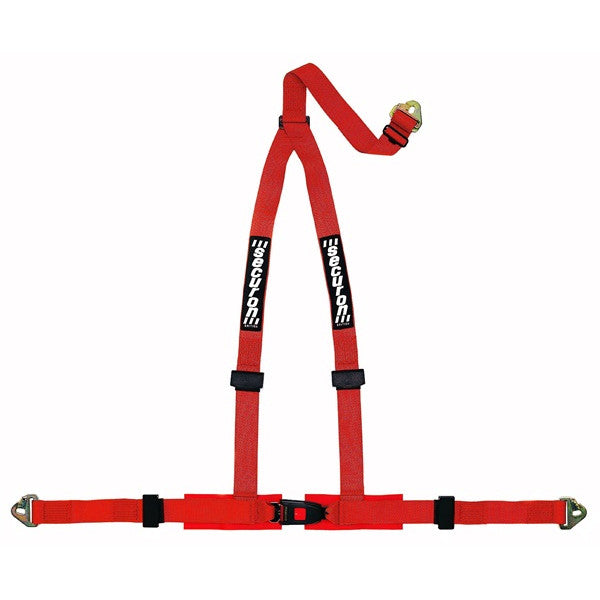

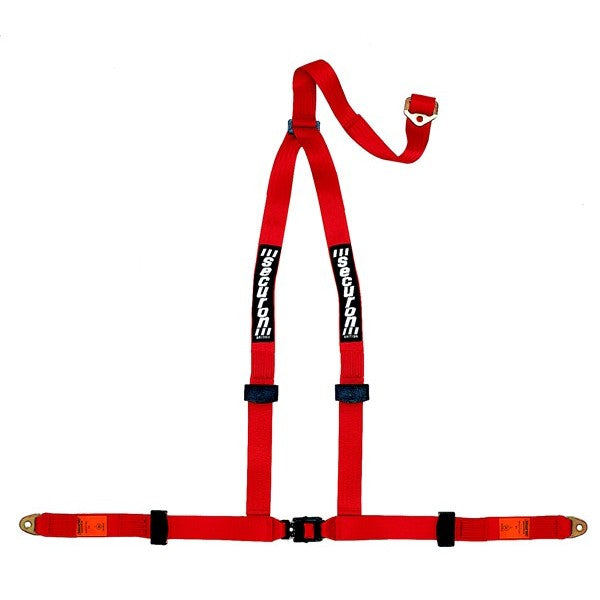

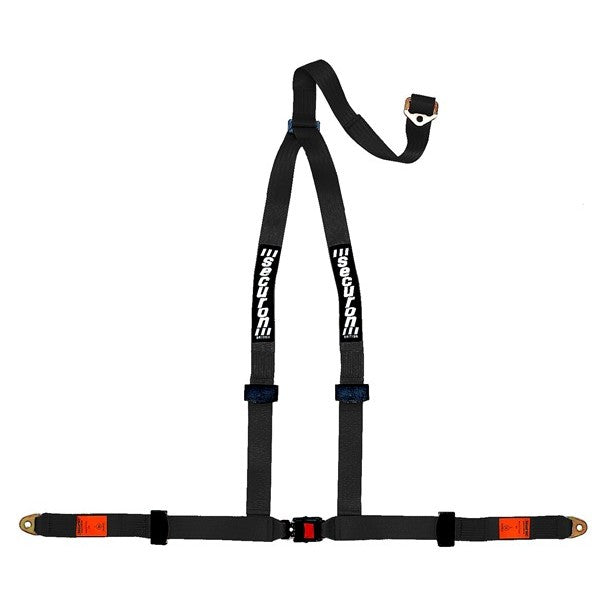

| Three-point fixed harness | Two shoulders commonly merge to one rear point. | Rear route, seat opening and approval. | Shared rear geometry and body rotation. |

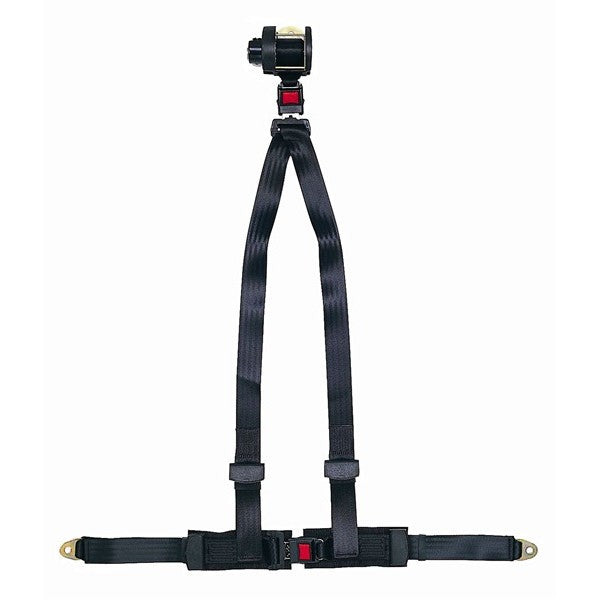

| Three-point retracting | Harness geometry with retractor movement. | Mount angle, lock function and vehicle use. | Wrong retractor orientation. |

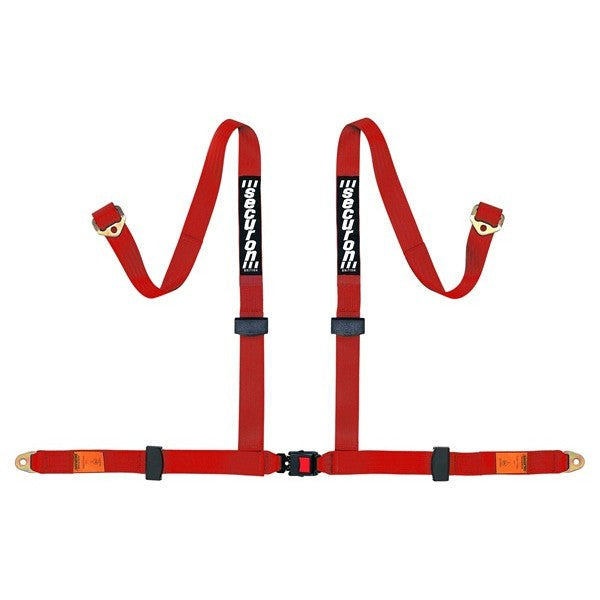

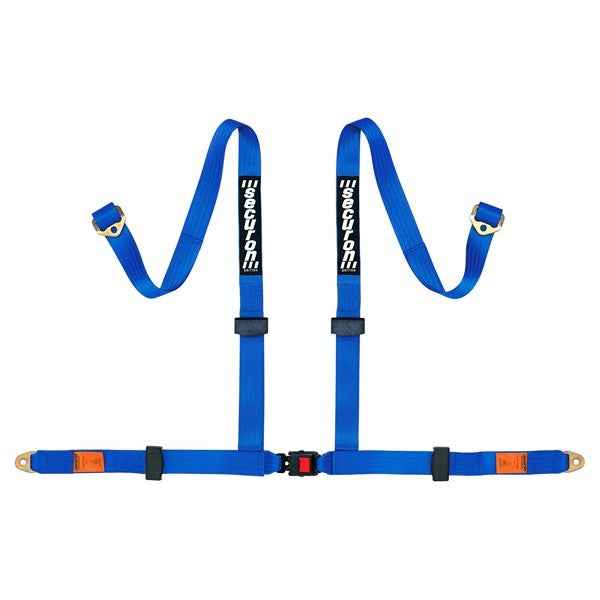

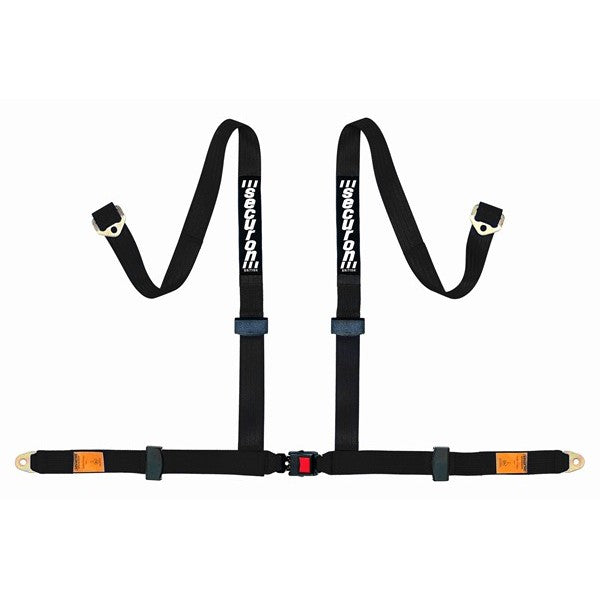

| Four-point fixed harness | Two lap and two shoulder straps. | Pelvic fit, seat and anti-submarining design. | Occupant sliding beneath lap belt. |

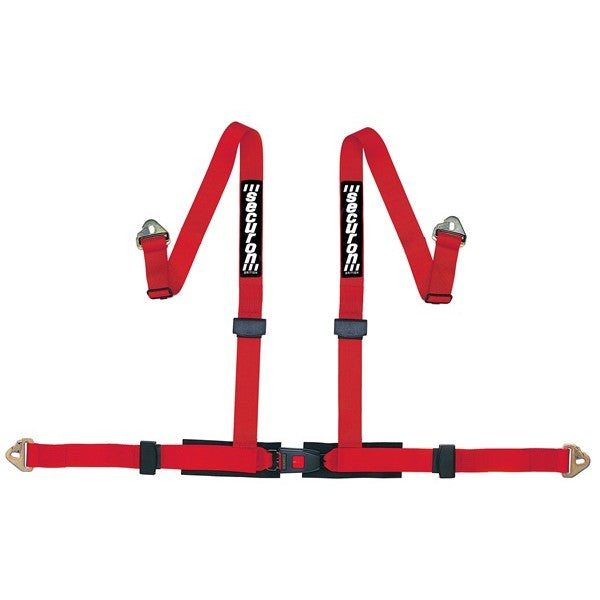

| Snap-hook ends | Hooks attach to compatible eye bolts. | Hook/eye size, orientation and retention. | Hook side-load or unapproved eye. |
| Bolt-in ends | Tabs clamp directly at anchorages. | Bolt grade, spacer and swivel freedom. | Webbing twist or sharp bend. |
| Wrap-around shoulders | Webbing wraps an approved harness bar. | Bar diameter, angle and wrap method. | Using seat frame or roll-cage tube not approved. |
The intended rule set defines what can be used
Road approval, track-day rules and formal motorsport regulations are different. An event may require a current homologation label, a defined number of points and a replacement date. A road vehicle may need approved restraint type and retain functioning original supplementary systems.
Check the current rules of every intended use before purchase and again before an event.
The seat determines occupant and strap location
A harness-compatible seat controls the pelvis and torso and provides shoulder openings at suitable height and spacing. Routing shoulder straps around a normal head restraint can separate them or load the seat frame unpredictably. Reclining mechanisms may not be rated for harness loads.
Use seat, side mount, runner and harness combinations supported by engineering evidence.
Selection covers occupant, approval and anchorage
| Selection point | Why it matters | Evidence | Mismatch consequence |
|---|---|---|---|
| Intended use/rules | Defines approval, points and age limits. | Current road/event regulations. | Rejected or unsafe installation. |
| Occupant/seat | Controls strap path and adjustment range. | Seated fit with full equipment. | Soft-tissue load or strap escape. |
| Shoulder anchorage | Sets spine load and rearward restraint. | Harness maker angle/position data. | Compression or excessive stretch. |
| Lap anchorage | Must load the pelvis from correct direction. | Vehicle/harness installation data. | Abdominal loading or submarining. |
| End fitting | Must articulate and retain at the anchor. | Hook, tab, eye and bolt specification. | Side load or detachment. |
| SRS/road integration | Original airbags and warnings may expect standard belt. | Vehicle engineering assessment. | Faults or altered crash performance. |
Shoulder-belt angle controls spinal loading
Straps generally run rearward close to the shoulder line within limits defined by the harness and rule set. A steep downward route can compress the spine in a frontal impact; a rising or widely separated route can permit movement. The anchor distance also affects webbing stretch.
Measure with the actual seat, occupant and adjustment rather than copying another car.
Lap belts belong low across the pelvis
The iliac crests can carry restraint load better than the abdomen. Lap straps should approach from the approved rearward/downward direction, remain free of seat edges and tighten low. Buckle position and adjusters must not sit on bone, seat openings or hard trim.
A loose lap belt lets the body move before restraint and increases submarining risk.
Four-point systems need explicit anti-submarining consideration
Without a crotch strap, the torso can rotate and the pelvis can move forward under the lap belt in some impacts. Some four-point road systems use engineered features to manage this; motorsport rules may instead require five or six points. Do not assume every four-point product is suitable for every fixed racing seat.
Follow the harness, seat and governing-rule combination exactly.
Anchorage structure carries crash-scale loads
| Anchorage finding | Why it matters | Required response | Unsafe shortcut |
|---|---|---|---|
| Existing approved belt point | May provide engineered structure and thread. | Confirm permitted shared/dedicated use. | Assume every factory point suits harness angle. |
| Thin floor sheet | Can tear around a small bolt. | Use specified reinforcement/engineering. | Fit a hardware-store washer. |
| Corrosion near anchor | Reduces load-bearing continuity. | Repair and assess prescribed structure. | Hide with backing plate. |
| Harness bar | Can provide shoulder route if rated. | Verify bar, mounts and wrap approval. | Use arbitrary cage or brace tube. |
| Seat/runner attachment | Some belts load through seat structure. | Confirm combined seat/anchor design. | Attach to moving runner without approval. |
| New drilled location | May intersect services or weak geometry. | Engineer position, plate and protection. | Drill by convenience. |
Snap hooks and eye bolts must articulate correctly
The hook should close completely on the specified eye and pull in its designed plane. Eye-bolt thread, shoulder seating, spacer and orientation matter. A hook bearing across an eye's edge can side-load both parts.
Use safety clips or retainers supplied for the system and do not mix eye bolts of unknown grade.
Wrap-around installation is a defined webbing pattern
Multiple passes through the adjuster lock the strap around an approved bar while preserving load direction. Too few turns, twisted webbing or a tail that is too short can slip. Bar diameter and distance from the seat must remain within product rules.
Follow the illustrated harness instructions exactly and inspect the wrap from both sides.
Original airbags and pretensioners cannot be ignored
Vehicle crash algorithms assume particular belts, load limiters, seat positions and occupant movement. Removing an original belt can illuminate the SRS warning, disable functions or change airbag interaction. A harness can hold the torso where an unmodified airbag was not designed to meet it.
Obtain competent vehicle-specific engineering and do not use resistors to disguise restraint faults.
Installation begins with a complete restraint plan
Establish rules and structure
Confirm approval, seat, anchor points, angles, hardware and SRS strategy before drilling or removal.
Fit without twists or abrasion
Route each strap flat through the intended seat opening and away from edges and heat.
Adjust on the actual occupant
Set seat position, clothing, helmet and head-and-neck restraint before final strap length.
Fasteners and backing plates form one engineered joint
Use the specified bolt grade, thread engagement, spreader plate, spacer and locking method. Protect drilled steel from corrosion and seal the body without trapping water. Do not weld near webbing, fuel or electrical systems.
Tighten with calibrated tools while allowing end fittings to align as designed.
Webbing must remain flat and protected
A twist narrows the loaded width and changes how the adjuster holds. Seat-shell holes need smooth protected edges and sufficient size so webbing does not saw against them. Keep straps away from exhaust heat, battery acid, oil, sharp trim and seat mechanisms.
Do not sew, knot, dye or shorten webbing outside the approved product method.
Occupant fitting is a repeatable procedure
Sit fully back with pelvis against the seat, position lap straps low and tighten them first, then shoulders evenly. The buckle should remain central and releaseable. Excess tails should be stowed by the product method without knots or loose ends near controls.
Another occupant or seat position requires a new fit check.
Pre-use inspection protects against hidden weakness
Check labels, webbing edges, stitching, adjusters, buckle action, hooks, eyes, bolts and surrounding structure. Reject cuts, fraying, melted fibres, chemical staining, deployed stretch indicators, corrosion or looseness. Confirm no strap has become trapped behind the seat.
Clean only by the harness instructions; solvents and heat can weaken fibres.
Crash loading and service life require replacement
A harness can stretch and hardware can deform during an incident without obvious visual damage. Replace after crash loading according to the rules and manufacturer. Competition homologation may impose a date limit even when condition appears good.
Keep purchase, installation and event inspection records with label details.
Roadworthiness checks remain applicable
Current UK MOT guidance examines fitted seat-belt anchorages, security, webbing, buckle, operation and whether the belt is an appropriate type; original SRS faults can also be major defects. Passing an inspection does not itself prove competition compliance or optimum crash engineering.
Confirm road legality before replacing any statutory original restraint.
Practical competition-harness FAQs
Q: Is a four-point harness automatically safer than a standard belt?
A: No. Seat, geometry, approval and crash-system integration determine safety.
Q: Can shoulder straps wrap around a head restraint?
A: No. Use the approved seat openings and anchor system.
Q: Where should the lap belt sit?
A: Low and tight across the pelvis, not the abdomen.
Q: Can straps anchor to seat runners?
A: Only where the complete engineered installation explicitly permits it.
Q: Are snap hooks universal?
A: No. Match hook, eye bolt, orientation and load specification.
Q: Can a thin floor use a large ordinary washer?
A: No. Use the required engineered reinforcement.
Q: Why do shoulder angles matter?
A: They affect spinal compression, strap retention and forward movement.
Q: Can an SRS warning be bypassed with a resistor?
A: No. Preserve and diagnose the restraint system properly.
Q: May twisted webbing be tightened flat under load?
A: Remove the twist before use.
Q: Does one adjustment fit every driver?
A: No. Refit for occupant, seat position and equipment.
Q: Should a harness be replaced after a crash?
A: Yes, according to its maker and governing rules.
Q: Does MOT acceptance prove motorsport legality?
A: No. Roadworthiness and competition approval are separate.
Q: What proves a sound system?
A: Approved compatible parts, engineered anchors, correct fit and current inspection.
