Headlight Motor

A levelling motor changes vertical aim inside the lamp

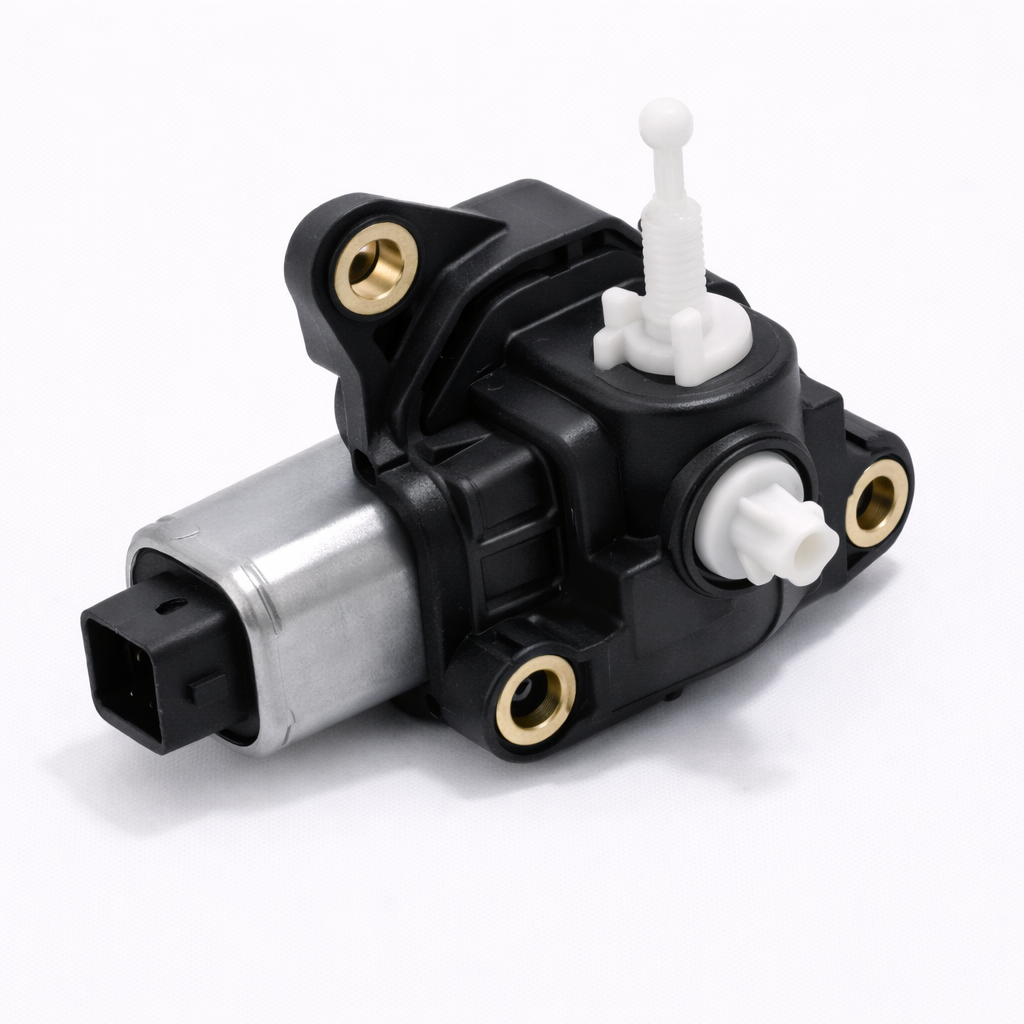

A small electric motor and reduction gear move a screw, rack or ball-ended shaft connected to the reflector or projector carrier. The lamp pivots around other adjuster points, changing the dipped-beam height without changing its optical cutoff design. Travel is deliberately limited to protect the mechanism and oncoming drivers.

The actuator cannot convert a left-hand-drive beam pattern to right-hand-drive or repair a damaged lens and reflector.

Manual and automatic systems command movement differently

Vehicle load changes the reason levelling is needed

Passengers, luggage or trailer nose weight can lower the rear suspension and raise the dipped beam, increasing glare. Manual systems require the driver to select the handbook position. Automatic systems infer attitude from suspension height and other data, but still need a correct mechanical base aim.

A levelling system cannot compensate for overloaded suspension, broken springs, incorrect tyre pressure or an insecure headlamp.

Part matching includes the complete optical and control variant

Actuator feedback can be analogue, stepped or networked

Simple manual units may use a reversible motor with internal position feedback. Others contain stepper motors whose position is inferred from commanded steps, or electronics communicating with a lamp module. Pin count and case shape do not reveal these behaviours.

Never apply battery voltage to unknown terminals. Use the wiring diagram and approved actuator test.

Symptoms overlap with mechanical and sensor faults

Mechanical damage must be corrected before a new motor is loaded

Inspect the lamp's mounting tabs, manual adjusters, pivot points, reflector carrier and motor socket. A seized screw or cracked ball cup can make the motor stall or disengage. Replacement lamps may be supplied with transport locks that need removal in a defined order.

Do not glue a safety-critical internal linkage or force the reflector by hand through its travel.

Height sensors and links are frequent automatic-levelling causes

A sensor attached to a suspension arm reports body position through a short link. Corrosion can seize the pivot, road debris can break the link and suspension work can refit it on the wrong side of the arm. The value may then be plausible but inverted.

Inspect wiring, bracket angle and live data at the stated ride height. Never work beneath air suspension without mechanically supporting the vehicle and disabling automatic level changes.

Power-down depends on lamp technology

Halogen systems can be hot and remain supplied through body-control electronics. Xenon igniters generate high starting voltage, while LED lamps can contain internal power modules and capacitors. Switch off, isolate and wait for the model-specific discharge period before opening covers.

Do not test xenon output with exposed connectors. Only trained personnel should perform high-voltage lamp diagnostics.

Access should preserve lamp sealing and optics

Clean dirt from the rear cover area, remove trim by its fixings and protect painted surfaces. Note vent tubes, gaskets and desiccant components. Oils from fingers can damage hot bulbs, while dust and fingerprints on optical surfaces alter light distribution.

If the entire lamp must be removed, mark panel gaps only as a reassembly guide; final beam aim still needs measurement.

Correct engagement is the critical installation step

Position the reflector support

Use the stated adjuster position or support method so the motor ball aligns without over-travelling the carrier.

Engage the output fully

Insert and rotate or clip the actuator as illustrated. A unit can appear seated while its ball sits beside the socket.

Lock the housing and connector

Confirm tabs, screws, secondary connector locks and seals are complete before applying power.

Do not use electrical movement to force a misaligned linkage

Repeatedly commanding the motor when it clicks or stalls can strip gears and overheat its driver. Switch off, remove it and inspect engagement. Do not pull the reflector into place by turning a live motor with pliers.

Manual adjustment screws also have travel limits. Back away if resistance rises at an end stop.

Water ingress needs a root-cause repair

Condensation can enter through a cracked housing, displaced rear cap, blocked vent or damaged connector seal. Drying and replacing the motor alone leaves the path open. Inspect corrosion on terminals and module boards, and follow the lamp maker's repair limits.

Do not seal designed ventilation openings with silicone. Pressure cycling can then draw moisture through another joint.

Coding and basic setting establish the control reference

Some actuators work immediately; some lamp modules require variant coding; automatic systems often require a basic setting with the vehicle at defined ride height and load. Save the original scan and coding before replacement, then use a compatible diagnostic procedure.

Stable battery support may be required. Do not select a calibration for a different suspension or headlamp technology.

Base beam aim is a measured workshop adjustment

Set tyre pressures, suspension height, fuel/load and manual levelling switch as the manufacturer requires. Place the vehicle on a level approved bay and use a calibrated headlamp aimer positioned to the lamp centre. Adjust vertical and horizontal screws in the proper order.

A wall can reveal a gross fault but does not provide the optical alignment and tolerance needed for final UK roadworthiness.

Operational verification checks the whole system

Run the actuator or levelling test, watch both beams and compare live sensor values. Turn steering where adaptive functions require a controlled check, ensuring wheels and lamps are clear. Refit all covers, then inspect the beam after a short drive over safe conditions.

Confirm no warning returns and that neither lamp dazzles oncoming road users.

UK MOT inspection makes aim and levelling faults safety-relevant

Dipped-beam aim, operation and required levelling equipment are part of roadworthiness inspection according to vehicle applicability. A motor that merely makes noise does not prove the lamp aims correctly. Broken mounts, unsuitable light sources and wrong beam image also need correction.

Do not drive at night with a dangerously high, low or unstable beam. Arrange repair and measured alignment first.

Practical headlight-motor FAQs

Q: Does the motor create the RHD beam pattern?
A: No. The lamp optics create the pattern; the motor changes vertical aim.

Q: Are left and right motors always the same?
A: No. Match side, lamp reference, connector and travel.

Q: Does a clicking sound prove the motor is faulty?
A: It may indicate stripped gears, but a seized or detached lamp linkage can cause it.

Q: Why are both beams too high?
A: Check load, base aim, height sensors and control calibration before assuming two motors failed.

Q: Can battery voltage be applied to test it?
A: Only through the exact approved pinout and test method.

Q: Is a xenon lamp safe when switched off?
A: It can retain or generate hazardous voltage; follow the isolation and discharge procedure.

Q: Can the reflector be pulled onto the motor ball?
A: Use the stated support/adjuster method and never force the carrier.

Q: Must a new actuator be coded?
A: Requirements vary from none to coding and automatic-levelling basic setting.

Q: Can beam aim be set against a garage wall?
A: A wall is only a rough check; final aim needs approved equipment and setup.

Q: Why did the new motor fail again?
A: A seized adjuster, water entry, wiring fault or wrong part may have overloaded it.

Q: Does a startup sweep prove correct aim?
A: No. It shows movement, not measured base alignment.

Q: What should be checked after suspension work?
A: Height-sensor links, ride height, live values and levelling calibration.

Q: When should the vehicle not be driven at night?
A: When the beam is dangerously high, low, unstable or required lighting has failed.
