Hydraulic oil is both a power-transfer medium and a machine component
Pressure acts through fluid to move an actuator, but the oil also separates sliding surfaces, carries heat to the reservoir and transports contamination toward filters. Its viscosity controls leakage, friction and film thickness across temperature.
A suitable fluid is therefore defined by a complete performance specification, not by a single viscosity number or colour.
Hydraulic-fluid families in this category
| Fluid family | Typical application | Key selection basis | Do not assume |
|---|---|---|---|

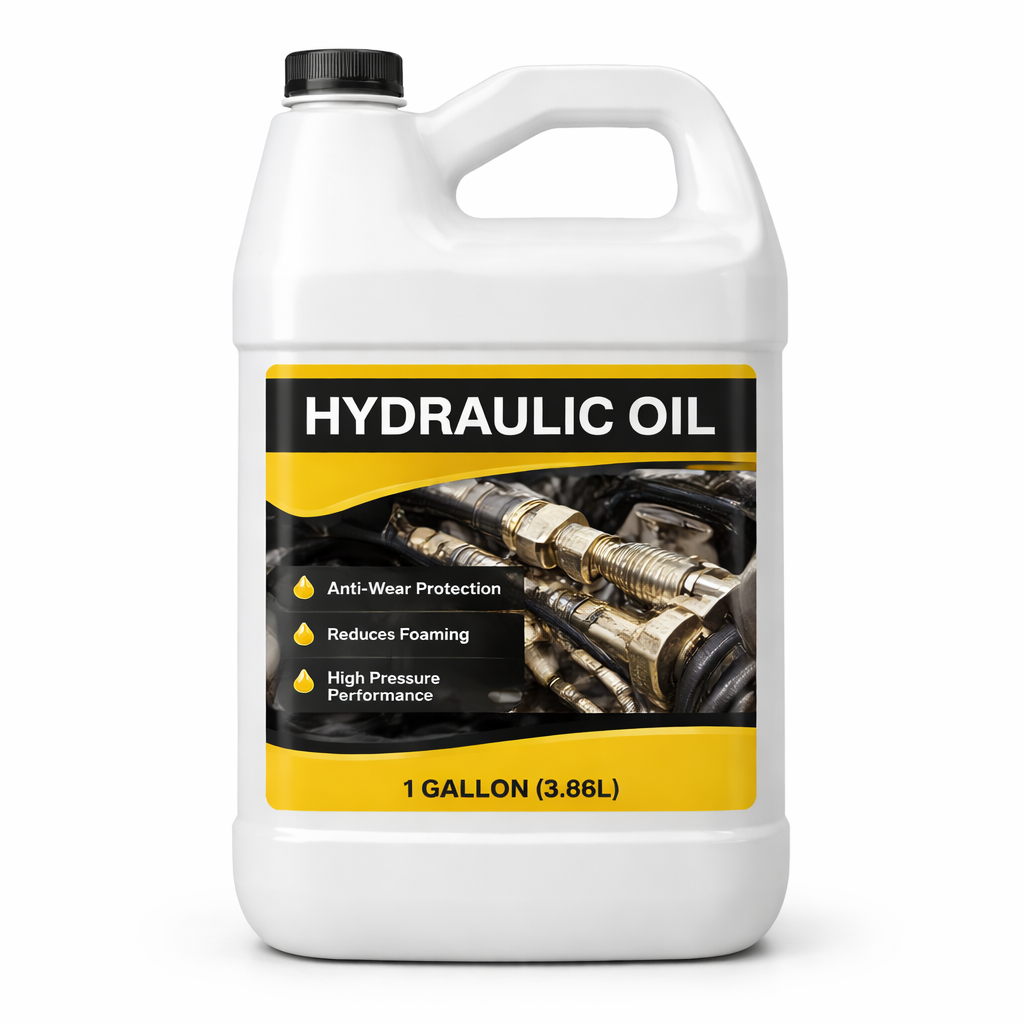

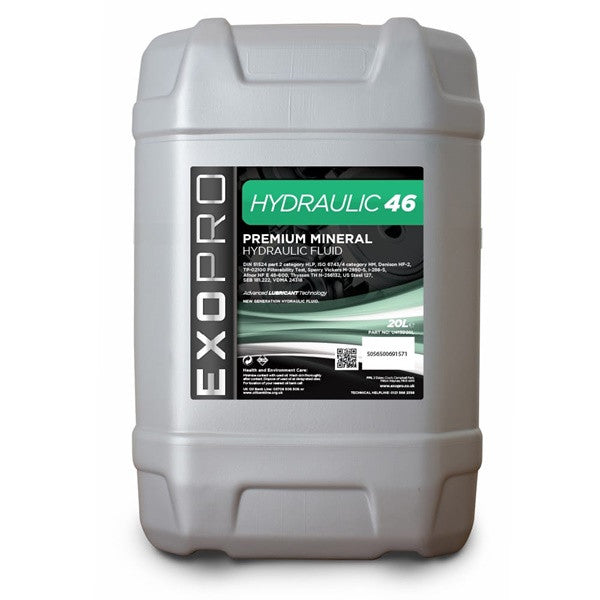

| Industrial anti-wear hydraulic oil | Workshop, plant and fixed/mobile machinery. | ISO viscosity grade, additive class and equipment standard. | Suitable for vehicle central hydraulics. |

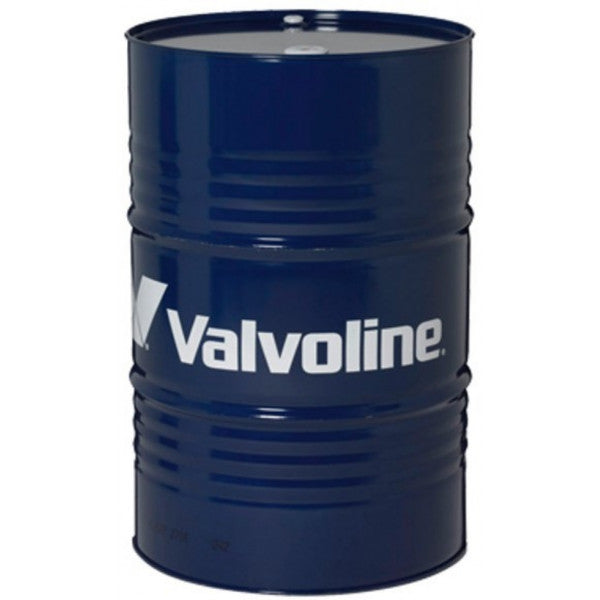

| High-viscosity-index hydraulic oil | Wide ambient/operating temperature range. | Viscosity-temperature behaviour and shear stability. | Equivalent to any oil with the same ISO grade. |

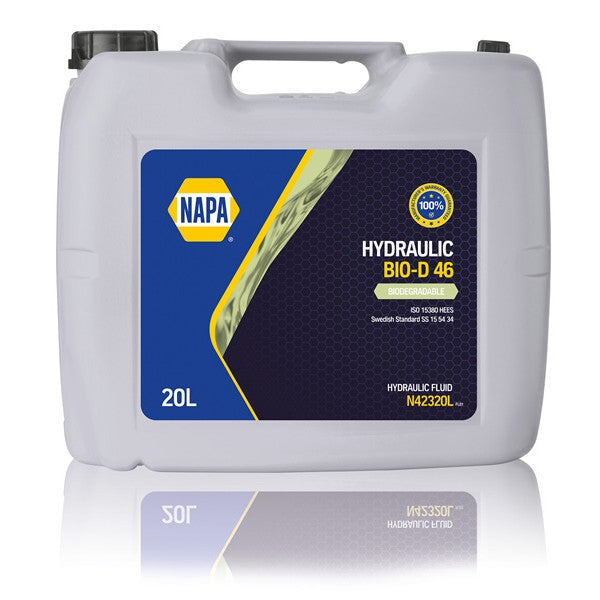

| Biodegradable hydraulic fluid | Environmentally sensitive operations where approved. | Base type, compatibility, oxidation and system approval. | Can be mixed with mineral oil without affecting properties. |

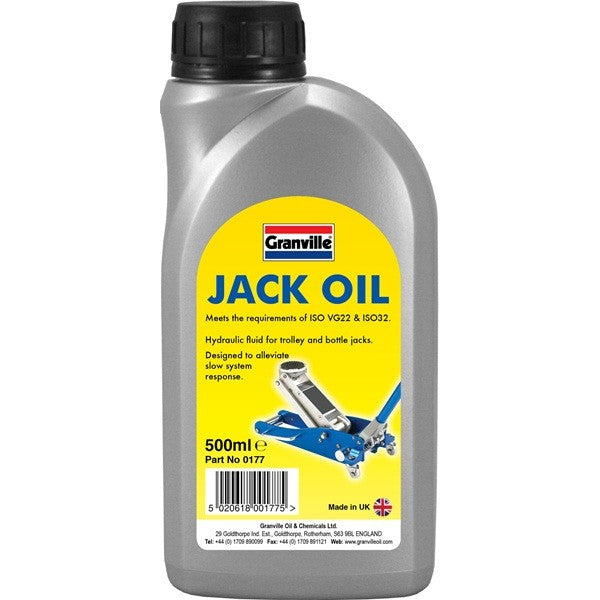

| Jack oil | Specified trolley/bottle jacks and lifting equipment. | Jack maker's viscosity and seal requirements. | Brake fluid or engine oil is acceptable. |

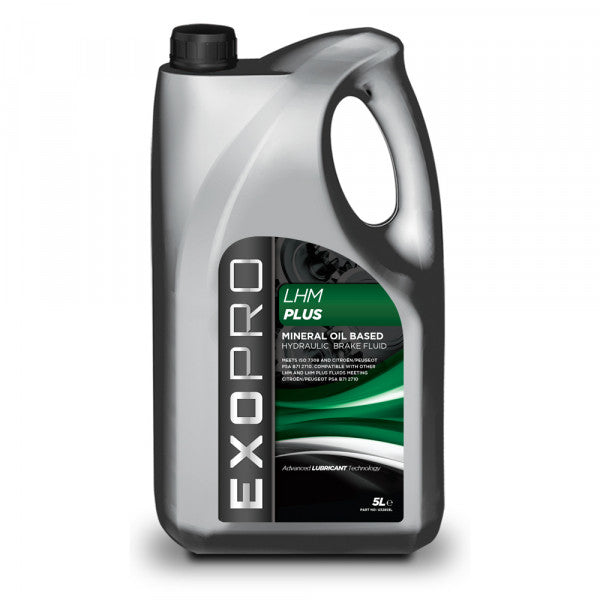

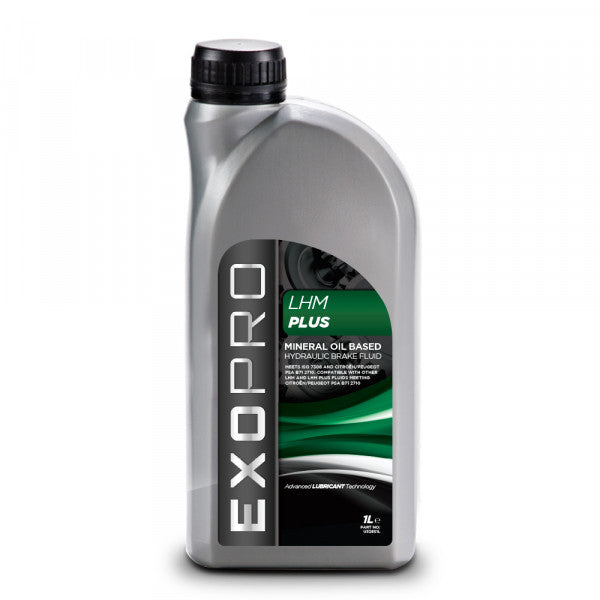

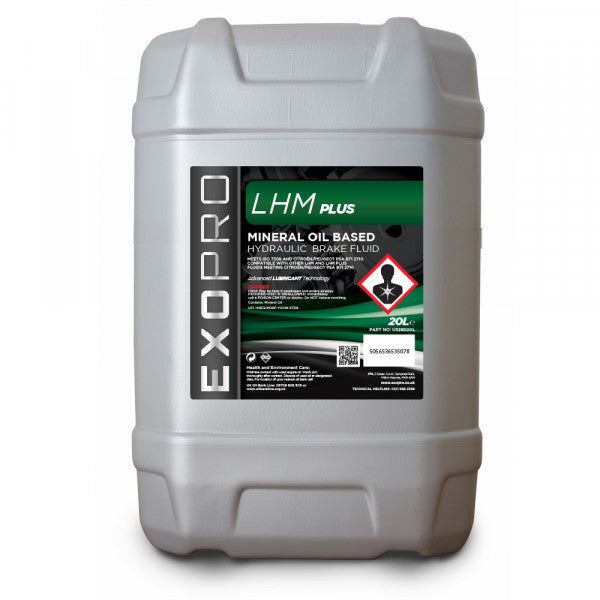

| LHM-type mineral hydraulic fluid | Named vehicle suspension/brake/steering systems. | Vehicle requirement and product approval. | Compatible with conventional brake fluid. |

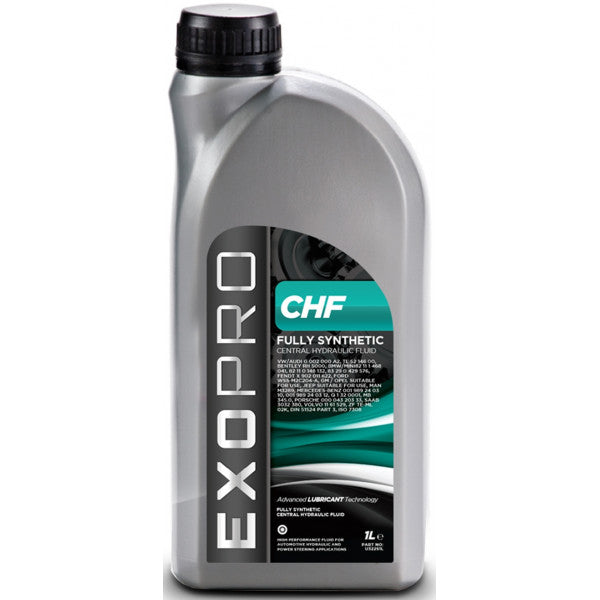

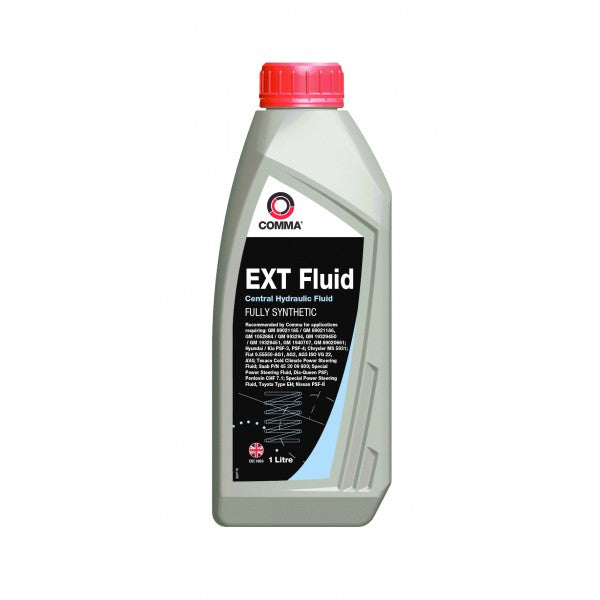

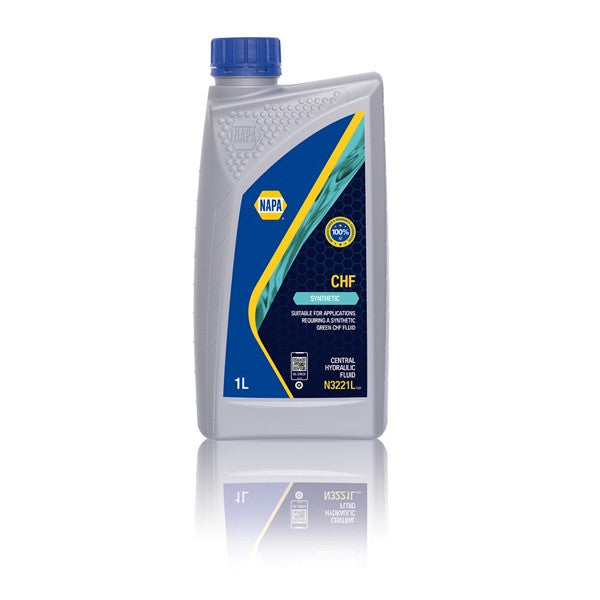

| CHF/central hydraulic fluid | Named steering, suspension, roof or central systems. | Exact manufacturer approval and temperature range. | All green fluids are interchangeable. |
| Power-steering fluid/ATF where specified | Vehicle steering systems. | Written vehicle specification. | Universal steering compatibility. |
| Additive/stop-leak product | Only systems explicitly permitting it. | Manufacturer permission and compatibility. | It is replacement hydraulic oil. |
Viscosity sets the balance between sealing and flow
Oil that is too thick at start-up can starve the pump, increase pressure loss and slow actuators. Oil that is too thin at operating temperature leaks internally, weakens the lubricating film and raises wear. The equipment maker selects a usable viscosity window.
ISO VG numbers describe viscosity classes around a reference temperature; they do not define additives, approvals or cold-cranking behaviour.
Viscosity index and temperature range
A high viscosity index means viscosity changes less across temperature, useful for equipment moving from cold start to hot duty. VI improvers can shear in some severe systems, so product design and approval matter.
Reservoir temperature is not always the hottest local oil temperature. Pumps, throttling valves and actuators can create heat peaks.
Additive systems
Anti-wear additives protect pumps under boundary lubrication. Rust and oxidation inhibitors slow corrosion and ageing; anti-foam and air-release properties control entrained air; demulsibility helps water separate in systems designed for removal. Detergent/dispersant fluids intentionally handle contamination differently.
Mixing oils can upset these balances even when no immediate sludge appears. Laboratory compatibility is more than a jar clarity test.
Specifications to confirm
| Property | Why it matters | Evidence source |
|---|---|---|
| Viscosity grade/range | Pump suction, leakage and film thickness. | Equipment manual and fluid data sheet. |
| Manufacturer approval | Confirms tested application requirements. | Written approval, not “suitable for” wording alone. |
| Base-fluid type | Seal, paint, hose and mixing compatibility. | Technical data and system requirement. |
| Wear performance | Protects pump/valve materials. | Required hydraulic-fluid classification/tests. |
| Low-temperature fluidity | Cold start and steering/actuator response. | Published viscosity/pour-point data and approval. |
| Air release/foam control | Prevents compressibility, noise and cavitation. | Product test data. |
| Water behaviour | Separation or dispersion for system design. | Fluid type and maintenance plan. |
| Environmental classification | Biodegradability/toxicity requirements. | Verified standard and site risk assessment. |
Vehicle-specific fluids require exact approval
Central hydraulic circuits may operate steering, self-levelling suspension, brakes, roof mechanisms or other actuators from one reservoir. Seals and valves are designed for a named fluid. Mixing conventional brake fluid with mineral hydraulic fluid can cause major seal damage and loss of function.
Use VIN and reservoir documentation. Never select by cap colour, fluid colour or a forum description.
Biodegradable does not mean harmless or universal
Environmentally considerate fluids may be synthetic ester, polyalphaolefin or vegetable-based with different oxidation, water and seal behaviour. They still require spill prevention and proper disposal.
Conversion can require draining cylinders, hoses and coolers, changing filters and checking material compatibility. Residual mineral oil may reduce the claimed environmental performance.
Contamination is a primary hydraulic failure driver
Hard particles score pump surfaces and block proportional valves. Water corrodes, reduces film strength and accelerates additive depletion. Air causes spongy response, noise and micro-dieseling. Wrong fluid is chemical contamination.
Cleanliness targets and filter ratings are system-specific. A clean-looking funnel is not controlled transfer equipment.
Read symptoms as system evidence
| Symptom | Fluid-related possibilities | Other checks | Response |
|---|---|---|---|
| Pump whine | Low level, air, wrong viscosity, blocked suction. | Leak, filter, hose collapse and pump wear. | Stop repeated operation and diagnose. |
| Slow when cold | Oil too viscous or unsuitable low-temp performance. | Pump speed, valve and mechanical load. | Verify specification, do not thin casually. |
| Weak when hot | Oil too thin, degraded or aerated. | Internal leakage and pump wear. | Measure pressure/flow at temperature. |
| Foam | Air leak, overfill, wrong/mixed oil or poor return. | Reservoir baffles and return position. | Correct source before bleeding. |
| Milky appearance | Water emulsion or fine entrained air. | Settling/sample test and ingress path. | Identify before changing fluid. |
| Dark/burnt oil | Oxidation and overheating. | Cooler, duty cycle, relief valve and deposits. | Find heat cause and assess full system. |
| Repeated seal leaks | Wrong fluid, pressure spikes or contamination. | Rod damage, breathers and installation. | Do not keep replacing seals alone. |
Sampling before a fluid change
Take a representative sample from a live zone using a clean method, not only sludge at a drain plug. Record hours/mileage, temperature, top-ups and product. Laboratory analysis can assess viscosity, water, wear metals, oxidation and particle contamination.
Use trend data where possible. A single result without baseline and limits needs expert interpretation.
Storage and transfer cleanliness
Keep drums and containers sealed, dry and correctly labelled. Store within temperature and shelf-life guidance. Use dedicated filtered transfer pumps and clean couplings; colour-coded equipment is helpful only if identity controls are enforced.
Never use an open jug previously used for coolant, brake fluid or solvent. Do not top up from a container with broken seal and unknown history.
Changing versus flushing
A drain may remove only reservoir oil while cylinders, hoses and coolers retain a large volume. A flush can mobilise debris or mix incompatible fluids if performed without a system procedure. Decide from contamination cause, compatibility and equipment guidance.
Change filters and clean strainers/breathers where specified. Preserve a sample of failed fluid before disposal.
Filling and bleeding
Prevent pump dry-running
Pre-fill or prime by the maker's method. Add clean fluid slowly to reduce air entrainment. Do not hold steering or cylinders against relief while trying to bleed.
Follow the defined actuator sequence
Some systems bleed with power off, then at low pressure; others need diagnostic valve activation. Maintain the specified reservoir level throughout and allow foam to settle. Recheck at the stated temperature and actuator position.
Hydraulic injection and stored-energy hazards
A pinhole jet can penetrate skin and cause severe internal injury while appearing small. Never search for leaks with a hand; use card or approved detection equipment from a safe position. Suspected injection requires immediate emergency medical treatment and identification of the fluid.
Accumulators and raised cylinders store energy after pumps stop. Isolate, depressurise and mechanically support loads according to the machine procedure.
Fire, spill and environmental controls
Hydraulic oil can burn on hot surfaces and create slip hazards. Repair leaks, protect ignition sources and use compatible absorbents. A fine spray near exhausts is urgent.
Prevent entry to drains or soil, follow site spill plans and send used oil through authorised collection/recycling. Never mix it with brake fluid, coolant or solvents in the waste container.
Practical hydraulic-oil FAQs
Q: Are ISO VG 46 oils all the same?
A: No. The grade addresses viscosity; additive class, base oil, approvals and temperature behaviour can differ.
Q: Can hydraulic oils be selected by colour?
A: No. Dyes are not controlled compatibility codes; use written specifications.
Q: Is brake fluid hydraulic oil?
A: It is a hydraulic fluid but chemically distinct; never put it into a mineral-oil system unless explicitly specified.
Q: Can LHM and CHF be mixed?
A: Do not assume so. Use the exact vehicle approval and follow a documented conversion/flush method if applicable.
Q: Why does the pump whine?
A: Low level, air ingress, wrong viscosity, suction restriction or pump wear are common causes.
Q: Does low level mean the oil was consumed?
A: Hydraulic systems normally retain fluid; inspect for leaks or incorrect previous filling.
Q: What causes milky oil?
A: Water emulsion or very fine air can create milkiness; identify which before service.
Q: Can a stop-leak additive repair seals?
A: Use only with explicit equipment approval; swelling agents can damage other seals and valves.
Q: Is biodegradable oil safe to spill?
A: No. Prevent spills and dispose of it properly; biodegradability has defined conditions and limits.
Q: May oil be poured through any funnel?
A: Use clean dedicated sealed/filtered transfer equipment to prevent particle and chemical contamination.
Q: How is a hydraulic leak found safely?
A: Depressurise where possible and use card or approved detection methods—never bare hands.
Q: What should be replaced after contamination?
A: Follow system guidance for oil, filters, breathers, hoses/coolers and components that cannot be cleaned.
Q: What proves the change is complete?
A: Correct fluid identity/level, controlled cleanliness, successful bleed, normal pressure/temperature and no leaks or foam.
