JTAPE
JTAPE supplies specialist tapes and films used during vehicle masking, refinishing, trim work and workshop protection. The range here includes smooth-edge foam and perforated trim-lifting tape, orange fine-line widths from 3 mm to 12 mm, 80-degree masking tape, double-sided mounting tape, logo and refit tapes, premium cloth or duct tape, and clear masking film. Braided windscreen-removal wire is also represented. Product names may repeat across individual widths and full-box quantities, so retain the complete JTAPE reference.
Choose tape by the surface, process, temperature, curve, edge and removal window; width and colour alone do not define performance. The current AutoMotoPart selection contains 48 JTAPE items, led by 34 automotive masking and tape entries, 1 80 degree masking tape 18mm contains ax packs of 12 total 48 rolls entry, 1 80 degree masking tape 24mm entry, 1 80 degree masking tape 36mm- contains 4x packs of 6 so total 24 rolls entry. These JTAPE figures describe the range on this page rather than every product the brand may make elsewhere.
Confirm whether the task is paint-edge masking, soft-edge aperture masking, lifting a rubber trim, protecting a panel, holding a film, temporary workshop repair or permanent component mounting. Check backing and adhesive type, width, thickness, temperature exposure and duration, paint-system compatibility, outdoor or UV conditions and required peel behaviour. For double-sided tape, establish load, bonded area, surface energy, gap, environment and cure before relying on the attachment. Use the technical sheet for the exact JTAPE number rather than transferring values from another coloured tape.
Apply to a clean, dry and correctly cured surface at the stated temperature. Remove dust, polish, silicone, wax and incompatible cleaner residue without damaging fresh paint. Lay fine-line tape in a continuous controlled strip without over-stretching, press edges evenly and avoid blade work on finished panels. Respect booth-temperature and time limits, then remove at the angle and stage specified before paint hardens across the edge. Mounting tape must not replace clips, fixings or a safety-critical bond unless the documented application permits it. Test uncertain plastics, rubber and new coatings first. Store rolls flat or protected from dirt, moisture, heat and age as directed. The products below give a neutral guide to the current JTAPE selection, with final process settings taken from its product data.
Your Current Vehicle
Or
Select Your Vehicle
Popular Part Types
Only part types stocked for this brand are shown.
Car Parts Categories
Browse the main catalogue areas in which this brand has matching products.
Other popular manufacturers of aftermarket automotive parts
Explore established alternatives with related products in the current catalogue.
JTAPE: understand the range before choosing
JTAPE specialises in masking solutions for automotive refinishing and related industries. Its official range includes foam masking, trim-lifting and fine-line tapes, conventional automotive masking tapes, mounting products, protection tapes and films. The present selection reflects that breadth and also includes duct tapes, logo-replacement tape, clear masking film and windscreen-removal wire.
AutoMotoPart currently lists 48 JTAPE items. The largest JTAPE groups are 34 automotive masking and tape entries, 1 80 degree masking tape 18mm contains ax packs of 12 total 48 rolls entry, 1 80 degree masking tape 24mm entry, 1 80 degree masking tape 36mm- contains 4x packs of 6 so total 24 rolls entry. JTAPE totals can change, so a category count is orientation rather than proof that a particular reference suits a vehicle, workplace or job. The exact JTAPE listing, its current technical information and the item in front of you must agree.
What the JTAPE page actually covers
| Product group in this range | Current entries | Selection focus |
|---|---|---|
| Automotive masking and tape products | 34 | Match the exact masking, foam, fine-line, mounting or protection tape to its surface, temperature, dwell, paint process and removal method. |
| 18 mm 80°C masking tape box | 1 | For 18 mm 80°C tape, confirm roll length, pack quantity, bake duration, surface and removal window from the precise reference. |
| 24 mm 80°C masking tape | 1 | For 24 mm 80°C tape, distinguish width and pack format while preserving the same product-specific heat and dwell limits. |
| 36 mm 80°C masking tape box | 1 | For 36 mm 80°C tape, verify the full-box quantity separately from the tape's process specification. |
| Black duct tape reference | 1 | Use black duct tape only for tasks supported by its backing, adhesive, temperature and residue characteristics. |
| Silver duct tape reference | 1 | Check silver duct tape against the exact temporary repair or protection need; it is not automotive paint masking tape. |
| Logo replacement tape reference | 1 | For logo replacement, confirm substrate, badge area, tape thickness, bond line, preparation and cure. |
| 80°C masking tape full box | 1 | Treat full-box wording as quantity information and still verify the 80°C tape width, roll length and application limits. |
Forty-eight JTAPE entries are currently shown. Automotive masking and tape products form the main group, with repeated variants for 80°C masking tape, fine-line widths, mounting tape, duct tape and specialist trim or foam products. The frequent appearance of 12 mm, 24 mm, 36 mm and 50 mm confirms that width is a key ordering detail, but it must be paired with the JTAPE family and intended process.
Build a reliable shortlist
Begin with the edge or attachment being created. A hard colour-separation line, a soft aperture edge, a lifted window rubber and a bonded badge each require different tape behaviour. Note the substrate, paint age, oven cycle and time the tape will remain in place. Where a process involves fresh refinishing material, confirm its cure state before applying pressure-sensitive adhesive.
| Check | Why it matters | Useful evidence |
|---|---|---|
| Tape function | Masking, fine-line, foam, trim-lifting, mounting and duct products solve different problems | JTAPE family and exact reference |
| Surface | Paint, primer, plastic, rubber, glass and metal have different adhesion and marking risks | Clean test area plus the supported substrate list |
| Width and profile | Line radius, gap fill, trim depth and bonded area depend on physical form | Millimetre width, thickness, edge or foam construction |
| Temperature cycle | Peak temperature and exposure time can alter adhesive and backing | Product limit matched to the complete booth or bake schedule |
| Dwell and removal | Leaving tape too long or removing at the wrong cure stage can tear edges or leave residue | Technical sheet and paint-process timing |
| Bond duty | Permanent mounting needs load, environmental and surface preparation evidence | Component requirement, bond area and documented cure |
Do not substitute ordinary duct or packaging tape for a specialist paint edge. Conversely, a low-tack masking tape is not a structural mounting product. If the correct family will not adhere, investigate contamination, surface temperature, texture and cure rather than pressing harder or applying an unapproved adhesion promoter.
Fine-line tape for curves and colour separation
Orange fine-line tape appears here in 3, 6, 9 and 12 mm widths. JTAPE explains that fine-line products use different backings and adhesives for particular flexibility and temperature behaviour, so colour is a family clue rather than a universal specification. A narrow width follows a tighter curve more readily, while a wider strip can resist distortion on long lines; choose the geometry needed instead of cutting a roll on the panel.
Lay one continuous strip where possible, guiding it without excessive tension. Stretch changes width and can cause the tape to creep back from a corner. Press the paint-side edge evenly, overlap secondary masking away from the intended line and inspect for bridges over swages or rivets. Use scissors or a safe cutting surface rather than drawing a blade across finished paint.
Foam edges and perforated trim lifting
Smooth-edge foam tape masks apertures while helping produce a softer transition than a hard folded paper edge. Position it at the depth specified for the process; pushing it too far into a gap can expose an overspray line, while leaving it proud can obstruct paint flow. Keep door, bonnet and tailgate closing loads off foam unless the product process explicitly calls for the panel to be shut.
Perforated trim masking tape combines an adhesive section with a lifting edge placed behind rubber trim. The represented JTAPE 1055 reference is designed with several plastic-strip depths and perforations for hand tearing. Use a plastic tool where directed, avoid scratching glass or paint and do not over-stress aged rubber. Check that the trim returns to its natural position after tape removal.
80-degree tape, films and bake schedules
The current selection contains 80°C masking tape in several widths and box quantities. The temperature label is a limit within defined exposure conditions, not permission for any oven cycle. Compare actual panel temperature, duration and paint chemistry with the technical sheet. A booth air display may not describe the temperature at every surface or the total time adhesive remains heated.
Masking film protects larger areas but needs secure, compatible tape and controlled unfolding so contamination is not dragged across paint. Cut film away from the vehicle where practical, prevent loose sections entering extraction or contacting wet coating, and earth or manage static where the bodyshop process requires it. Remove tape and film as a planned sequence instead of tearing both across a fragile edge.

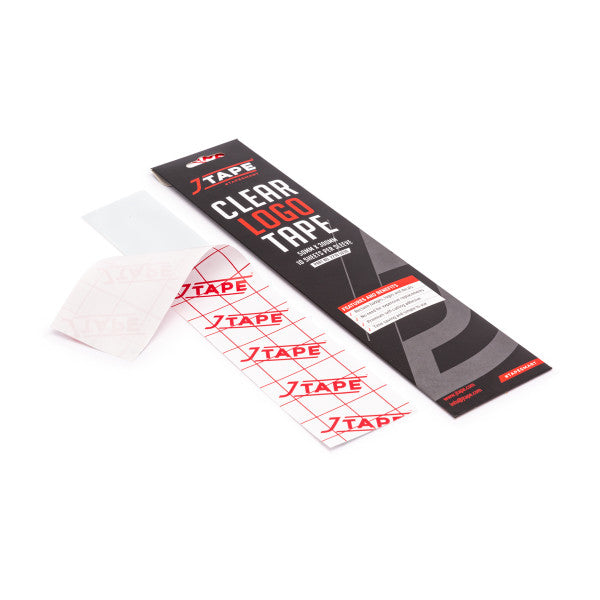

Mounting, refit and logo-replacement tape

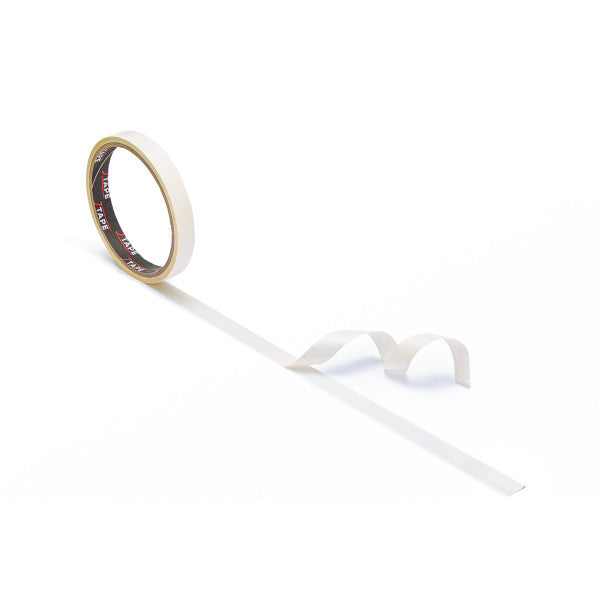

Double-sided mounting widths from 12 mm to 50 mm appear in the range alongside refit and logo-replacement tapes. Adhesive attachment depends on real contact area, surface cleanliness, temperature, pressure and time. A moulding with a warped back or missing mechanical clip may load the tape continuously, while a porous or low-surface-energy plastic may need a product-specific preparation route.
Remove old adhesive without gouging paint or changing the component's seating height. Dry-fit the part, mark alignment and make sure drainage, sensors and panel gaps remain clear before exposing the liner. Apply firm even pressure and observe the stated cure before washing or loading. Do not stack layers to fill a large gap or use mounting tape for number plates, badges or trim without confirming the legal and mechanical requirements of that attachment.
Duct, protection tapes and workshop discipline
Premium cloth or duct tapes in black, red, silver and white are represented, as are general black and silver duct products. These can support protection or temporary workshop tasks, but their strong adhesive and fabric backing do not make them suitable for a paint edge or indefinite exterior repair. Check residue, water, temperature and removal needs before placing them on a finished surface.
Keep tape edges clean by storing rolls in their packaging rather than on a dusty bench. A dirty edge creates a broken paint line. Mark opened rolls with the date where shelf-life control is required, avoid crushing the core and discard tape that has absorbed solvent or lost consistent unwind. For braided windscreen-removal wire, follow the glass-removal system instructions and protect occupants, paint, trim and hands from the tensioned cutting line.
From identification to a checked result
| Stage | Good practice for this range | Mistake to avoid |
|---|---|---|
| Define the edge or bond | Choose masking, fine-line, foam, trim-lifting, protection or mounting function | Starting from a convenient roll width |
| Check the surface | Confirm cure, cleanliness, material and a safe test location | Applying adhesive over polish, silicone or uncured paint |
| Match conditions | Verify temperature, dwell, paint system and environmental exposure | Using the temperature number without its time limit |
| Apply | Control tension, edge pressure, alignment and liner removal | Stretching tape around curves or cutting on the panel |
| Remove or cure | Follow peel angle and timing, or mounting-pressure and cure requirements | Leaving masking until paint bridges and tears |
Keep the JTAPE reference, width, booth cycle and application time on the job sheet until demasking and finish inspection are complete. This makes a lifted edge or residue issue traceable to surface condition, heat, dwell or technique rather than treating all tapes as the same material.
Reading real JTAPE references
The JTAPE names below are examples from the current range and show why the complete description matters. They are not universal JTAPE recommendations and should not be treated as a fitment list. Within JTAPE, a shared family word can conceal a different dimension, connector, material, pack format, operating condition or installation side.
| Example listing | What to verify beyond the name |
|---|---|
| Jtape 1013.1350 SMOOTH EDGE MASKING TAPE | Tape family, backing, adhesive, width and intended edge |
| Jtape 1055.5010 PERFORATED TRIM TAPE | Temperature limit, exposure duration and removal stage |
| 3mm Orange PVC Fine Line Tape | Trim depth, perforation, rubber condition and insertion method |
| Orange 3mm Fine line tape | Mounting thickness, bond area, surface preparation and cure |
| 6mm Orange PVC Fine Line Tape | Tape family, backing, adhesive, width and intended edge |
| 9mm Orange PVC Fine Line Tape | Temperature limit, exposure duration and removal stage |
| 12mm Orange PVC Fine Line Tape | Trim depth, perforation, rubber condition and insertion method |
| Jtape 1180.1850 80 DEGREE MASKING TAPE 18MM CONTAINS AX PACKS OF 12 TOTAL 48 ROLLS | Mounting thickness, bond area, surface preparation and cure |
The sample titles mix product references, individual rolls and full-box quantities. Treat packaging count separately from performance. A JTAPE 1180 width, a 1055 trim tape and a 2200-series duct tape have different jobs even when their titles all contain the word ‘tape’.
Common errors around JTAPE products
- Choosing JTAPE only by colour or width while ignoring the product family.
- Applying tape over polish, silicone, sanding dust or paint that has not cured sufficiently.
- Treating an 80°C label as unlimited exposure at that temperature.
- Stretching fine-line tape around a curve until it narrows and lifts.
- Cutting tape or film with a blade directly on finished vehicle paint.
- Leaving masking in place until the coating forms a hard bridge across its edge.
- Using duct tape for automotive colour separation or an indefinite exterior repair.
- Relying on mounting tape to replace missing clips or a safety-critical specified fastener.
JTAPE questions and answers
Q: What JTAPE products are represented here?
A: The range includes masking, fine-line, foam, trim-lifting, mounting, refit, logo, duct and protection tapes, films and removal wire.
Q: Does tape colour identify every specification?
A: No. It can indicate a family, but use the exact JTAPE number, backing, adhesive and technical data.
Q: Which fine-line width is best for curves?
A: Tighter curves often favour narrower tape, but line width, surface and product flexibility must all be considered.
Q: Can fine-line tape be stretched into position?
A: Use controlled tension only; over-stretching changes width and encourages lifting or snap-back.
Q: What does 80°C masking tape mean?
A: It refers to a product limit under defined time and process conditions, not unrestricted heat exposure.
Q: Can duct tape mask an automotive paint edge?
A: It is not a substitute for purpose-made automotive masking tape and may leave residue or a poor line.
Q: Why use trim-lifting tape?
A: It holds suitable rubber trim away from the paint edge so coating can reach beneath without masking the visible lip.
Q: Can masking tape be applied to fresh paint?
A: Only when the exact tape and paint process permit it and the coating has reached the required cure condition.
Q: How should old mounting adhesive be removed?
A: Use the component and paint-safe process specified for the job without gouging or contaminating the surface.
Q: Can double-sided tape replace a broken clip?
A: Not automatically. Restore the attachment method specified for the component unless documented data permits tape alone.
Q: When should masking be removed?
A: Follow the JTAPE and paint-system instructions for cure stage, pull angle and temperature.
Q: What should be recorded for a masking job?
A: Keep the JTAPE number, width, application time, surface condition, booth cycle and removal stage.
